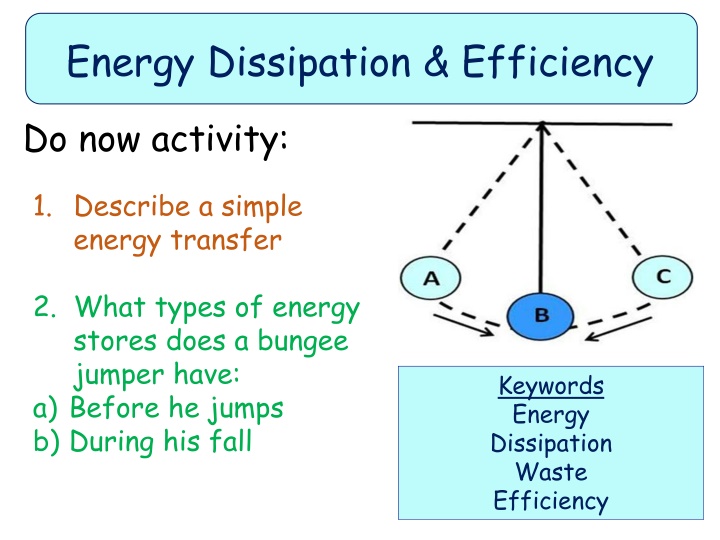

Energy Dissipation and Efficiency in Systems
Energy Dissipation & Efficiency
Keywords
Energy
Dissipation
Waste
Efficiency
1.
Describe a simple
energy transfer
2.
What types of energy
stores does a bungee
jumper have:
a)
Before he jumps
b)
During his fall
Do now activity:
GOOD PROGRESS:
State where energy is lost
in a particular system
Identify the
correct calculation to use on a particular
problem
OUTSTANDING PROGRESS:
To consider
the useful and wasted energy in a system and
complete c
alculations on
efficiency calculations
Progress indicators
A machine transfers energy for a purpose. Friction
between the moving parts of a machine causes the
parts to warm up. So, not all of the energy supplied
to the machine is useful.
Useful energy is energy
transferred to be where
it is wanted in the way
that is wanted
Wasted energy is the
energy that is not
usefully transferred
This energy is
dissipated
to the surroundings
Example:
Chemical
energy
store of
fuel
Useful energy transfer:
Wasted energy transfer:
•
Kinetic Energy
•
Gravitational Potential Energy
•
Thermal Energy
•
Sound Energy
Task:
Complete the flow diagrams on the
worksheet to represent the useful and wasted
energy transfers for the following systems:
Riding a bike
Running
Washing machine
When energy spreads out it gets less
and less useful
The thermal energy store of the
radiators gets transferred to the
thermal energy store of the air in
the room and eventually this is
transferred through the walls to
the air outside the house.
Thermal energy store of
the water decreases as it
transfers energy by
heating to the thermal
energy store of the
radiators.
Quick Check:
a)
Describe the energy transfers and changes to
energy stores of a pendulum as it swings from
one side to the middle, and then to the opposite
side.
b)
Explain why a swinging pendulum eventually stops
(4 marks)
(3 marks)
Self-assessment:
a)
As the pendulum is raised to point A the pendulum gains gravitational
potential energy. When the pendulum is released the gravitational potential
energy is transferred to the kinetic energy store of the object. As the
pendulum moves past point B to point C some of the kinetic energy is
transferred back to the gravitational potential energy store. Some energy
is lost from the pendulum to the surroundings as thermal energy, due to the
frictional force of air resistance between the pendulum and the surrounding
air.
b)
In air, the pendulum will eventually stop moving. As the pendulum is moving
through the air the frictional force of air resistance means that the kinetic
energy store of the object is slowly being transferred to the thermal
energy store of the surrounding air. Until eventually the kinetic energy
store is completely dissipated as thermal energy to the surroundings and
the pendulum comes to a stop.
Energy and efficiency
Some of the input energy
doesn’t get usefully
transferred as output
energy, this is the
wasted
energy
of the system.
Energy supplied to a
device is called the
input energy
The useful energy
transferred by the
device is
useful output
energy
Useful energy
= 80J of
light energy
Wasted energy
= 20J
of heat energy
Input energy
=
For any device that transfers energy:
Efficiency =
Useful output energy transferred by the device (J)
Total input energy supplied to the device (J)
Work out the efficiency for the following devices:
a)
A petrol engine is supplied with a total of 1000J of
chemical energy, 250J of this energy is usefully
transferred to kinetic energy.
b)
A diesel engine is supplied with 6000J of chemical energy
and usefully transfers 2100J of chemical energy to
kinetic energy.
c)
An electric motor uses 50J of electrical energy and
transfers 40J of useful energy
For any device that transfers energy:
Efficiency =
Useful output energy transferred by the device (J)
Total energy supplied to the device (J)
Work out the efficiency for the following devices:
a)
250J/1000J =
0.25
or (x 100) =
25%
b)
2100J/6000J =
0.35
or (x 100) =
35%
c)
40J/50J =
0.80
or (x 100) =
80%
Task:
Complete the worksheet on energy
efficiency calculations
Self-assessment:
1.
0.375 or 37.5%
2.
0.15 or 15%
3.
0.647 or 64.7%
4.
0.56 or 56%
5.
0.8 or 80%
6.
0.77 0r 77%
1.
An electric motor takes 1200J of electrical
energy and does 450J of work
2.
A cyclist has 200J of energy and does 30J of
work on his/her bike
3.
A petrol engine takes 3400J of chemical
energy and transfers 2200J of energy as
kinetic energy, 800J of energy as thermal
energy and 400J as sound energy.
4.
A rocket engine takes in 800J of chemical
energy and changes this into 450J of kinetic
energy and 350J of heat energy
5.
A jet engine gas turbine takes in 1200J of
chemical energy and give out 960J of kinetic,
180J of heat and 60J of sound energy.
6.
A TV takes in 700J of electrical energy and
gives out 300J of light energy, 240J of sound
energy and 160J of heat energy.
Task: Copy and complete the following table
:
Task: Copy and complete the following table
:
Self-assessment
60 J
60 %
75 %
160 J
420 J
580 J
325 J
175 J
20 J
8 J
142 J
108 J
Exam-style question
: Exit Card
Task:
Complete the past-paper question, as you
leave the room you will need to hand the question
to me.
I will mark it and grade it for next lesson.
1. The following diagram shows the energy
transferred each second by a television set.
i)
What form of energy is transferred as
waste energy by the television set?
ii)
What percentage of energy was wasted by
the television set?
iii)
Work out the efficiency of the television
set, as a percentage.
Electricity
500J
Heat
180J
Light
260J
Sound
60J
1. The following diagram shows the energy
transferred each second by a television set.
i)
What form of energy is transferred as
waste energy by the television set?
ii)
What percentage of energy was wasted by
the television set?
iii)
Work out the efficiency of the television
set, as a percentage.
Electricity
500J
Heat
180J
Light
260J
Sound
60J
Mark scheme for exit card:
i)
Heat energy
ii)
36%
of energy was wasted as heat
energy (180J/500J = 0.36, x 100 = 36%)
iii)
Useful energy = light and sound energy =
260J + 60J = 320J. 320J/500J = 0.64, x 100
=
64%.
1.
An electric motor takes 1200J of
electrical energy and does 450J of work
2.
A cyclist has 200J of energy and does
30J of work on his/her bike
3.
A petrol engine takes 3400J of chemical
energy and transfers 2200J of energy as
kinetic energy, 800J of energy as thermal
energy and 400J as sound energy.
4.
A rocket engine takes in 800J of chemical
energy and changes this into 450J of
kinetic energy and 350J of heat energy
5.
A jet engine gas turbine takes in 1200J of
chemical energy and give out 960J of
kinetic, 180J of heat and 60J of sound
energy.
6.
A TV takes in 700J of electrical energy
and gives out 300J of light energy, 240J
of sound energy and 160J of heat energy.
1.
An electric motor takes 1200J of
electrical energy and does 450J of work
2.
A cyclist has 200J of energy and does
30J of work on his/her bike
3.
A petrol engine takes 3400J of chemical
energy and transfers 2200J of energy as
kinetic energy, 800J of energy as thermal
energy and 400J as sound energy.
4.
A rocket engine takes in 800J of chemical
energy and changes this into 450J of
kinetic energy and 350J of heat energy
5.
A jet engine gas turbine takes in 1200J of
chemical energy and give out 960J of
kinetic, 180J of heat and 60J of sound
energy.
6.
A TV takes in 700J of electrical energy
and gives out 300J of light energy, 240J
of sound energy and 160J of heat energy.
Mark your work
