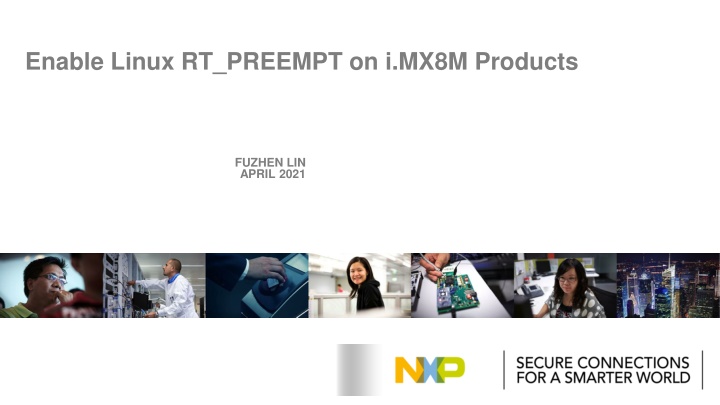

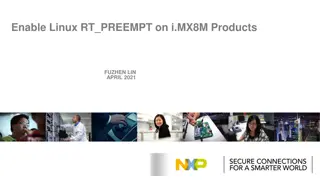

Enable Linux RT_PREEMPT on i.MX8M Products FUZHEN LIN APRIL 2021 COVER PAGE SUBTITLE PLACEHOLDER COMPANY CONFIDENTIAL

Feature Introduction Back Ground Linux kernel is not real time OS, while some applications is time sensitive tasks running in Linux environment, this request to extend the real time feature in common Linux kernel, and RT_PREEMPT is one of the methods to enable Linux kernel with real time processing requirement. But RT_PREEMPT is not accepted by kernel, so it needs extra effort to porting this patch-set to i.MX8M family products. Requirement This patch-set is based on L4.14.78 for i.MX8M products, customer need to apply patches based on this release. Enablement Customer need to prepare L4.14.78 environment, and then apply these patch-set, then do the latency test or other realtime tasks test. 1 CONFIDENTIAL AND PROPRIETARY

Feature Enablement Guide Apply patches and Compile from Source Code $cd ${YOUR_KERNEL_PATH} and copy the RT patches to the kernel path $git am LinuxRT_patches_4.14.78/*.patch Then rebuild the kenrel $bitbake c f compile linux $bitbake c deploy linux Note: the new image could be found at your yacto build folder: tmp/deploy/images/imx8mm/ How To Test with Linux RT_PREEMPT A simple tool to test the latency is cyclictest, the source code could be found on github You can build with cross-compile tool chain, and then copy to the target board, then run the cyclictest. For example: $./ cyclictest -p 90 - m -c 0 -i 200 -n -h 100 -q -l 1000000 2 CONFIDENTIAL AND PROPRIETARY

User Guide Name of Document URL Readme.txt Linux RT patch test on i.MX8MM.docx 3 CONFIDENTIAL AND PROPRIETARY

Software Source Code URL 0001-Apply-4.14.78-rt-patches.patch 0002-change-for-RT-linux.patch 4 CONFIDENTIAL AND PROPRIETARY

Products (Optional) Product Category MPU NXP Part Number URL i.MX 8M Mini https://www.nxp.com/products/processors- and-microcontrollers/arm-processors/i-mx- applications-processors/i-mx-8-processors/i- mx-8m-mini-arm-cortex-a53-cortex-m4- audio-voice-video:i.MX8MMINI MPU i.MX 8M Plus https://www.nxp.com/products/processors- and-microcontrollers/arm-processors/i-mx- applications-processors/i-mx-8-processors/i- mx-8m-plus-arm-cortex-a53-machine- learning-vision-multimedia-and-industrial- iot:IMX8MPLUS Linux BSP software Embedded Linux for i.MX Applications Processors https://www.nxp.com/design/software/embed ded-software/i-mx-software/embedded-linux- for-i-mx-applications-processors:IMXLINUX 5 CONFIDENTIAL AND PROPRIETARY

Tools (Optional) NXP Development Board i.MX 8M Mini EVKB URL https://www.nxp.com/design/development- boards/i-mx-evaluation-and-development- boards/evaluation-kit-for-the-i-mx-8m-mini- applications-processor:8MMINILPD4-EVK i.MX 8M Plus EVK https://www.nxp.com/design/development- boards/i-mx-evaluation-and-development- boards/evaluation-kit-for-the-i-mx-8m-plus- applications-processor:8MPLUSLPD4-EVK 6 CONFIDENTIAL AND PROPRIETARY
