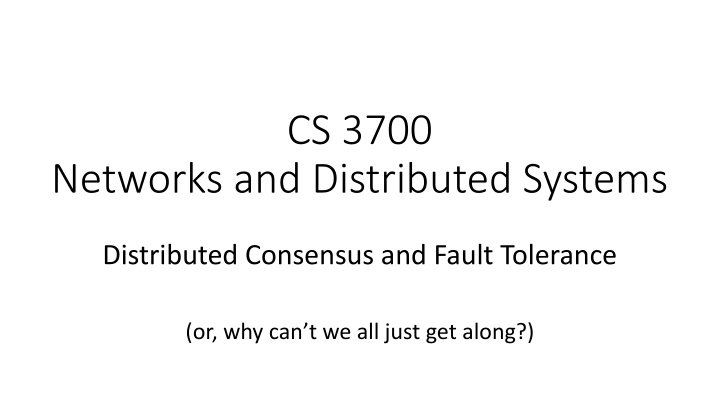

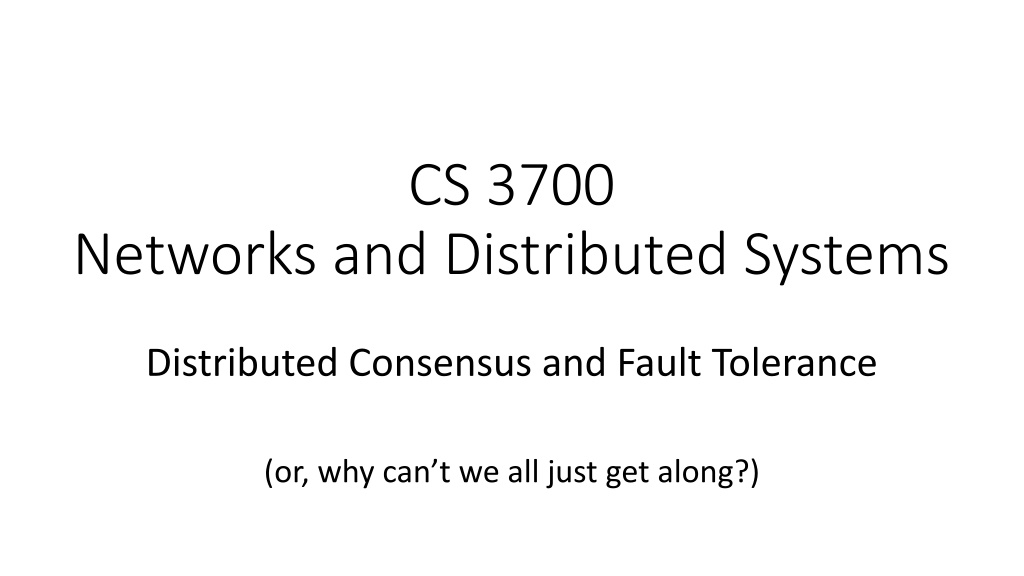

Distributed Systems and Fault Tolerance

CS 3700

Networks and Distributed Systems

Distributed Consensus and Fault Tolerance

(or, why can’t we all just get along?)

Black Box Online Services

Storing and retrieving data from online services is commonplace

We tend to treat these services as black boxes

•

Data goes in, we assume outputs are correct

•

We have no idea how the service is implemented

Black Box Service

debit_transaction(-$75)

get_recent_transactions()

OK

[…, “-$75”, …]

add_item_to_cart(“Cheerios”)

get_cart()

OK

[“Lucky Charms”, “Cheerios”]

post_update(“I LOLed”)

get_newsfeed()

OK

[…, {“txt”: “I LOLed”, “likes”: 87}]

Black Box Service

?

Advantages of centralization

•

Easy to setup and deploy

•

Consistency is guaranteed (assuming correct software implementation)

Shortcomings

•

No load balancing

•

Single point of failure

debit_transaction(-$75)

get_account_balance()

OK

$225

Bob: $225

?

Advantages of sharding

•

Better load balancing

•

If done intelligently, may allow incremental scalability

Shortcomings

•

Failures are still devastating

debit_account(-$75)

get_account_balance()

OK

$225

Bob: $225

Advantages of replication

•

Better load balancing of reads (potentially)

•

Resilience against failure; high

availability

(with some caveats)

Shortcomings

•

How do we maintain

consistency

?

debit_account(-$75)

get_account_balance()

OK

$225

Bob: $225

Bob: $225

Bob: $225

100%

Agreement

Bob: $225

No

Agreement

No ACK

Bob: $225

No ACK

Bob: $225

Leader cannot disambiguate cases

where requests and responses are lost

Bob: $225

Timeout!

Bob: $225

Asynchronous networks

are problematic

Bob: $225

Too few

replicas?

No

Agreement

No

Agreement

In some cases,

replicas may be

buggy or malicious

When discussing Distributed Systems, failures due to malice are known

as

Byzantine Failures

•

Name comes from the Byzantine generals problem

•

More on this later…

Build a distributed system that meets the following goals:

•

The system should be able to reach

consensus

•

Consensus [n]: general agreement

•

The system should be

consistent

•

Data should be correct; no integrity violations

•

The system should be highly

available

•

Data should be accessible even in the face of arbitrary failures

Challenges:

•

Many, many different failure modes

•

Theory tells us that these goals are

impossible to achieve

(more on this later)

Distributed Commits (2PC and 3PC)

Theory (FLP and CAP)

Quorums (Paxos)

debit_account(-$75)

OK

Bob: $225

Bob: $225

Bob: $225

debit_account(-$50)

Error

Bob: $175

Bob: $175

Distributed Commit Problem

Application that performs operations on multiple replicas or databases

•

We want to guarantee that all replicas get updated, or none do

Distributed commit problem:

1.

Operation is

committed

 when all participants

can

 perform the action

2.

Once a commit decision is reached, all participants

must

 perform the action

Two steps gives rise to the Two Phase Commit protocol

Bob: $400

Alice: $500

debit_account(Alice, -$100)

OK

debit_account(Bob, $100)

OK

Error

Error

Bob: $400

Alice: $500

debit_account(Alice, -$100)

debit_account(Bob, $100)

OK

begin_transaction()

end_transaction()

Bob: $400

Alice: $500

At this point, if there

haven’t been any

errors, we say the

transaction is

committed

If any individual action fails, the whole transaction fails

•

Failed transactions have

no side effects

Incomplete results during transactions are hidden

Alice: $500

debit_account(Alice, -$100)

debit_account(Chris, $100)

Error

begin_transaction()

ACID Properties

Traditional transactional databases support the following:

1.

A

tomicity: all or none; if transaction fails then no changes are applied to the

database

2.

C

onsistency: there are no violations of database integrity

3.

I

solation: partial results from incomplete transactions are hidden

4.

D

urability: the effects of committed transactions are permanent

Two Phase Commits (2PC)

Well known techniques used to implement transactions in

centralized

databases

•

E.g. journaling (append-only logs)

•

Out of scope for this class (take a database class, or CS 5600)

Two Phase Commit (2PC) is a protocol for implementing transactions in

a

distributed

 setting

•

Protocol operates in rounds

•

Assume we have

leader

 or coordinator that manages transactions

•

Each replica

promises

 that it is

ready to commit

•

Leader decides the outcome and instructs replicas to

commit

or

 abort

Assume no byzantine faults (i.e. nobody is malicious)

y

y

y

x

x

x

y

y

y

txid = 678; value = y

commit txid = 678

•

Begin by distributing

the update

•

Txid is a logical clock

•

Wait to receive “ready

to commit” from all

replicas

•

Also called

promises

•

Tell replicas to

commit

•

At this point, all

replicas are

guaranteed to be

up-to-date

Failure Modes

Replica Failure

•

Before or during the initial promise phase

•

Before or during the commit

Leader Failure

•

Before receiving all promises

•

Before or during sending commits

•

Before receiving all committed messages

x

x

x

x

y

y

txid = 678; value = y

abort txid = 678

•

Error: not all replicas

are “ready”

•

The same thing

happens if a write or a

“ready” is dropped, a

replica times out, or a

replica returns an error

y

commit txid = 678

committed txid = 678

•

Known inconsistent

state

•

Leader must keep

retrying until all

commits succeed

commit txid = 678

y

committed txid = 678

y

x

y

commit txid = 678

committed txid = 678

•

Finally, the system is

consistent and may

proceed

stat txid = 678

•

Replicas attempt to

resume unfinished

transactions when

they reboot

What happens if the leader crashes?

•

Leader must constantly be writing its state to permanent storage

•

It must pick up where it left off once it reboots

If there are unconfirmed transactions

•

Send new write messages, wait for “ready to commit” replies

If there are uncommitted transactions

•

Send new commit messages, wait for “committed” replies

Replicas may see duplicate messages during this process

•

Thus, it’s important that every transaction have a unique txid

Key problem: what if the leader crashes and never recovers?

•

By default, replicas block until contacted by the leader

•

Can the system make progress?

Yes, under limited circumstances

•

After sending a “ready to commit” message, each replica starts a timer

•

The first replica whose timer expires elects itself as the new leader

•

Query the other replicas for their status

•

Send “commits” to all replicas if they are all “ready”

However,

this only works if all the replicas are alive and reachable

•

If a replica crashes or is unreachable, deadlock is unavoidable

y

y

y

commit txid = 678

stat txid = 678

•

Replica 2’s timeout

expires, begins

recovery procedure

•

System is consistent

again

stat txid = 678

ready txid = 678

•

Replica 2’s timeout

expires, begins

recovery procedure

•

Cannot proceed, but

cannot abort

stat txid = 678

Garbage Collection

2PC is somewhat of a misnomer: there is a third phase

•

Garbage collection

Replicas must retain records of past transactions, just in case the leader

fails

•

Example, suppose the leader crashes, reboots, and attempts to commit a

transaction that has already been committed

•

Replicas must remember that this past transaction was already committed,

since committing a second time may lead to inconsistencies

In practice, leader periodically tells replicas to garbage collect

•

All transactions <= some txid may be deleted

2PC Leader Pseudocode

Multicast write message

Collect ‘ready to commit’ replies

All OK: log ‘commit’ to ‘outcomes’ table, write to journal, send commit

Else: send abort

Collect ‘committed’ messages

Repeat until all replicas respond

After failure

For each pending transaction in ‘outcomes’ table:

Send outcome (commit or abort)

Wait for acknowledgments

Periodically

Query each process: terminated protocols?

Broadcast garbage collection message

2PC Replica Pseudocode

First time message received

write: save to temp area and reply ‘ready to commit’

commit: log outcome, make changes permanent, reply ‘committed’

abort: log outcome, delete temp area, reply ‘aborted’

Message is a duplicate (recovering coordinator)

Send acknowledgment (‘ready’ or ‘committed’)

After failure

For each pending transaction:

contact coordinator to learn outcome

After timeout in prepare to commit state:

Query other participants about state

If outcome can be deduced: Run leader-recovery protocol

If outcome uncertain: wait for the leader

Message complexity: O(2n)

The good: guarantees consistency

The bad:

•

Write performance suffers if there are failures during the commit phase

•

Does not scale gracefully (possible, but difficult to do)

•

A pure 2PC system blocks all writes if the leader fails

•

Smarter 2PC systems still blocks all writes if the leader + 1 replica fail

2PC sacrifices

availability

 in favor of

consistency

Can 2PC be Fixed?

The key issue with 2PC is reliance on the centralized leader

•

Only the leader knows if a transaction is 100% ready to commit or not

•

Thus, if the leader + 1 replica fail, recovery is impossible

Potential solution: Three Phase Commit

•

Add an additional round of communication

•

Tell all replicas to

prepare to commit

, before actually committed

State of the system can always be deduced by a subset of alive

replicas that can communicate with each other

•

… unless there are

partitions

 (more on this later)

y

y

y

x

x

x

y

y

y

txid = 678; value = y

commit txid = 678

•

Begin by distributing

the update

•

Wait to receive

“ready to commit”

from all replicas

•

Tell replicas to

commit

•

At this point, all

replicas are

guaranteed to be

up-to-date

prepare txid = 678

•

Tell all replicas that

everyone is “ready

to commit”

x

x

abort txid = 678

aborted txid = 678

stat txid = 678

ready txid = 678

•

Replica 2’s timeout

expires, begins

recovery procedure

•

System is consistent

again

•

Replica 3 cannot be in

the committed state,

thus okay to abort

y

y

commit txid = 678

committed txid = 678

stat txid = 678

prepared txid = 678

•

Replica 2’s timeout

expires, begins

recovery procedure

•

System is consistent

again

•

All replicas must have

been ready to commit

Wrong

3PC is not robust against

network partitions

What is a network partition?

•

A split in the network, such that full

n

-to-

n

 connectivity is broken

•

i.e. not all servers can contact each other

Partitions split the network into one or more disjoint subnetworks

How can a network partition occur?

•

A switch or a router may fail, or it may receive an incorrect routing rule

•

A cable connecting two racks of servers may develop a fault

Network partitions are very real; they happen all the time

y

x

x

x

x

y

y

y

txid = 678; value = y

commit txid = 678

committed txid = 678

•

Leader assumes

replicas 2 and 3 have

failed, moves on

•

System is

inconsistent

prepare txid = 678

prepared txid = 678

•

Network partitions

into two subnets!

x

Leader recovery

initiated

Abort

Adds an additional phase vs. 2PC

•

Message complexity: O(3n)

•

Really four phases with garbage collection

The good: allows the system to make progress under more failure

conditions

The bad:

•

Extra round of communication makes 3PC even slower than 2PC

•

Does not work if the network partitions

•

2PC will simply deadlock if there is a partition, rather than become inconsistent

In practice, nobody used 3PC

•

Additional complexity and performance penalty just isn’t worth it

•

Loss of consistency during partitions is a deal breaker

Distributed Commits (2PC and 3PC)

Theory (FLP and CAP)

Quorums (Paxos)

Goals, revisited:

•

The system should be able to reach

consensus

•

Consensus [n]: general agreement

•

The system should be

consistent

•

Data should be correct; no integrity violations

•

The system should be highly

available

•

Data should be accessible even in the face of arbitrary failures

Achieving these goals may be harder than we thought :(

•

Huge number of failure modes

•

Network partitions are difficult to cope with

•

We haven’t even considered byzantine failures

Let's assume the network is

synchronous

 and

reliable

•

Synchronous



 no delay, sent packets arrive immediately

•

Reliable



 no packet drops or corruption

Goal: get

n

 replicas to reach consensus

•

Algorithm can be divided into discreet rounds

•

During each round, each host

r

 may send

m <= n

 messages

•

r

 might crash before sending all

m

 messages

•

If a message from host

r

is not received in a round, then

r

must be faulty

If we are willing to tolerate

f

 total failures (

f < n

), how many rounds of

communication do we need to guarantee consensus?

Consensus in a Synchronous System

Initialization:

•

All replicas choose a value 0 or 1 (can generalize to more values if you want)

Properties:

•

Agreement

: all non-faulty processes ultimately choose the same value

•

Either 0 or 1 in this case

•

Validity

: if a replica decides on a value, then at least one replica must

not

have started with that value

•

This prevents the trivial solution of all replicas always choosing 0, which is technically

perfect consensus but is practically useless

•

Termination

: the system must converge in finite time

Algorithm Sketch

Each replica maintains a map

 M

 of all known values

•

Initially, the vector only contains the replica’s own value

•

e.g.,

M = {‘replica1’: 0}

Each round, broadcast

M

 to all other replicas

•

On receipt, construct the union of received

M

 and local

M

Algorithm terminates when all non-faulty replicas have the values from

all other non-faulty replicas

•

Example with three non-faulty replicas (1, 3, and 5)

•

M = {‘replica1’: 0, ‘replica3’: 1, ‘replica5’: 0}

•

Final value is

min(M.values())

How many rounds will it take if we are willing to tolerate

f

 failures?

•

f + 1

 rounds

Key insight:

all replicas must be sure that all replicas that did not crash

have the same information (so they can make the same decision)

Proof sketch, assuming

f = 2

•

Worst case scenario is that replicas crash during rounds 1 and 2

•

During round 1, replica

x

 crashes

•

All other replicas don’t know if

x

is alive or dead

•

During round 2, replica

y

 crashes

•

Clear that

x

is not alive, but unknown if

y

is alive or dead

•

During round 3, no more replicas may crash

•

All replicas are guaranteed to receive updated info from all other replicas

•

Final decision can be made

0

0

0

1

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

Round 2

1

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

Round 3

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, 1]

0

0

0

1

[0, 1, 0, 0, ?]

[0, 1, 0, 0, ?]

[0, 1, 0, 0, 1]

[0, 1, 0, 0, ?]

Round 2

[0, 1, 0, ?, X]

[0, 1, 0, 0, X]

[0, 1, 0, ?, X]

Round 3

[0, 1, 0, X, X]

[0, 1, 0, X, X]

[0, 1, 0, X, X]

1

A More Realistic Model

The previous result is interesting, but

totally unrealistic

•

We assume that the network is synchronous and reliable

•

Of course, neither of these things are true in reality

What if the network is

asynchronous

 and

reliable

?

•

Asynchronous



 r

eplicas may take an arbitrarily long  time to respond to

messages and/or network may delay messages

Let’s also assume that all faults are crash faults

•

i.e.,

 if a replica has a problem, it crashes and never wakes up

•

No byzantine faults

The FLP Result

There is no asynchronous algorithm that achieves consensus on a 1-bit

value in the presence of crash faults. The result is true even if no crash

actually occurs!

This is known as the FLP result

•

Michael J.

F

ischer, Nancy A.

L

ynch, and Michael S.

P

aterson, 1985

Extremely powerful result because:

•

If you can’t agree on 1-bit

, generalizing to larger values isn’t going to help you

•

If you can’t guarantee convergence with crash faults

, no way you can

guarantee convergence with byzantine faults

•

If you can’t guarantee convergence on a reliable network

, no way you can on

an unreliable network

In an asynchronous system, a replica

x

 cannot tell whether a non-

responsive replica

y

 has crashed or is just slow

What can

x

do?

•

If

x

 waits, it will block indefinitely since it might never receive the message from

y

•

If

x

 decides, it may find out later that

y

made a different decision

Proof constructs a scenario where each attempt to decide is overruled by a

delayed, asynchronous message

•

Thus, the system oscillates between 0 and 1 never converges

0

0

0

1

[0, 1, 0, 0, ?]

[0, 1, 0, 0, ?]

[0, 1, 0, 0, ?]

[0, 1, 0, 0, ?]

Round 2

[1, 1, 0, ?, 1]

[1, 1, 0, ?, 1]

[1, 1, 0, ?, 1]

1

[0, 1, 0, ?, 1]

Impact of FLP

FLP proves that any fault-tolerant distributed algorithm attempting to

reach consensus has runs that never terminate

•

These runs are extremely unlikely (“probability zero”)

•

Yet they imply that we can’t find a totally correct solution

•

And so – “consensus is impossible” (“not always possible”)

So what can we do?

•

Use randomization, probabilistic guarantees (

gossip

 protocols)

•

Avoid consensus, use quorum systems (Paxos or RAFT)

•

In other words, trade-off

consistency

 in favor of

availability

Consistency vs. Availability

FLP states that perfect consistency is impossible

Practically, we can get close to perfect consistency, but at significant cost

•

e.g., using 3PC

•

Availability begins to suffer dramatically under failure conditions

Is there a way to formalize the tradeoff between consistency and

availability?

CAP theorem for distributed data replication

•

C

onsistency: updates to data are applied to all or none

•

A

vailability: must be able to access all data

•

Network

 P

artition

T

olerance: failures can partition network into subtrees

The Brewer Theorem

•

No system can simultaneously achieve C and A and PT

Typical interpretation: “C, A, and PT: choose 2”

•

In practice, all networks may partition, thus you must choose PT

•

A better interpretation might be “C or A: choose 1”

Never formally proved or published

•

Yet widely accepted as a rule of thumb

Consistency

•

Reads must always return

accurate results

Impact of partition

•

No availability

Write

(key, 1)

Replicate

(key,

2

)

Read

(key, 1)

(key, 1)

Write

(key, 1)

(key, 1)

Replicate

(key,

2

)

Read

Error: Service

Unavailable

C+PT

Financial information

must be correct

Serve content to all visitors,

regardless of correctness

Attempt to balance

correctness with availability

ACID Compliant,

SQL Database

NoSQL

Distributed Commits (2PC and 3PC)

Theory (FLP and CAP)

Quorums (Paxos)

2PC and 3PC achieve strong consistency, but they have significant

shortcomings

•

2PC cannot make progress in the face of leader + 1 replica failures

•

3PC loses consistency guarantees in the face of network partitions

Where do we go from here?

Observation: 2PC and 3PC attempt to reach 100% agreement

•

What if 51% of the replicas agree?

Quorum Systems

Advantages of Quorums

Availability

: quorum systems are more resilient in the face of failures

•

Quorum systems can be designed to tolerate both benign and byzantine

failures

Efficiency

: can significantly reduce communication complexity

•

Do not require all servers in order to perform an operation

•

Requires a subset of them for each operation

ts: 2

Bob: $400

ts: 3

Bob: $375

ts: 3

Bob: $375

ts: 2

Bob: $400

ts: 3

Bob: $375

ts: 2

Bob: $400

Write

Read

Paxos

Developed by Turing award winner Leslie Lamport

•

First published as a tech report in 1989

•

Journal refused to publish it, nobody understood the

protocol

Formally published in 1998

•

Again, nobody understands it

Leslie Lamport publishes “Paxos Made Simple” in

2001

•

People start to get the protocol

Reaches widespread fame in 2006-2007

•

Used by Google in their Chubby distributed mutex

system

•

Zookeeper is the open-source version of Chubby

1.

Replicas elect a

leader

 and agree on the

view

 number

•

The view is a logical clock that divides time into epochs

•

During each view, there is a single leader

2.

The leader collects

promises

 from the replicas

•

Replicas promise to only accept proposals from the current or future views

•

Prevents replicas from going “back in time”

•

Leader learns about proposed updates from the previous view that haven’t

yet been accepted

3.

The leader proposes updates and replicas accept them

•

Start by completing unfished updates from the previous view

•

Then move on to new writes from clients

•

Leader is replica with

ID = hash(view)

prepare view=5 clock= 13

•

Replicas promise to not accept any

messages with

view < v

•

Replicas won’t elect a new leader

until the current one fails

(measured using a timeout)

write

commit clock=14

y

y

y

y

y

OK

•

Replicas write the new value

to temporary storage

Paxos Review

Failure Modes

1.

What happens if a commit fails?

2.

What happens during a partition?

3.

What happens after the leader fails?

accept clock=14

commit clock=14

x

y

y

y

y

commit clock=14

•

Leader must retry until

quorum is reached, or

broadcast an abort

•

Replicas that fall behind can

reconcile

 by downloading

missed updates from a peer

•

Once partition is fixed, either:

•

Hold a new leader election and

move forward

•

Or, reconcile with up-to-date peers

y

y

y

View/Elect

View/Elect

•

What happens when the

view = 0

group

attempts to rejoin?

•

Promises for

view = 1

prevent the old

leader from interfering with the new

quorum

View/Elect

Prepare

Commit

commit clock=14

prepare clock= 13

commit clock=14’

•

What happens if there is an

uncommitted update with

no quorum

?

•

Leader is

aware

 of

uncommitted update

•

Leader must recommit

the original clock=14

update

commit clock=14

prepare clock= 13

commit clock=14’

•

What happens if there is an

uncommitted update with

no quorum

?

•

Leader is

unaware

 of

uncommitted update

•

Leader announces a

new update with

clock=14’, which is

rejected by replica 3

•

Replica 3 is desynchronized, must

reconcile with another replica

commit clock=14

Send prepares, collect promises

The Devil in the Details

Clearly, Paxos is complicated

Things we haven’t covered:

•

Reconciliation – how to bring a replica up-to-date

•

Managing the queue of updates from clients

•

Updates may be sent to any replica

•

Replicas are responsible for responding to clients who contact them

•

Replicas may need to re-forward updates if the leader changes

•

Garbage collection

•

Replicas need to remember the exact history of updates, in case the leader changes

•

Periodically, the lists need to be garbage collected

Odds and Ends

Byzantine Generals

Gossip

Byzantine Generals Problem

Name coined by Leslie Lamport

Several Byzantine Generals are

laying siege to an enemy city

They have to agree on a common

strategy:

attack

 or

retreat

They can only communicate by

messenger

Some generals may be traitors (their

identity is unknown)

Do you see the connection with the consensus problem?

Goals

1.

All loyal lieutenants obey the same order

2.

If the commanding general is loyal, then every loyal lieutenant obeys the

order he sends

Can the problem be solved?

•

Yes, iff there at least

3m+1

 honest generals in the presence of

m

 traitors

•

E.g. if there are 3 honest generals, even 1 traitor makes the problem unsolvable

Bazillion variations on the basic problem

•

What if messages are cryptographically signed (e.g. they are unforgeable)?

•

What if communication is not

g x g

(i.e. some pairs of generals cannot

communicate)?

Most algos have byzantine versions (e.g. Byzantine Paxos)

Quorums favor consistency over availability

•

If no quorum exists, then the system stops accepting writes

•

Significant overhead maintaining consistent replicated state

What if

eventual consistency

is okay?

•

Favor availability over consistency

•

Results may be stale or incorrect sometimes (hopefully only in rare cases)

Gossip

 protocols

•

Replicas periodically, randomly exchange state with each other

•

No strong consistency guarantees but…

•

Surprisingly fast and reliable convergence to up-to-date state

•

Requires vector clocks or better in order to causally order events

•

Extreme cases of divergence may be irreconcilable

Sources

1.

Some slides courtesy of Cristina Nita-Rotaru (

http://cnitarot.github.io/courses/ds_Fall_2016/

)

2.

The Part-Time Parliament

, Leslie Lamport.

http://research.microsoft.com/en-us/um/people/lamport/pubs/lamport-

paxos.pdf

3.

Paxos Made Simple

, Leslie Lamport.

http://research.microsoft.com/en-us/um/people/lamport/pubs/paxos-simple.pdf

4.

Paxos for System Builders

, Jonathan Kirsch and Yair Amir.

http://www.cs.jhu.edu/~jak/docs/paxos_for_system_builders.pdf

5.

The Chubby Lock Service for Loosely-Coupled Distributed Systems

, Mike Burrows.

http://research.google.com/archive/chubby-osdi06.pdf

6.

Paxos Made Live – An Engineering Perspective

, Tushar Deepak Chandra, Robert Griesemer, Joshua Redstone.

http://research.google.com/archive/paxos_made_live.pdf

7.

Apache Zookeeper

https://zookeeper.apache.org/
