Different Types of Chemical Bonds

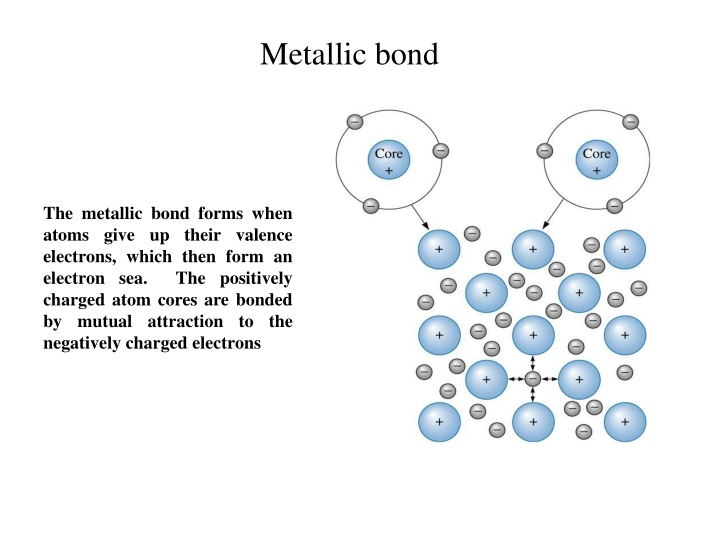

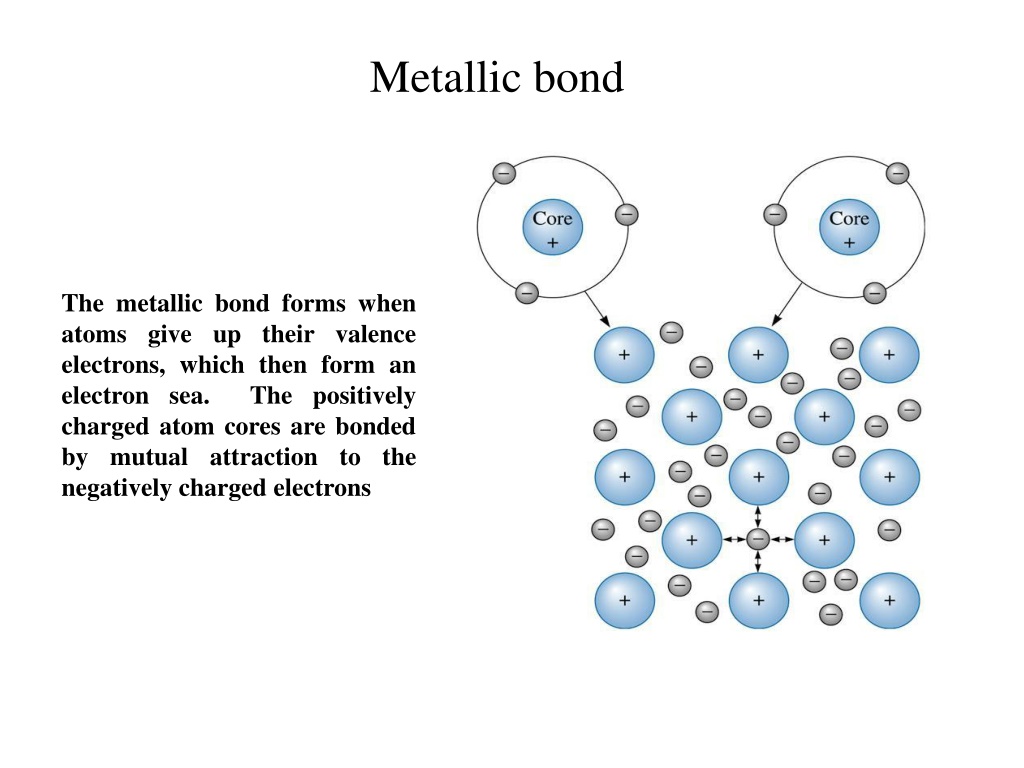

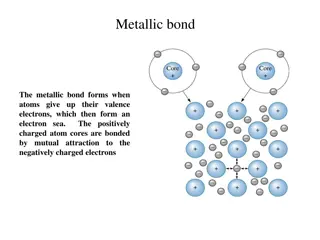

Metallic bond
The metallic bond forms when
atoms give up their valence
electrons, which then form an
electron sea. The positively
charged atom cores are bonded
by mutual attraction to the
negatively charged electrons
Covalent bonding requires that electrons be shared between
atoms in such a way that each atom has its outer
sp
orbital
filled. In silicon, with a valence of four, four covalent bonds
must be formed
Covalent bonds are directional. In silicon, a
tetrahedral structure is formed, with angles of
109.5° required between each covalent bond
Covalent bond
An ionic bond is created between two unlike atoms with different electronegativities.
When sodium donates its valence electron to chlorine, each becomes an ion; attraction
occurs, and the ionic bond is formed
Ionic bond
When voltage is applied to an ionic material,
entire ions must move to cause a current to
flow. Ion movement is slow and the
electrical conductivity is poor.
Illustration of London forces, a type of a Van der Waals force, between atoms
Van der Waals bond
In water, electrons in the oxygen tend to concentrate away from the hydrogen. The
resulting charge difference permits the molecule to be weakly bonded to other water
molecules
Hydrogen bond
•
Interatomic spacing is the equilibrium spacing between the centers of two
atoms.
•
Binding energy is the energy required to separate two atoms from their
equilibrium spacing to an infinite distance apart.
Interatomic Spacing
Atoms or ions are
separated by and
equilibrium spacing that
corresponds to the
minimum inter-atomic
energy for a pair of atoms
or ions (or when zero force
is acting to repel or attract
the atoms or ions)
Metallic bonds involve atoms giving up valence electrons to form an electron sea, covalent bonds entail electron sharing to fill outer orbitals, ionic bonds form when atoms with different electronegativities attract, Van der Waals bonds include London forces between atoms, and hydrogen bonds occur in molecules like water where charges permit weak bonding. Interatomic spacing represents the equilibrium distance between atom centers and requires binding energy to separate atoms to an infinite distance.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Metallic bond The metallic bond forms when atoms give up their valence electrons, which then form an electron sea. The positively charged atom cores are bonded by mutual attraction to the negatively charged electrons
Covalent bond Covalent bonding requires that electrons be shared between atoms in such a way that each atom has its outer sp orbital filled. In silicon, with a valence of four, four covalent bonds must be formed Covalent bonds are directional. In silicon, a tetrahedral structure is formed, with angles of 109.5 required between each covalent bond
Ionic bond An ionic bond is created between two unlike atoms with different electronegativities. When sodium donates its valence electron to chlorine, each becomes an ion; attraction occurs, and the ionic bond is formed When voltage is applied to an ionic material, entire ions must move to cause a current to flow. Ion movement is slow and the electrical conductivity is poor.
Van der Waals bond Illustration of London forces, a type of a Van der Waals force, between atoms Hydrogen bond In water, electrons in the oxygen tend to concentrate away from the hydrogen. The resulting charge difference permits the molecule to be weakly bonded to other water molecules
Interatomic Spacing Interatomic spacing is the equilibrium spacing between the centers of two atoms. Binding energy is the energy required to separate two atoms from their equilibrium spacing to an infinite distance apart. Atoms separated equilibrium spacing that corresponds minimum energy for a pair of atoms or ions (or when zero force is acting to repel or attract the atoms or ions) or ions by are and to the inter-atomic
