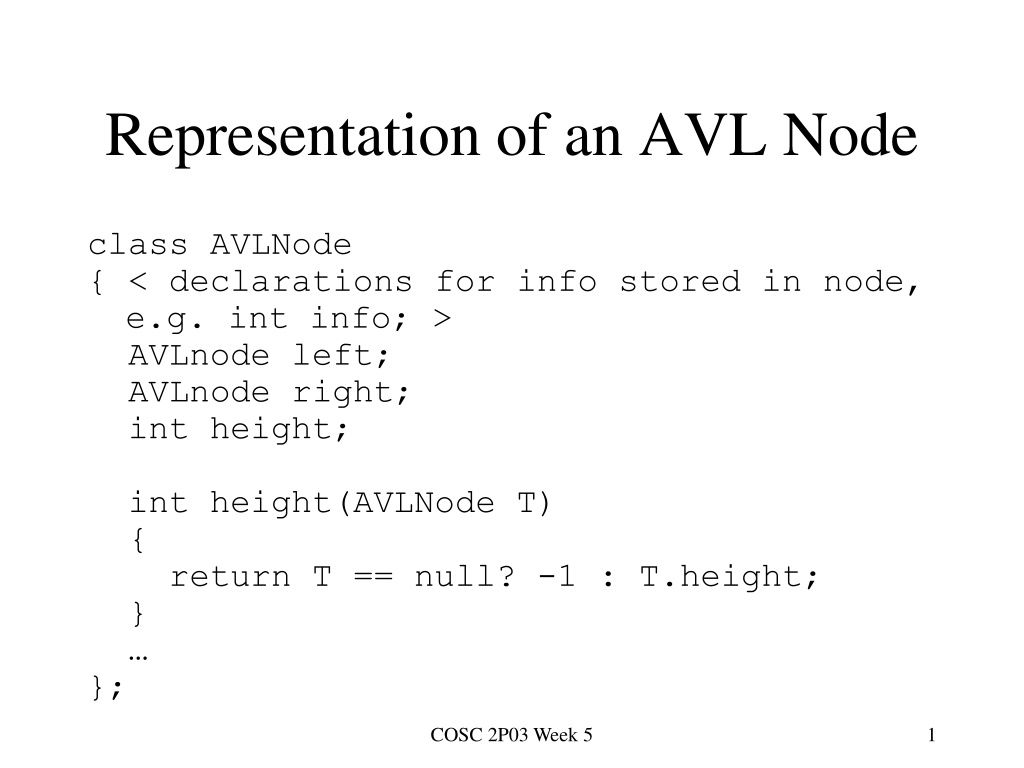

1. Representation of an AVL Node class AVLNode { < declarations for info stored in node, e.g. int info; > AVLnode left; AVLnode right; int height; int height(AVLNode T) { return T == null? -1 : T.height; } }; COSC 2P03 Week 5 1

2. AVL insert AVLNode insert(AVLNode T, AVLNode newNode) { if(T == null) T = newNode; else if(newNode.info < T.info) { T.left = insert(T.left, newNode); if(height(T.left) - height(T.right) == 2) if(newNode.info < T.left.info) //left subtree of T.left T = rotateWithLeftChild(T); else T = doubleWithLeftChild(T); } else { T.right = insert(T.right, newNode); if(height(T.right) - height(T.left) == 2) if(newNode.info > T.right.info) // right subtree of T.right T = rotateWithRightChild(T); else T = doubleWithRightChild(T); } T.height = max(height(T.left), height(T.right)) + 1; return T; } // insert in left subtree //right subtree of T.left // insert in right subtree // left subtree of T.right COSC 2P03 Week 5 2

3. Single rotation left-left Insertion in left subtree of k2.left caused an imbalance at k2: need to rebalance from k2 down. AVLNode rotateWithLeftChild(AVLNode k2) { AVLNode k1 = k2.left; k2.left = k1.right; k1.right = k2; k2.height = max(height(k2.left, height(k2.right)) + 1; k1.height = max(height(k1.left), k2.height) + 1; return k1; } Note: right-right case is symmetric to above (left right). COSC 2P03 Week 5 3

4. Double rotation right-left Insertion in right subtree of left child caused imbalance at k3: need to rebalance from k3 down. AVLNode doubleWithLeftChild(AVLNode k3) { k3.left = rotateWithRightChild(k3.left); return rotateWithLeftChild(k3); } Note: left-right case is symmetric to above (left right). COSC 2P03 Week 5 4

5. B Trees (section 4.7 of textbook) Commonly used for organizing data on external storage (e.g. disk) Disk access time (time to read/write a block) dominates cost Very important to minimize number of disk accesses Some notes on terminology: This textbook uses the name B tree, but elsewhere they are known as B+ trees In this textbook, the order of a B tree is the maximum number of children per index node. Elsewhere, order refers to the minimum number of children in index nodes other than the root. COSC 2P03 Week 5 5

6. B tree definitions A B-tree of order M is an M-ary tree such that: 1. Data items are only in the leaves 2. Non-leaf (index) nodes store up to M-1 keys: key i determines the smallest possible key in subtree i+1. 3. The root is either a leaf or has between 2 and M children Every node other than the root is at least half-full: 4. All non-leaf nodes (except root) have at least M/2 children 5. All leaves are at the same depth and have between L/2 and L records. COSC 2P03 Week 5 6

7. B tree and Binary Search Tree comparison Binary search trees: nodes have 0, 1 or 2 children and 1 key B-trees: non-leaf nodes have up to M children: a node with d keys has d+1 children Binary search trees: data is stored in both leaf and non-leaf nodes, and for every given index node N: N s left subtree contains only items with keys < N s key N s right subtree contains only items with keys > N s key B-trees: data is stored only in leaf nodes. Non-leaf nodes contain up to M-1 keys (k1, , kM-1): Subtree to left of k1 contains only items with keys <k1 Subtree between ki and ki+1 contains only items with keys <ki+1and ki Subtree to right of kM-1contains only items with keys kM-1 COSC 2P03 Week 5 7

8. B-tree Example M=5 and L=3 100 150 200 10 30 50 110 120 130 160 180 220 240 260 3 7 10 15 20 30 35 50 80 90 100 105 110 115 120 125 130 140 150 155 160 165 170 180 190 200 210 220 225 230 240 250 260 270 275 COSC 2P03 Week 5 8

9. B-tree example: insert 40 100 150 200 10 30 50 110 120 130 160 180 220 240 260 3 7 10 15 20 30 35 40 50 80 90 100 105 110 115 120 125 130 140 150 155 160 165 170 180 190 200 210 220 225 230 240 250 260 270 275 COSC 2P03 Week 5 9

10. B-tree example: insert 70 100 150 200 10 30 50 80 110 120 130 160 180 220 240 260 50 70 80 90 3 7 10 15 20 30 35 40 100 105 110 115 120 125 130 140 150 155 160 165 170 180 190 200 210 220 225 230 240 250 260 270 275 COSC 2P03 Week 5 10

11. B-tree example: insert 25 30 100 150 200 10 20 50 80 110 120130 160 180 220 240 260 10 15 20 25 3 7 30 35 40 50 70 80 90 100 105 110 115 120 125 130 140 150 155 160 165 170 180 190 200 220 240 260 210 225 250 270 230 275 COSC 2P03 Week 5 11

12. B-tree example: insert 235 30 100 150 200 220 230 240260 10 20 50 80 110 120130 160 180 200 220 230 240 260 210 225 235 250 270 3 7 10 15 20 25 30 35 40 50 70 80 90 100 105 110 115 120 125 130 140 150 155 160 180 165 190 170 275 COSC 2P03 Week 5 12

13. B-tree example: insert 280 150 30 100 200 240 220230 260275 10 20 50 80 110120130 160180 240 260 275 250 270 280 3 7 10 15 20 25 30 35 40 50 70 80 90 100 110 120 130 105 115 125 140 150 160 180 155 165 190 170 200 220 230 210 225 235 COSC 2P03 Week 5 13

14. Heaps A heap is a binary tree that satisfies all of the following properties: Structure property: It is a complete binary tree Heap-order property: Every node satisfies the heap condition: The key of every node n must be smaller than (or equal to) the keys of its children, i.e. n.info n.left.info and n.info n.right.info COSC 2P03 Week 5 14
