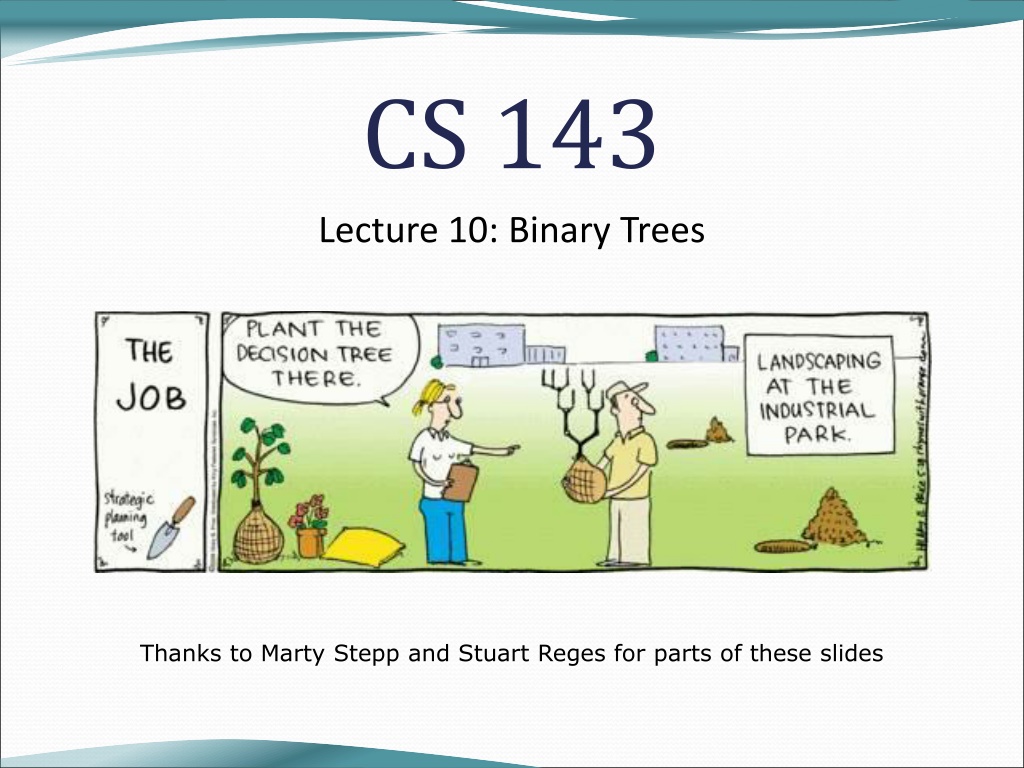

1. CS 143 Lecture 10: Binary Trees Thanks to Marty Stepp and Stuart Reges for parts of these slides

2. Recursion Review What do we always need when writing a recursive function? Base case Recursive case 2

3. Trees tree: A directed, acyclic structure of linked nodes. directed : Has one-way links between nodes. acyclic : No path wraps back around to the same node twice. binary tree: One where each node has at most two children. root Recursive definition: A tree is either: empty (null), or a root node that contains: 1 data, a left subtree, and 2 3 a right subtree. (The left and/or right subtree could be empty.) 4 5 6 7 3

4. Trees in computer science TreeMap and TreeSet implementations folders/files on a computer family genealogy; organizational charts AI: decision trees = compilers: parse tree a = (b + c) * d; a * cell phone T9 + d b c 4

5. Terminology node: an object containing a data value and left/right children root: topmost node of a tree leaf: a node that has no children branch: any internal node; neither the root nor a leaf parent: a node that refers to this one child: a node that this node refers to sibling: a node with a common parent root height = 3 1 level 1 subtree: the smaller tree of nodes on the left or right of the current node height: length of the longest path from the root to any node level or depth: length of the path from a root to a given node 2 3 level 2 4 5 6 7 level 3 5

6. Recursive data structure Recursive definition: A tree is either: empty (null), or a root node that contains: data, a left tree, and a right tree root root root root root 1 1 1 1 3 2 3 7 6

7. A tree node for integers A basic tree node object stores data, refers to left/right Multiple nodes can be linked together into a larger tree left data right 42 left data right 59 left data right 27 left data right 86 7

8. IntTreeNode class // An IntTreeNode object is one node in a binary tree of ints. public class IntTreeNode { public int data; // data stored at this node public IntTreeNode left; // reference to left subtree public IntTreeNode right; // reference to right subtree // Constructs a leaf node with the given data. public IntTreeNode(int data) { this(data, null, null); } // Constructs a branch node with the given data and links. public IntTreeNode(int data, IntTreeNode left, IntTreeNode right) { this.data = data; this.left = left; this.right = right; } } left data right 8

9. IntTree class // An IntTree object represents an entire binary tree of ints. public class IntTree { private IntTreeNode overallRoot; // null for an empty tree methods } overallRoot 1 Client code talks to the IntTree, not to the node objects inside it. 2 3 Methods of the IntTree create and manipulate the nodes, their data and links between them. 4 5 6 7 9

10. IntTree constructors For now, assume we have the following constructors: public IntTree(IntTreeNode overallRoot) public IntTree(int height) The 2nd constructor will create a tree and fill it with nodes with random data values from 1-100 until it is full at the given height. overallRoot 17 IntTree tree = new IntTree(3); 41 9 29 6 81 40 10

11. Traversals traversal: An examination of the elements of a tree. A pattern used in many tree algorithms and methods Common orderings for traversals: pre-order: process root node, then its left/right subtrees in-order: process left subtree, then root node, then right post-order: process left/right subtrees, then root node overallRoot 17 41 9 29 6 81 40 11

12. Traversal example overallRoot 17 41 9 29 6 81 40 pre-order: in-order: post-order: 17 41 29 6 9 81 40 29 41 6 17 81 9 40 29 6 41 81 40 9 17 12

13. Traversal trick overallRoot To quickly generate a traversal: Trace a path around the tree. As you pass a node on the proper side, process it. 17 41 9 pre-order: left side in-order: bottom post-order: right side 29 6 81 40 pre-order: in-order: post-order: 17 41 29 6 9 81 40 29 41 6 17 81 9 40 29 6 41 81 40 9 17 13

14. Exercise overallRoot Give pre-, in-, and post-order traversals for the following tree: 42 15 9 27 86 3 48 12 39 pre: in: 15 48 27 42 86 5 12 9 3 39 post: 48 27 15 5 12 86 39 3 42 42 15 27 48 9 86 12 5 3 39 5 14

15. Exercise Add a method print to the IntTree class that prints the elements of the tree, separated by spaces. A node's left subtree should be printed before it, and its right subtree should be printed after it. overallRoot Example: tree.print(); 17 29 41 6 17 81 9 40 41 9 29 6 81 40 15

16. Exercise solution // An IntTree object represents an entire binary tree of ints. public class IntTree { private IntTreeNode overallRoot; // null for an empty tree ... public void print() { print(overallRoot); System.out.println(); // end the line of output } private void print(IntTreeNode root) { // (base case is implicitly to do nothing on null) if (root != null) { // recursive case: print left, center, right print(overallRoot.left); System.out.print(overallRoot.data + " "); print(overallRoot.right); } } } 16

17. Template for tree methods public class IntTree { private IntTreeNode overallRoot; ... public typename(parameters) { name(overallRoot, parameters); } private typename(IntTreeNode root, parameters) { ... } } Tree methods are often implemented recursively with a public/private pair the private version accepts the root node to process 17

18. Exercise Add a method contains to the IntTree class that searches the tree for a given integer, returning true if it is found. If an IntTree variable tree referred to the tree below, the following calls would have these results: overallRoot tree.contains(87) true tree.contains(60) true tree.contains(63) false tree.contains(42) false 55 87 29 -3 42 60 60 18

19. Exercise solution // Returns whether this tree contains the given integer. public boolean contains(int value) { return contains(overallRoot, value); } private boolean contains(IntTreeNode node, int value) { if (node == null) { return false; // base case: not found here } else if (node.data == value) { return true; // base case: found here } else { // recursive case: search left/right subtrees return contains(node.left, value) || contains(node.right, value); } } 19

20. Exercise Add a method named printSideways to the IntTree class that prints the tree in a sideways indented format, with right nodes above roots above left nodes, with each level 4 spaces more indented than the one above it. Example: Output from the tree below: overall root 9 19 14 11 9 7 6 6 14 7 11 19 20

21. Exercise solution // Prints the tree in a sideways indented format. public void printSideways() { printSideways(overallRoot, ""); } private void printSideways(IntTreeNode root, String indent) { if (root != null) { printSideways(root.right, indent + " "); System.out.println(indent + root.data); printSideways(root.left, indent + " "); } } 21

22. Adding to a BST Suppose we want to add new values to the BST below. Where should the value 14 be added? overall root Where should 3 be added? 7? 8 If the tree is empty, where should a new value be added? 5 11 What is the general algorithm? 2 10 19 7 4 25 22 22

23. Change point, version 2 What is the state of the object referred to by p after this code? public static void main(String[] args) { Point p = new Point(1, 2); change(p); System.out.println(p); } 1 2 x y p public static void change(Point thePoint) { thePoint = new Point(3, 4); } // answer: (1, 2) 3 4 x y 28

24. Changing references If a method dereferences a variable (with . ) and modifies the object it refers to, that change will be seen by the caller. public static void change(Point thePoint) { thePoint.x = 3; // affects p thePoint.setY(4); // affects p If a method reassigns a variable to refer to a new object, that change will not affect the variable passed in by the caller. public static void change(Point thePoint) { thePoint = new Point(3, 4); // p unchanged thePoint = null; // p unchanged What if we want to make the variable passed in become null? 29

25. Change point, version 3 What is the state of the object referred to by p after this code? public static void main(String[] args) { Point p = new Point(1, 2); change(p); System.out.println(p); } 1 2 x y p public static Point change(Point thePoint) { thePoint = new Point(3, 4); return thePoint; } // answer: (1, 2) 3 4 x y 30

26. Change point, version 4 What is the state of the object referred to by p after this code? public static void main(String[] args) { Point p = new Point(1, 2); p = change(p); System.out.println(p); } 1 2 p x y public static Point change(Point thePoint) { thePoint = new Point(3, 4); return thePoint; } // answer: (3, 4) 3 4 x y 31

27. x = change(x); If you want to write a method that can change the object that a variable refers to, you must do three things: 1. pass in the original state of the object to the method 2. return the new (possibly changed) object from the method 3. re-assign the caller's variable to store the returned result p = change(p); // in main public static Point change(Point thePoint) { thePoint = new Point(99, -1); return thePoint; We call this general algorithmic pattern x = change(x); also seen with strings: s = s.toUpperCase(); 32

28. Applying x = change(x) Methods that modify a tree should have the following pattern: old state of the node new state of the node input (parameter): output (return): parameter return node before node after your method In order to actually change the tree, you must reassign: node = change(node, parameters); node.left = change(node.left, parameters); node.right = change(node.right, parameters); overallRoot = change(overallRoot, parameters); 34
