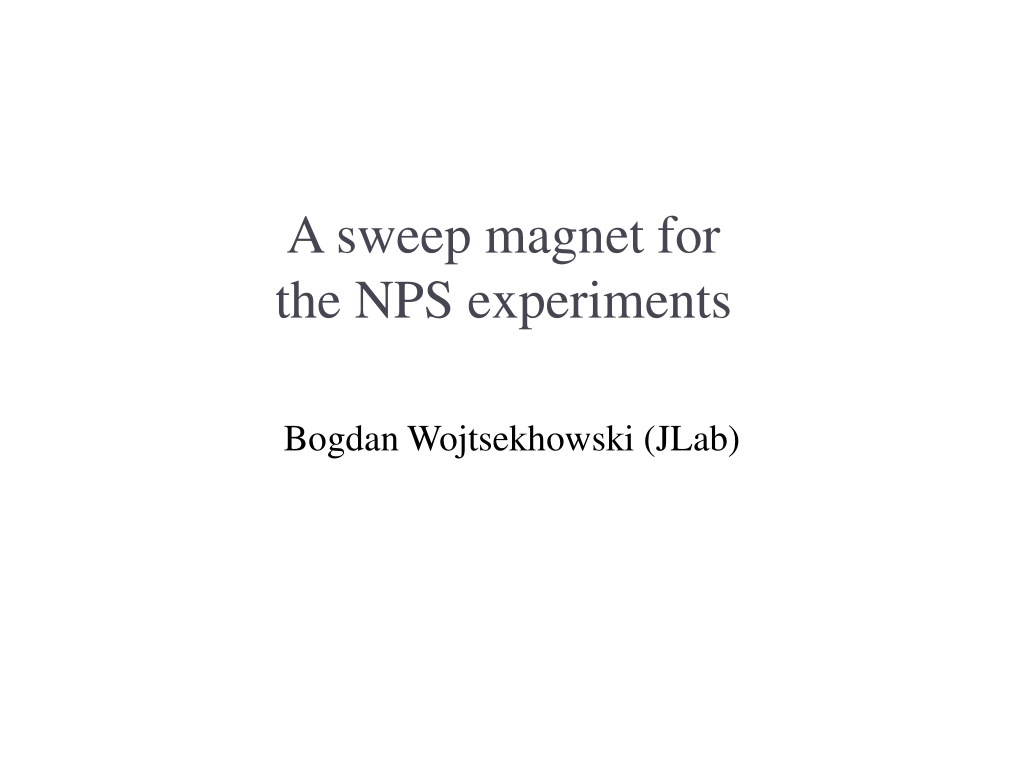

1. Asweep magnet for the NPS experiments Bogdan Wojtsekhowski (JLab)

2. Kinematics of SI pion (E12-13-007) 10.57 16.20 12.44 7.93 16.57 17.23 e 10.27 11.70 15.38 24.15 15.65 17.84 # Dcalo,m 1.57 1.57 1.57 1.57 1.57 1.57 Bdl, Tm 0.3 0.3 0.3 0.3 0.3 0.3 D.m-c, m angle range 3-1.57 A B C D E F 1.43 1.43 1.43 4.7-11.1 deg. 2 NPS Bi-weekly Meeting January 2015

3. Kinematics of DVCS (E12-13-10) 16.2 12.4 21.7 16.6 6.3 6.3 e 11.7 15.3 11.7 15.6 27.9 17.3 # Dcalo ,m 3 3 3 3 6 6 Bdl, Tm 0.3 0.3 0.3 0.3 0.3 0.3 D.m-c, m angle range 1.43 1.43 1.43 1.43 4.43 4.43 3 5 7 8 13 16 3.1 - 9.6 deg range of angles: 68 cm / 300 => 12.8 degrees range of angles: 68 cm / 600 => 6.5 degrees 3 NPS Bi-weekly Meeting January 2015

4. Kinematics of WACS (E12-14-003) /Pion 14.2 17.9 22.5 26.9 34.0 11.0 13.8 16.9 19.7 29.9 p Dmag ,m Bdl, Tm Ddet, m 40.1 2.45+0.2 33.7 1.65+0.2 27.8 1.65+0.2 23.7 1.10+0.2 18.9 1.10+0.2 41.7 2.45+0.2 35.3 2.45+0.2 30.0 1.65+0.2 26.3 1.65+0.2 17.8 1.10+0.2 # D.m-c, m 6.15 Bdl / D.m-c 0.3 / (9-1.57) 4A 4B 4C 4D 4E 5A 5B 5C 5D 5E 0.3 0.4 0.5 0.6 0.6 0.25 0.35 0.4 0.5 0.6 9.0 7.0 5.0 3.5 3.0 11.0 9.0 7.5 6.0 3.25 1.7 0.61 Tm / 1.68 m 9.3-12.7 deg 1.95 0.70 Tm / 1.68 m 4 NPS Bi-weekly Meeting January 2015

5. Horizontal field dipole the beam side is free of coils the beam opening is +/- 1 degree open aperture to detector above 2 degrees! 5 NPS Bi-weekly Meeting January 2015

6. Horizontal field dipole 30 cm 2 deg. 157 cm 6 NPS Bi-weekly Meeting January 2015

7. Fringe field problem 30 cm 157 cm 7 NPS Bi-weekly Meeting January 2015

8. Fringe field solution 30 cm 157 cm 8 NPS Bi-weekly Meeting January 2015

9. HMS side solution 30 cm 30 cm 157 cm 157 cm 4 deg. on HMS side 9 NPS Bi-weekly Meeting January 2015

10. Q1 cut 30 cm 30 cm cut for Q1? 157 cm 157 cm 4 deg. on HMS side 10 NPS Bi-weekly Meeting January 2015

11. Fringe field result SIPP/DVCS angle & field 30 cm ---- Bx =150 G 157 cm Bdl ~ 150 Gcm => 0.4 mrad for 6.6 GeV 11 NPS Bi-weekly Meeting January 2015

12. Fringe field problem SIPP/DVCS angle & field 12 NPS Bi-weekly Meeting January 2015

13. Horizontal field dipole, model SAM-DVCS Iron weight is of 15 tons Coils weight is of 1.5 tons 13 NPS Bi-weekly Meeting January 2015

14. Horizontal field dipole, model SAM-WACS Iron weight is of 20 tons Coils weight is of 1.5 tons NPS Bi-weekly Meeting January 2015 14

15. Summary The sweep/deflector magnet for the four NPS experiments could be made by using a horizontal field magnet. The total weight of the magnet is of 22 tons The coils using low current density 400 (700) A/cm2 , which will require of 110 kW (150 V) power. The distance from the pivot to magnet center is fixed of 157 cm. 15 NPS Bi-weekly Meeting January 2015
