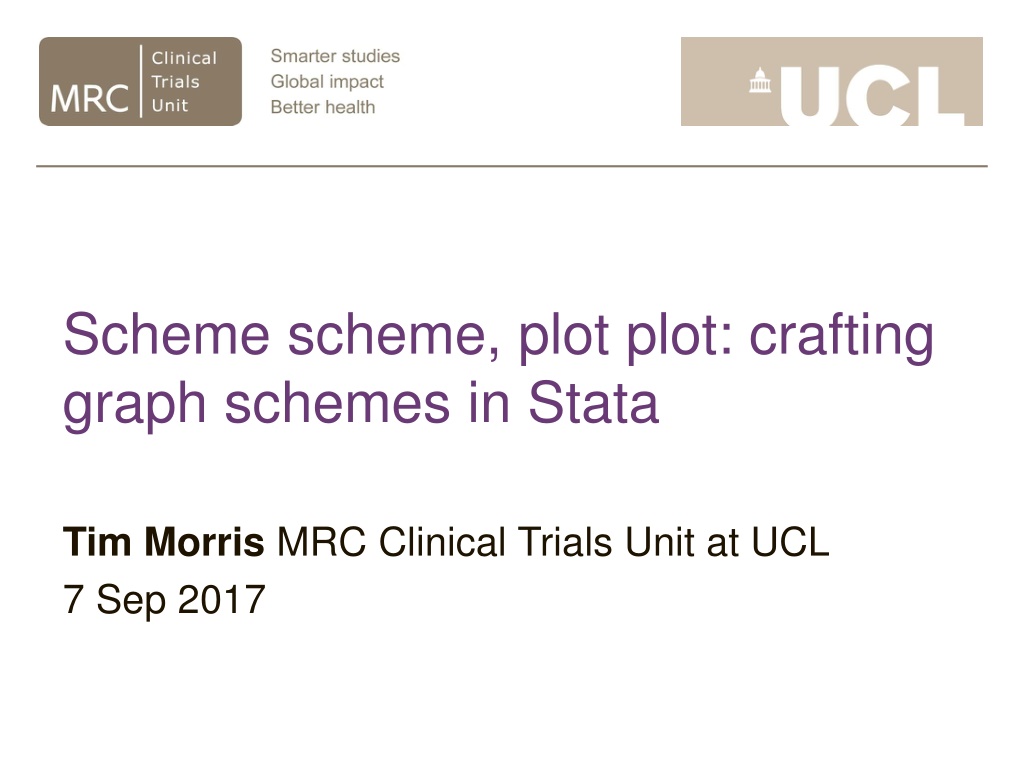

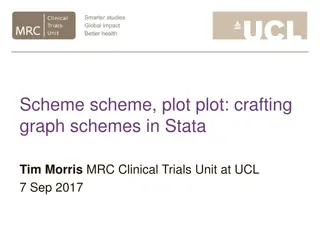

Crafting Graph Schemes in Stata by Tim Morris at UCL
Scheme scheme, plot plot: crafting
graph schemes in Stata
