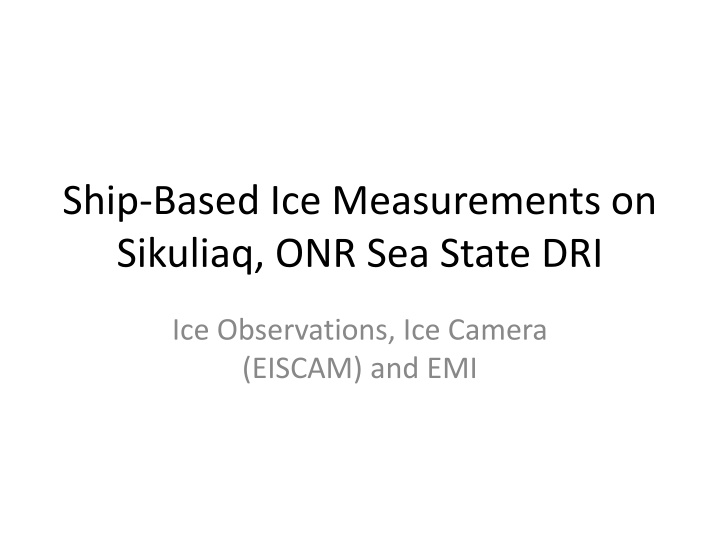

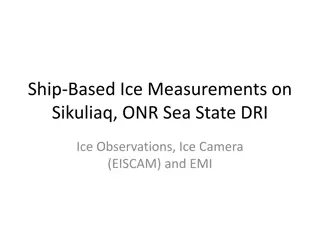

1. Ship-Based Ice Measurements on Sikuliaq, ONR Sea State DRI Ice Observations, Ice Camera (EISCAM) and EMI

2. ASPeCt Sea Ice Observations

3. Snow and Ice Thicknesses from Ice Observations Total Snow/Ice Thickness Ice Camp 250 200 Total Thickness (cm) 150 Total Ice Thickness Snow Depth 100 50 0 -66 -67 -68 -69 -70 -71 Latitude (S)

4. EISCam sea ice digital ortho-photography Acquired oblique-view digital imagery is reprojected (orthorectified) to a nadir view Nadir true-scale images can be analyzed for sea ice spatial/physical parameters

5. Evaluation of the orthorectification Orthorectified Original Image

6. Ice Thickness from Ship-borne EM-31

7. Summary of EMI Snow and Ice Thickness Data (SIMBA, Bellingshausen Sea, 2007) 140 120 120 100 100 80 Frequency Frequency 80 60 60 40 40 20 20 0 0 0.12 0.40 0.67 0.94 1.22 1.49 1.76 2.04 2.31 2.58 2.86 3.13 3.40 3.68 3.95 0.24 0.57 0.90 1.23 Total Snow/Ice Thickness (m) 1.57 1.90 2.23 2.56 2.89 3.23 3.56 3.89 Total Snow/Ice Thickness (m) Inbound Track (n = 957, ~90km) Outbound Track (n = 1471, ~216km)
