Comparative Study of Different Strip Detectors for Dark Current Results

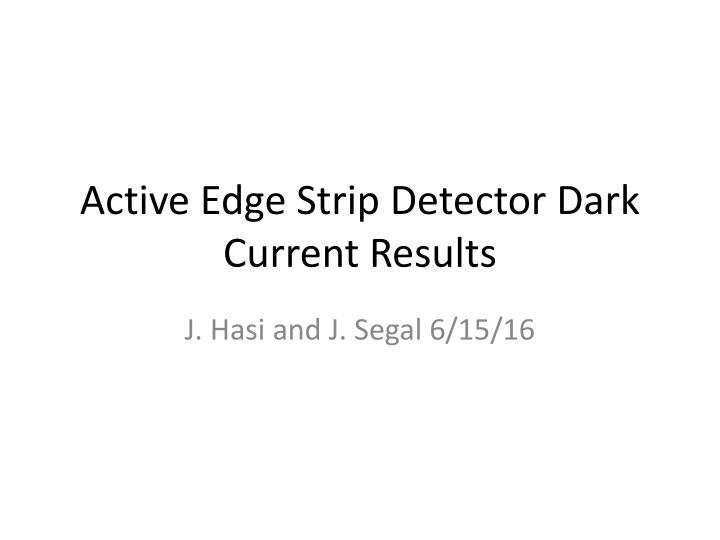

Active Edge Strip Detector Dark
Current Results
J. Hasi and J. Segal 6/15/16
Backside contact
Pixel
Guard
ring
Old baseline strip detector: No guard ring at
entrance window
Old baseline Strip Detector
Guard ring current
Backside bias
Single pixel current
Pixel current will
be lower when all
pixels are biased
Old Baseline w/extra distance for
stacking
Extra 350um
Backside contact
Pixel
Guard
ring
Extra-distance Strip Detector
Guard ring current
Single pixel current
Pixel current will
be lower when all
pixels are biased
Backside bias
Guard Ring Surrounding Strip Detector
Guard ring current
Single pixel current
Pixel current will
be lower when all
pixels are biased
Backside bias
