C Structs and Pointers for Data Organization

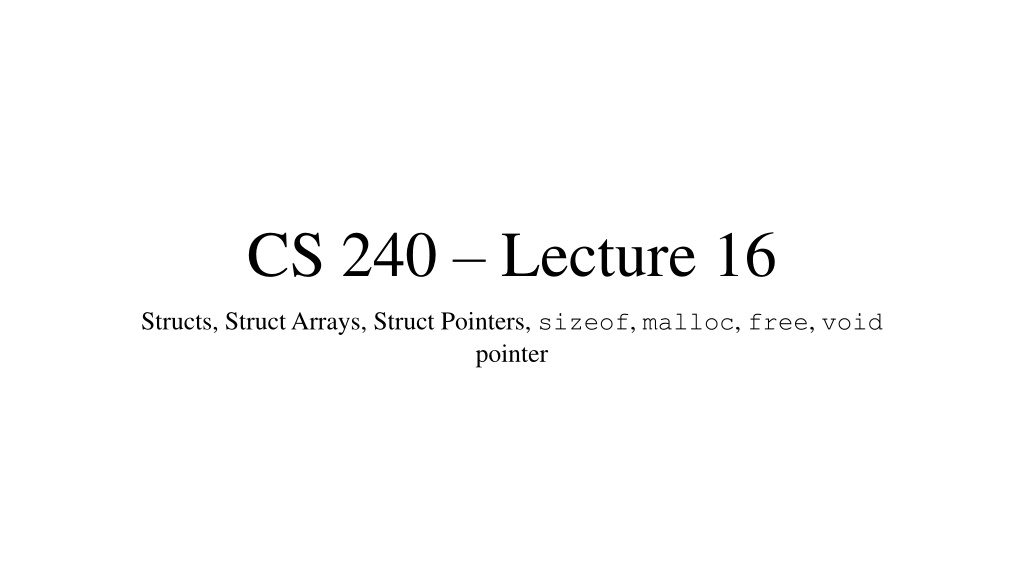

CS 240 – Lecture 16
Structs, Struct Arrays, Struct Pointers,
sizeof
,
malloc
,
free
,
void
pointer
Types –
struct
types
•
The C language predates widespread object orientation.
•
Hence, C doesn't have built-in Object functionality.
•
Though it's something that can and has been added to the language; see C++
•
You should already be familiar from previous classes that it's useful to
group multiple related data values together as a first-class citizen.
•
A first-class citizens are any part of a language which can be passed in as an
argument to functions, returned from a function, assigned to a variable, etc.
•
So far, we only know of
integer
s,
char
s, addresses, and
enum
s.
•
C facilitates this for multiple values with what are called
struct
s.
Types –
struct
s type definition
•
Using structs, you can define a new datatype within the C
programming language for use with your program.
struct
name
{type1 member1;
…
}
;
•
A struct has three pieces to it: the
struct keyword
, the
name
of the
new struct type, and
a block
of variable declarations called
members
.
•
The block must have at least one member but can have any number of them.
Types –
struct
types
•
Below is an example of a struct type
definition;
struct point {int x;
int y;
};
•
To make use of the type, we need to
declare a variable of that type.
struct point
origin;
•
The type is not just
point
but
struct point
.
Types –
struct
members
•
As you can saw, the rules for variables
apply normally.
•
Values in automatic variables that are not
explicitly set are junk.
•
Also, make a note that the order of
members in memory match the order of
declaration.
struct point origin;
•
To access a member variable of a struct,
use the dot (
.
) operator.
origin.x = origin.y = 0;
Types –
struct
initialize and assign
•
It's also possible to initialize a struct during declaration of a struct
variable.
struct point origin = {0, 0};•
The block in this case is called a compound literal, and will be
implicitly interpreted as a
struct point
value.
•
The block must have the right amount of values for the struct for this
assignment to be meaningful, but you can set fewer or more (dangerous!)
•
After declaration, assignment with compound literals must be done
with explicit casting.
origin = (struct point) {0, 0};struct
s – Arrays of
struct
types
•
If you recall, arrays are defined as follows:
type
name
[
number
];
•
Now that we have struct types, you can declare arrays of struct types in the
same way you would with
int
s or
char
s.
struct point
arrayname
[
number
];
•
You can also declare the contents of a struct array literally like so:
struct point points[] = { {0, 0}, {1, 0}, {0, 1}, {1, 1}};
•
If the number of elements of the array isn't specified, it will allocate enough
space for the literal elements.
struct
s – Pointers to
struct
s
•
In memory, a struct is stored together with
it's members.
•
The address of the struct variable itself is
the same address as its first member.
•
Again, structs work like other types for
pointers:
struct point *pointptr;
•
As do the address-of and value-at
operators.
*pointptr =
(struct point) {0, 0};pointptr = &origin;
struct
s – Pointers to
struct
s
•
When you have a pointer to a struct, it can be rather tedious to access
members of the struct through it's address.
(*pointptr).x += dx;
•
In general, the fewer parenthesis that an expression has, the better.
•
There is a syntactic sugar for this operation of accessing the members
of a struct at an address.
pointptr->x += dx;
•
The arrow operator (
->
) simplifies indirectly referencing members.
•
Fewer characters, cleaner, less holding the shift key.
struct
s – Nested
struct
s
•
Let's say that we wanted to
use the point struct we
defined earlier to describe a
rectangle.
•
In general, a rectangle can be
uniquely determined by the
following properties:
•
Top-left vertex point.
•
Height
•
Width
•
Rotation about top-left point
(let's pretend all rectangles sit
flat to ignore this)
struct rectangle {struct point topleft;
int height;
int width;
};
•
As you can see, structs can be
members of other struct types without
any issue.
•
Can a struct be a member of it's own
definition?
struct
s – Self-referential
struct
s
•
Let's consider mapping out a family
tree with structs.
•
Every person has a biological mother and
father (generally)
struct person {struct person mom;
struct person dad;
}
•
What's wrong with this?
struct
s – Self-referential
struct
s
•
A struct can't have an explicit reference to
itself because of what's called
infinite
descent
.
•
You can't define a person until you know
what a person is.
struct person {struct person *mom;
struct person *dad;
}
•
Instead, a struct can make indirect
references to another person through
pointers.
Language Built-in –
sizeof
"function"
•
The
sizeof
function is actually an operator that works on types and
expressions.
sizeof(type)
sizeof expression
•
In the first case,
sizeof(type)
will tell you how many bytes a variable
of that type takes up in memory.
•
In the case of array types (
int[10]
) it will tell you the full allocation size for an
array of that size (
40
);
•
In the second case,
sizeof expression
will give you the size of the
type of the expressions value but will not evaluate the expression.
•
Since C is statically-typed, an expression will only ever result in the same type.
Memory –
void
pointer
•
Of all the things we learned about pointers, an interesting thing about
them is that we can declare pointers to be
void
.
void *nothingptr;
•
A pointer is a variable that houses an address which is just a location
in memory, regardless of the type of value that resides there.
•
Why is this useful?
•
In many cases, a function may need to return a generic location in
memory, where the surrounding memory layout may be a mosaic of
varying types.
int
int
int
int
char
char
char
char
Memory – Dynamic Allocation with
malloc
•
So far, the only way we know of to allocate memory is through
declaration statements.
type name;
type array[100];
struct type;
•
However, the big flaw with declaration statements is that they only
exist within their scope.
•
Once you leave, that memory is deallocated.
•
One alternative to this is static and global variables, but the allocation
size of those variables must be decided before runtime.
•
To dynamically allocate persistent blocks of memory for us to use, we
need something else.
Memory – Dynamic Allocation with
malloc
•
In C, part of the built-in library includes a function called
malloc
which will reserve memory for the caller elsewhere.
void *malloc(size_t size);
// from stdlib.h
•
The
size
argument is an unsigned integer specifying how many bytes
malloc should allocate.
•
The function returns a
void
pointer to the first byte in a block of exactly
that many bytes.
•
If
malloc
fails to reserve such a block from its allocation buffer, it
returns
NULL
.
Memory – Memory Model of
malloc
•
malloc
makes use of an allocation buffer somewhere in memory.
•
This is implementation specific how it actually manages the memory
of the allocation buffer, but it has to, at some level have storage.
allocation buffer
•
Every call to
malloc
reserves some chunk of memory in this buffer.
•
This memory is persistently reserved and will stay allocated after the
scope of the
malloc
call is left.
•
What do we do when we're done with that memory?
Memory – Deallocating
malloc
Memory
•
To release memory that has been allocated through
malloc
, we need
to use the
free
function.
void free(void* ptr);
•
free
takes an arbitrary address as input and unreserves memory
allocated by
malloc
.
•
After this is done, access to that memory is NOT sanctioned and CAN cause
serious problems.
•
Attempting to
free
memory that was not allocated by
malloc
will
result in undefined behavior.
•
Failing to call free for when you're done malloc allocated memory can
cause a
memory leak
, when memory overtime is wastefully occupied.
Memory – Fragmentation
•
If you stagger calls to malloc and free in random ways, there's an
interesting and difficult problem that arises.
alloc buffer
•
These allocation buffer will eventually have numerous gaps.
•
Although there is probably enough net total memory available for
another allocation, there is no contiguous block of memory with
enough for a larger allocation.
•
This is called fragmentation.
•
Why can't we defrag the allocation buffer like we could with a hard
drive?
Memory – Allocating Multiple Typed Units
•
Since you're able to ask for a certain number of bytes with malloc, it's
often useful to ask for "enough room for X values of Y type."
Y *name = (Y *) malloc(X * sizeof(Y));
•
This is architecture independent!
•
Whereas we often hope that we're on a modern system with 4-byte
integers, this works even for architectures where integers are 2-byte, 8-
byte, or other!
int *name = (int *) malloc(100 * sizeof(int));
•
The above gives us 400 bytes on our Unix system or enough space for 100
integers on any archtecture.
