1. Background snapshot by Denis Plotnikov KVM Forum October 24 26, 2018

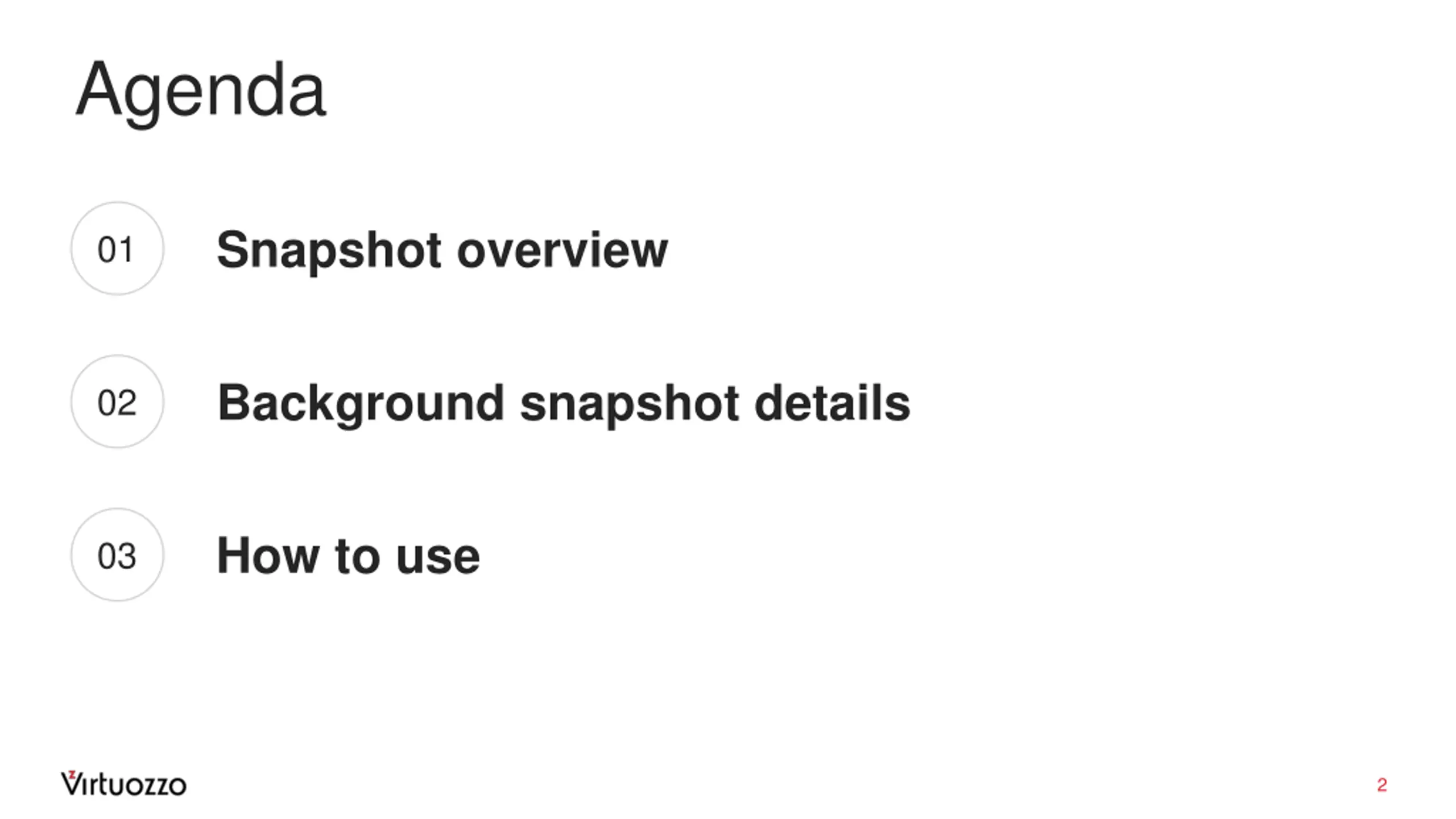

2. Agenda Snapshot overview 01 Background snapshot details 02 How to use 03 2

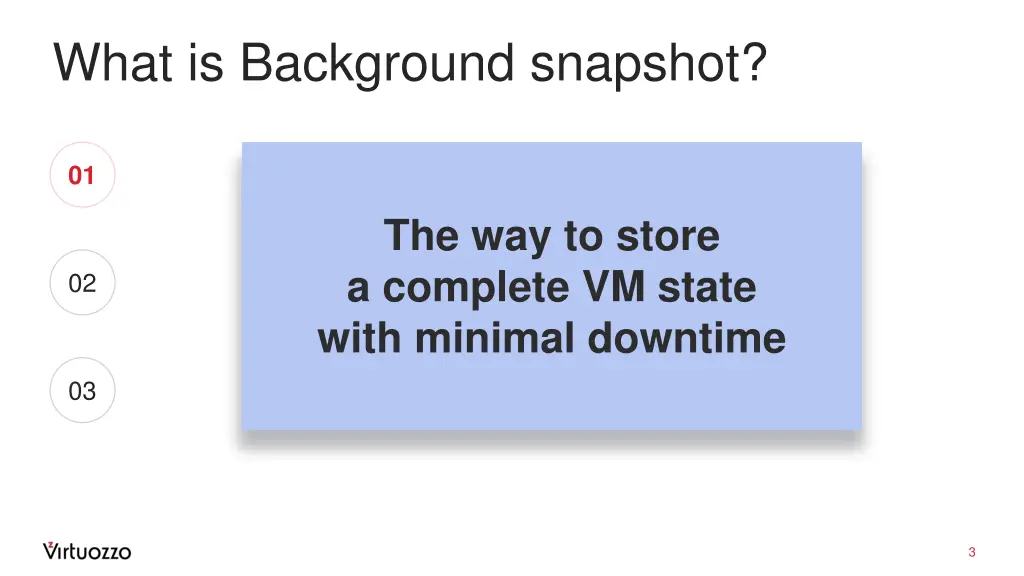

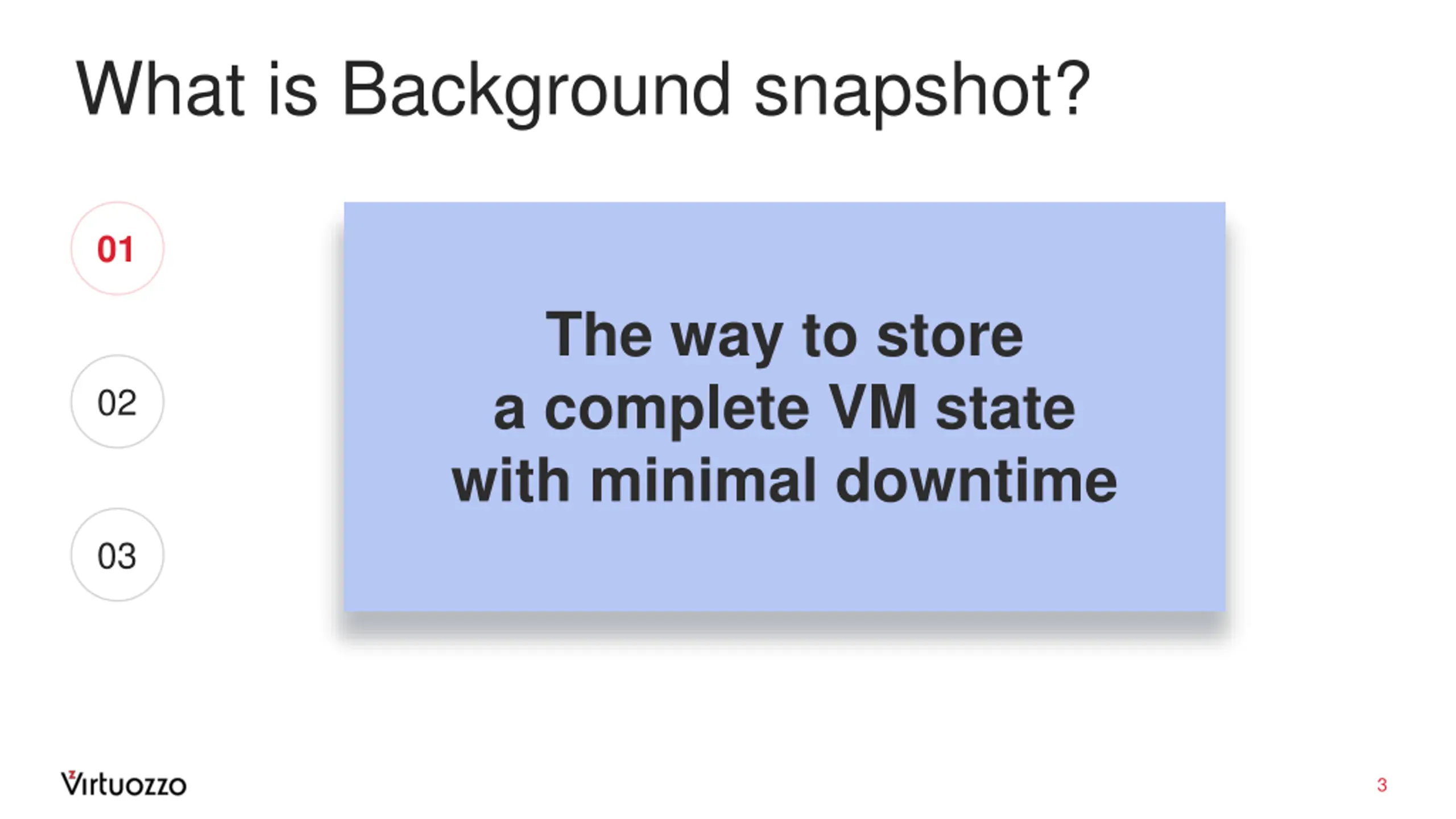

3. What is Background snapshot? 01 The way to store a complete VM state with minimal downtime 02 03 3

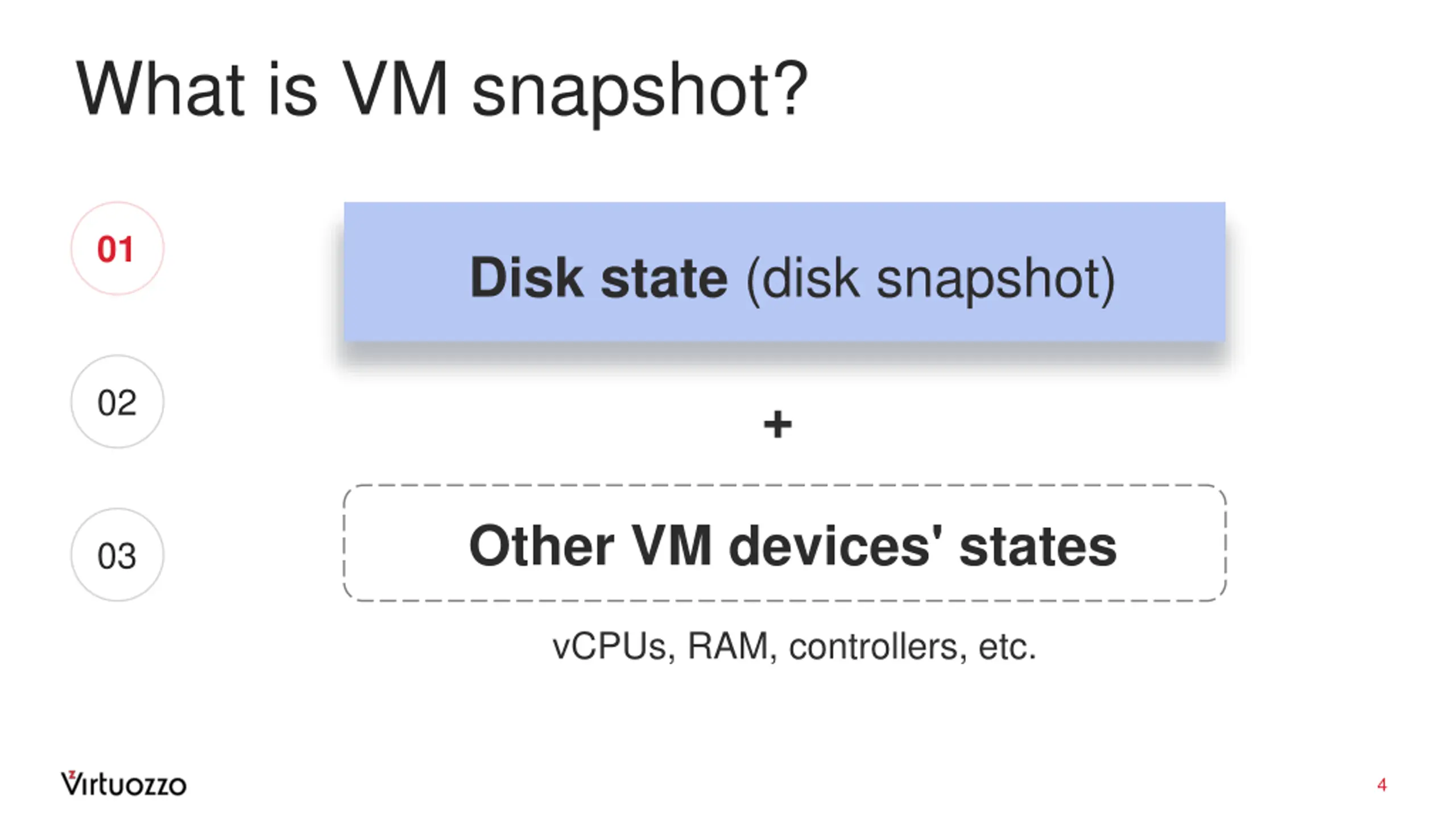

4. What is VM snapshot? 01 Disk state (disk snapshot) 02 + Other VM devices' states 03 vCPUs, RAM, controllers, etc. 4

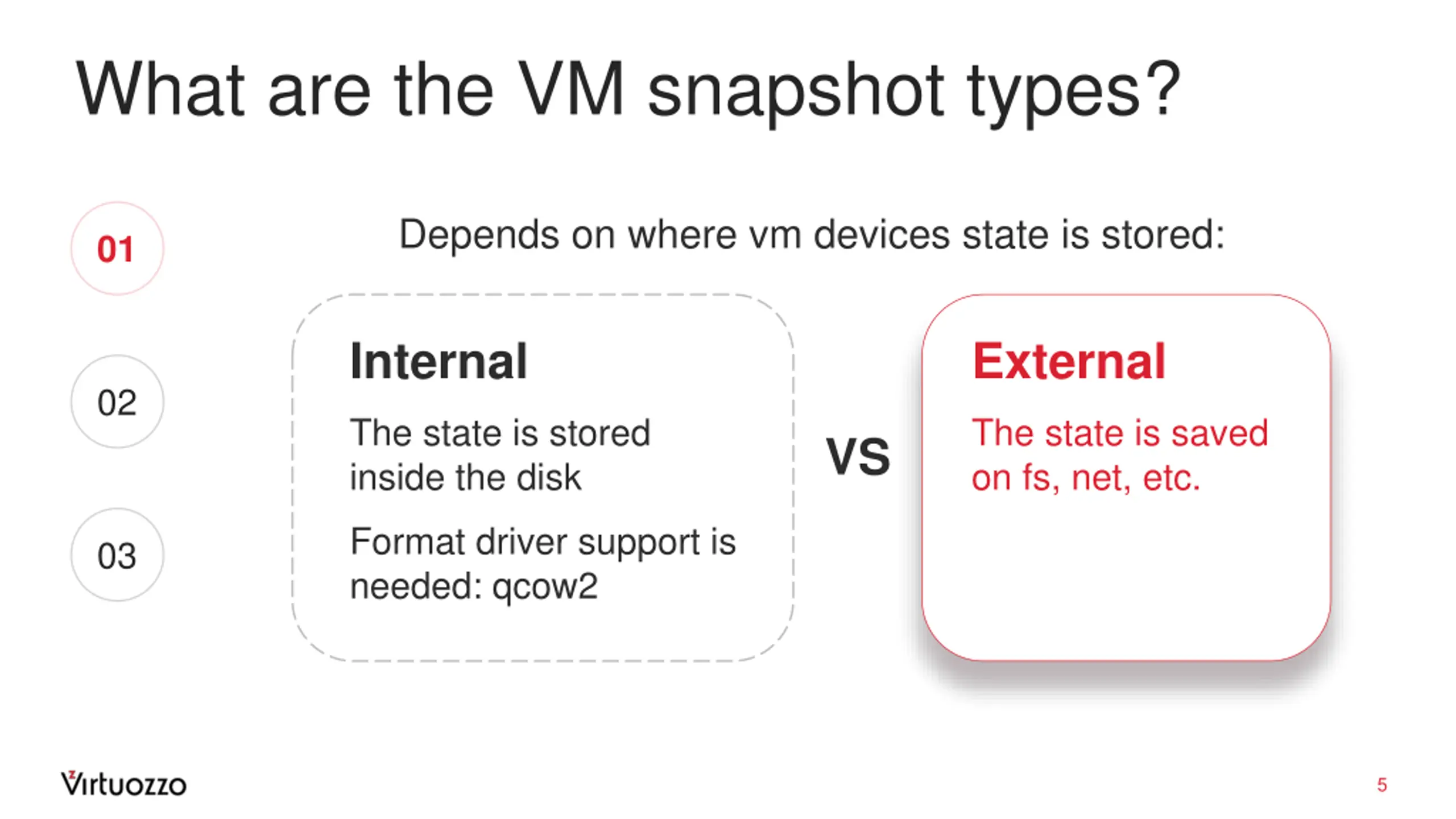

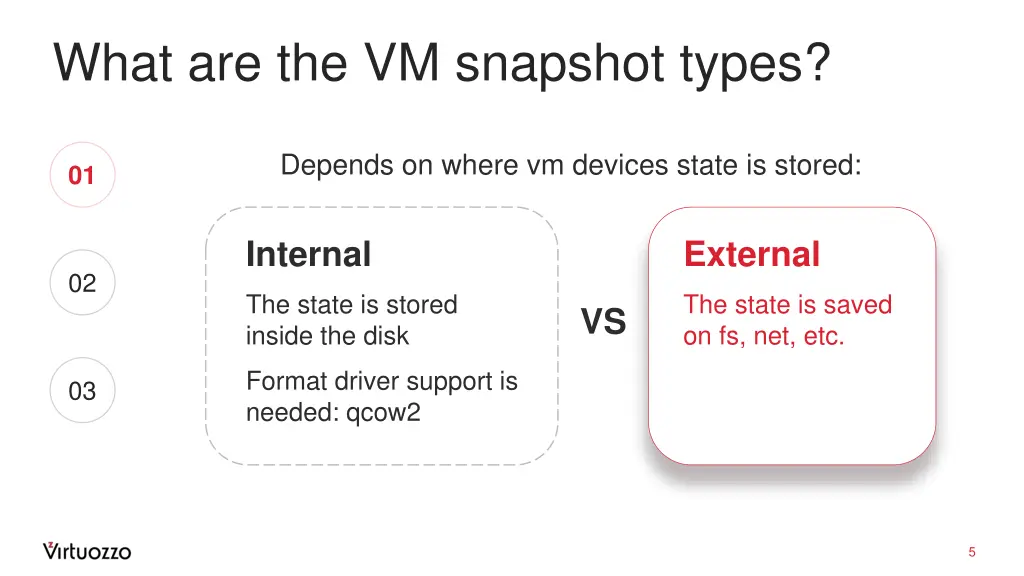

5. What are the VM snapshot types? Depends on where vm devices state is stored: 01 Internal External 02 The state is stored inside the disk The state is saved on fs, net, etc. VS Format driver support is needed: qcow2 03 5

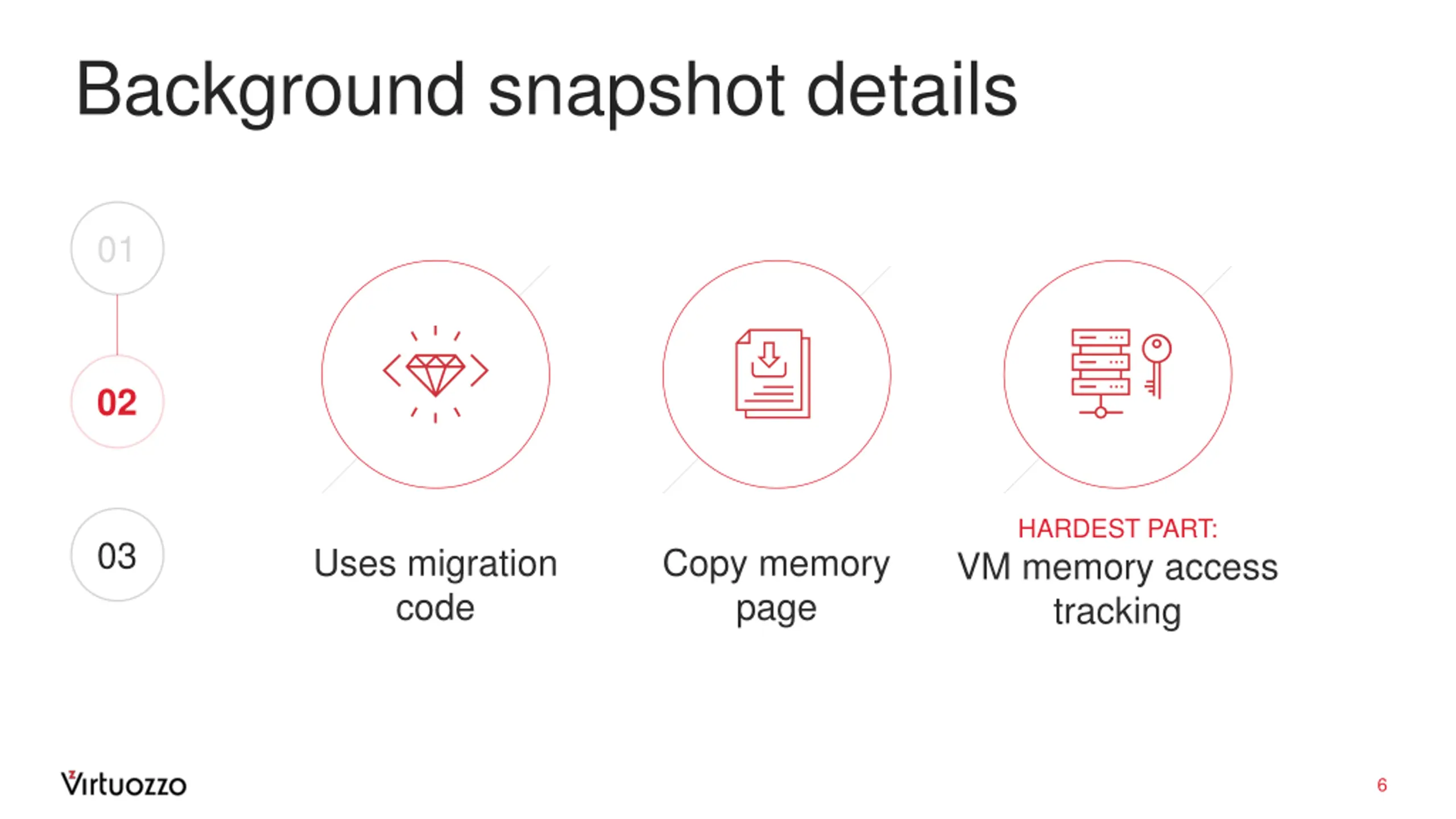

6. Background snapshot details 01 02 HARDEST PART: VM memory access tracking 03 Uses migration code Copy memory page 6

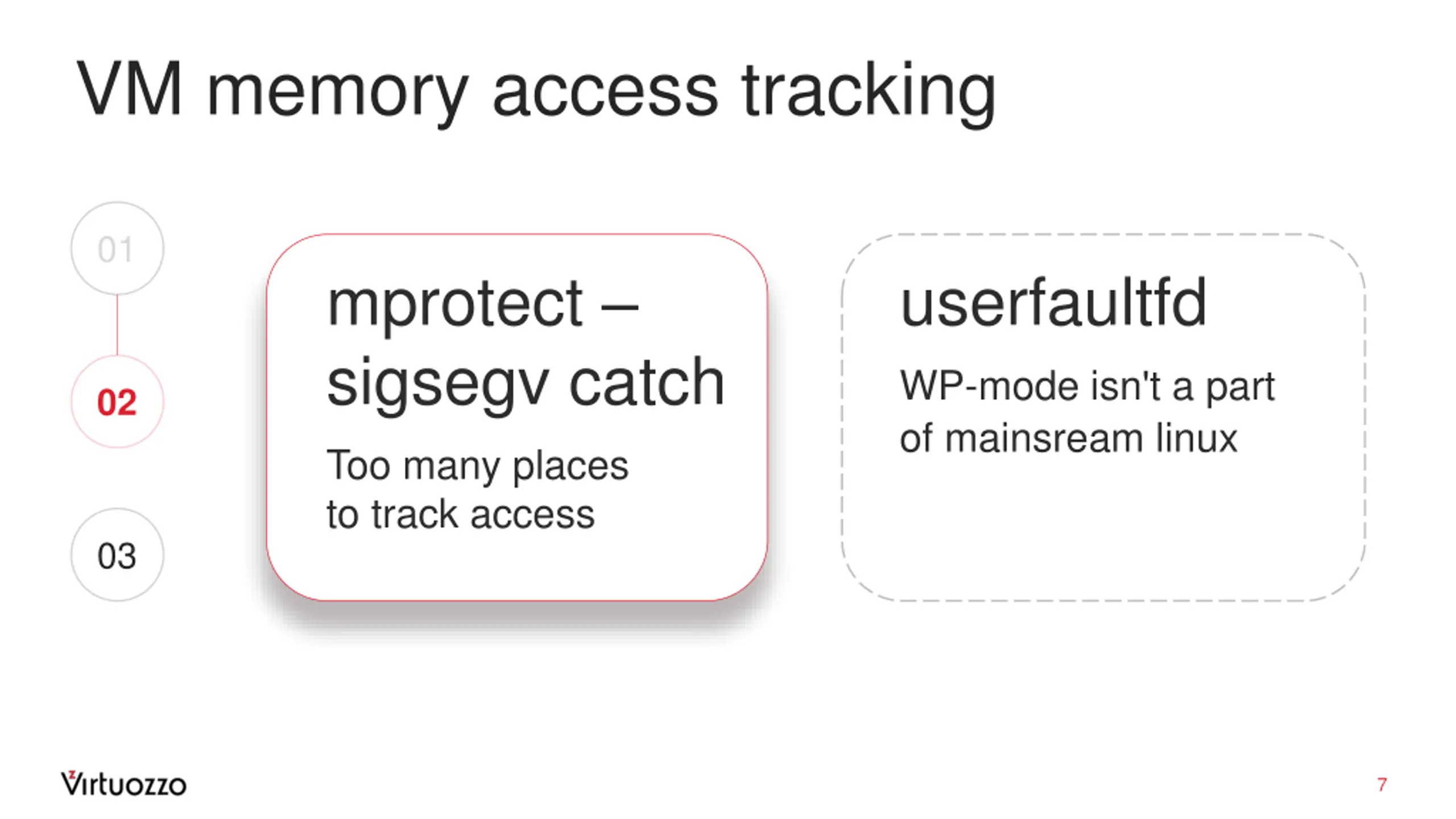

7. VM memory access tracking 01 mprotect sigsegv catch userfaultfd WP-mode isn't a part of mainsream linux 02 Too many places to track access 03 7

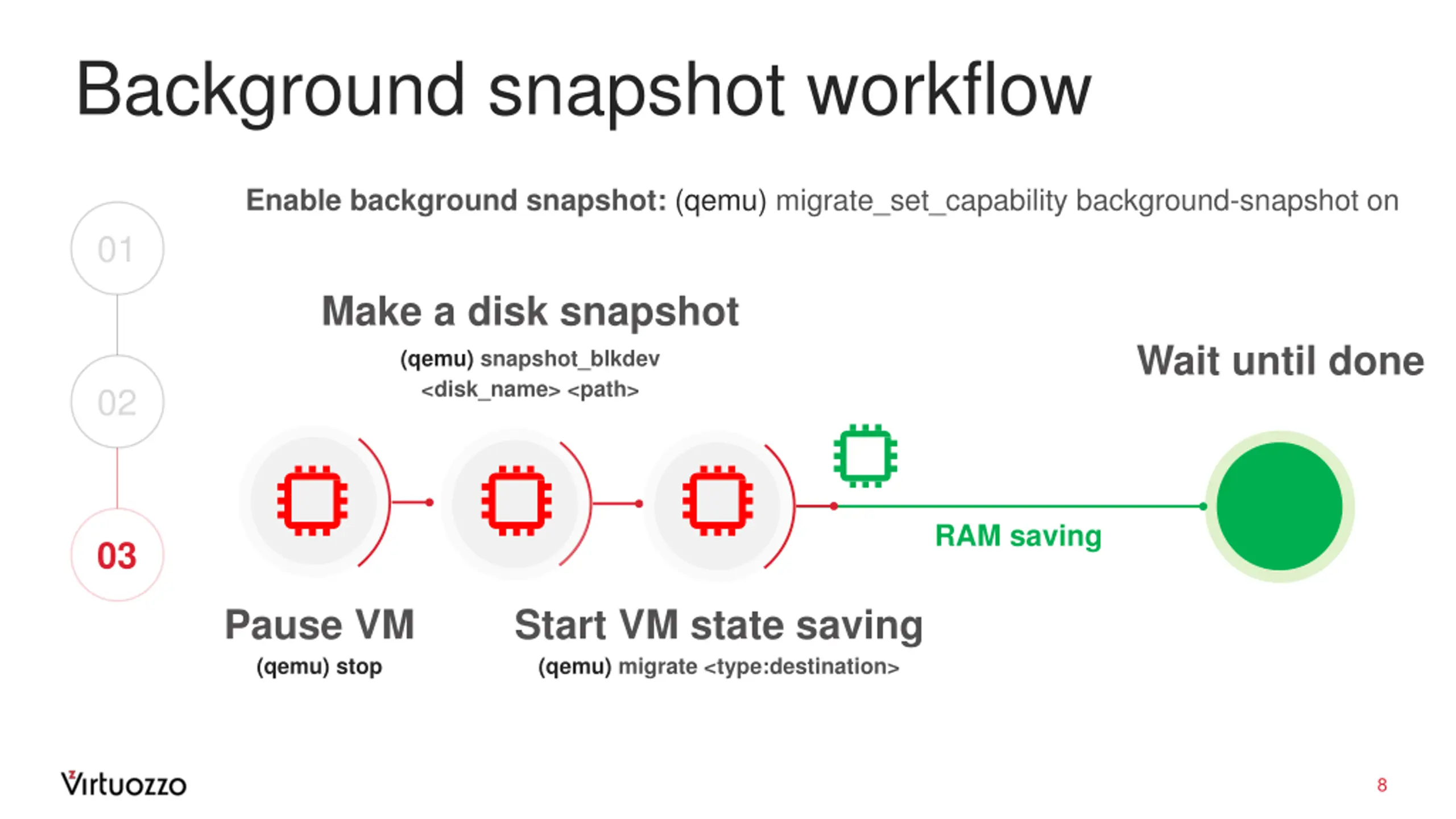

8. Background snapshot workflow Enable background snapshot: (qemu) migrate_set_capability background-snapshot on 01 Make a disk snapshot Wait until done (qemu) snapshot_blkdev <disk_name> <path> 02 RAM saving 03 Pause VM Start VM state saving (qemu) stop (qemu) migrate <type:destination> 8

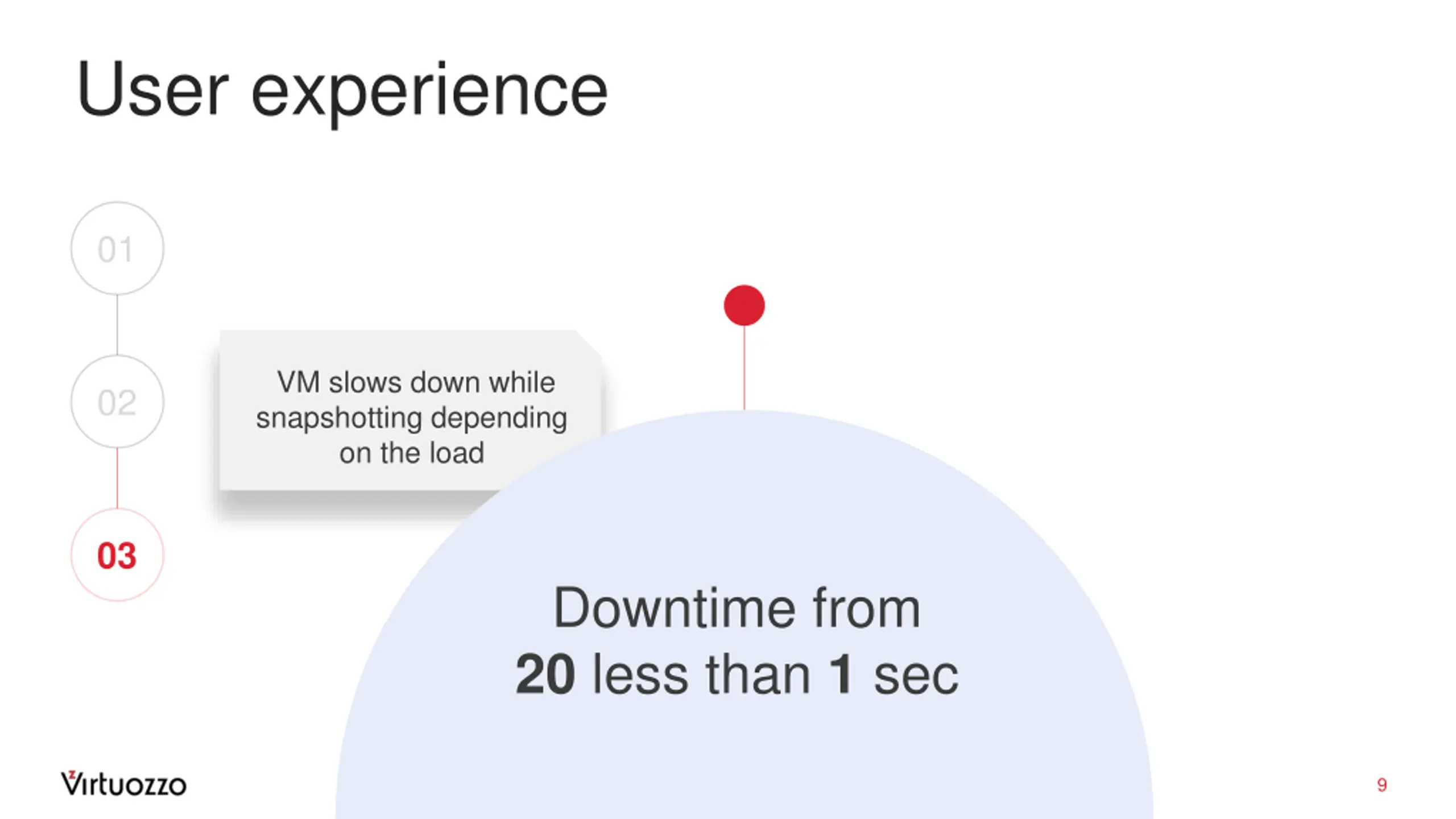

9. User experience 01 VM slows down while snapshotting depending on the load 02 03 Downtime from 20 less than 1 sec 9

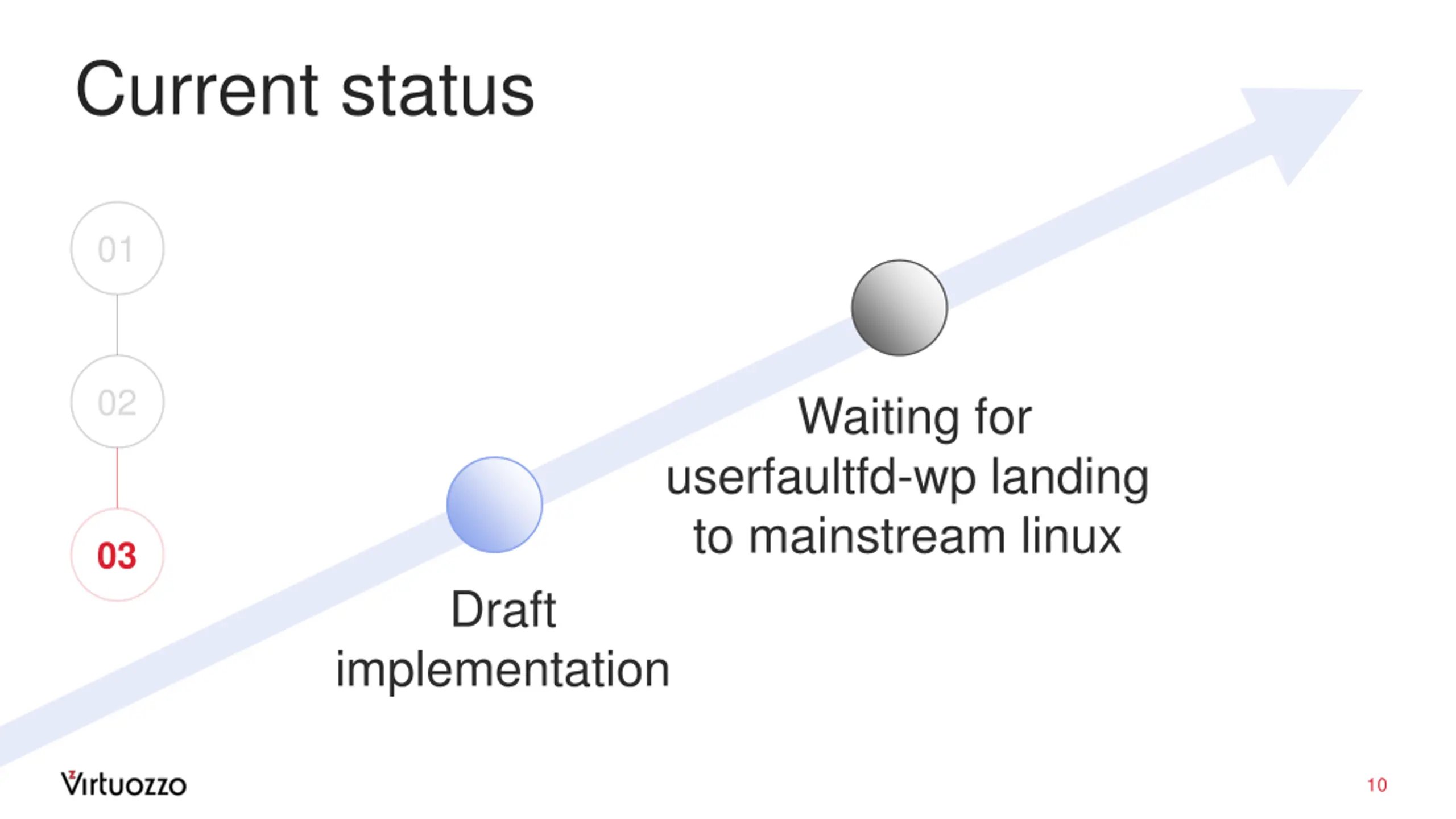

10. Current status 01 02 Waiting for userfaultfd-wp landing to mainstream linux 03 Draft implementation 10

11. QUESTIONS? 11

12. Thanks!
