AWGN Power Level in Telecom Standards
Way forward on AWGN
power level
Ericsson, Nokia, [Huawei]
R4-21xxxx
Way Forward on AWGN power level
•
The following notes will be added in all of the tables of AWGN level in
38.141-2:
•
NOTE 4: The AWGN power level contains an AWGN offset of 16dB by default.
If needed for test purposes, the AWGN level can be reduced from the default
by any value in the range 0dB to 16dB. Changing the AWGN level does not
impact the validity of the test, as it reduces the effective base band SNR level.
•
NOTE 5: The AWGN power level contains an AWGN offset of 15dB by default.
If needed for test purposes, the AWGN level can be reduced from the default
by any value in the range 0dB to 15dB. Changing the AWGN level does not
impact the validity of the test, as it reduces the effective base band SNR level.
Way Forward on AWGN power level
•
The following notes will be added in all of the tables of AWGN level in
38.141-1:
•
NOTE: The AWGN power level contains an AWGN offset of 16dB by default. If
needed for test purposes, the AWGN level can be reduced from the default by
any value in the range 0dB to 16dB. Changing the AWGN level does not
impact the validity of the test, as it reduces the effective base band SNR level.
Way Forward on AWGN power level
•
The changes will be applied from Rel
15?16?
•
38.141-1,
basic
sections: Rel15 Cat-F
•
38.141-1,
basic
and HST/etc sections: Rel16 Cat-F -> Rel17 Cat-A
•
38.141-2,
basic
sections: Rel15 Cat-F
•
38.141-2,
basic
and HST/etc sections: Rel16 Cat-F -> Rel17 Cat-A
Explore the impact of AWGN power level variations in Ericsson, Nokia, and Huawei technologies as per R4-21xxxx specifications. Learn how adjustments in AWGN offset affect test validity and baseband SNR levels according to standard notes 4 and 5 in 38.141-1 and 38.141-2. Discover upcoming changes in AWGN power levels from Rel.15 to Rel.17 as outlined in the document.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

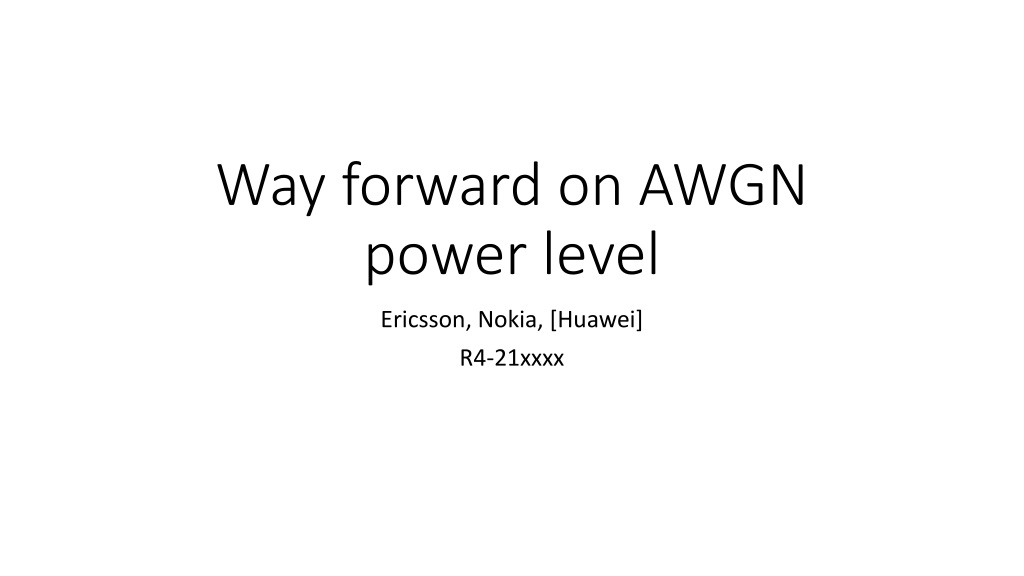

Way forward on AWGN power level Ericsson, Nokia, [Huawei] R4-21xxxx
Way Forward on AWGN power level The following notes will be added in all of the tables of AWGN level in 38.141-2: NOTE 4: The AWGN power level contains an AWGN offset of 16dB by default. If needed for test purposes, the AWGN level can be reduced from the default by any value in the range 0dB to 16dB. Changing the AWGN level does not impact the validity of the test, as it reduces the effective base band SNR level. NOTE 5: The AWGN power level contains an AWGN offset of 15dB by default. If needed for test purposes, the AWGN level can be reduced from the default by any value in the range 0dB to 15dB. Changing the AWGN level does not impact the validity of the test, as it reduces the effective base band SNR level.
Way Forward on AWGN power level The following notes will be added in all of the tables of AWGN level in 38.141-1: NOTE: The AWGN power level contains an AWGN offset of 16dB by default. If needed for test purposes, the AWGN level can be reduced from the default by any value in the range 0dB to 16dB. Changing the AWGN level does not impact the validity of the test, as it reduces the effective base band SNR level.
Way Forward on AWGN power level The changes will be applied from Rel 15?16? 38.141-1, basic sections: 38.141-1, basic and HST/etc sections: 38.141-2, basic sections: 38.141-2, basic and HST/etc sections: Rel15 Cat-F Rel16 Cat-F -> Rel17 Cat-A Rel15 Cat-F Rel16 Cat-F -> Rel17 Cat-A
