Angles and Measures in Trigonometry


Pre-AP Pre-Calculus
Chapter 4, Section 1

Angles and Their Measures
2013 - 2014

Chapter 4

Welcome to Trigonometry!!

Pay attention to the difference between degrees
and radians.

Primarily in this course and Calculus you will use
radians.

Definition:  Radian

A central angle of a circle has measure 1 radian if it
intercepts an arc with the same length as the radius

Degrees and Radians

A degree is a unit of angular measure equal to
1/180
th
 of a straight angle.
In DMS (degree-minute-second) system, each
degree is subdivided into 60 minutes (denoted by ‘)
and each minute is subdivided into 60 seconds
(denoted by “).

Working with DMS
Measure

Convert 42°24’36” to degrees

Working with DMS
Measure

Convert 37.425° to DMS

Degree - Radian

A straight angle (line) has __________ and a radian
measure of _________.

Working with Radian
measures

How many radians are in 90 degrees?

Working with Radian
measures

Working with Radian
measures

Circular Arc Length


Arc Length Formula (Radian
measure)

Arc Length Formula (degree
measure)

Perimeter of a Pizza Slice

Find the perimeter of a 60° slice of a large (7 inch
radius) pizza.

Designing a Running Track

The running lanes at the Emery Sears track at
Bluffton College are 1 meter wide.  The inside radius
of the lane 1 is 33 meters and inside radius of lane 2
is 34 meters.  How much longer is lane 2 than lane 1
around one turn?

Angular and Linear Motion

Sometimes it is necessary to connect angular speed
(measured in units like revolutions per minute) and
linear speed (measured in units like miles per hour.
The connection is usually given by one of the arc
length formulas or by a conversion.

Using Angular speed

Albert’s truck has wheels 36 inches in diameter.  If
the wheels are rotating at 630 rpm (revolutions per
mintue), find the truck’s speed in miles per hour.

Ch 4.1 Homework

Pg. 356 – 357, #’s:  2 – 24 even, 25, 30, 31, 36, 41, 45
59, 61

20 total problems

Gray book:  pg. 325
Slide Note
Embed
Share

Delve into the world of angles and their measures in trigonometry, exploring the concepts of degrees and radians. Learn how to convert between degrees, minutes, and seconds, and grasp the relationship between degrees and radians in circular arcs. Discover the fundamentals of radian measure and its significance in calculus and trigonometry.

  • Trigonometry
  • Angles
  • Degrees
  • Radians
  • Circular Arcs

Uploaded on Aug 23, 2024 | 2 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

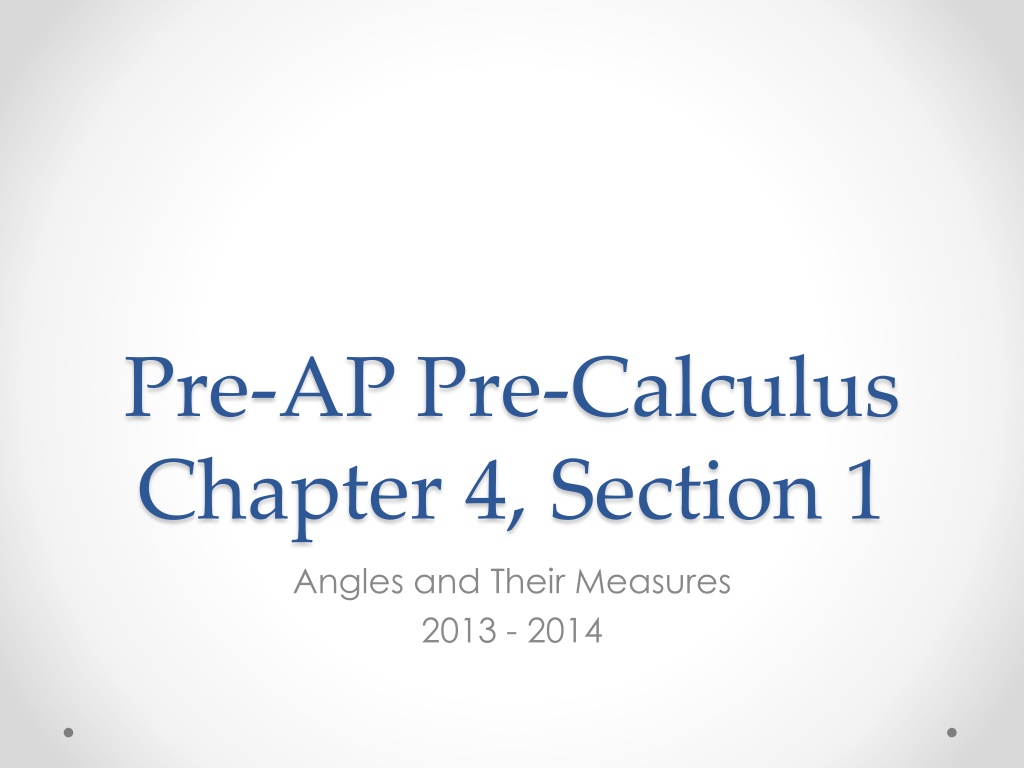

  1. Pre-AP Pre-Calculus Chapter 4, Section 1 Angles and Their Measures 2013 - 2014

  2. Chapter 4 Welcome to Trigonometry!! Pay attention to the difference between degrees and radians. Primarily in this course and Calculus you will use radians.

  3. Definition: Radian A central angle of a circle has measure 1 radian if it intercepts an arc with the same length as the radius

  4. Degrees and Radians A degree is a unit of angular measure equal to 1/180thof a straight angle. In DMS (degree-minute-second) system, each degree is subdivided into 60 minutes (denoted by ) and each minute is subdivided into 60 seconds (denoted by ).

  5. Working with DMS Measure Convert 42 24 36 to degrees

  6. Working with DMS Measure Convert 37.425 to DMS

  7. Degree - Radian A straight angle (line) has __________ and a radian measure of _________.

  8. Working with Radian measures How many radians are in 90 degrees?

  9. Working with Radian measures How many degrees are there in ? 3radians?

  10. Working with Radian measures How many degrees are in 2? 3radians?

  11. Circular Arc Length

  12. Arc Length Formula (Radian measure) If is a central angle in a circle of radius r, and if is measured in radians, then the length s of the intercepted arc is given by ? = ??

  13. Arc Length Formula (degree measure) If is a central angle in a circle of radius r, and if is measured in degrees, then the length s of the intercepted arc is given by ? =??? 180

  14. Perimeter of a Pizza Slice Find the perimeter of a 60 slice of a large (7 inch radius) pizza.

  15. Designing a Running Track The running lanes at the Emery Sears track at Bluffton College are 1 meter wide. The inside radius of the lane 1 is 33 meters and inside radius of lane 2 is 34 meters. How much longer is lane 2 than lane 1 around one turn?

  16. Angular and Linear Motion Sometimes it is necessary to connect angular speed (measured in units like revolutions per minute) and linear speed (measured in units like miles per hour. The connection is usually given by one of the arc length formulas or by a conversion.

  17. Using Angular speed Albert s truck has wheels 36 inches in diameter. If the wheels are rotating at 630 rpm (revolutions per mintue), find the truck s speed in miles per hour.

  18. Ch 4.1 Homework Pg. 356 357, # s: 2 24 even, 25, 30, 31, 36, 41, 45 59, 61 20 total problems Gray book: pg. 325
