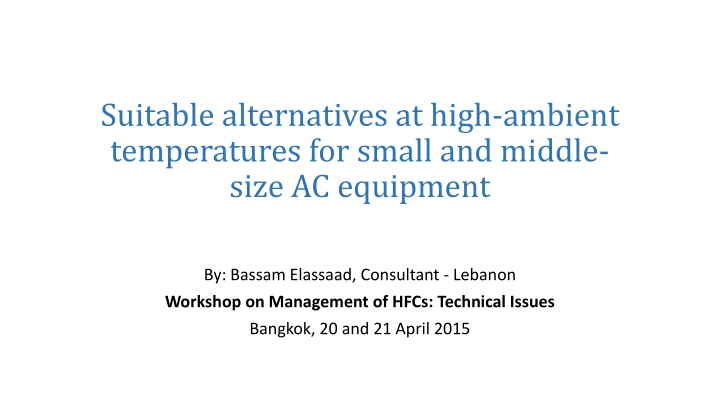

Suitable alternatives at high-ambient temperatures for small and middle- size AC equipment By: Bassam Elassaad, Consultant - Lebanon Workshop on Management of HFCs: Technical Issues Bangkok, 20 and 21 April 2015
Challenges of High Ambient Operations Reduced performance; Decreased efficiency; Quicker wearing of components leading to shorter life. Factors Affecting Operation at High Ambient Critical temperature; Operating pressure; Design and selection of components. HFC Workshop - April 20, 2015 Bangkok 2
What is market* landscape like? < 5 tons 99% 100% of window & Ductless splits 85% of ducted splits 53% of rooftops & 28% of indoor packaged A/C Market DX units DX units 73% of market 6 - 15 tons 0.7% 25% of multi-splits 40% of U.S Ducted splits 30% of rooftops & 47% of indoor packaged Split systems 55% Split Systems Packaged units 13% Chilled water > 16 tons 0.3% Ductless 80% Ducted 20% 27% of market 15% of rooftops 20% of indoor packaged Window 32% Source: PRAHA * Typical Gulf Country HFC Workshop - April 20, 2015 Bangkok 3
What is available now as an alternative to HCFCs ? That is: Commercially available; Technically proven; Environmentally sound; Economically viable and cost effective; Safe to use in areas with high urban densities considering flammability and toxicity issues, including, where possible, risk characterization; Easy to service and maintain. HFC Workshop - April 20, 2015 Bangkok 4
Alternative technology selection Pressure R-22 or R-410A Eq. GWP 0 to ?? Flammability A2L or A3 HFC Workshop - April 20, 2015 Bangkok 5
Transformation to alternative technologies Transformation from HCFC-22 Transformation from HFCs To currently available HFCs = A1 refrigerants but higher pressure To HC and HFC/HFO = A2L and A3 refrigerants but similar pressure For local OEMs, a leap from HCFC to low-GWP new alternatives is a double challenge of flammability and pressure HFC Workshop - April 20, 2015 Bangkok 6
Local research Objectives: Asses available technologies; Asses relevant Energy Efficiency standards and codes; Economic comparison of alternative technologies; Promoting Technology transfer. HFC Workshop - April 20, 2015 Bangkok PRAHA & EGYPRA Research PRAHA Project Components Coordinating phase- out requirements with MEPS programs Building and testing prototypes Study on Long-Term Feasible Technologies 7
PRAHA & EGYPRA Stakeholders and tests: Complimentary research initiatives; PRAHA concentrates on high ambient for the Gulf, EGYPRA on Egyptian market; 8 alternative refrigerants: HC, HFC, HFC/HFO blends 8 technology providers for compressors, refrigerants, and components; 15 OEMs: 7 in GCC, 8 in Egypt; 58 prototypes, 8 applications: 3.5 to 35 kW; 174 tests: T1, T2, T3 and an endurance test at 55 C. Refrigerants being researched: R-290 HFC-32 R-444B (was known as L-20), equivalent to HCFC-22 R-447A (was known as L-41), equivalent to R-410A DR-3, equivalent to HCFC-22 R-454B (was known as DR-5A), equivalent to R-410A ARM-32, equivalent to HCFC-22 ARM-71d, equivalent to R-410A HFC Workshop - April 20, 2015 Bangkok 8
Thank you! belassaad@gmail.com HFC Workshop - April 20, 2015 Bangkok 9
