A Comprehensive Guide to Common Chip Seal Oils

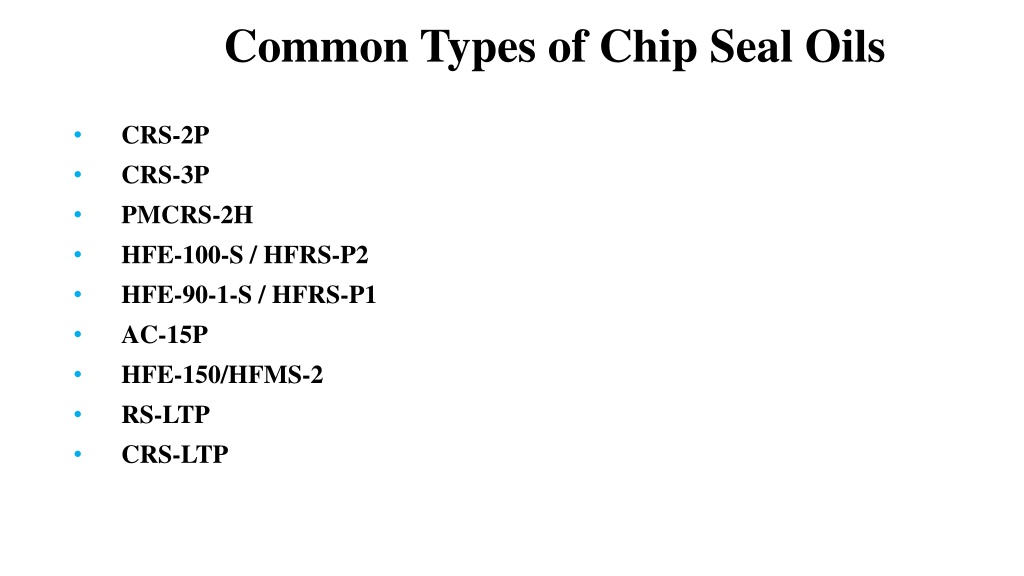

Common Types of Chip Seal Oils
•
CRS-2P
•
CRS-3P
•
PMCRS-2H
•
HFE-100-S / HFRS-P2
•
HFE-90-1-S / HFRS-P1
•
AC-15P
•
HFE-150/HFMS-2
•
RS-LTP
•
CRS-LTP
•
PMRE
•
CRS-2
•
AC-15P - hot applied oil with coated aggregate
•
CRS-2P – Cationic rapid set emulsion with polymers
•
CRS-3P – Cationic rapid set emulsion with more polymers – for high traffic roads
•
PMCRS-2H – Cationic rapid set emulsion with polymers with harder pen oil base.
•
HFRS-P1- Anionic rapid set emulsion with 1.5% polymers
•
HFRS-P2 – Anionic rapid set emulsion with 3% polymers – for high traffic roads
•
RS-LTP – Anionic Low Temperature emulsion oil for use in heavy shade and along the
coastal fog belt. Can be used where air temperatures are between 40 to 70 degrees
Common Chip Seal Oils
•
CRS-LTP – Cationic low-temperature oil for use under tree canopy and coastal
areas where temperatures can be between 40 and 70 degrees
•
HFMS 2/HFE-150 – medium set high float oil often used for gravel road
conversions or with dirtier aggregate
•
CSS-1 – tack coat emulsion oil. Can be used as fog seal
•
CSS-1H – often used as a Cationic fog seal. Like CSS-1 but with a harder pen
asphalt base
•
CQS-1H – Cationic quick set fog seal
•
HFRS-P1 D 50% - Anionic fog seal
Common Chip Seal Oils
Explore various types of chip seal oils used for road surfacing, including CRS-2P, CRS-3P, PMCRS-2H, HFE-100-S, HFRS-P2, AC-15P, HFE-150, RS-LTP, and more. Learn about their applications, compositions, and ideal usage conditions such as temperature requirements and traffic intensity. Discover hot applied oils, emulsions with polymers, low-temperature oils, fog seals, and more for different road conditions.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Common Types of Chip Seal Oils CRS-2P CRS-3P PMCRS-2H HFE-100-S / HFRS-P2 HFE-90-1-S / HFRS-P1 AC-15P HFE-150/HFMS-2 RS-LTP CRS-LTP
PMRE CRS-2
Common Chip Seal Oils AC-15P - hot applied oil with coated aggregate CRS-2P Cationic rapid set emulsion with polymers CRS-3P Cationic rapid set emulsion with more polymers for high traffic roads PMCRS-2H Cationic rapid set emulsion with polymers with harder pen oil base. HFRS-P1- Anionic rapid set emulsion with 1.5% polymers HFRS-P2 Anionic rapid set emulsion with 3% polymers for high traffic roads RS-LTP Anionic Low Temperature emulsion oil for use in heavy shade and along the coastal fog belt. Can be used where air temperatures are between 40 to 70 degrees
Common Chip Seal Oils CRS-LTP Cationic low-temperature oil for use under tree canopy and coastal areas where temperatures can be between 40 and 70 degrees HFMS 2/HFE-150 medium set high float oil often used for gravel road conversions or with dirtier aggregate CSS-1 tack coat emulsion oil. Can be used as fog seal CSS-1H often used as a Cationic fog seal. Like CSS-1 but with a harder pen asphalt base CQS-1H Cationic quick set fog seal HFRS-P1 D 50% - Anionic fog seal
