Vehicle Dynamics and Energy Calculation
Explore the detailed calculations for vehicle load, aerodynamics, rolling resistance, gradient resistance, acceleration force, and tractive force in this comprehensive analysis. Understand the various components contributing to the overall power required for vehicle movement.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

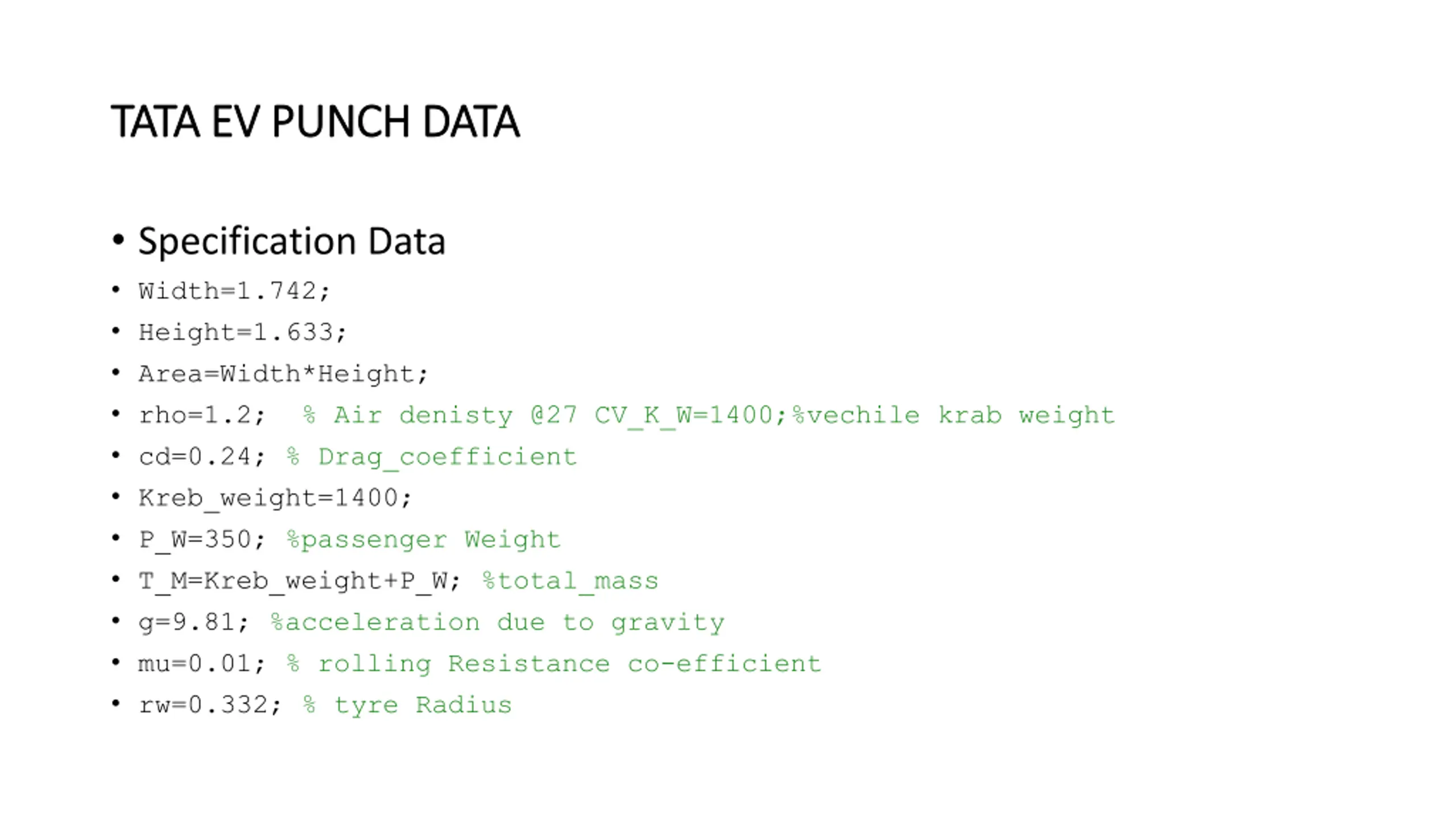

TATA EV PUNCH DATA TATA EV PUNCH DATA Specification Data Width=1.742; Height=1.633; Area=Width*Height; rho=1.2; % Air denisty @27 CV_K_W=1400;%vechile krab weight cd=0.24; % Drag_coefficient Kreb_weight=1400; P_W=350; %passenger Weight T_M=Kreb_weight+P_W; %total_mass g=9.81; %acceleration due to gravity mu=0.01; % rolling Resistance co-efficient rw=0.332; % tyre Radius

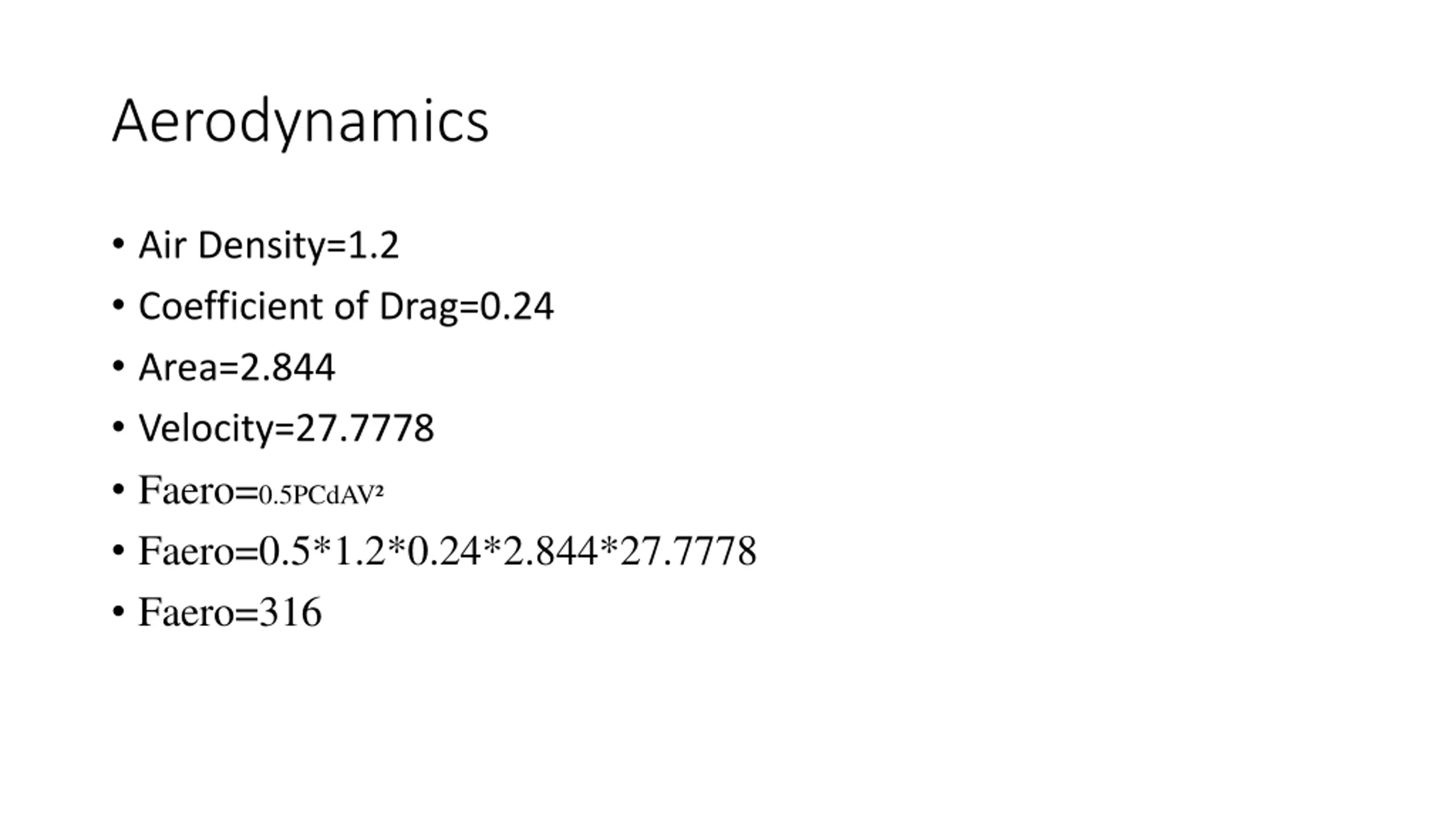

Aerodynamics Air Density=1.2 Coefficient of Drag=0.24 Area=2.844 Velocity=27.7778 Faero=0.5PCdAV Faero=0.5*1.2*0.24*2.844*27.7778 Faero=316

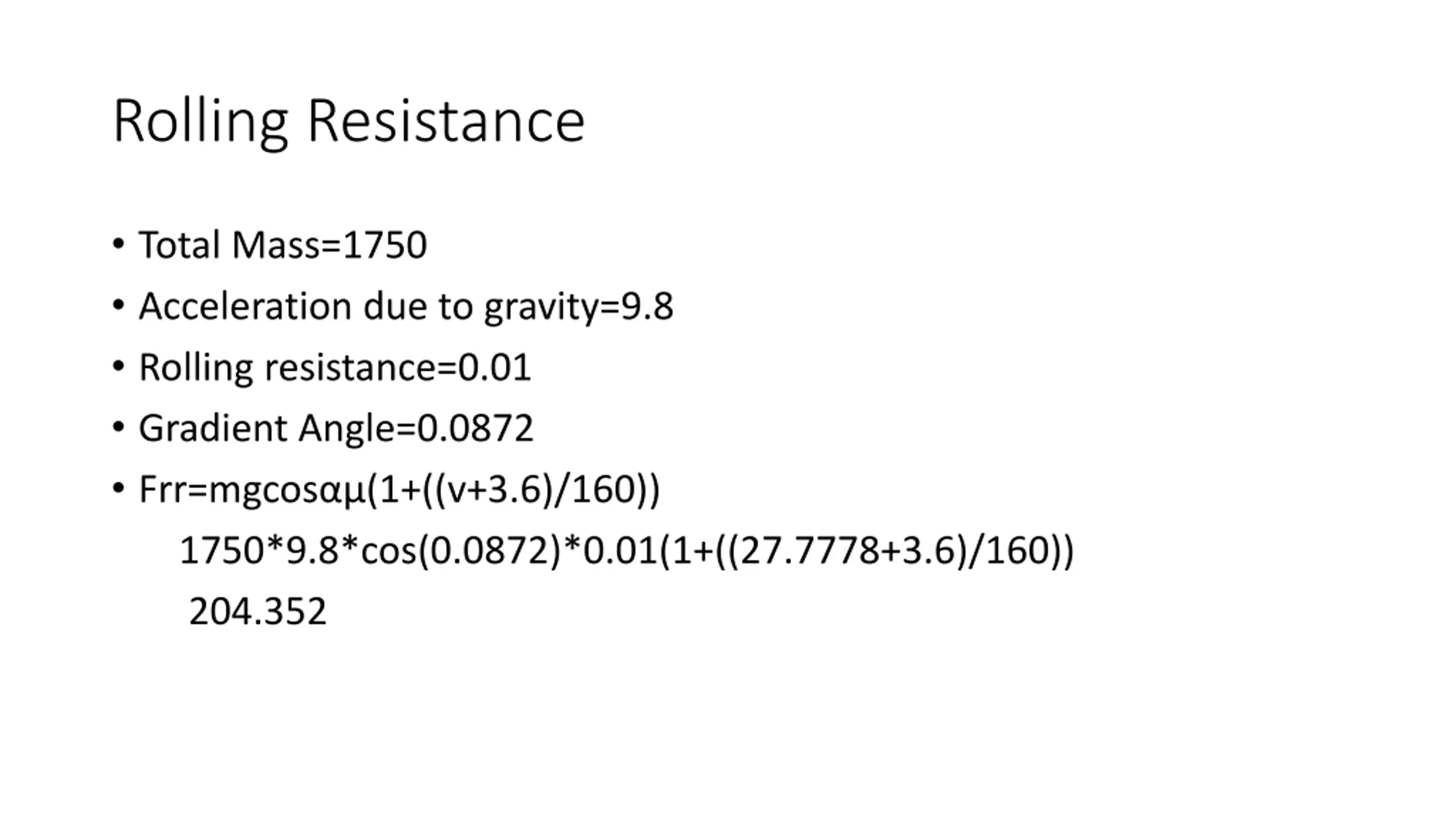

Rolling Resistance Total Mass=1750 Acceleration due to gravity=9.8 Rolling resistance=0.01 Gradient Angle=0.0872 Frr=mgcos (1+((v+3.6)/160)) 1750*9.8*cos(0.0872)*0.01(1+((27.7778+3.6)/160)) 204.352

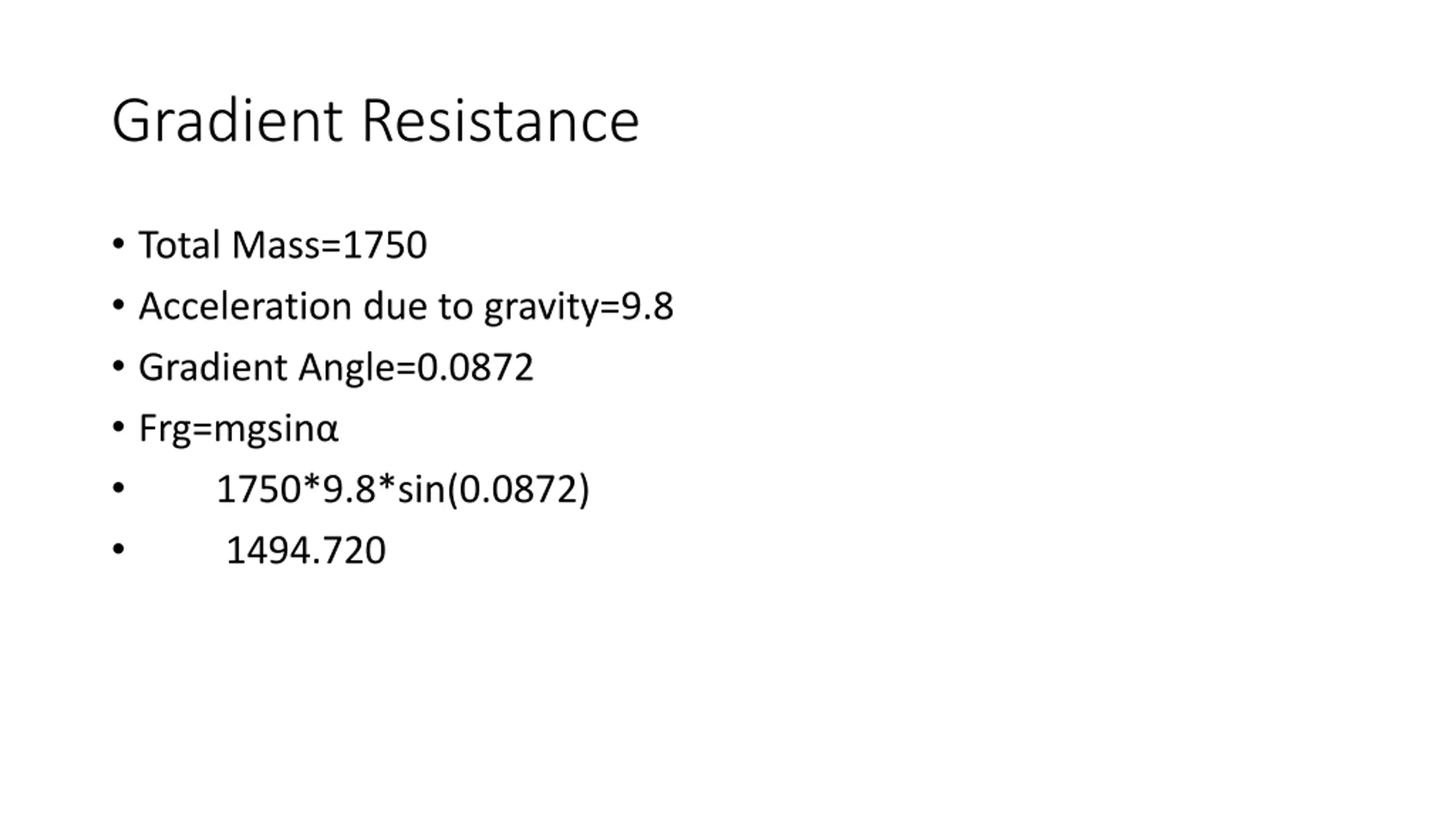

Gradient Resistance Total Mass=1750 Acceleration due to gravity=9.8 Gradient Angle=0.0872 Frg=mgsin 1750*9.8*sin(0.0872) 1494.720

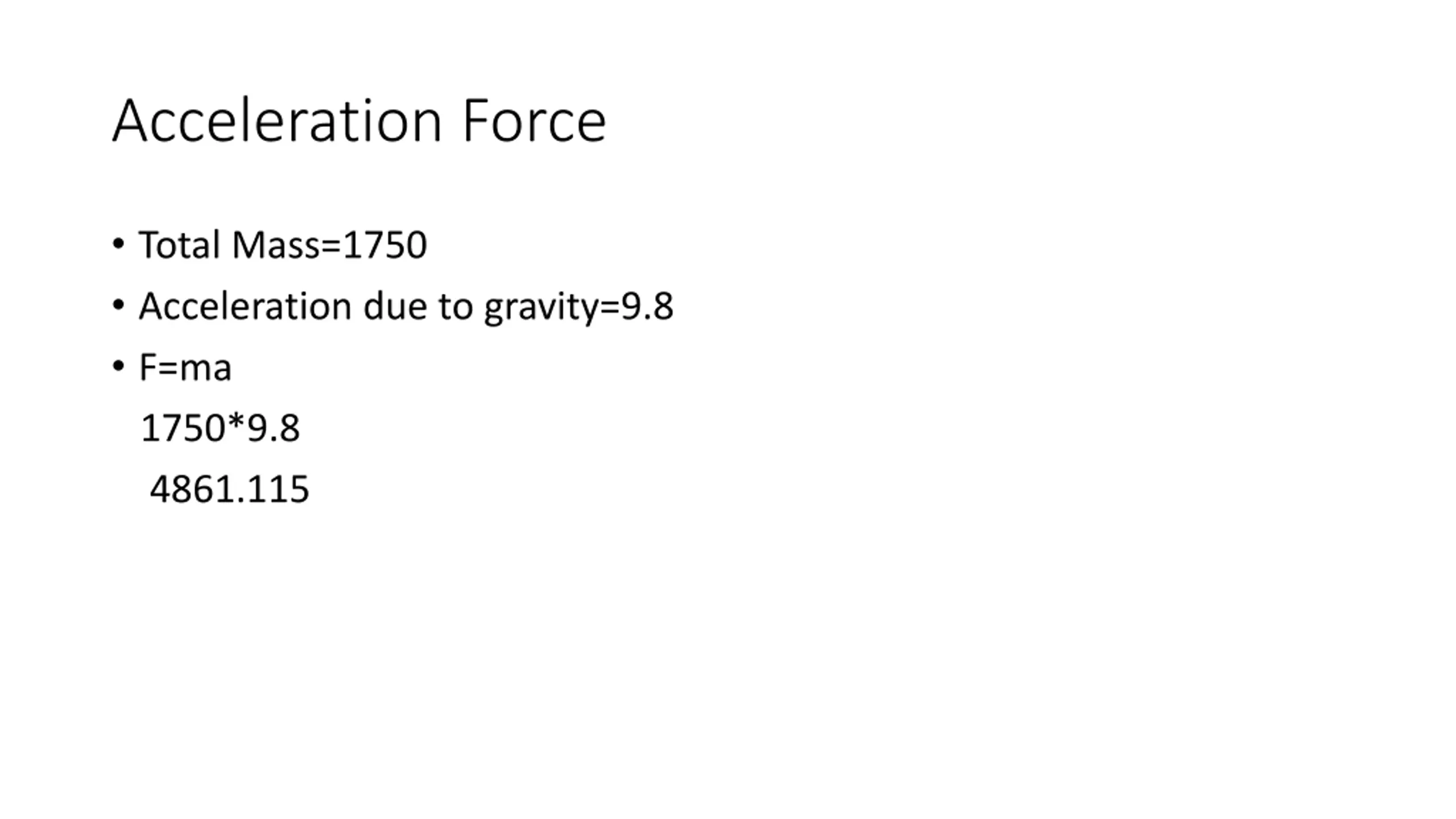

Acceleration Force Total Mass=1750 Acceleration due to gravity=9.8 F=ma 1750*9.8 4861.115

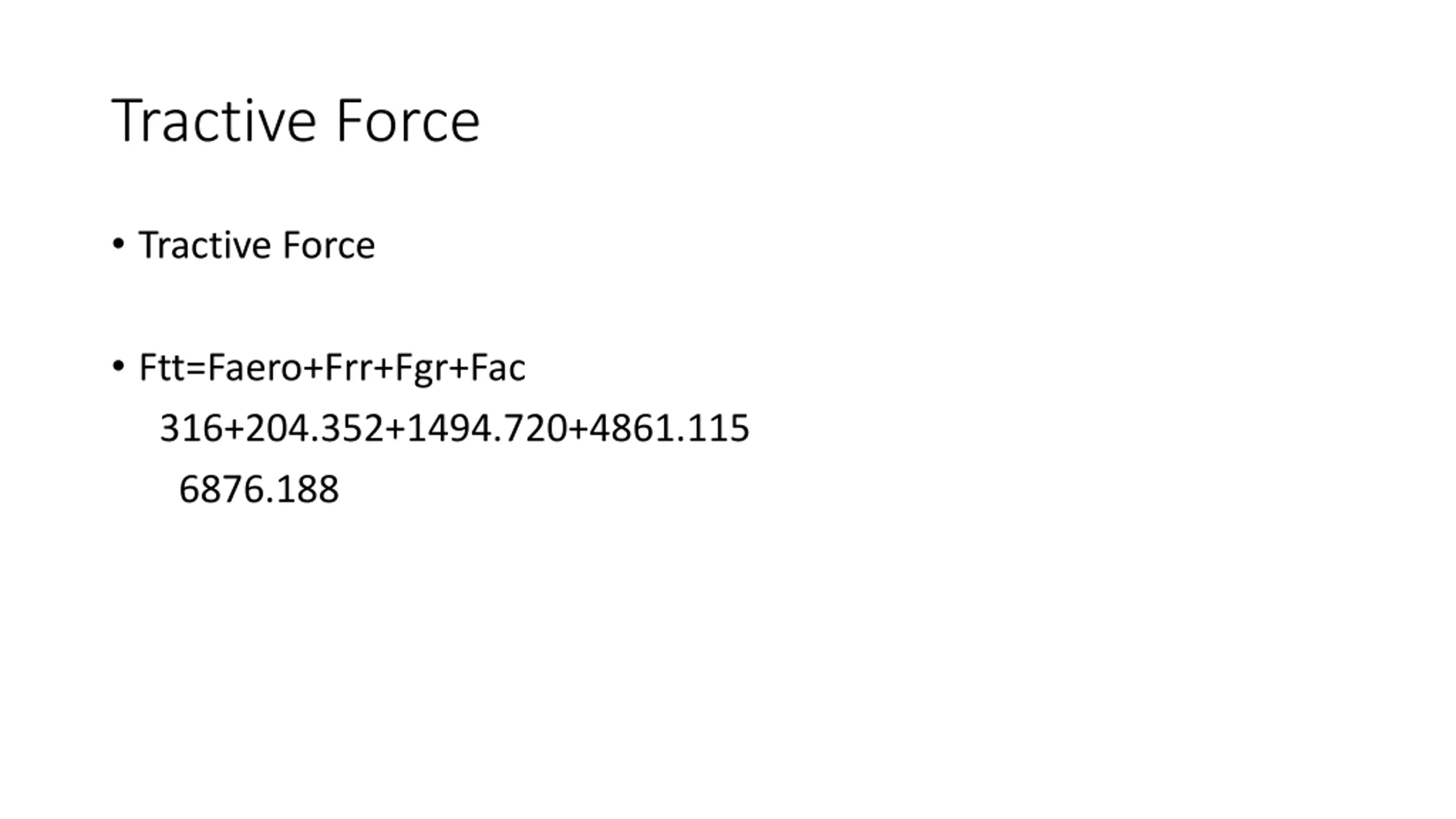

Tractive Force Tractive Force Ftt=Faero+Frr+Fgr+Fac 316+204.352+1494.720+4861.115 6876.188

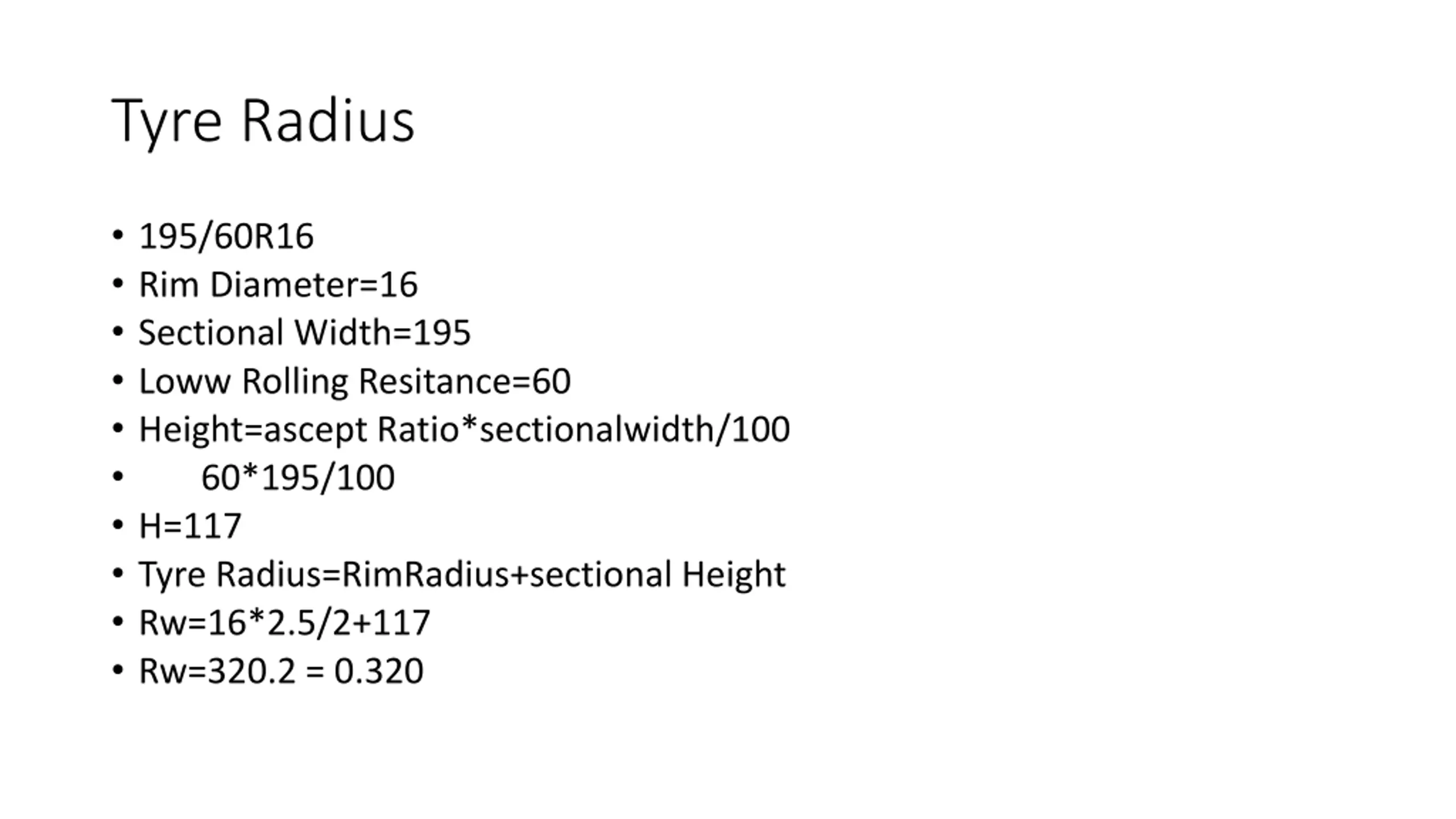

Tyre Radius 195/60R16 Rim Diameter=16 Sectional Width=195 Loww Rolling Resitance=60 Height=ascept Ratio*sectionalwidth/100 60*195/100 H=117 Tyre Radius=RimRadius+sectional Height Rw=16*2.5/2+117 Rw=320.2 = 0.320

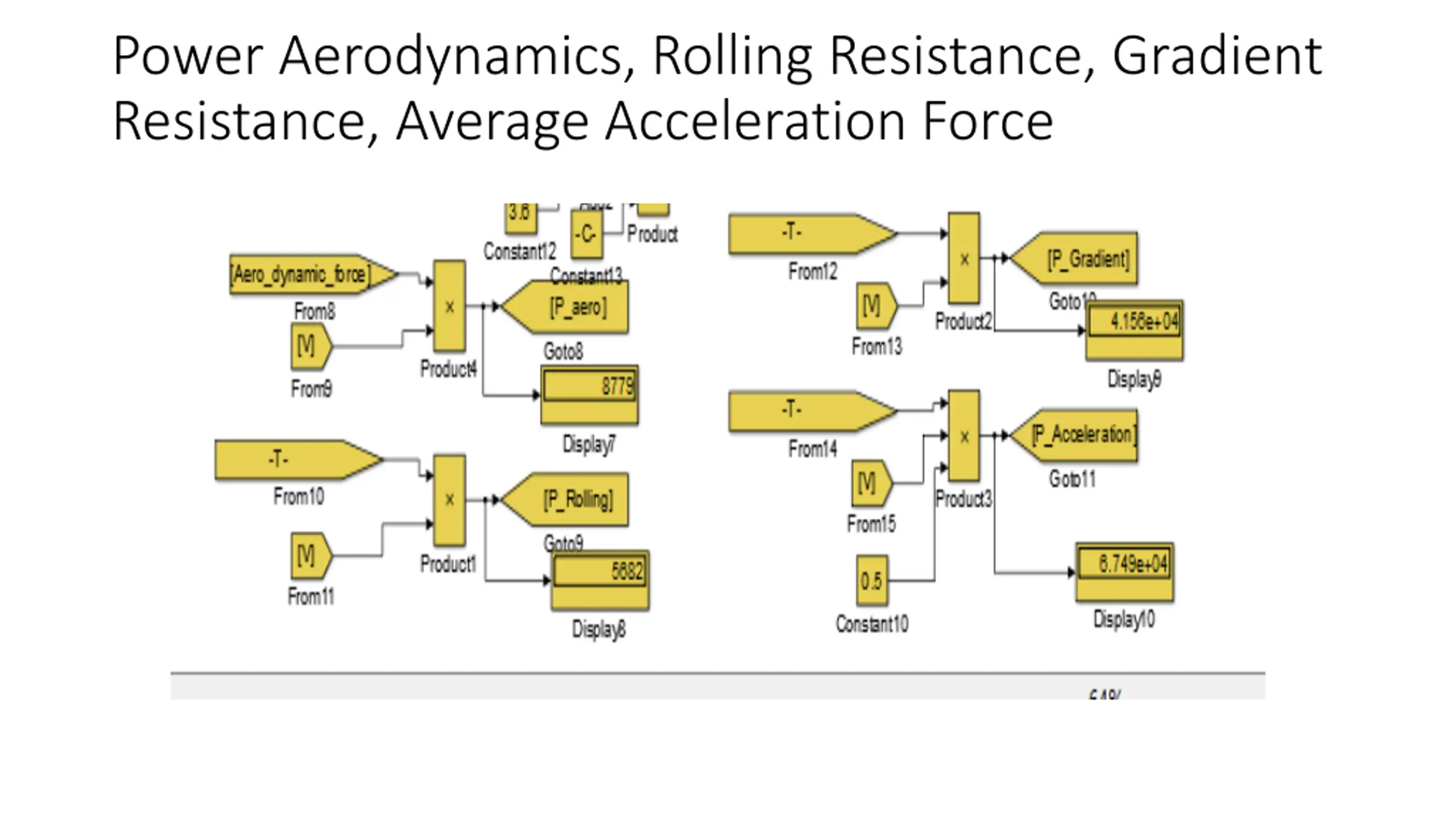

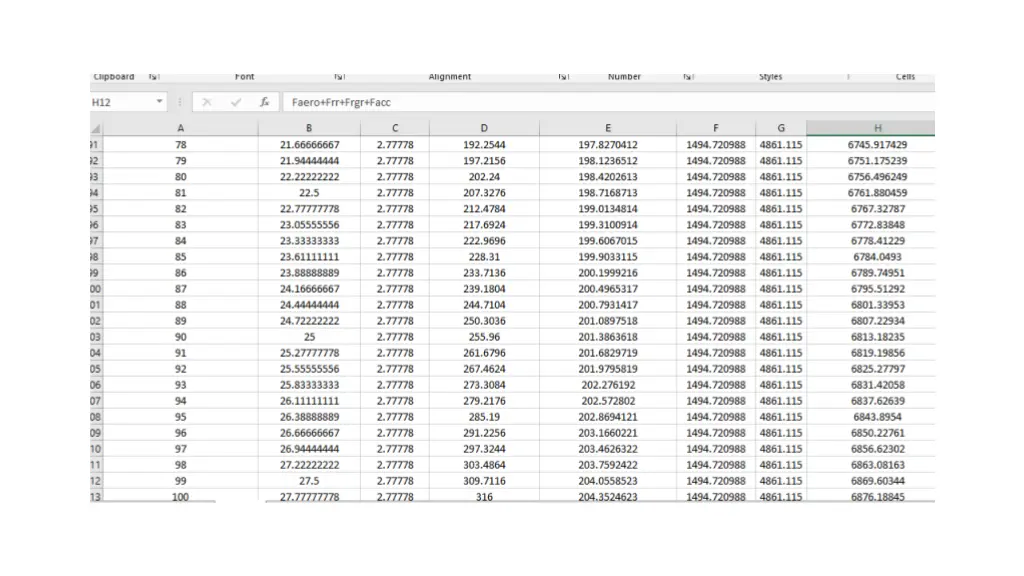

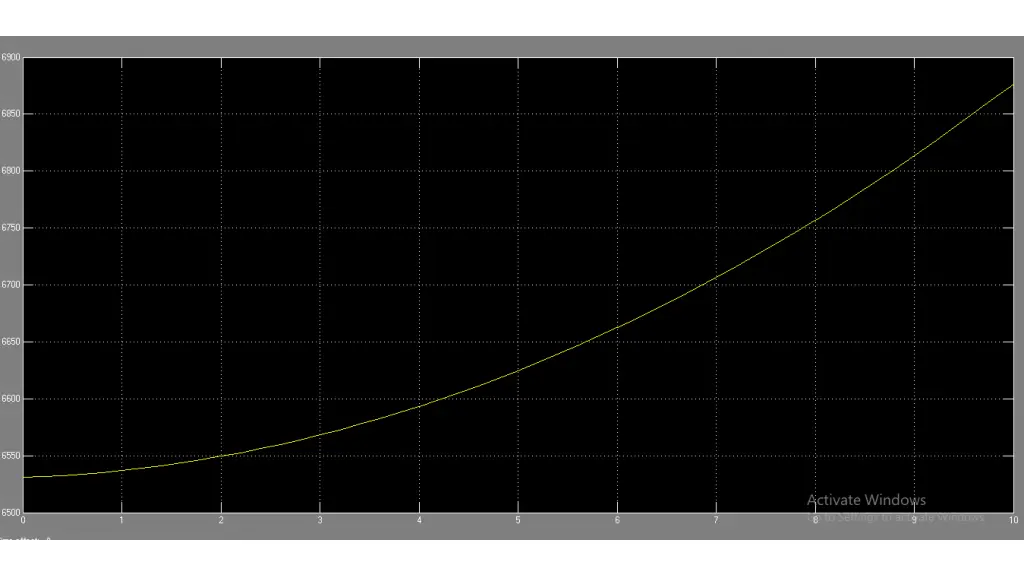

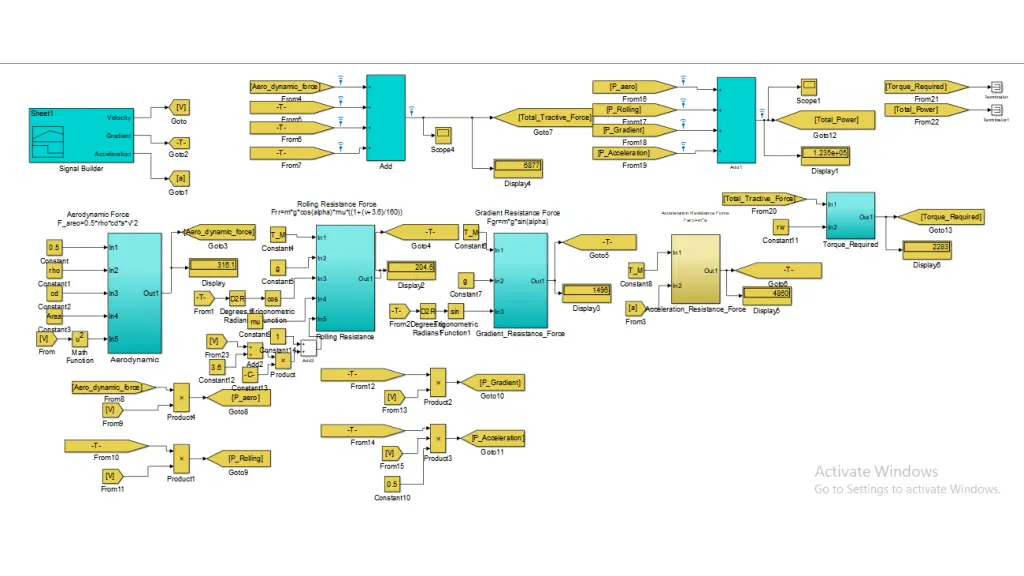

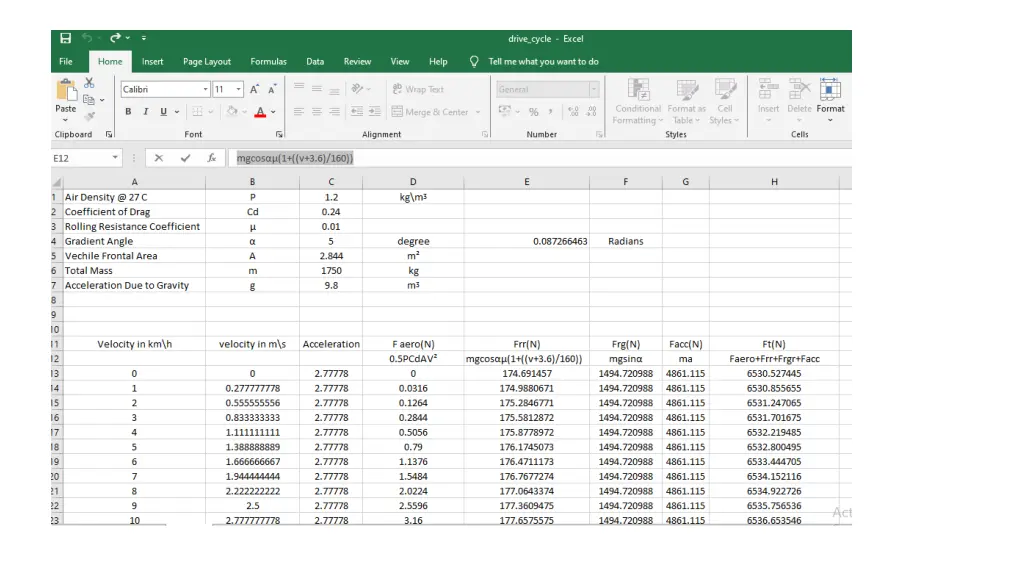

Power Aerodynamics, Rolling Resistance, Gradient Resistance, Average Acceleration Force
