CS 7150 Deep Learning
Link to student presentation https://docs.google.com/presentation/d/1UqelvVWBRpaNc7655ysjn 8ybnbgkfucxBuwTB_Kr4qY/edit?usp=sharing
Historical Context In the wake of AlexNet How to achieve depth > 5 layers? How to train with better generalization? How to converge faster? A torrent of innovations Fully convolutional networks Batchnorm Residual connections Today: Transformers are still residual networks.
Topics Receptive field Highway networks
Receptive fields For convolution with kernel size K, each element in the output depends on a K x K receptive field in the input Input Output Slide credit: D Fouhey & J Johnson
Receptive fields Each successive convolution adds K 1 to the receptive field size With L layers the receptive field size is 1 + L * (K 1) Input Output Careful receptive field in the input vs receptive field in the previous layer Hopefully clear from context! Slide credit: D Fouhey & J Johnson
Receptive fields Each successive convolution adds K 1 to the receptive field size With L layers the receptive field size is 1 + L * (K 1) Input Output Problem: For large images we need many layers for each output to see the whole image image Slide credit: D Fouhey & J Johnson
Receptive fields Each successive convolution adds K 1 to the receptive field size With L layers the receptive field size is 1 + L * (K 1) Input Output Problem: For large images we need many layers for each output to see the whole image image Solution: Downsample inside the network Slide credit: D Fouhey & J Johnson
Batch Normalization Problem: Estimates depend on minibatch; can t do this at test-time! ? ??=1 ? ? ? Per-channel mean, shape is D ? ??,? Input: ?=1 ? 2=1 Learnable scale and shift parameters: ?,? ? 2 Per-channel std, shape is D ?? ? ??,? ?? ?=1 ??,?=??,? ?? Normalized x, Shape is N x D 2+ ? ?? Learning ? = ?, ? = ? will recover the identity function (in expectation) Output, Shape is N x D ??,?= ?? ??,?+ ?? Slide credit: D Fouhey & J Johnson
Batch Normalization: Test-Time ? ??=1 (Running) average of values seen during ? ? ? Per-channel mean, shape is D ? training ??,? Input: ?=1 ? 2=1 Learnable scale and shift parameters: ?,? ? 2 (Running) average of Per-channel std, shape is D ?? ? values seen during training ??,? ?? ?=1 ??,?=??,? ?? Normalized x, Shape is N x D 2+ ? ?? Learning ? = ?, ? = ? will recover the identity function (in expectation) Output, Shape is N x D ??,?= ?? ??,?+ ?? Slide credit: D Fouhey & J Johnson
Batch Normalization: Test-Time ? ??=1 (Running) average of values seen during Input: ? ? ? Per-channel mean, shape is D ? training ??,? ?=1 ? 2=1 Learnable scale and shift parameters: ?,? ? 2 (Running) average of Per-channel std, shape is D ?? ? values seen during training ??,? ?? ?=1 ??,?=??,? ?? Normalized x, Shape is N x D 2+ ? ?? During testing batchnorm becomes a linear operator! Can be fused with the previous fully-connected or conv layer Output, Shape is N x D ??,?= ?? ??,?+ ?? Slide credit: D Fouhey & J Johnson
Residual Networks Solution: Change the network so learning identity functions with extra layers is easy! relu H(x) F(x) + x conv conv Additive shortcut relu F(x) relu conv conv X X Plain block Residual Block He et al, Deep Residual Learning for Image Recognition , CVPR 2016 Slide credit: D Fouhey & J Johnson

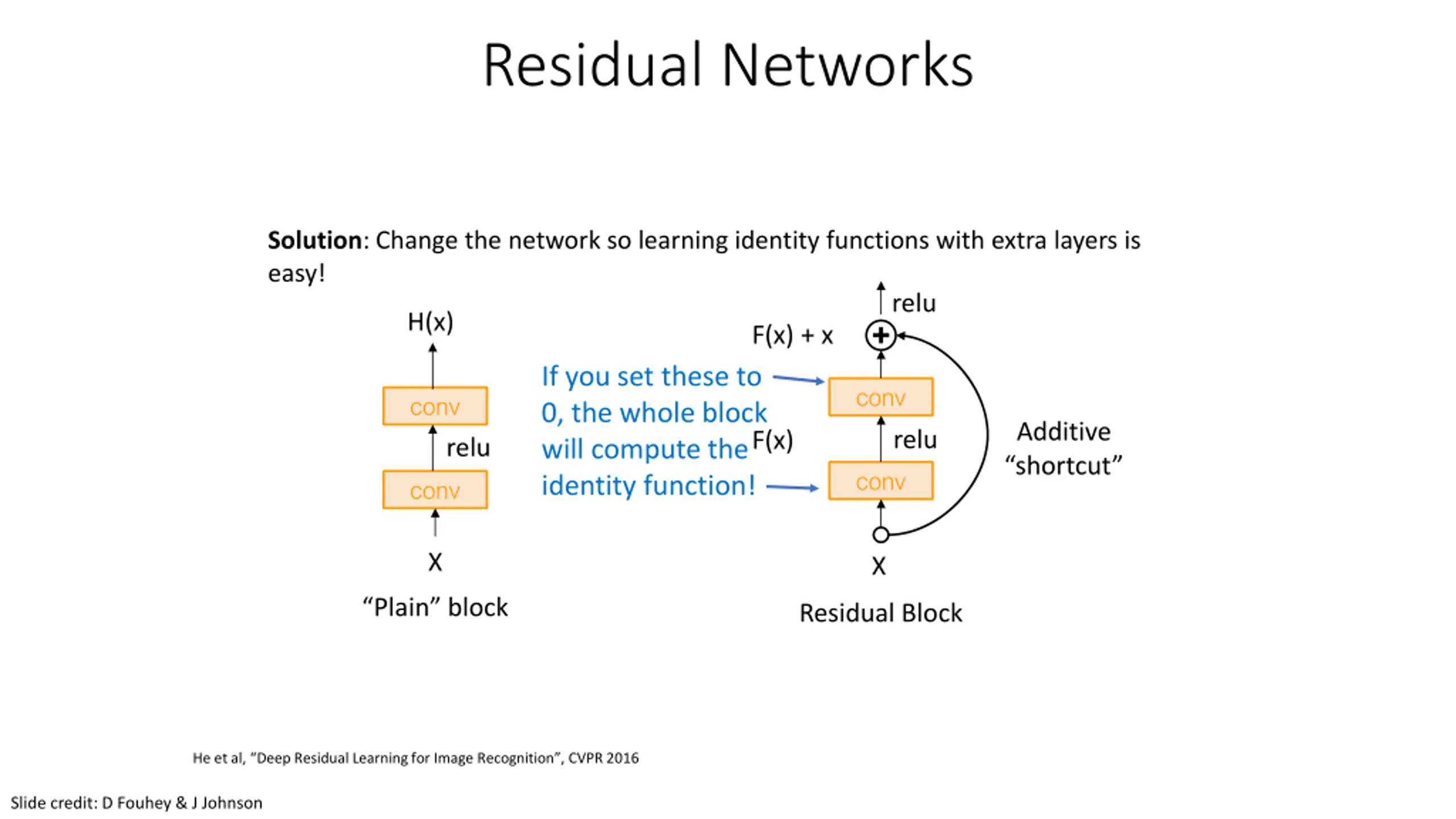

Residual Networks Solution: Change the network so learning identity functions with extra layers is easy! relu H(x) F(x) + x If you set these to 0, the whole block will compute the identity function! conv conv Additive shortcut relu F(x) relu conv conv X X Plain block Residual Block He et al, Deep Residual Learning for Image Recognition , CVPR 2016 Slide credit: D Fouhey & J Johnson
Residual Networks Softmax FC 1000 Pool A residual network is a stack of many residual blocks 3x3 conv, 512 3x3 conv, 512 3x3 conv, 512 3x3 conv, 512 relu 3x3 conv, 512 3x3 conv, 512, /2 Regular design, like VGG: each residual block has two 3x3 conv F(x) + x .. . 3x3 conv, 128 3x3 conv, 128 3x3 conv 3x3 conv, 128 3x3 conv, 128 relu F(x) 3x3 conv, 128 3x3 conv, 128, / 2 3x3 conv Network is divided into stages: the first block of each stage halves the resolution (with stride-2 conv) and doubles the number of channels 3x3 conv, 64 3x3 conv, 64 3x3 conv, 64 3x3 conv, 64 X Residual block 3x3 conv, 64 3x3 conv, 64 Pool 7x7 conv, 64, / 2 Input He et al, Deep Residual Learning for Image Recognition , CVPR 2016 Slide credit: D Fouhey & J Johnson
