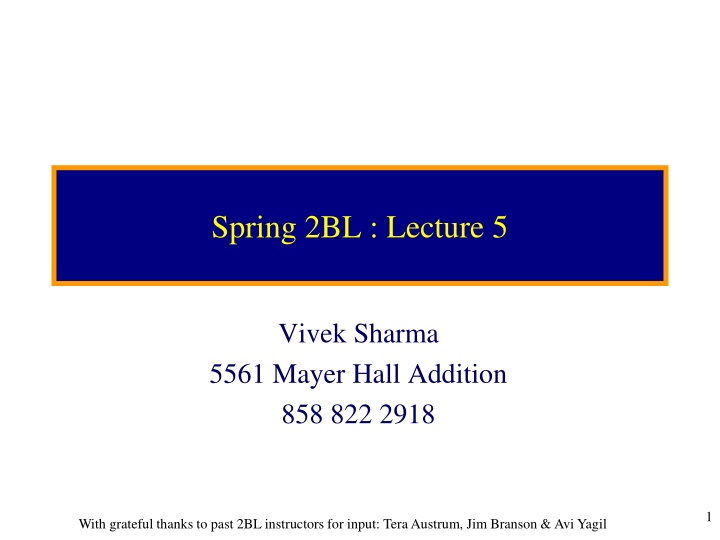

Spring 2BL : Lecture 5
Spring 2BL : Lecture 5
Vivek Sharma
5561 Mayer Hall Addition
858 822 2918
1
With grateful thanks to past 2BL instructors for input: Tera Austrum, Jim Branson & Avi Yagil
Schedule For Week 5
•
Lecture on Probability distributions, Confidence Levels
•
This week (
“B”
) you will finalize and submit Experiment #2
by the end of your lab session
–
Be sure to read & follow experiment rubric as you write lab report
–
Go to LTAC office hour (Today 2-4 pm 2722 MHA) if you need
help (particularly with Excel or if you need to retake data)
•
Read Chapter 7 from Taylor book
•
Section A02 (Tuesday, 3:30 pm) students should mail to TA
(ngrogers@ucsd.edu) the Lab #2 quiz score and show him
the quiz sheet in the next lab.
2
Histograms & Limiting Distributions
•
Measure Multiple,
N
, measurements of the same quantity,
x
•
Calculated “average” and “spread” of values
–
Mean and Standard deviation
•
Determine the uncertainty on the mean
–
Standard Deviation On Mean (SDOM)
•
As you take more and more measurements you want to
visualize
the distribution of the measurements you make
•
A convenient way to visualize data: plot measured value in
binned histogram
•
As the number of measurements
N
becomes very large, you
see a clear shape emerging from distribution of measured
values
The
limiting distribution
3
Histograms
4
How To Make A Binned Histogram
5
•
Determine the
range
of your data
–
(largest value - smallest value)
•
Choose number of bins ( ≥ 4)
•
Width
of bins,
Δ
k
, is the
range
divided by # of bins
–
Usually bin width = ½ σ
•
List bin boundaries, count # of data points,
n
k
, in each bin
•
Draw histogram
–
x- scale represents the measured values
–
y-
scale
, f
k
is the # measurements in each bin
Normalized Histogram
6
•
Want the area of each bin to equal the
probability
of
finding a measurement within that bin
•
Area of rectangle
k
:
A
k
=
f
k
Δ
k
–
f
k
= vertical scale
–
Δ
k
= width of bins
•
Fraction of data in bin:
F
k
=
n
k
/
N
–
n
k
= # measurements in
k
th
bin
–
N = total number of measurements
•
Choose
f
k
so
A
k
=
F
k
(Total area of histogram = 1)
A
k
f
k
Δ
k
n
1
n
2
n
3
n
4
n
5
N
=
n
1
+
n
2
+
n
3
+
n
4
+
n
5
Calculating Mean From A Histogram
7
Limiting Distributions
•
As N increases, a limiting distribution comes into shape
•
Choose normalization of limiting distribution
–
Such that = probability of observing a measured
value between A and B
8
The Gaussian ( or Normal) Distribution
•
The limiting distribution for a
measurement
x
subject to many small
random errors is bell shaped and centered
on the true value of
x
•
The mathematical function that describes
the bell-shaped curve is called the normal
distribution or Gauss function :
•
Defined by two parameters:
–
σ
= width parameter
–
X = true value of
x
9
The Normalized Gaussian Distribution
10
•
Normalization
•
The normalized Gaussian function is
•
For a Guassian form
–
Standard deviation σ
x
is the width parameter σ
–
Mean value of
x
= true value X
Gaussian Distribution Shape: Changing X
11
Gaussian Distribution Shape: Changing σ
12
The Meaning Of σ In A Gaussian Distribution
13
Probability Of A Measurement In Terms Of σ
14
Taylor book
Table A
Page 287
Example Of A Normal Distribution
15
Compatibility Of A Measured Result: t-score
16
Acceptability Of A Measurement
•
Large probability means
reasonably
likely outcome
•
Small probability means reasonable chance of
discrepancy
•
What is
reasonable
depends on some
convention
•
We will define
–
< 5% probability (t >1.96) as significant discrepancy
–
<1% probability (t >2.58) as unreasonably large discrepancy
–
If probability is less than 1% , we declare data incompatible
with expectation
17
t-Score Test And Confidence Level
18
A student measures
g
, the acceleration of gravity, repeatedly and
carefully, and gets a final answer of 9.5 m/s
2
with a standard deviation
of 0.1 m/s
2
. If his measurement were
normally distributed
, with a mean
at the accepted value of 9.8 and with σ = 0.1,
what is the probability
of
getting an answer that differs from 9.8 by as much as (or more than) his
result ?
Its three standard deviations off the mean. Looking up the probability:
we see that 99.73% measurements
are within 3 sigma, so, the
probability that his measument is
compatible with g= 9.8 is 0.27%
.
The Confidence Level is the probability to get a “worse” result than you
measured.
t-Score and Confidence Levels
19
Two students measure the radius of a planet. Student A gets
R
=9000 km
and estimates an error of
= 600 km. Student B gets
R
=6000 km with
an error of
=1000 km
.
What is the probability that the two
measurements would disagree by more than this (given the error
estimates)?
•
Define a quantity
q = R
A
-R
B
= 3000 km. The expected
q
is zero.
•
Use propagation of errors to determine the error on
q
•
Compute
t,
the number of standard deviations from the expected
q
•
Now look at Table A. 98.95% should be within 2.56
. So the
probability to get a worse result is 1.05%
.
•
We call this the
Confidence Level of measurement,
and in this case
is it BAD !
Rejection Of Data
20
•
Rejecting data in an unwarranted fashion can
bias
your
measurements.
•
If there is suspicion of a mistake, data should be rejected
without looking at the value measured
.
•
I
f
o
n
l
y
t
h
e
m
e
a
s
u
r
e
d
v
a
l
u
e
i
s
s
u
s
p
i
c
i
o
u
s
,
w
e
s
h
o
u
l
d
h
a
v
e
a
p
r
e
s
c
r
i
p
t
i
o
n
f
o
r
d
a
t
a
r
e
j
e
c
t
i
o
n
.
W
e
w
i
l
l
u
s
e
o
n
e
c
a
l
l
e
d
C
h
a
u
v
e
n
e
t
’
s
C
r
i
t
e
r
i
o
n
•
Data are rejected if we
expect less than 0.5 measurements
with a deviation from the mean as large or larger than the
one in question.
•
The criterion should be
reapplied
after the worst case is
rejected.
What would you call a follower of Chauvenet ?
Example Of Chauvenet’s Criterion
21
A student makes 14 measurements of the period of a pendulum. She gets
the following measurements, all with the same estimated error:
T= 2.7, 2.3, 2.9, 2.3, 2.6, 2.9, 2.8, 2.7, 2.8, 3.2, 2.5, 2.9, 2.9, and 2.3
Should any of these measurements be dropped?
•
Add up all the periods and divide by 14 to get the average,
T
=2.7 seconds
•
Compute the standard deviation from the data,
= 0.27
seconds
•
The measurement furthest from the mean is 3.2 seconds
giving
t
= 0.5/0.27 =1.85.
•
Look up the
probability
to be further off =>
P
=6.43%
•
Multiply by the number of measurements to get the expected
number of events that far off, n
exp
=(14)(0.0643)=0.9
•
Do not drop this measurement (or any other)
Assume the student
made a 15th
measurement but her
partner bumped the
pendulum during the
measurement. She got a
period of 2.8 seconds.
Should she drop this
measurement? Why ?
Rejection Of Data: Chauvenet’s Criterion
22
The Maximum Likelihood Principle
23
The Maximum Likelihood Principle
24
Is
L
a Probability?
Why does max
L
give
the best estimate?
Proof That Mean Is Best Estimate of True Value X
25
Assume
X
is a parameter of
P(x)
.
When
L
is maximum, we must have
Lets assume a Normal error distribution and
find the formula for the best value for
X
.
Q.E.D.
the mean
Error On The Mean
26
Formula for mean of measurements. (We
’
ve
shown that this is the best estimate of the true
x
.)
Now (simply) use
propagation of errors
to get the error on the mean.
We got the error on the mean (SDOM) simply by
propagating errors.
What would you do if the
x
i
had different errors?
Weighted Average
27
We can use maximum Likelihood (
2
) to
average measurements with different errors.
We derive the result that
From error propagation, we can determine the
error on the weighted mean.
What does this give in the limit
where all errors are equal?
An Example Of Weighted Average
28
Suppose 2 students measure the radius of Neptune. Student A gets r =80 Mm with an
error of 10 Mm and student B gets r = 60 Mm with an error of 3 Mm. What is the best
estimate of the true radius of Neptune ?
What does this tell you about the
importance of error estimates?
Is there a Democracy or a Meritocracy
when it comes to measurements ?
