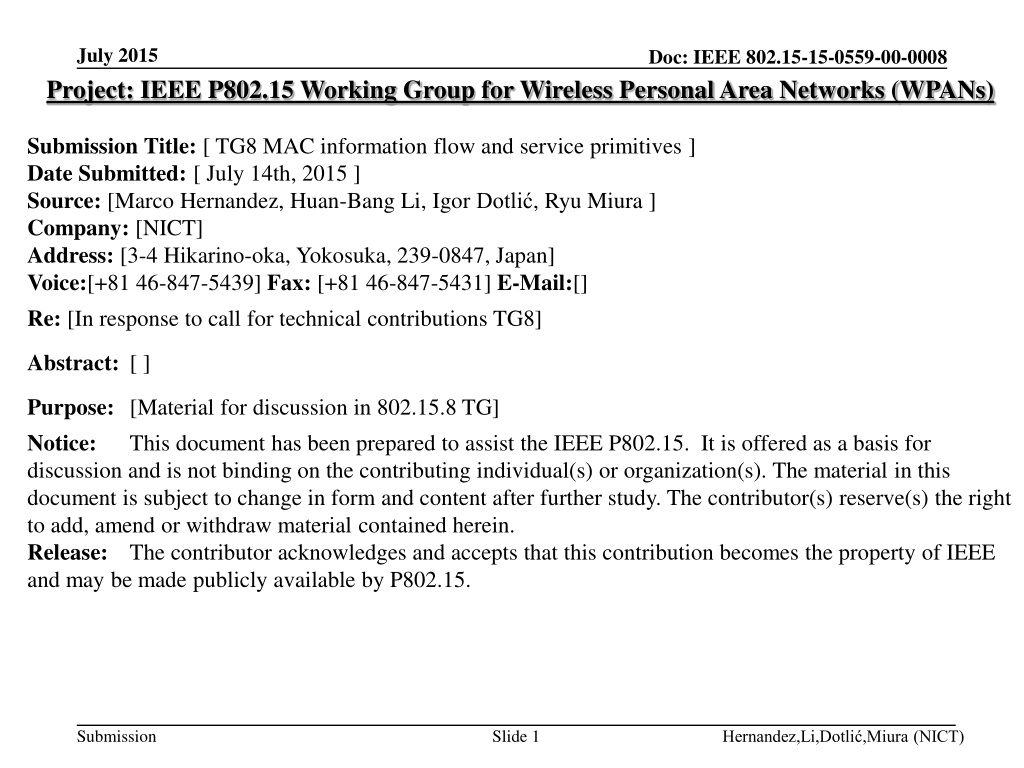

July 2015 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Doc: IEEE 802.15-15-0559-00-0008 Submission Title: [ TG8 MAC information flow and service primitives ] Date Submitted: [ July 14th, 2015 ] Source: [Marco Hernandez, Huan-Bang Li, Igor Dotli , Ryu Miura ] Company: [NICT] Address: [3-4 Hikarino-oka, Yokosuka, 239-0847, Japan] Voice:[+81 46-847-5439] Fax: [+81 46-847-5431] E-Mail:[] Re: [In response to call for technical contributions TG8] Abstract: [ ] Purpose: [Material for discussion in 802.15.8 TG] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submission Slide 1 Hernandez,Li,Dotli ,Miura (NICT)

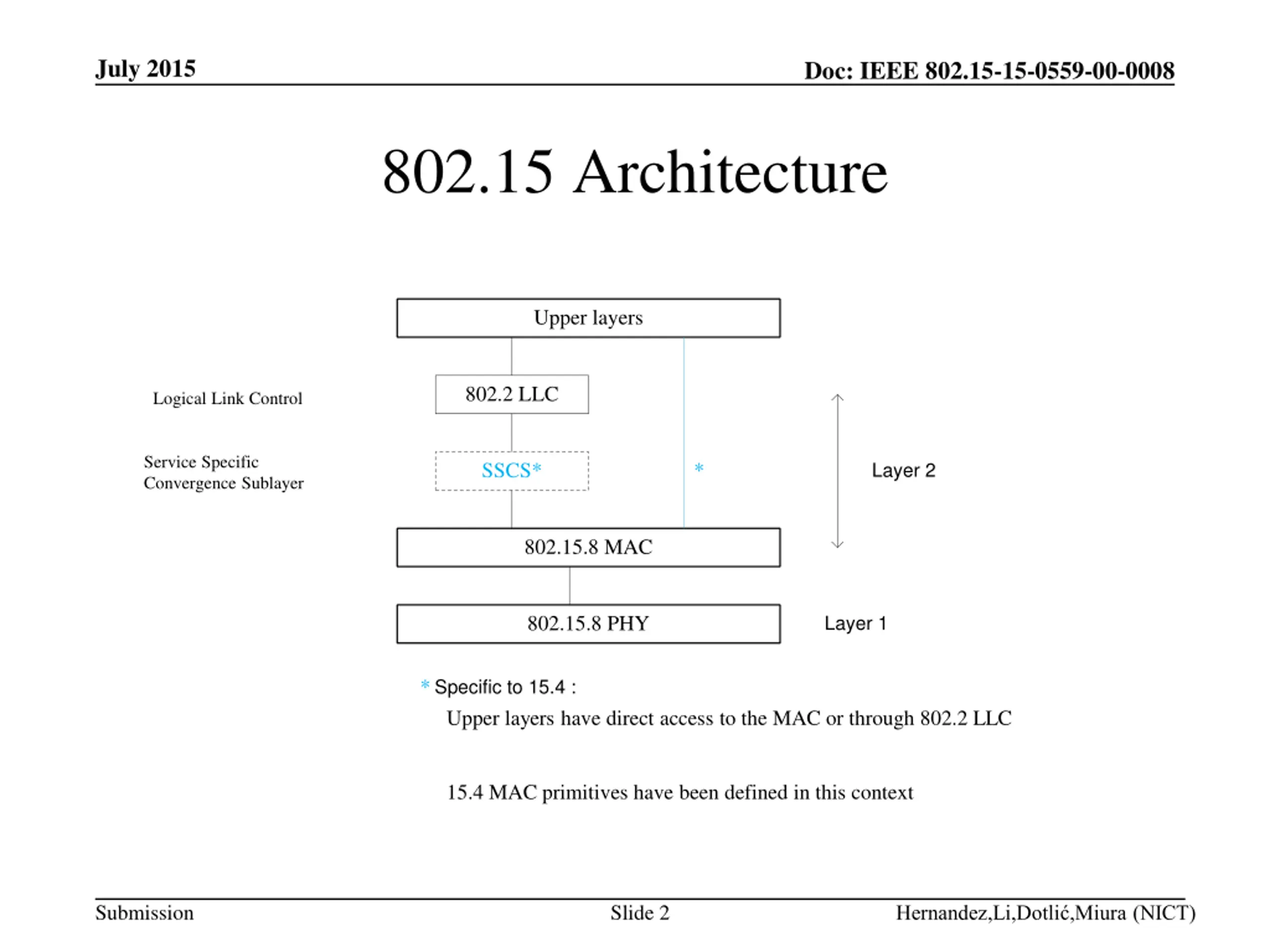

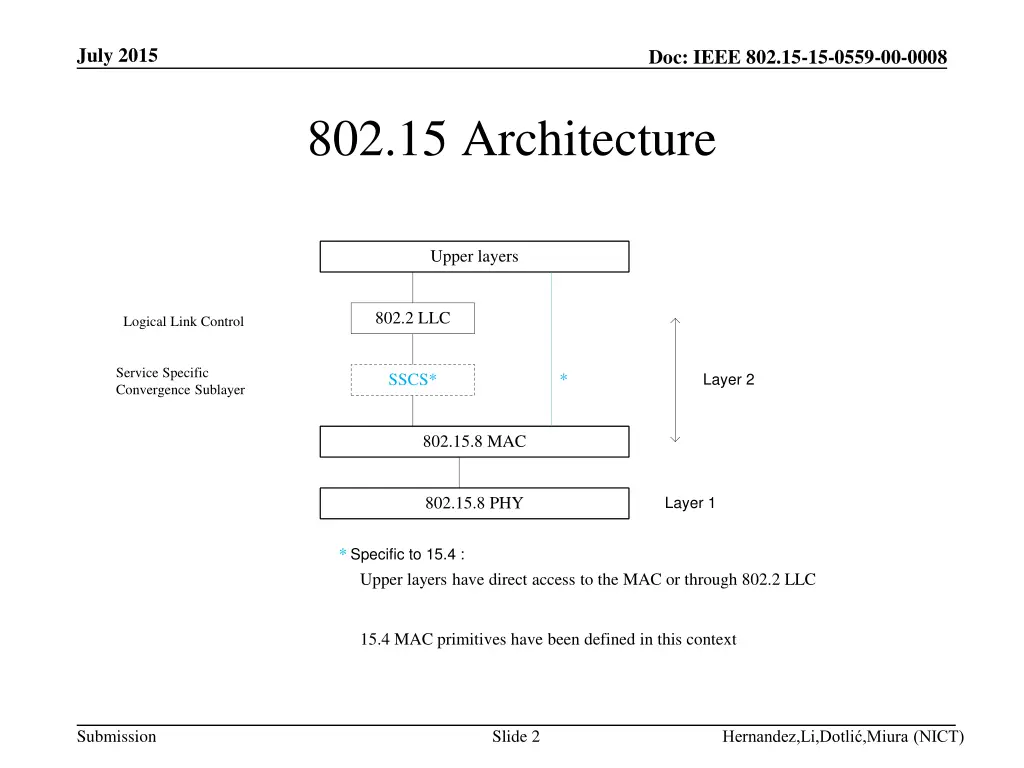

July 2015 Doc: IEEE 802.15-15-0559-00-0008 802.15 Architecture Upper layers 802.2 LLC Logical Link Control Service Specific Convergence Sublayer SSCS* * Layer 2 802.15.8 MAC 802.15.8 PHY Layer 1 * Specific to 15.4 : Upper layers have direct access to the MAC or through 802.2 LLC 15.4 MAC primitives have been defined in this context Submission Slide 2 Hernandez,Li,Dotli ,Miura (NICT)

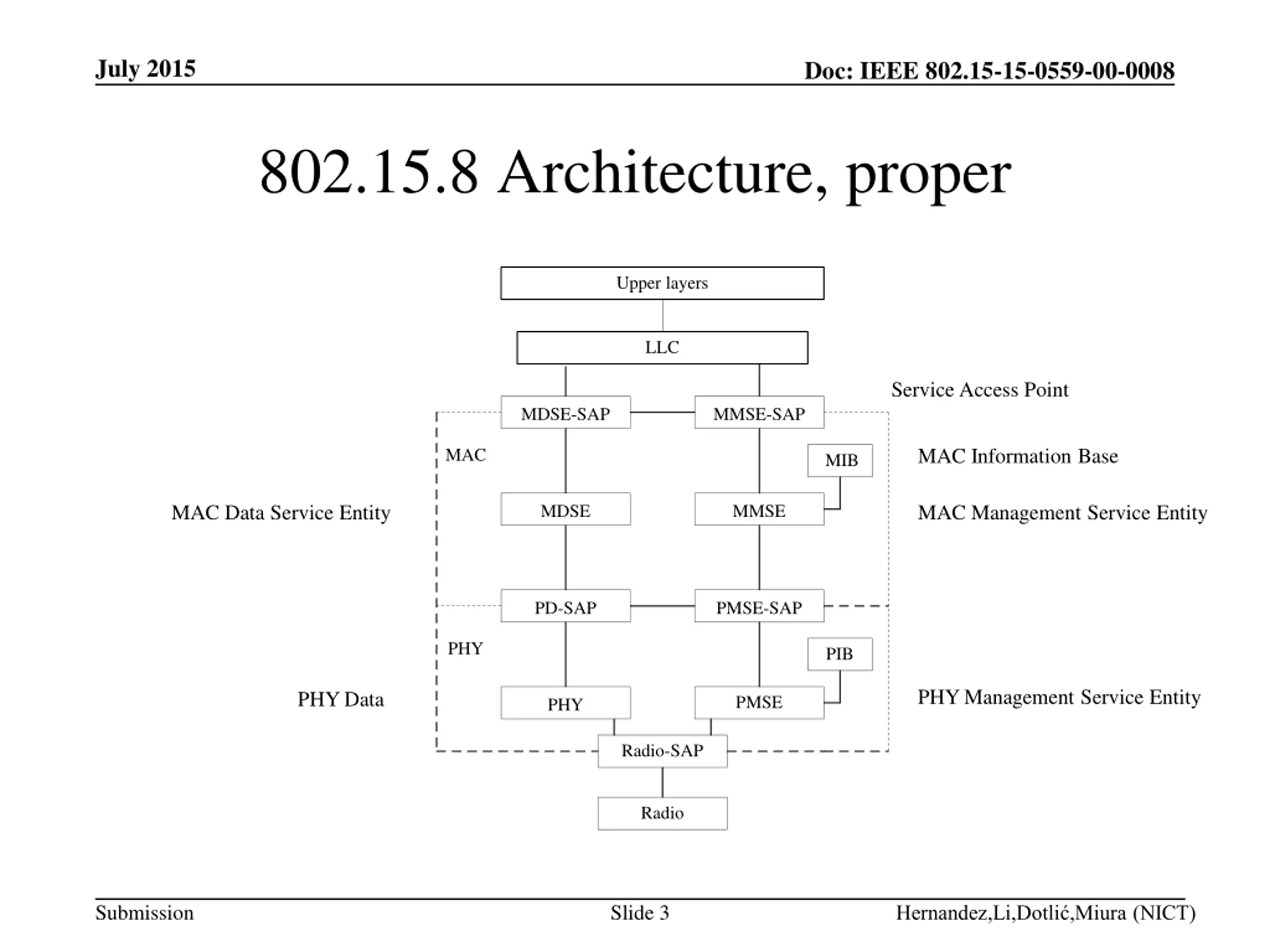

July 2015 Doc: IEEE 802.15-15-0559-00-0008 802.15.8 Architecture, proper Upper layers LLC Service Access Point MDSE-SAP MMSE-SAP MAC Information Base MAC MIB MAC Data Service Entity MAC Management Service Entity MDSE MMSE PD-SAP PMSE-SAP PHY PIB PHY Management Service Entity PHY Data PMSE PHY Radio-SAP Radio Submission Slide 3 Hernandez,Li,Dotli ,Miura (NICT)

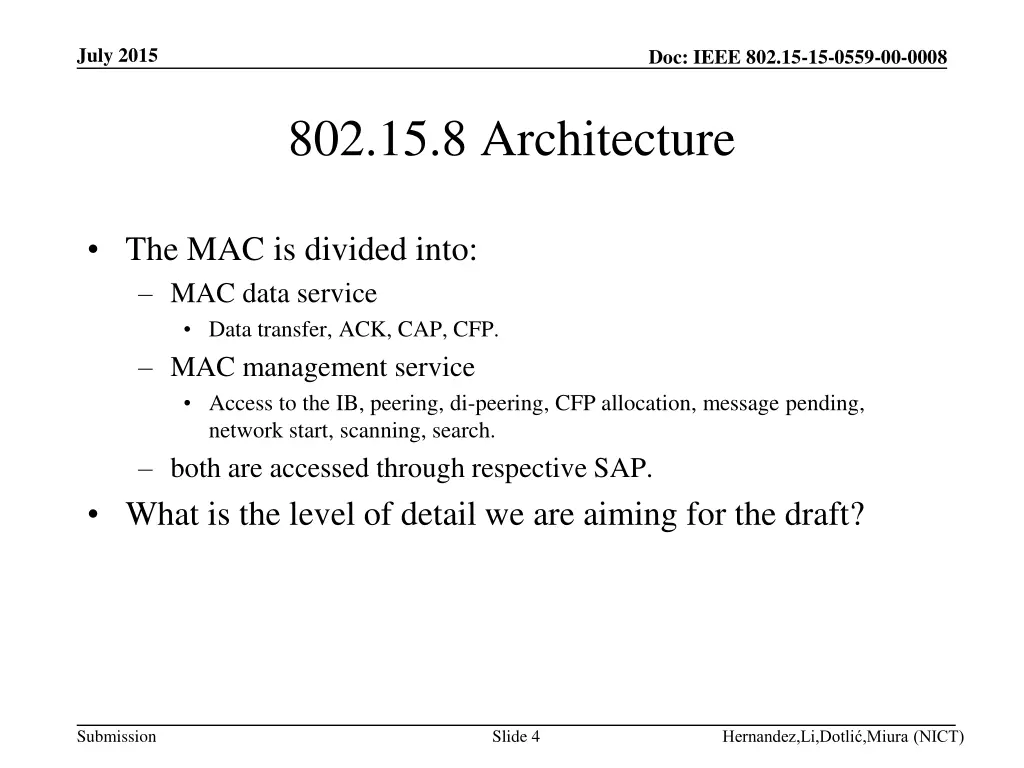

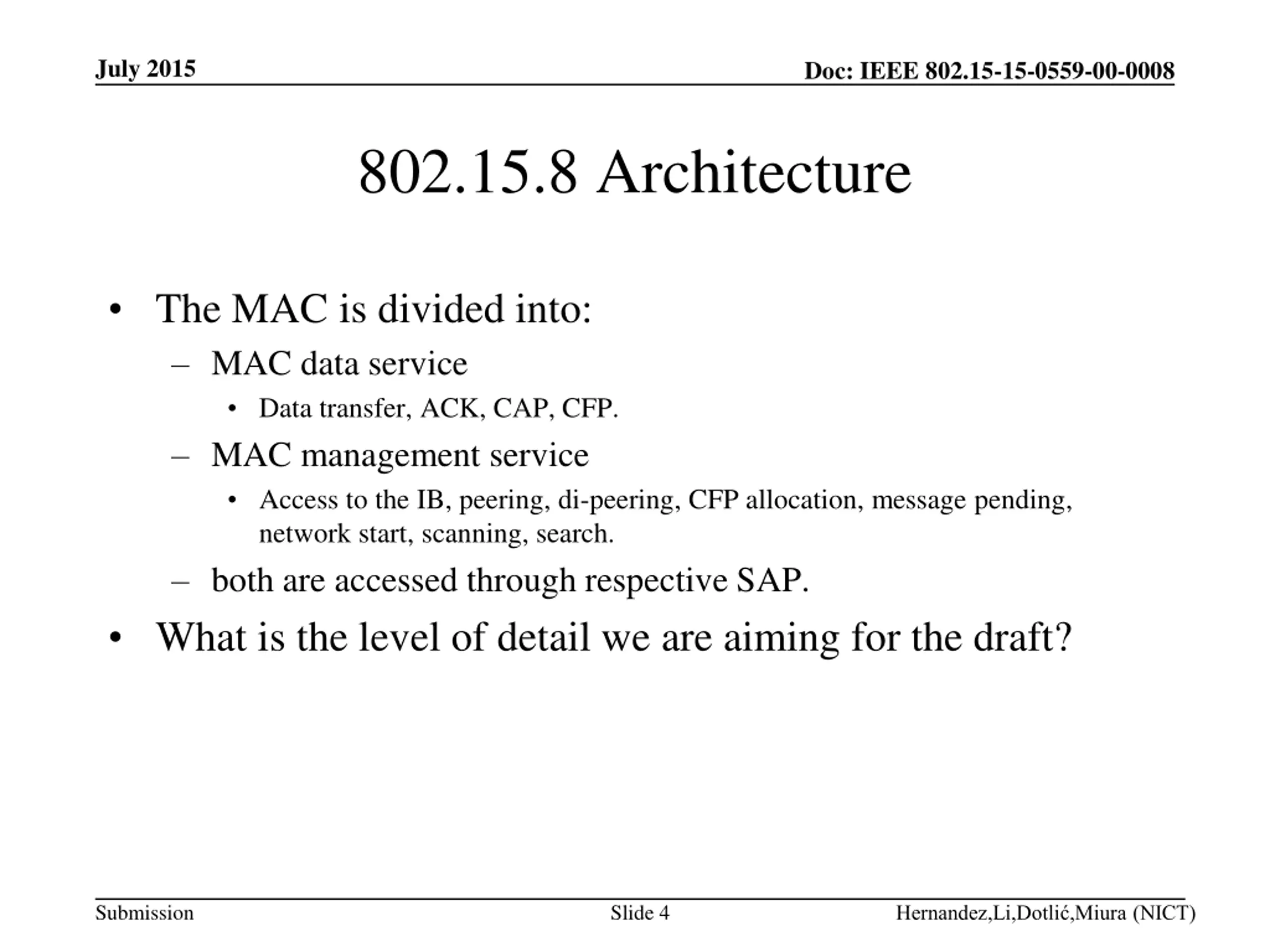

July 2015 Doc: IEEE 802.15-15-0559-00-0008 802.15.8 Architecture The MAC is divided into: MAC data service Data transfer, ACK, CAP, CFP. MAC management service Access to the IB, peering, di-peering, CFP allocation, message pending, network start, scanning, search. both are accessed through respective SAP. What is the level of detail we are aiming for the draft? Submission Slide 4 Hernandez,Li,Dotli ,Miura (NICT)

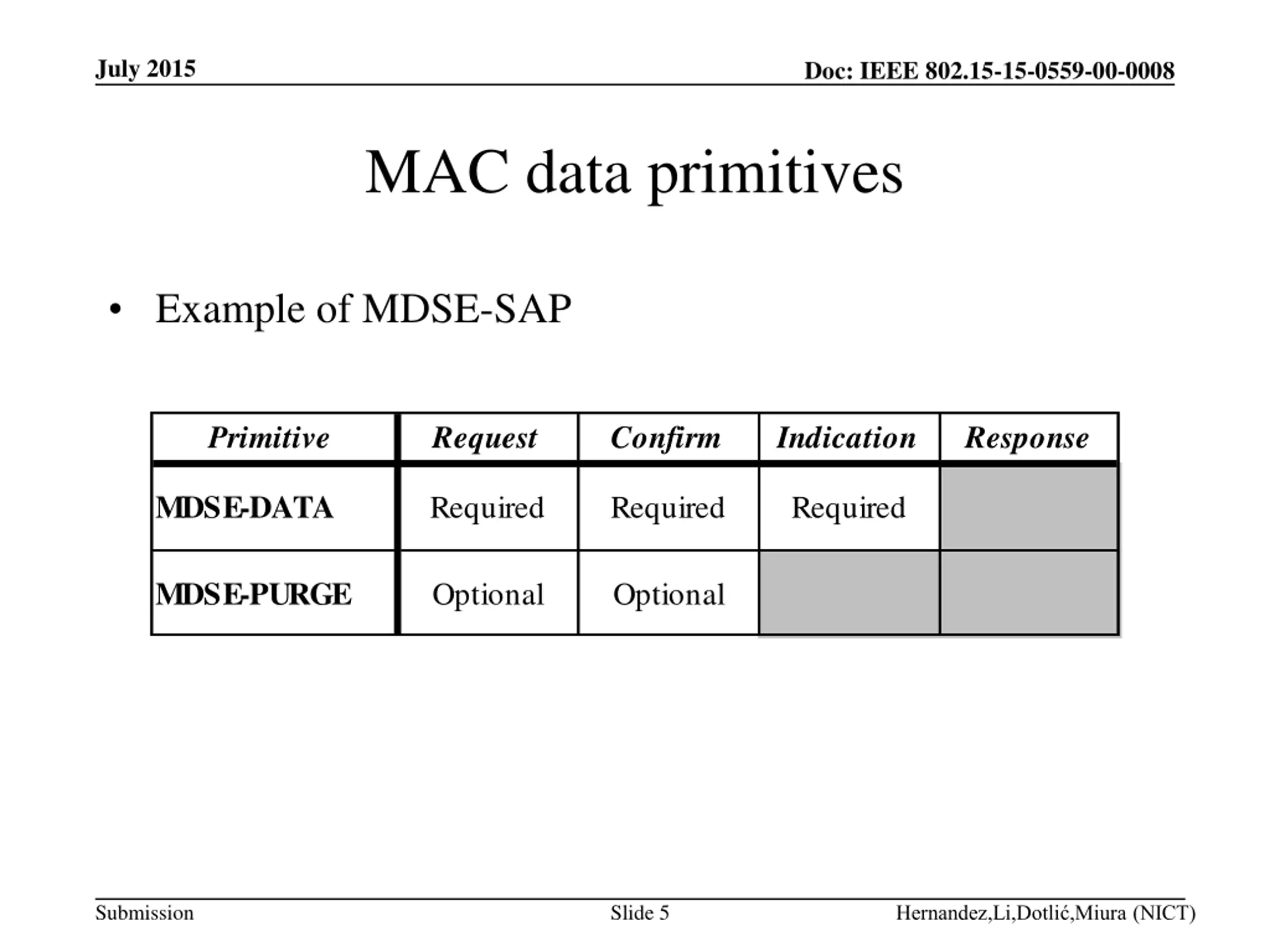

July 2015 Doc: IEEE 802.15-15-0559-00-0008 MAC data primitives Example of MDSE-SAP Primitive Request Confirm Indication Response MDSE-DATA Required Required Required MDSE-PURGE Optional Optional Submission Slide 5 Hernandez,Li,Dotli ,Miura (NICT)

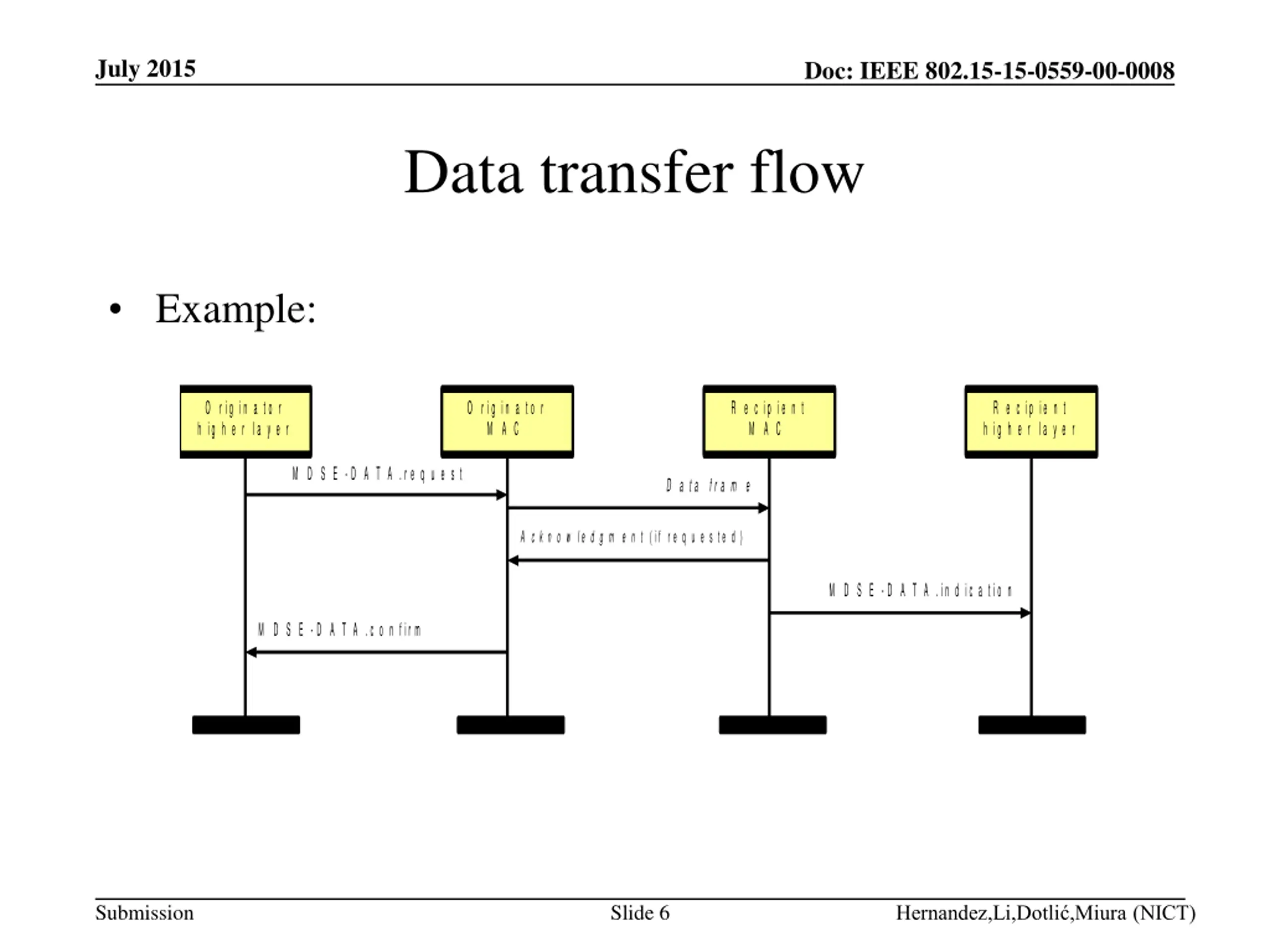

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Data transfer flow Example: O r i g i n a t o r h i g h e r l a y e r O r i g i n a t o r M R e c i p i e n t M R e c i p i e n t h i g h e r l a y e r A C A C M D S E - D A T A . r e q u e s t D a t a f r a m e A c k n o w l e d g m e n t ( i f r e q u e s t e d ) M D S E - D A T A . i n d i c a t i o n M D S E - D A T A . c o n f i r m Submission Slide 6 Hernandez,Li,Dotli ,Miura (NICT)

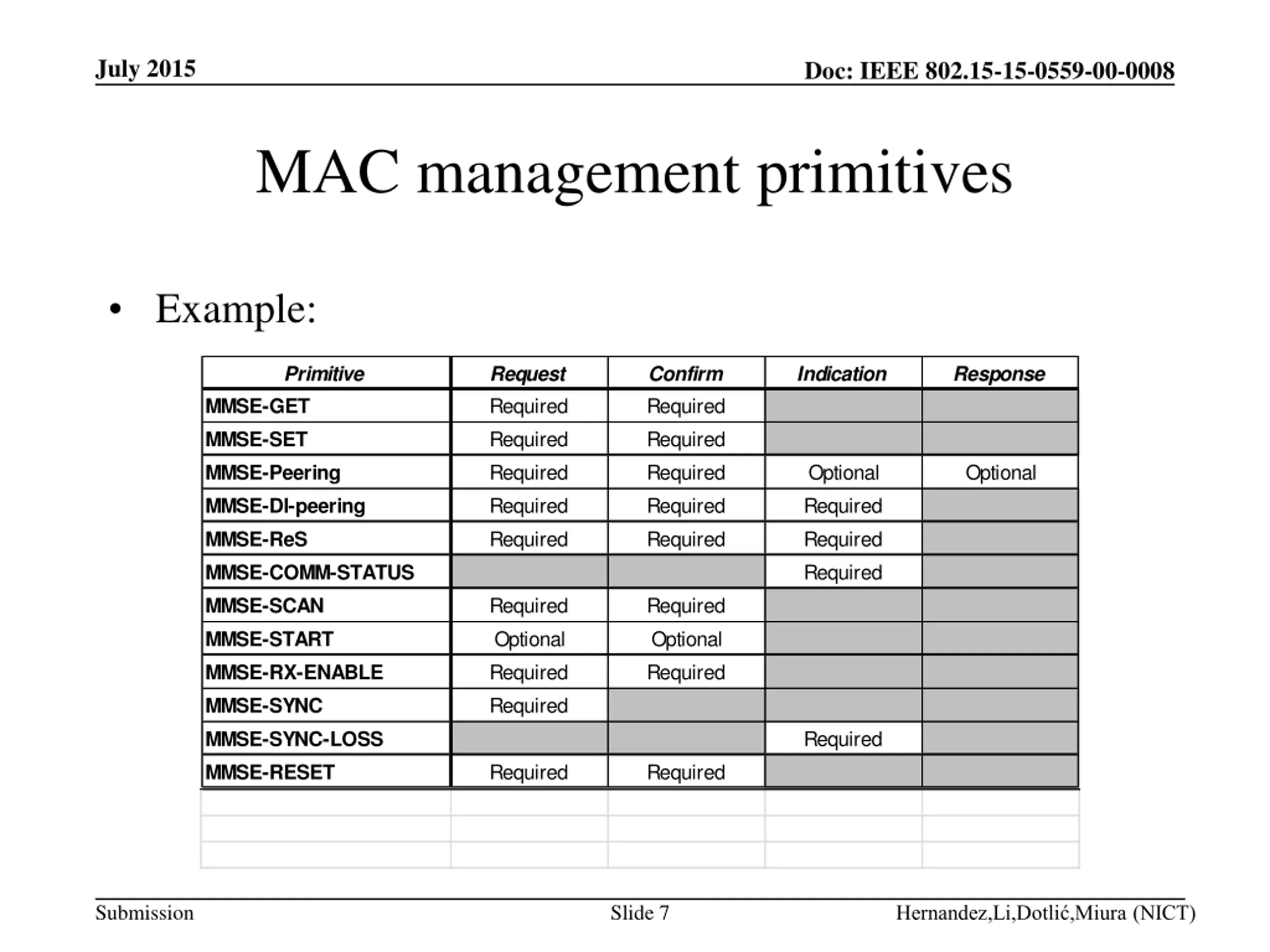

July 2015 Doc: IEEE 802.15-15-0559-00-0008 MAC management primitives Example: Primitive Request Required Required Required Required Required Confirm Required Required Required Required Required Indication Response MMSE-GET MMSE-SET MMSE-Peering MMSE-DI-peering MMSE-ReS MMSE-COMM-STATUS MMSE-SCAN MMSE-START MMSE-RX-ENABLE MMSE-SYNC MMSE-SYNC-LOSS MMSE-RESET Optional Required Required Required Optional Required Optional Required Required Required Optional Required Required Required Required Submission Slide 7 Hernandez,Li,Dotli ,Miura (NICT)

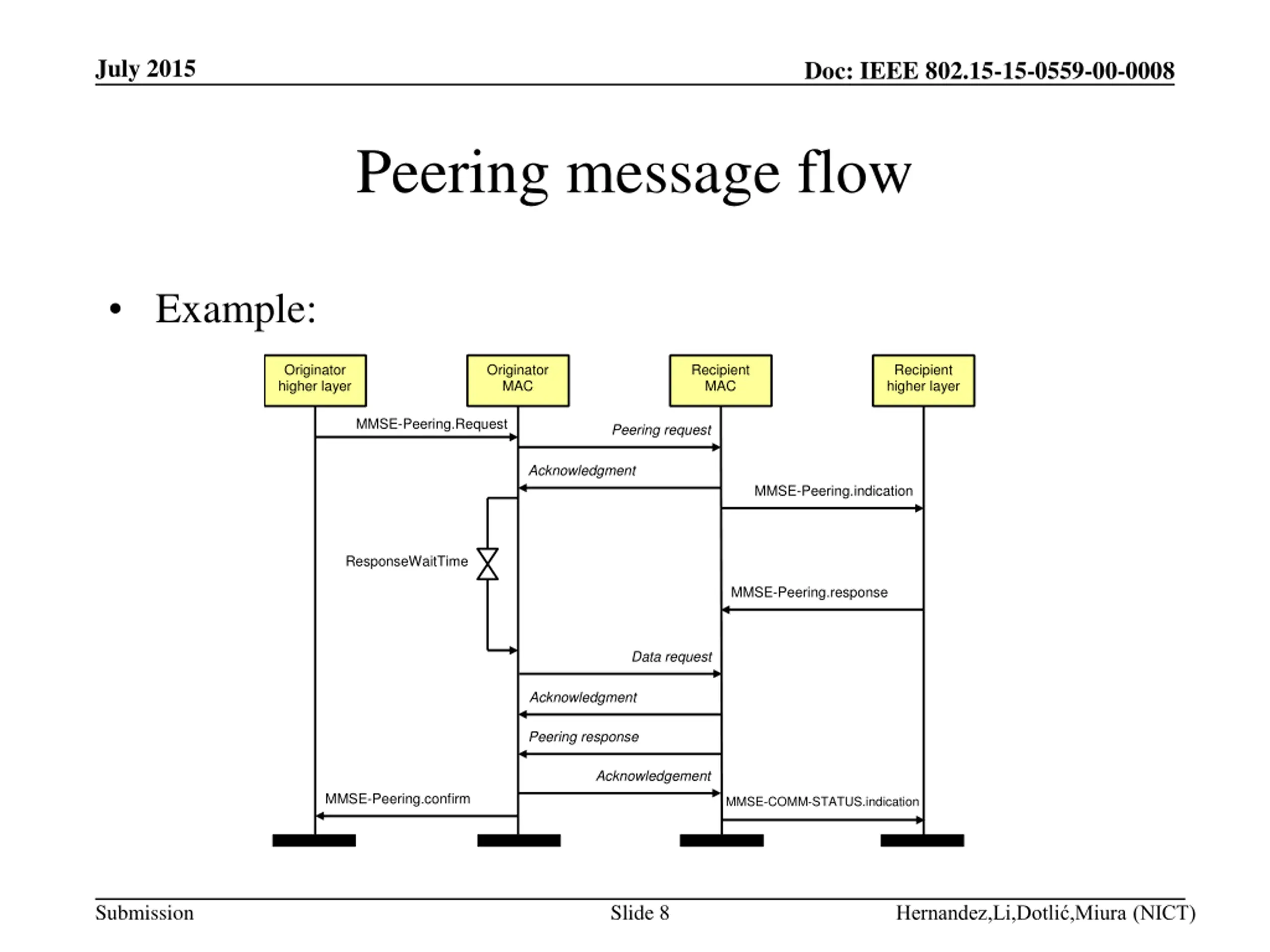

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Peering message flow Example: Originator higher layer Originator MAC Recipient MAC Recipient higher layer MMSE-Peering.Request Peering request Acknowledgment MMSE-Peering.indication ResponseWaitTime MMSE-Peering.response Data request Acknowledgment Peering response Acknowledgement MMSE-Peering.confirm MMSE-COMM-STATUS.indication Submission Slide 8 Hernandez,Li,Dotli ,Miura (NICT)

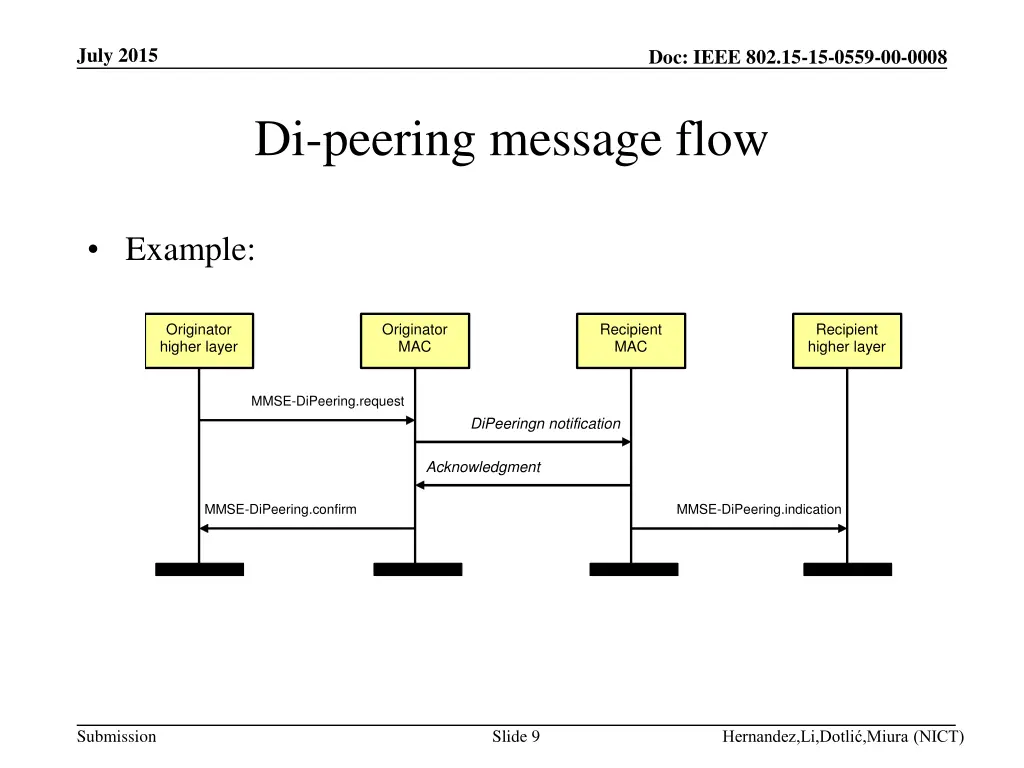

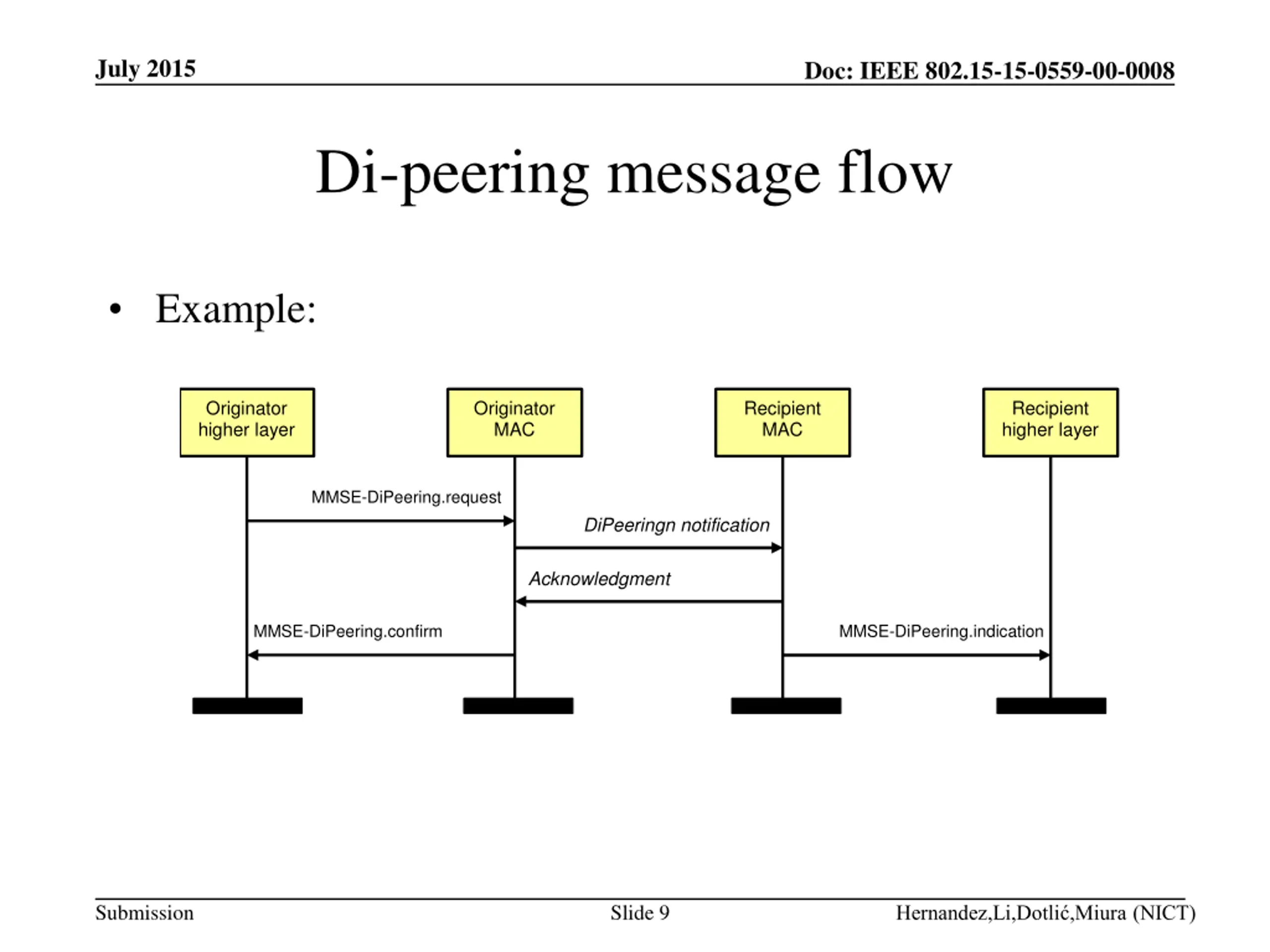

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Di-peering message flow Example: = Originator higher layer Originator MAC Recipient MAC Recipient higher layer MMSE-DiPeering.request DiPeeringn notification Acknowledgment MMSE-DiPeering.confirm MMSE-DiPeering.indication Submission Slide 9 Hernandez,Li,Dotli ,Miura (NICT)

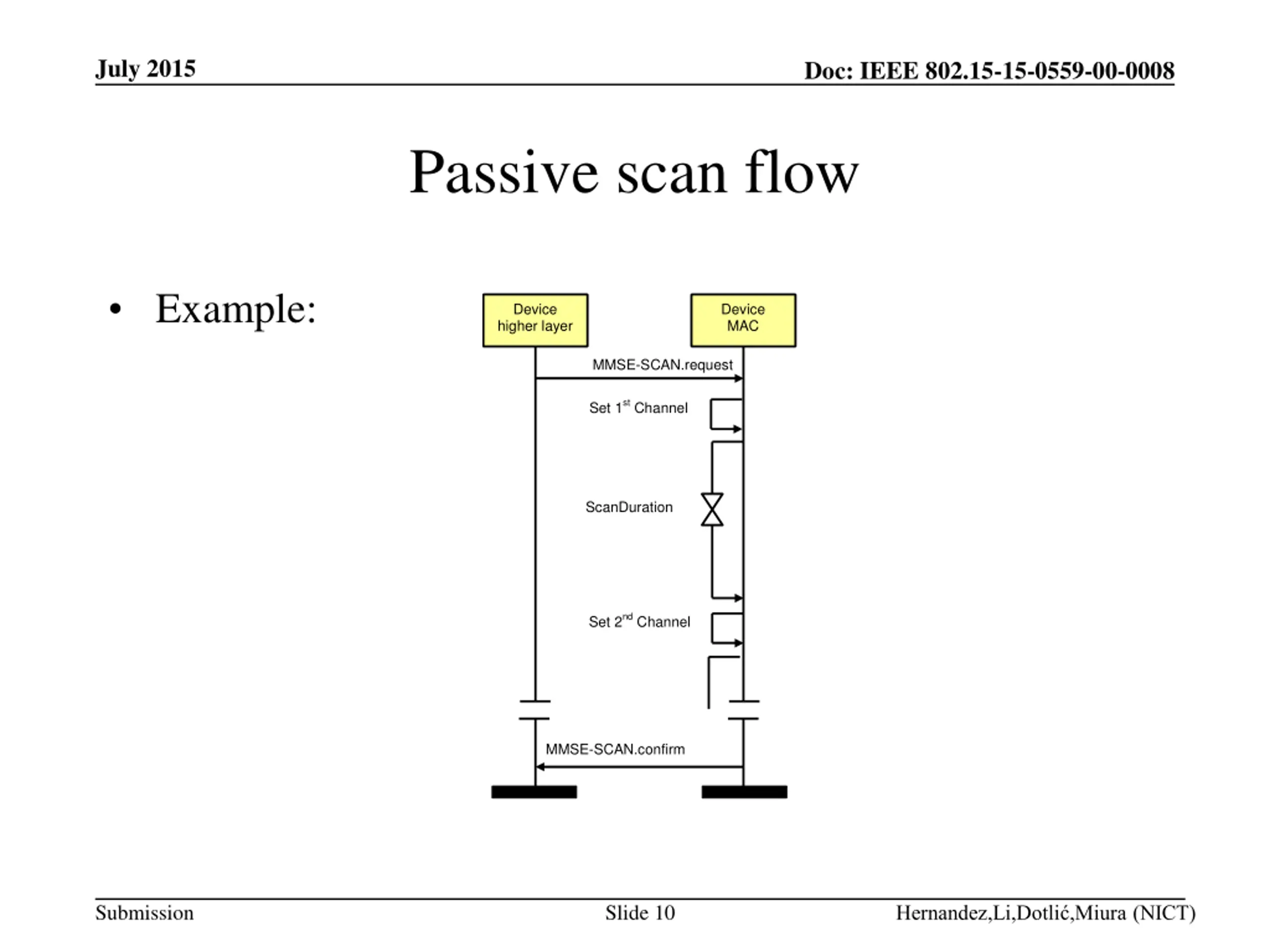

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Passive scan flow Example: Device higher layer Device MAC MMSE-SCAN.request Set 1st Channel ScanDuration Set 2nd Channel MMSE-SCAN.confirm Submission Slide 10 Hernandez,Li,Dotli ,Miura (NICT)

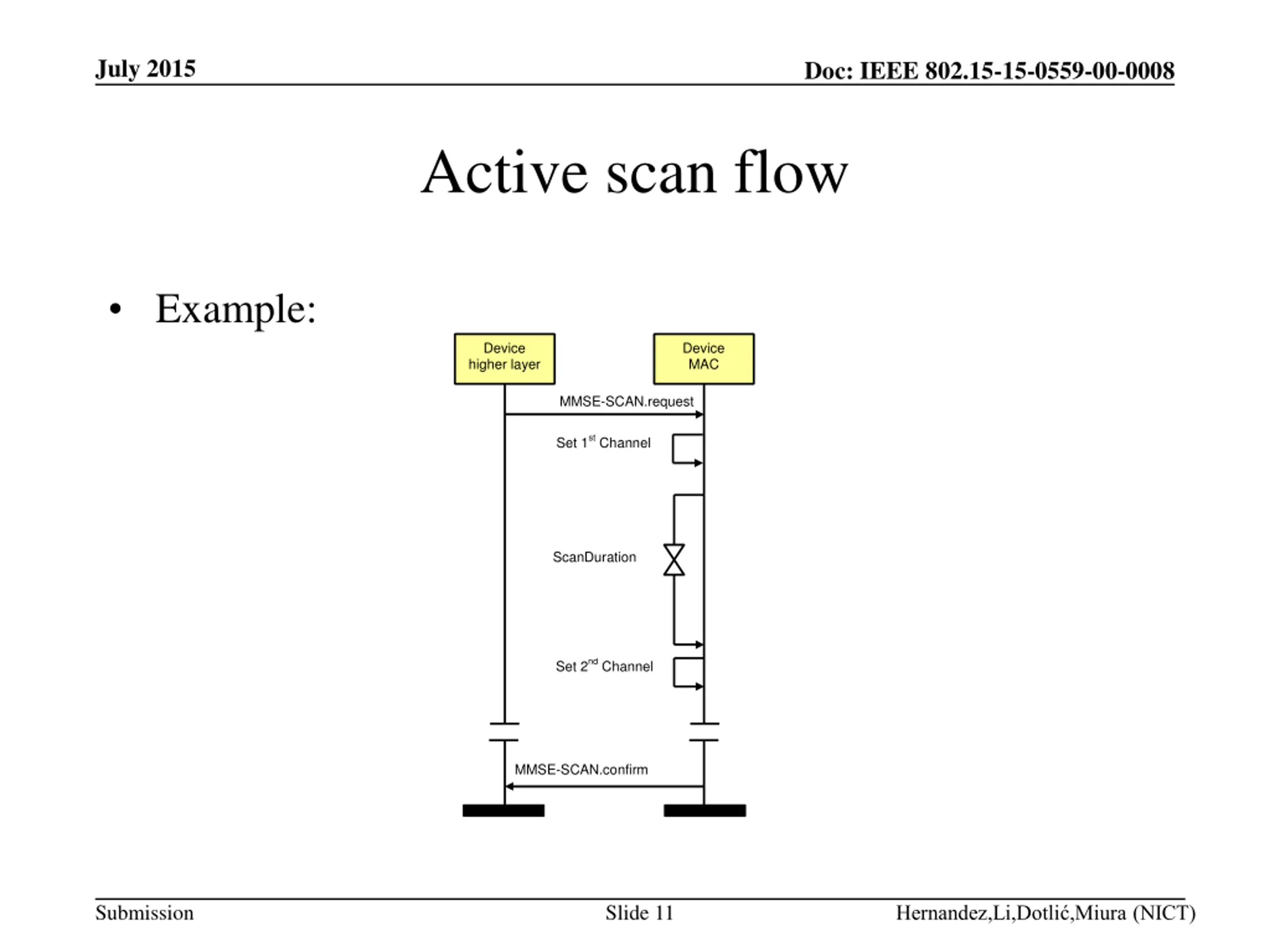

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Active scan flow Example: Device higher layer Device MAC MMSE-SCAN.request Set 1st Channel ScanDuration Set 2nd Channel MMSE-SCAN.confirm Submission Slide 11 Hernandez,Li,Dotli ,Miura (NICT)

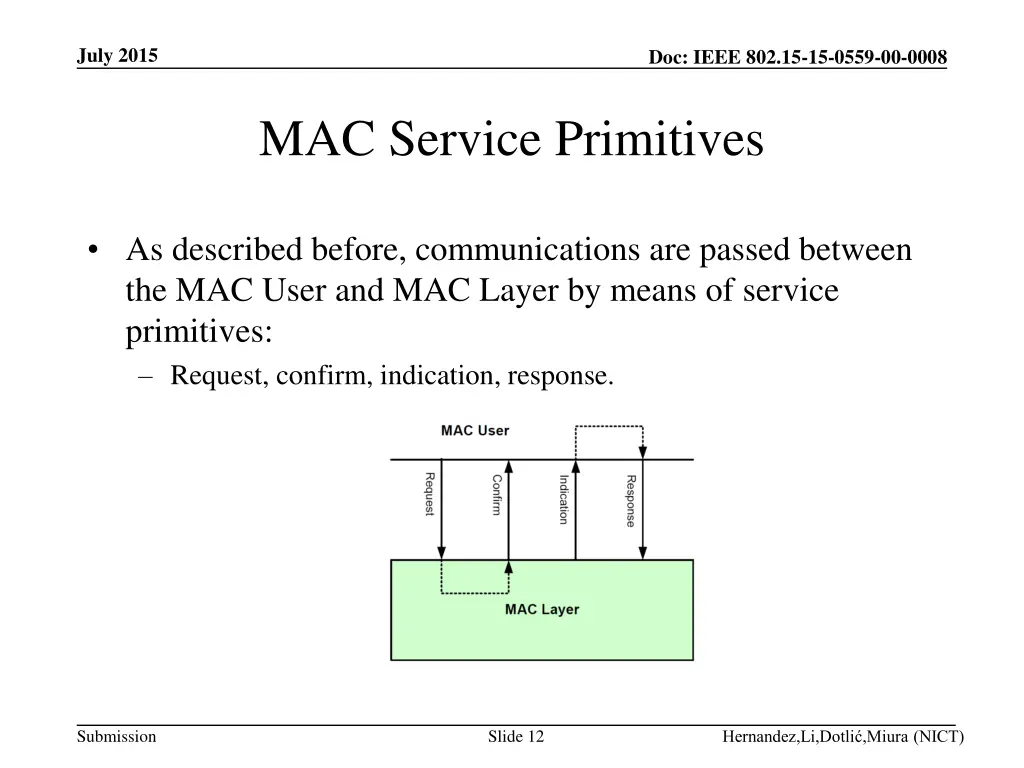

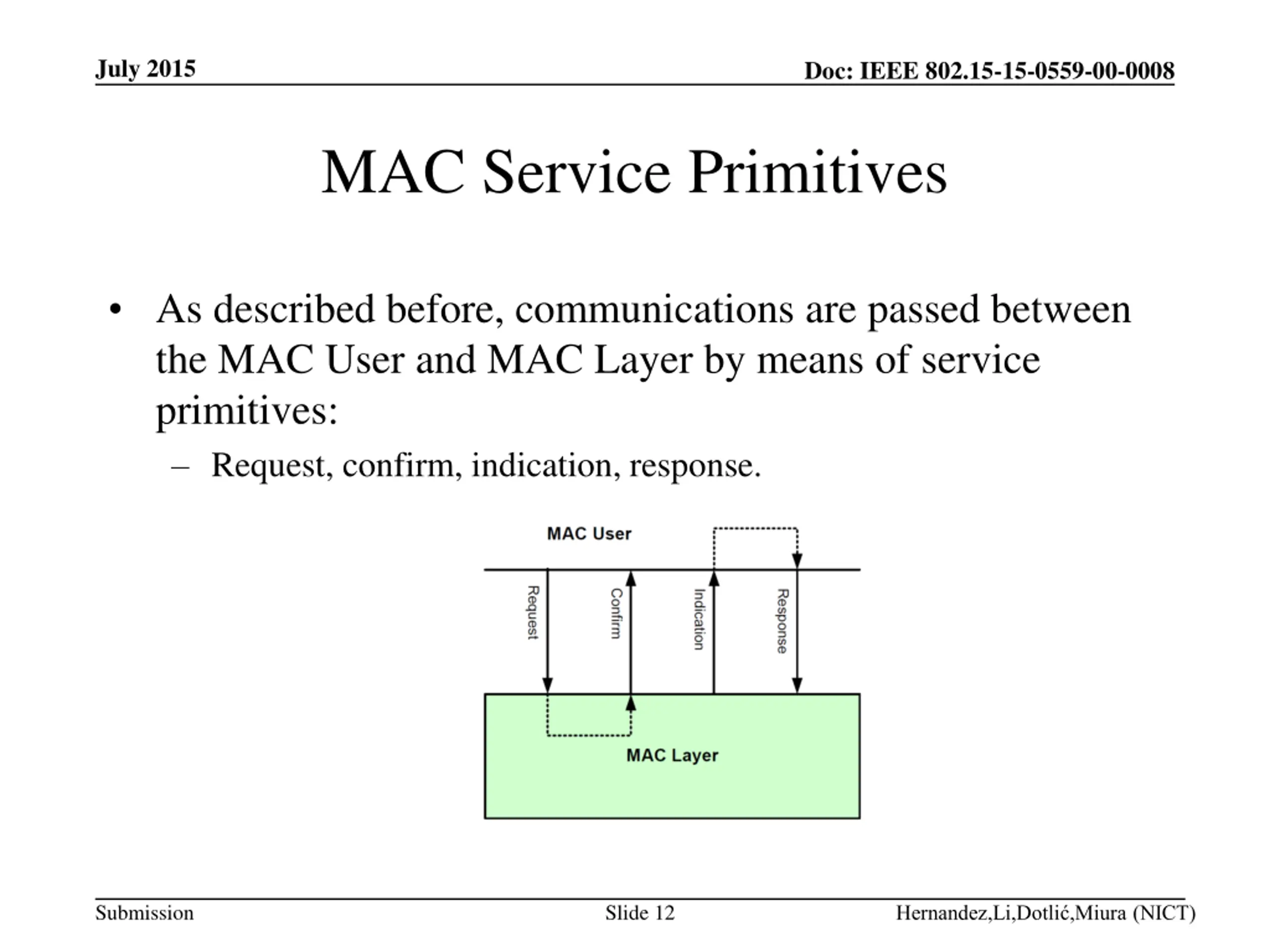

July 2015 Doc: IEEE 802.15-15-0559-00-0008 MAC Service Primitives As described before, communications are passed between the MAC User and MAC Layer by means of service primitives: Request, confirm, indication, response. Submission Slide 12 Hernandez,Li,Dotli ,Miura (NICT)

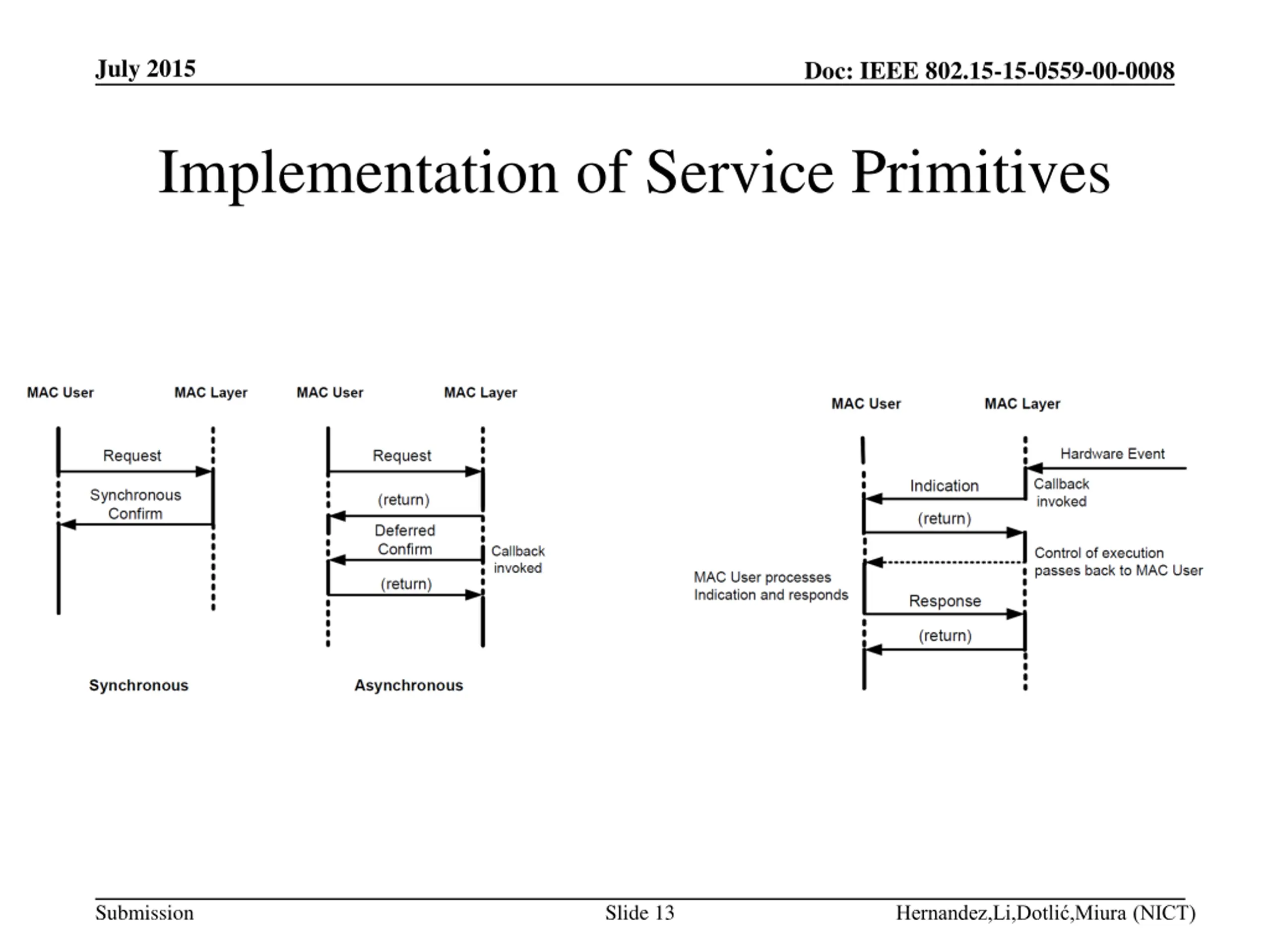

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Implementation of Service Primitives Submission Slide 13 Hernandez,Li,Dotli ,Miura (NICT)

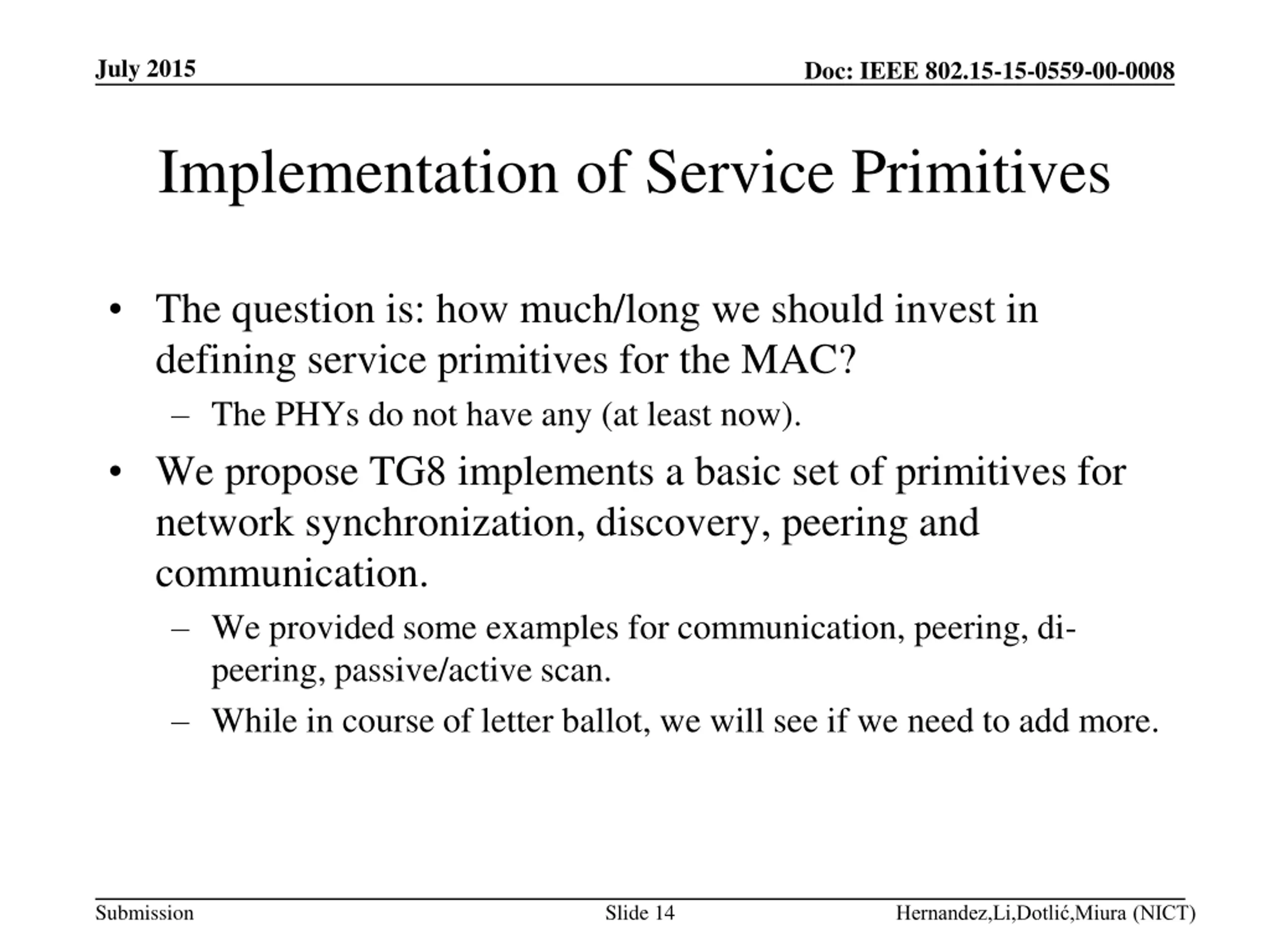

July 2015 Doc: IEEE 802.15-15-0559-00-0008 Implementation of Service Primitives The question is: how much/long we should invest in defining service primitives for the MAC? The PHYs do not have any (at least now). We propose TG8 implements a basic set of primitives for network synchronization, discovery, peering and communication. We provided some examples for communication, peering, di- peering, passive/active scan. While in course of letter ballot, we will see if we need to add more. Submission Slide 14 Hernandez,Li,Dotli ,Miura (NICT)
