Turbulence in Fluid Dynamics: A Comprehensive Exploration
Turbulence
C
h
a
o
s
i
n
t
h
e
s
o
l
u
t
i
o
n
o
f
t
h
e
c
o
n
t
i
n
u
i
t
y
e
q
u
a
t
i
o
n
f
o
r
m
o
m
e
n
t
u
m
U
(
N
a
v
i
e
r
-
S
t
o
k
e
s
)
:
Coriolis
acceleration
pressure-gradient
acceleration
gravity
viscous dissipation
local momentum source/sink terms
inertial acceleration
Reynolds number Re
Transition from laminar (smooth) to turbulent (chaotic) flow at Re ~10
3
-10
4
In atmosphere,
U ~
10
m s
-1
,
L ~
1 km,
ν
= 0.15 cm
2
s
-1
→ Re ~ 10
9
fully turbulent
Dealing with subgrid transport
Atmospheric flow is turbulent down to mm scale where viscous dissipation
(molecular diffusion) takes over
Typical observations of surface wind (10 Hz)
Advection in models must cut off the subgrid scales:
u
=
<
u
> +
u’
instantaneous grid average fluctuating
resolved unresolved (turbulent)
deterministic stochastic
Brasseur and Jacob, chap. 8.2
turbulent eddies
vertical
wind
w
T
CO
2
(
n
)
Importance of subgrid scales for mean transport
Observations from Harvard Forest tower on a typical summer day
(Bill Munger, Harvard)
tower
Time-averaged vertical flux <
F
> = <
nw> = <n
><
w
> + <
n’w’
>
w
= <
w
> +
w’ n
= <
n
> +
n’
resolved turbulent
(small) (large)
.
.
.
.
.
.
.
.
n’
w’
Turbulent flux is covariance between fluctuating components
.
Brasseur and Jacob, chap. 10.2.4
Turbulent diffusion parameterization for small-scale eddies
California fire plumes, Oct 2004
Industrial plumes
In 1-D (vertical)
resolved turbulent
Generalized continuity equation in 3-D (Eulerian):
K
z
is a turbulent diffusion coefficient,
same for all species
(similarity assumption)
implies Gaussian plumes for point sources
with
Brasseur and Jacob, chap.8.4.1
Lagrangian treatment of small-scale eddies
x,
Δ
y,
Δ
z)
T
p
o
s
i
t
i
o
n
t
o
p
o
s
i
t
i
o
n
t
o
+
t
Treat turbulent component as Markov chain:
where the
Δξ
random components have expected value of
zero and standard deviation
Δ
t
Brasseur and Jacob, chap. 4.11.2
Gaussian plume modeling of point source dispersion
Transport in cross-wind direction is parameterized as diffusive process:
Turbulent diffusion coefficients
for steady wind, inert plume
Steady state solution with suitable boundary conditions:
Point source
with emission rate
q
Brasseur and Jacob, chap. 4.12.1
Deep convection
Convective cloud
(0.1-100 km)
Model grid scale
Model
vertical
levels
updraft
entrainment
downdraft
detrainment
•
Subgrid in horizontal but organized in vertical
•
Requires non-local parameterization of mass transport
Large-scale
subsidence
“C-shaped” profile
for species with surface
source
z
C
Brasseur and Jacob, chap. 8.8
Question 1. Somewhat counterintuitively, representation of subgrid turbulent diffusion
is more important in fine-resolution models than in coarse-resolution models. Why?
That’s because the turbulent diffusion parameterization (like molecular diffusion) is
most efficient on small spatial scales.
Consider a model grid cell:
Δ
x
Rate constant for ventilation by
advection:
k
A
= u/
Δ
x
Rate constant for ventilation by
turbulent diffusion:
k
D
=2K/(
Δ
x)
2
•
Typical horizontal values
u
= 5 m s
-1
,
K
= 10 m
2
s
-1
Horizontal advection = turbulent diffusion for
Δ
x
= 4 km
•
Typical vertical values
w
= 1 cm s
-1
,
K
= 10 m
2
s
-1
Turbulent diffusion dominates on any grid
But fine-resolution models can resolve large eddies (like deep convection) that are not
amenable to turbulent diffusion parameterization. So coarse models are more in need of
non-local
turbulence parameterizations
Question 2. Satellites aim to quantify emissions from point sources by measuring
concentrations in the plumes. Can these plume data be interpreted with a Gaussian
plume model to infer the emissions?
No, unless they are very large. Problem is that the observed plumes are instantaneous,
i.e., a single realization of turbulence, whereas the Gaussian plume model assumes
averaging over many realizations. Very large plumes experience these many
realizations but small plumes don’t.
Instantaneous methane plumes
seen by GHGSat over Turkmenistan
•
So we have to use different methods
[Varon et al., AMT 2018]
•
The same problem arises when predicting the
downwind impacts of an instantaneous event
(such as an explosion)
Exploring the complexities of turbulence in fluid dynamics, from the Navier-Stokes equations to subgrid transport and turbulent diffusion. Insights into the transition from laminar to turbulent flow, subgrid scale importance, and treatment of small-scale eddies are discussed. The impact of turbulence on atmospheric phenomena and the parameterization of turbulent diffusion for small-scale eddies are also highlighted.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

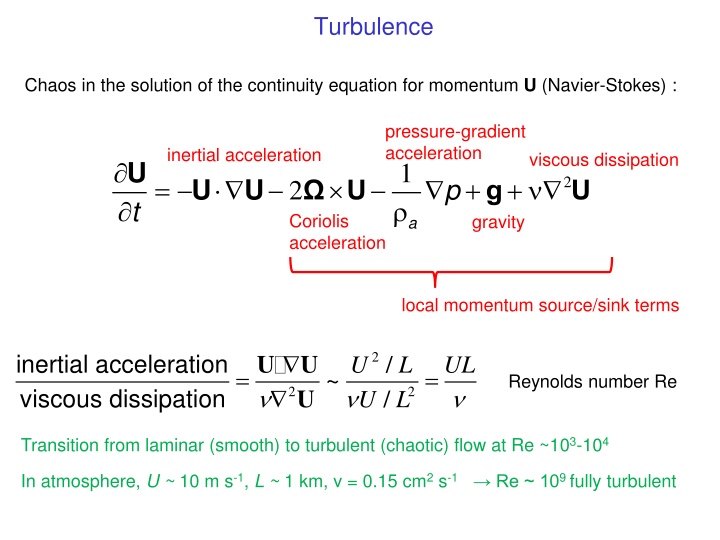

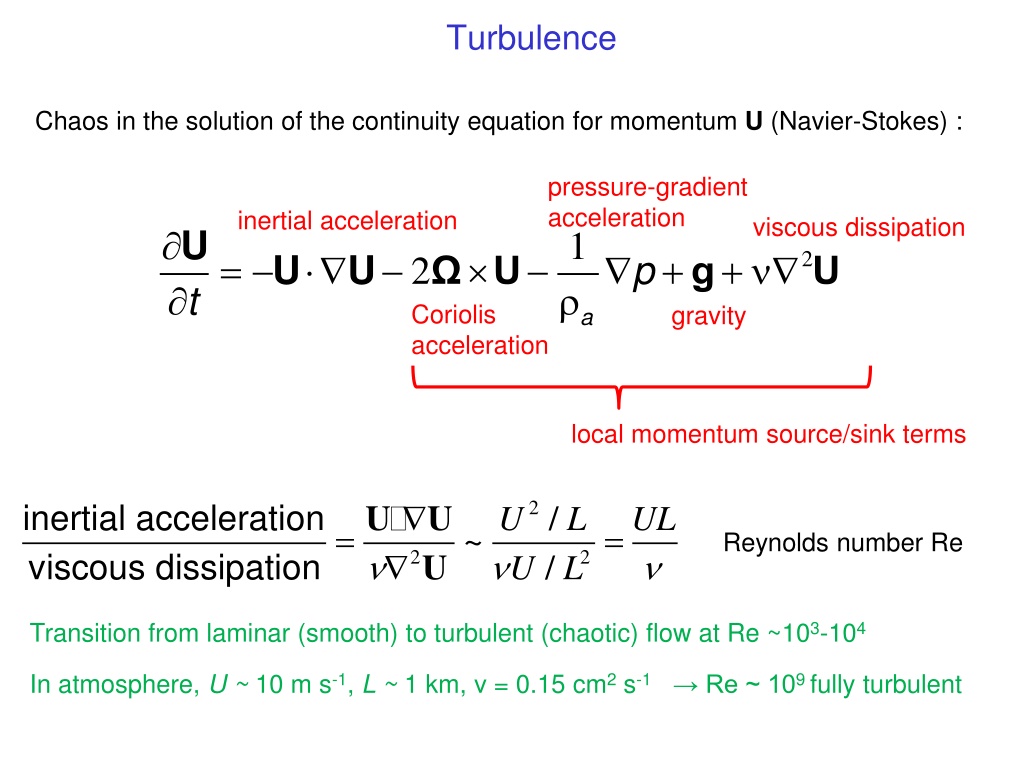

Turbulence Chaos in the solution of the continuity equation for momentum U (Navier-Stokes): pressure-gradient acceleration inertial acceleration viscous dissipation U t 1 = U + p + 2 U 2 Coriolis acceleration U g U gravity a local momentum source/sink terms 2 inertial acceleration viscous dissipation U U U / / U U L L UL = = ~ Reynolds number Re 2 2 Transition from laminar (smooth) to turbulent (chaotic) flow at Re ~103-104 In atmosphere, U ~ 10m s-1, L ~ 1 km, = 0.15 cm2 s-1 Re ~ 109 fully turbulent
