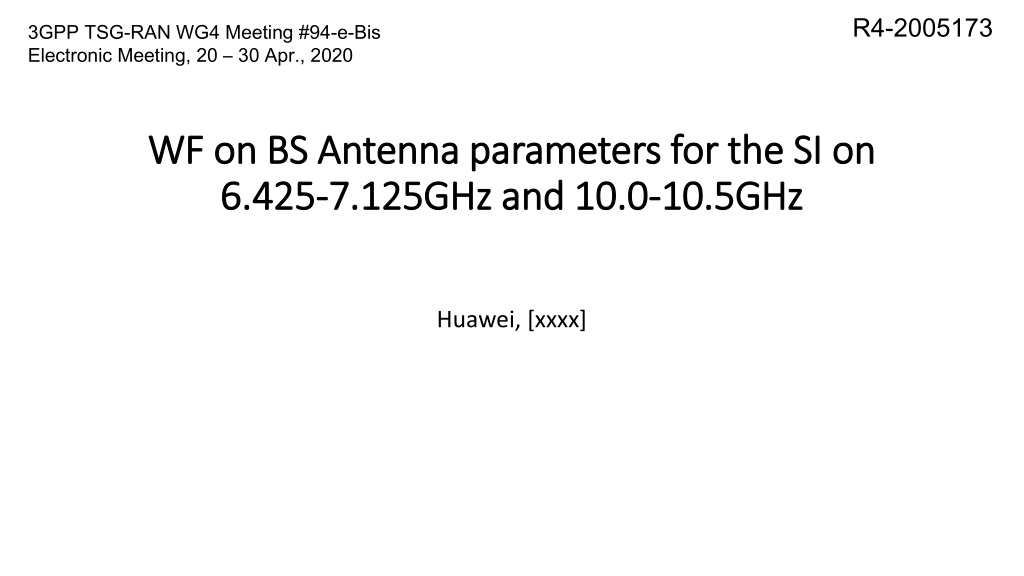

R4-2005173 3GPP TSG-RAN WG4 Meeting #94-e-Bis Electronic Meeting, 20 30 Apr., 2020 WF on BS Antenna parameters for the SI on WF on BS Antenna parameters for the SI on 6.425 6.425- -7.125GHz and 10.0 7.125GHz and 10.0- -10.5GHz 10.5GHz Huawei, [xxxx]

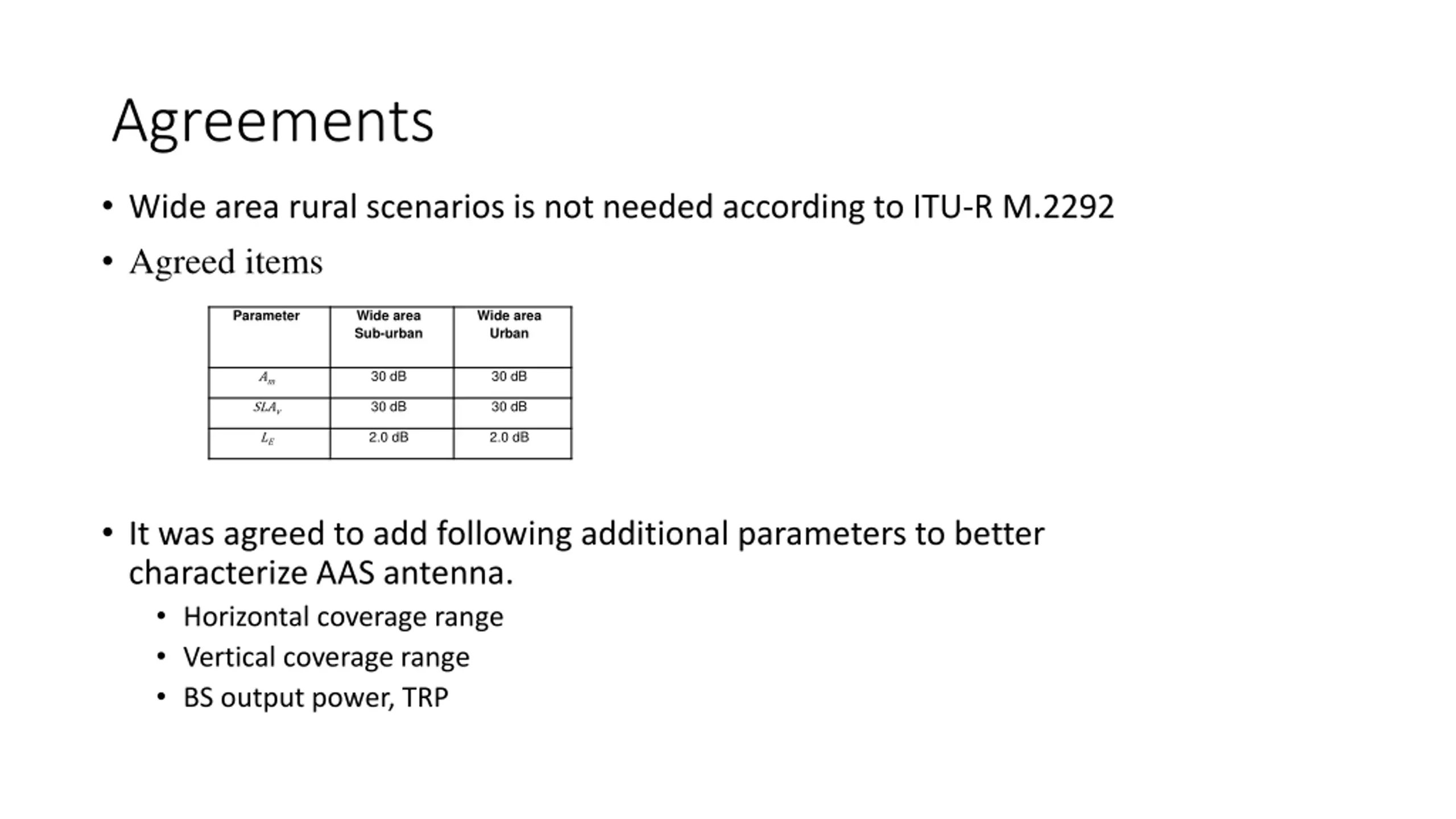

Agreements Wide area rural scenarios is not needed according to ITU-R M.2292 Agreed items Parameter Wide area Sub-urban Wide area Urban 30 dB 30 dB Am 30 dB 30 dB SLAv 2.0 dB 2.0 dB LE It was agreed to add following additional parameters to better characterize AAS antenna. Horizontal coverage range Vertical coverage range BS output power, TRP

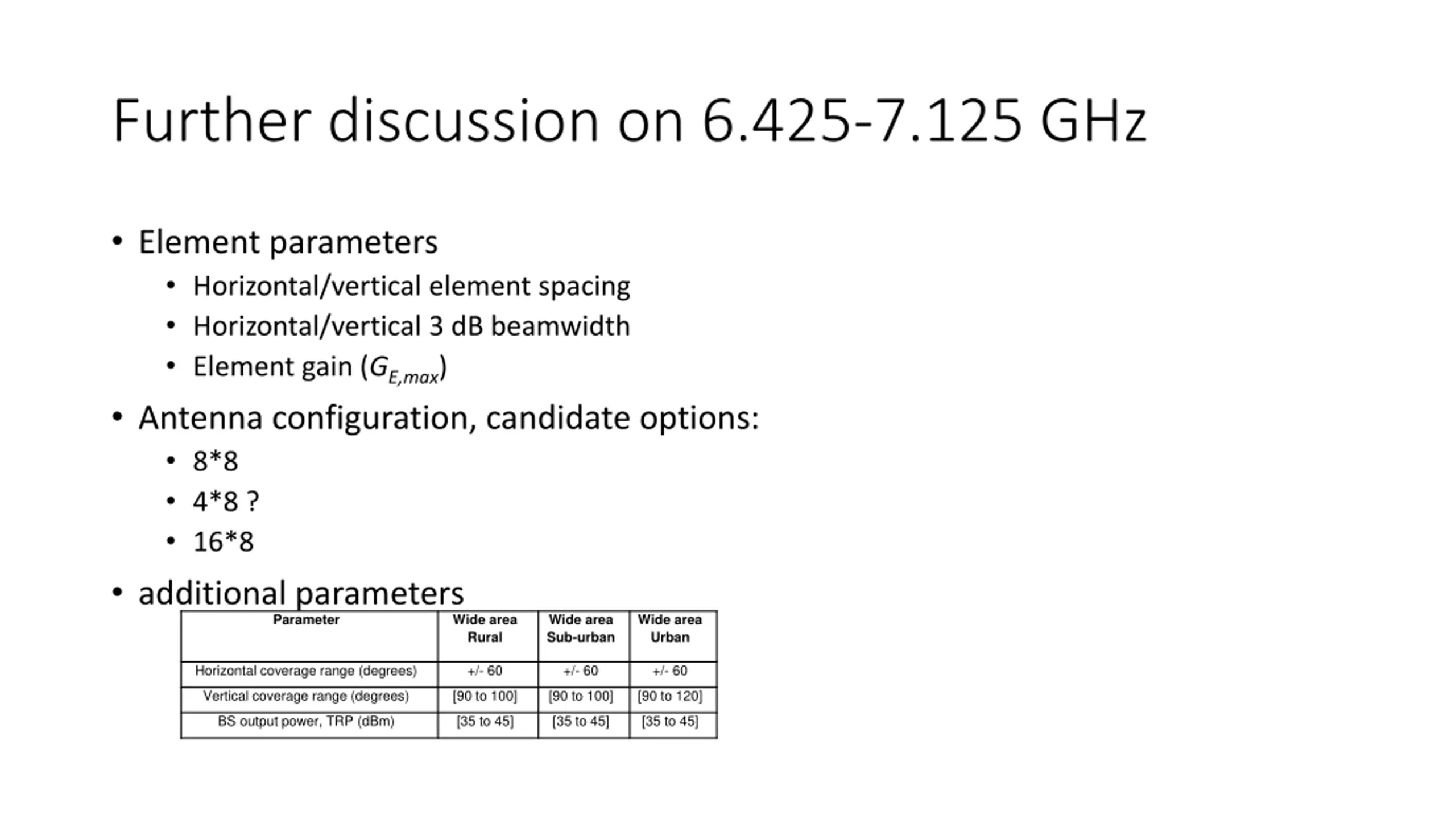

Further discussion on 6.425-7.125 GHz Element parameters Horizontal/vertical element spacing Horizontal/vertical 3 dB beamwidth Element gain (GE,max) Antenna configuration, candidate options: 8*8 4*8 ? 16*8 additional parameters Parameter Wide area Rural Wide area Sub-urban Wide area Urban Horizontal coverage range (degrees) +/- 60 +/- 60 +/- 60 Vertical coverage range (degrees) [90 to 100] [90 to 100] [90 to 120] BS output power, TRP (dBm) [35 to 45] [35 to 45] [35 to 45]

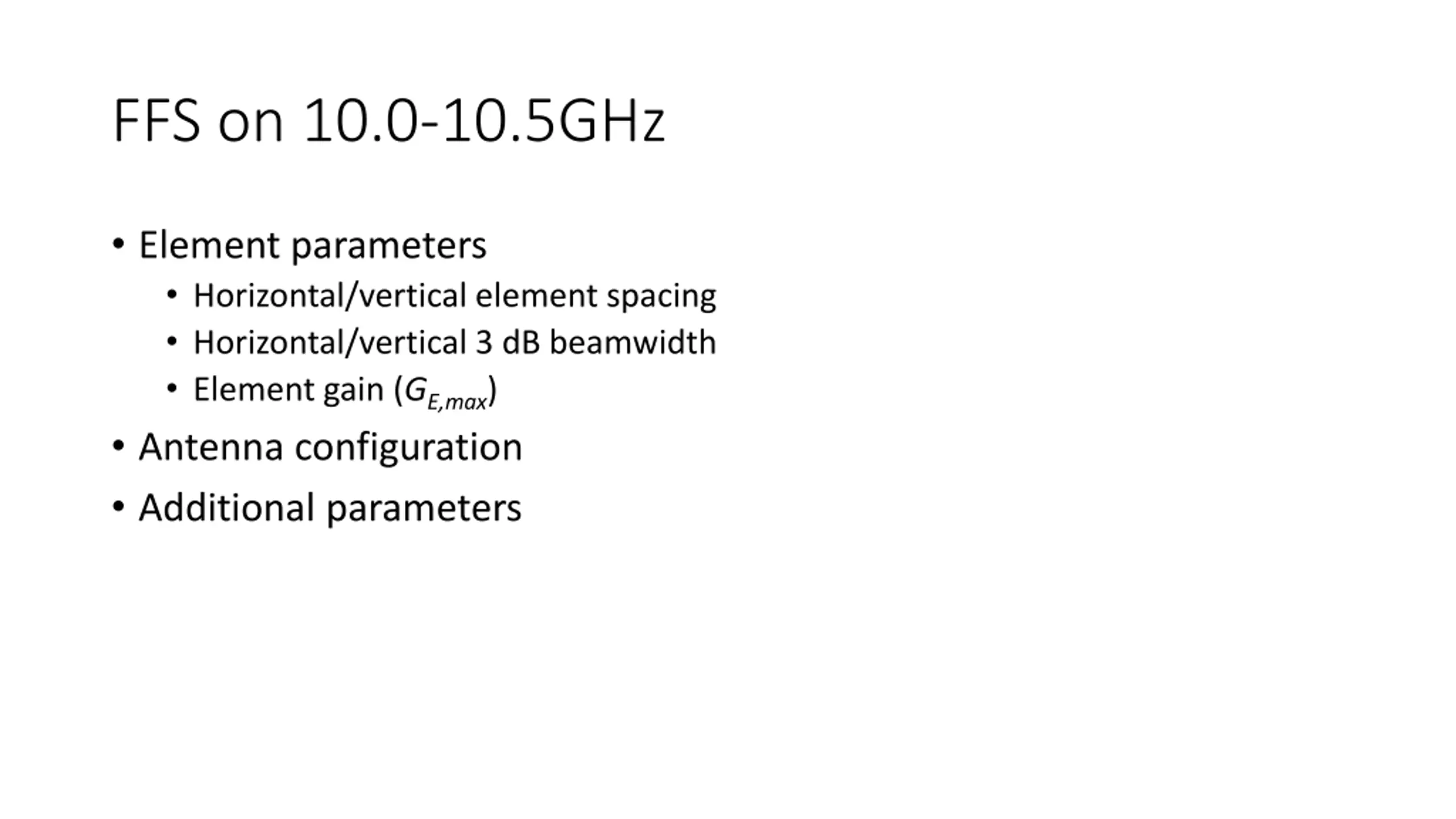

FFS on 10.0-10.5GHz Element parameters Horizontal/vertical element spacing Horizontal/vertical 3 dB beamwidth Element gain (GE,max) Antenna configuration Additional parameters

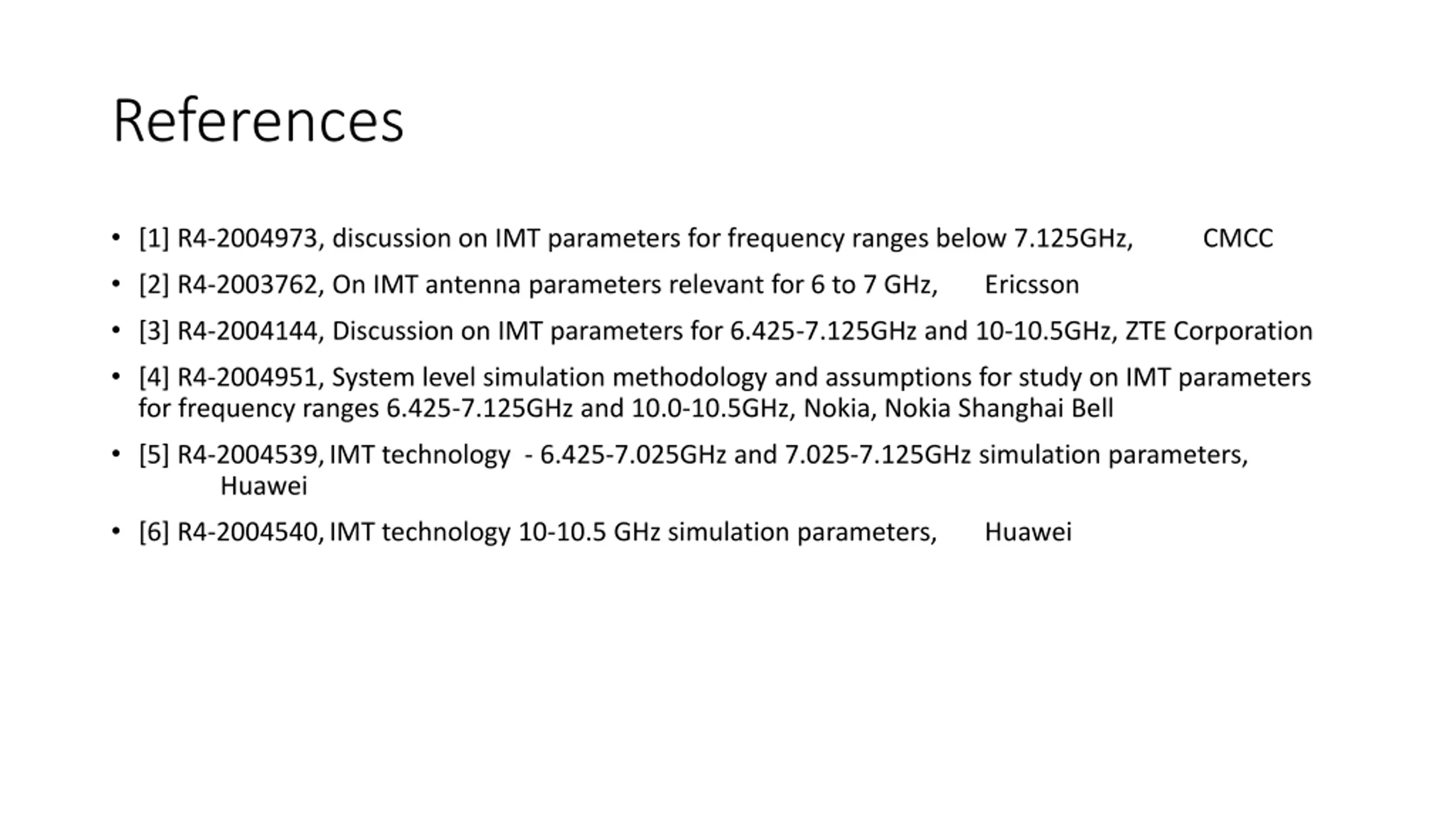

References [1] R4-2004973, discussion on IMT parameters for frequency ranges below 7.125GHz, [2] R4-2003762, On IMT antenna parameters relevant for 6 to 7 GHz, [3] R4-2004144, Discussion on IMT parameters for 6.425-7.125GHz and 10-10.5GHz, ZTE Corporation [4] R4-2004951, System level simulation methodology and assumptions for study on IMT parameters for frequency ranges 6.425-7.125GHz and 10.0-10.5GHz, Nokia, Nokia Shanghai Bell [5] R4-2004539,IMT technology - 6.425-7.025GHz and 7.025-7.125GHz simulation parameters, Huawei [6] R4-2004540,IMT technology 10-10.5 GHz simulation parameters, CMCC Ericsson Huawei
