Thermal Power Plants: Overview and Operation
StudyMafia
.Org
Submitted To:
Submitted By:
Studymafia.org Studymafia.org
Table Contents
•
Definition
•
Introduction
•
Layout of Thermal Power Plant
•
Working of Thermal Power Plant
•
Components of Thermal Power Plant
•
Advantages of Thermal Power Plant
•
Top Thermal Power Plant
•
Conclusion
2
Definition
A
thermal power
Plant / Station is used to convert
heat energy to electric power / Energy for household
and commercial applications.
3
Introduction
•
In the process of
electric power generation
,
steam-operated turbines convert heat in to
mechanical power and then finally
electric power
.
•
In
thermal power plants
, the heat energy obtained
from combustion of solid fuel (mostly coal) is used
to convert water into steam, this steam is at high
pressure and temperature.
4
Layout of Thermal
Power Plant
•
Thermodyne Engineering Systems has a wide
experience in boiler manufacturing that
generate high pressure and temperature steam
required to rotate the turbine and generate
electricity.
•
Along with steam boiler we also have
experience in providing energy solutions to our
customers thereby saving you a lot on the
operating cost.
5
6
Working of Thermal
Power Plant
•
The fuel is transported from mines via trains
to the fuel storage facility in a power plant.
•
The fuel transported to the plant is generally
bigger in particle size and before it is fed to
the boiler furnace it is broken down into
smaller pieces using crushers.
•
The fuel is then fed to the boiler generating a
large amount of combustion heat.
●●●
7
Working of Thermal
Power Plant
•
On the other hand treated water free from
impurities and air is fed to the boiler drum
where the combustion heat from the fuel
is transferred to water to convert it into high
pressure and temperature steam.
•
Generally, flue gases from the boiler exhaust
are at high temperature and if this heat is not
utilized will lead to a large number of losses
resulting in reduced boiler efficiencies.
●●●
8
Working of Thermal
Power Plant
•
So generally this waste heat is recovered
by heating either air required for
combustion or preheat water before
sending it into a boiler.
•
Flue gases are then allowed to pass
through a dust collector or a bag filter to
arrest dust particles so as to prevent air
pollution before sending it to the
atmosphere through a chimney.
●●●
9
Working of Thermal
Power Plant
10
Components of Thermal
Power Plant
Fuel storage and handling plant
•
The most essential part of any power
plant is to store the fuel safely in an
appropriate amount so that the plant can
run smoothly in normal days as well as
when the supply of fuel from mines is
improper
●●●
11
Components of Thermal
Power Plant
Water Treatment Plant
•
In thermal power, plant water is used in
large quantity this water is converted into
steam and used to rotate the turbine so
this water and steam come into direct
contact with the boiler, boiler tubes,
boiler accessories, and turbine blades.
●●●
12
Components of Thermal
Power Plant
Steam Boiler
•
A boiler is a pressure vessel which is used
to generate high-pressure steam at a
saturated temperature. At this high
pressure and temperature generally, bi-
drum water tube boilers are used.
●●●
13
Components of Thermal
Power Plant
Turbine
•
A turbine is a mechanical device which
converts the kinetic and pressure energy
of steam into useful work.
14
Advantages of Thermal
Power Plant
Steam power plants are economical
(initially) as compared to power
generation plants. Plants required less
area to setup as compared to hydra
power plants.
Overall efficiency of power plants is low,
which is 35-40%.
15
Top Thermal
Power Plant
The
Vindhyachal Thermal Power
Station
in the Singrauli district of Madhya
Pradesh , with an installed capacity of 4 ,
760MW , is currently the biggest thermal
power plant in India
16
Conclusion
A thermal power station is
a type of power
station in which heat energy is converted to
electrical energy
.
In a steam-generating cycle heat is used to boil
water in a large pressure vessel to produce
high-pressure steam, which drives a steam
turbine connected to an electrical generator.
18
References
–
Google.com
–
Wikipedia.org
–
Studymafia.org
–
Slidespanda.com
Thanks
Thanks
To
To
StudyMafia
StudyMafia
.org
.org
Thermal power plants play a crucial role in converting heat energy into electricity for various applications. This article covers the definition, layout, working principle, and components of thermal power plants, highlighting their advantages and top features. From converting heat into mechanical power to generating high-pressure steam, these plants are essential for energy production. Learn how fuel is processed, water is converted to steam, and the overall efficiency of thermal power plants. Explore the world of thermal power generation with this comprehensive guide.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

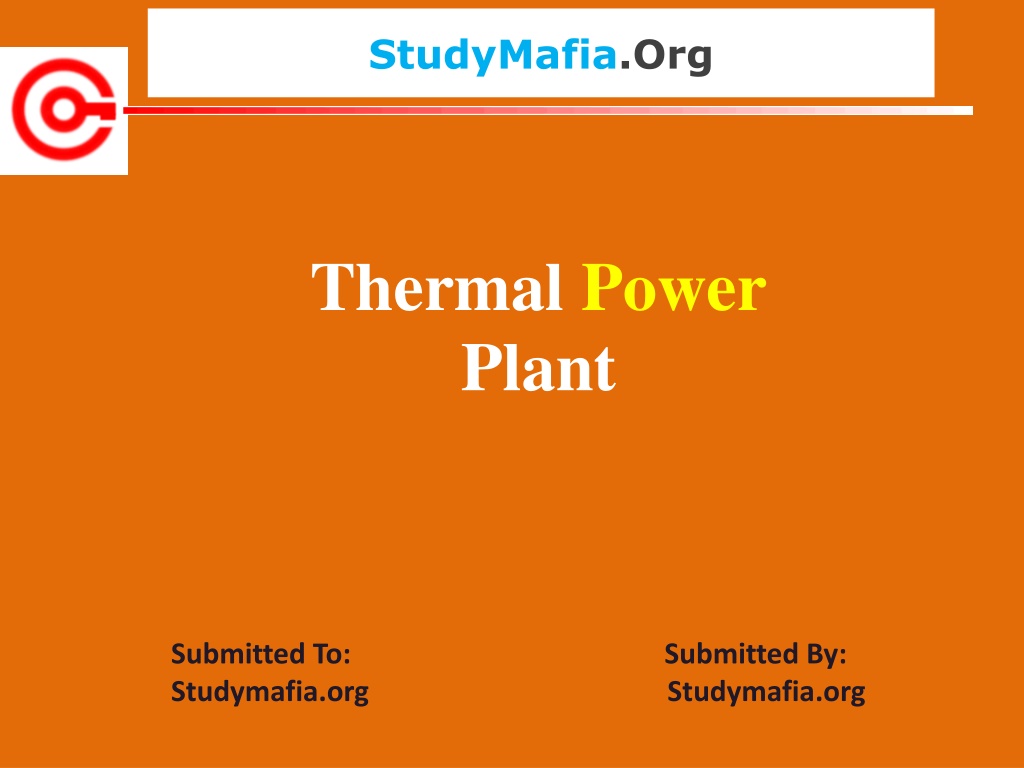

StudyMafia.Org Thermal Power Plant Submitted To: Submitted By: Studymafia.org Studymafia.org
