Terra Architecture and Design Overview
DataBiosphere.org
Driven by Data Biosphere vision to enable an
ecosystem of interoperable components across orgs
●
Tool Repository Service (TRS)
○
enable libraries of pre-packaged shared methods
●
Workflow Execution Service (WES)
○
federated analysis: run reproducible workflows
●
Data Repository Service (DRS)
○
federated storage: access data, wherever it’s stored
●
Data Use (DU
RI
)
○
data passport: match access rules to researchers
●
Researcher Identity (
DU
RI)
○
data passport: make researcher credentials portable
●
and more ...
GA4GH standards used wherever possible
Data
Mgmt
Tools
Mgmt
Workspaces
All of Us
Workbench
Terra Platform API
Terra’s architecture primarily serves 3 roles
Data
Production
& Curation
Tool
Creation &
Publication
Data
Generators
Tool
Developers
Biomedical
Researchers
Cloud Services
Community
Workbench
Single
Cell Portal
Custom
Apps &
Portals
Applications
App Services
Core Services
Kernel
Workspace
Manager
Interactive
Analysis
Data Repo
Manager
Analysis
Code Repo
User
Manager
Folder
Manager
Spend Profile
Manager
Kernel
Access
Spend
Tracker
Resource
Manager
Notification
Manager
IAM
Policy
Manager
Community
Workbench
AoU
Workbench
Single Cell
Portal
Cromwell
Tools,
e.g.
RStudio
Jupyter
IGV
Bioconductor
Hail
Data Repo
UI
Terra
CLI
Terra
Connector
Third-party
Apps
Billing Reports
Data Library
Terra
Platform
Cloud
Layer
Activity
Logger
Rearchitecture in progress to support multiple clouds
and integration of new resources
Many datasets co-analyzable according to research use
●
Not involved in billing now - user brings billing, we manage resources
●
Scale is critical (per month: ~2k active users, ~500 users running
workflows and notebooks, ~500k workflows per month, >10m CPU hours
per month)
●
Provenance is critical to reproducible data science
●
Authorization Domains to protect derived results
Design principles and considerations
Questions?
Terra is a platform driven by the Data Biosphere vision to enable an ecosystem of interoperable components across organizations. It utilizes GA4GH standards and serves various roles such as Biomedical Researchers, Custom Apps & Portals, and Data Developers. The architecture is being restructured to support multiple clouds and integration of new resources for enhanced functionality and user experience. Various datasets are co-analyzable on Terra, with design principles focusing on scalability, provenance, and authorization domains for reproducible data science.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

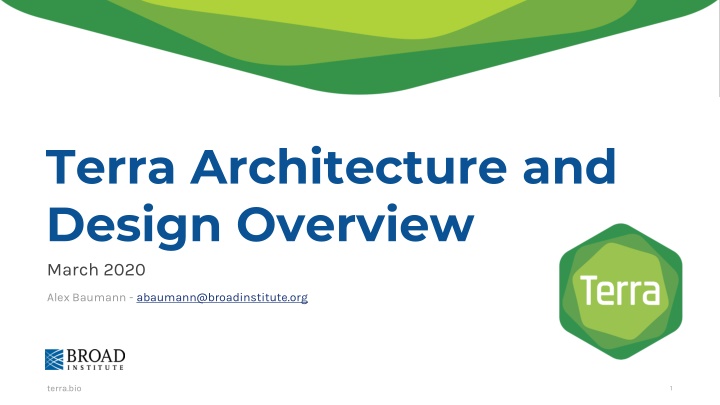

Terra Architecture and Design Overview March 2020 Alex Baumann - abaumann@broadinstitute.org terra.bio 1
