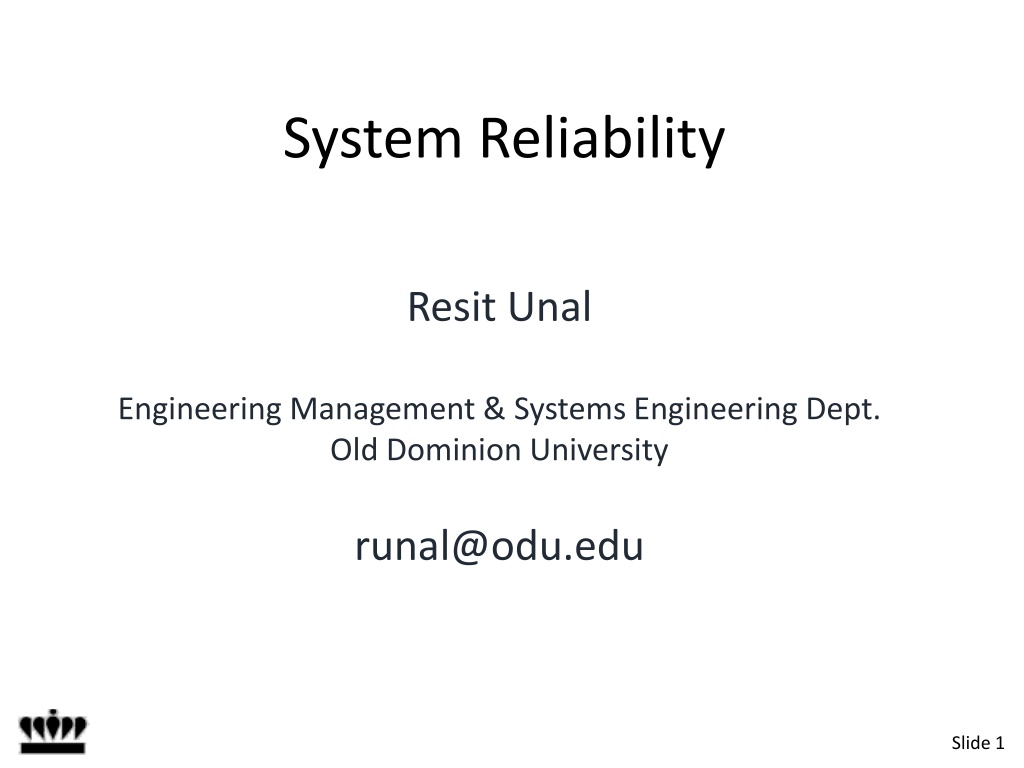

System Reliability in Engineering
System Reliability
Resit Unal
Engineering Management & Systems Engineering Dept.
Old Dominion University
runal@odu.edu
System Reliability
•
Science/Engineering is concerned with how
products/systems work, but also need to
understand,
•
The ways in which they fail, effects of failures, &
aspects of design which affect the likelihood of
failure
.
Defining Reliability
Reliability is the
probability
that a system will
perform as anticipated under given operating
conditions.
It can predict the probability that a system will
operate for a specified # of hours or,
Average time between failures (MTBF)
System Lifecycle Costs (LCC)
•
70-80% of LCC are committed during design phase
•
Design fixes how system will be operated, maintained
•
Reliability is major cost driver
(Failures, repair, lost time, redesign..)
•
Reliability and Maintainability must be designed in.
Failure Patterns: Bathtub Curve
Decreasing
Constant
(Random Failure)
Increasing Failure
Failure
Rate
λ
(t)
time
Burn-In
Useful Life
Wear-out
λ
(t) ↓
λ
(t)↑
Series System Model
R1
0.95
0.80
R
ss
= (0.95)(0.80)
=
0.76
R2
For series systems, high reliability of
components/subsystems are required.
Parallel System Model (Redundant)
•
Two Component System
R
1
R
2
R
PS
=
R
1
+ R
2
-
R
1
R
2
R
1
= R
2
= 0.85
R
PS
= 0.98
0.85
0.85
Active redundancy: Reliability increases
System Reliability Analysis Methods
•
Fault Tree Analysis
•
Failure Modes, Effects and Criticality Analysis
(FMEA / FMECA)
Fault Tree Analysis
:
Uses Logic Operators
Emergency cooling to a nuclear reactor
FMEA / FMECA
List:
•
Failure Modes
•
Causes of failure
•
Possible Effects
•
Probability of Occurrence
•
Criticality
•
Possible Action
FMECA
Handbook of Reliability Engineering and Management
Maintained Systems
I.
Preventive Maintenance
:
Performed
before
Failure Occurs
Measure: Resulting Increase In Reliability
I.
Corrective Maintenance
:
Performed
after
Failure
Occurs (Repair)
Measure:
Availability
: The probability that
system will be operational when needed.
Maintained Systems
•
Maintenance Issues
•
Cost
•
Safety
•
Time to repair variability
•
Prob. of Maintenance Introducing Failure
•
Human Reliability
Repair Times are more variable than failure rates of hardware
Preventive Maintenance
WEIBULL
m < 1
CFR
WEIBULL
m > 1
time
DON’T
DON’T
“LEAVE IT ALONE”
DO
EXPONANTIAL
Corrective Maintenance (Repair)
Robust Design
•
Involves making system design insensitive to
variations in the input
•
Small variations in input can result in large
variations in output leading to unexpected
performance loss.
•
Optimize
to reduce variability
Robust
Design
Phadke, Quality Engineering Using Robust Design, 1990)
Y
X
Y
o
Y
1
Robust Design Using Design of Experiments
Y
Y
µ
= b
0
+ ∑ b
i
x
i
+ ∑∑ b
ij
x
ij
+ ∑ b
ii
x
i
2
Y
s
= c
0
+ ∑ c
i
x
i
+ ∑∑ c
ij
x
ij
+ ∑ c
ii
x
i
2
Design of Experiments
•
Can be utilized to study
•
Model the effect of inputs on performance (output)
•
Capture variability (
) in design
•
Design trade off studies
Minimize
Y
s
Subject to
Y
Work in Progress
•
SOS Reliability Analysis (with Keating)
•
System Reliability & Maintainability Analysis
•
System Cost Analysis
•
Robust design, DOE
