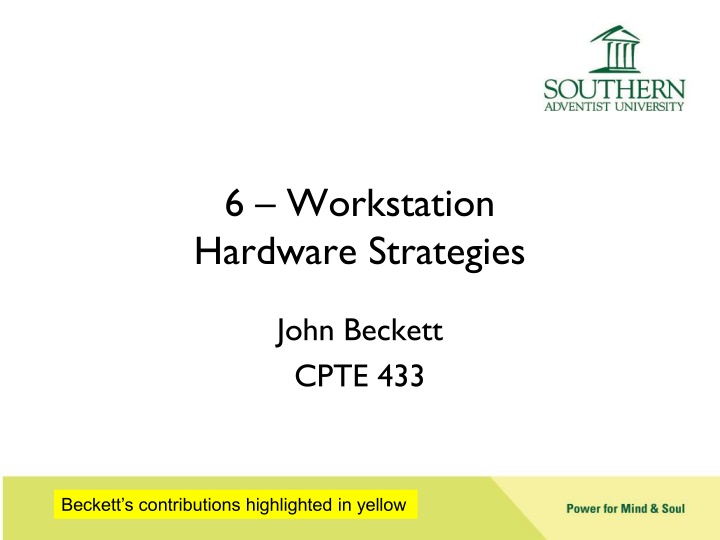

6 – Workstation
Hardware Strategies
John Beckett
CPTE 433
Beckett’s contributions highlighted in yellow
6.1.1 Laptop Versus Desktop
Laptop
•
Expansion may be
proprietary
–
Thunderbolt addresses this
•
Consumes less power
•
Built-in UPS
Desktop
•
More expandable
•
Less expensive
•
May have more ports
•
Faster
Text predicts: Desktops will be replaced by VDI/thin clients; laptops will
Eventually be replaced by tablets, pads, and other mobile devices.
Beckett predicts: Except for highly-structured tasks, the trend will be toward
laptops with additional screen and Thunderbolt docking stations.
6.1.2 Vendor Selection
•
Standardize on one vendor, a fixed set, or
supporting all vendors?
–
Minimize the number of vendors used to reduce
complexity and support costs
–
Perhaps: Use two vendors and play them off
against each other for best price
–
Supporting all vendors: very poor choice because
there is no way to give good service
•
Document results from each vendor
6.1.3 Product Line Selection
•
Enterprise (Latitude) versus Consumer
(Inspiron) – others may be available e.g. XPS
•
Look for TCO and performance claims by the
vendor
•
How often is this line updated?
•
This may be the differentiating factor if you
offer users more than one choice
6.2 Virtual Desktop Infrastructure
•
Desktop apps run on a VM in a cluster
•
User hardware is a thin client
•
Text claims this gives you
–
Better control over the user experience
(maybe)
–
Better control over where your data goes
(true)
•
One possible reason: To lengthen client
refresh cycles. In my experience this is not
true; it just means you have to refresh three
things: Server, Network, and Client
6.2.1 Reduced Costs
•
Thin client hardware is inexpensive since it
has only one task to do
•
Monitors, keyboards and mice are commodity
–
(just like non-VDI)
•
Thin clients are generic
–
…until you need to use a new feature
•
Thin clients do not need to be upgraded as
often
–
…unless you want to use current methods
Bottom line: Verify claims, and track performance.
My findings may not apply in your case.
6.2.2 Ease of Maintenance
•
The VM server infrastructure can be upgraded
more cost-effectively because it does not require
the physical labor of visiting each client.
•
So long as your client hardware supports the
new function, this is true.
•
In any case, the work of replacing thin clients
should be easier than replacing PCs.
•
E.g. Replacing system drives would be a lot of
labor
–
…which would be less if you imaged them
6.2.3 Persistent or Non-persistent
•
Will the VDI image revert to its initial state
each time a user logs in?
–
Advantage: updates are to only one VDI
•
The possibility of having it revert could be an
argument in favor of VDI
•
You might be able to have each
person
have
their own VDI, which follows them to
whatever workstation they are using now
Other Reasons to Use VDI
You might not want an app to run on the user
workstation
•
Violates your company’s supported
configuration
•
You don’t want certain data to be physically
on the workstation for security reasons
•
You might be testing a configuration or
application and need a complete back-out
6.2 Bring Your Own Device
•
Do you want to run your corporate apps on
user-owned devices?
•
Do you want to depend on user-owned
devices for your company’s success?
•
If the answer is “No!” – then do your
employees have room on their belts for your
additional device?
6.2.1 Strategies
•
BYOD-only – users have only what they bring
•
BYOD mixed – we provide, but users may utilize
their own
–
If you don’t provide for BYOD, users will inevitably
find work-arounds. So you need to have an
orderly
provision
•
BYOD-lite – Specific apps available to BYOD
–
May require that BYOD be approved per vendor or
per device
•
No BYOD – Necessary for security in some
cases, difficult to enforce
6.3.2 BYOD Pro and Con
Pro
•
Improves productivity
without company having to
give full support
•
Users “like” (understand
and find convenient) their
own devices
Con
•
Increased support cost
because of variety of
devices
•
Your use cases may not be
covered by user knowledge
The text suggests “support classes” as an alternative that limits support
costs while providing for user choice.
BYOD strategy is likely to be a major component of support design in the
future.
I was amazed at how long it took for Southern
to recognize student-owned PCs as a resource!
I think all of a computer lab’s facilities should be
available to student laptops (except for controls)
6.3.3 Security
•
What if a BYOD is stolen, given, lent, sold?
•
Time for VDI technology to isolate your data!
•
Make it easy to de-register a BYOD in your
system
–
What if passwords were cached?
•
What if your data is saved on a BYOD?
6.3.4 Additional Costs
•
Mobile devices may incur large bills
–
Do you reimburse?
–
IRS requires usage logs if cost is paid by company
•
BYOD impacts your network
–
Can you partition personal use from company
use?
6.3.5 Usability
•
Your BYOD system must be convenient.
•
May raise expectations for your corporate
system
•
Mobile Device Management (MDM) systems
can make users’ life far more difficult.
–
Remember, if you make it really hard for a good
employee to do their job, they’ll find a way
around the “problem” – even if that means
moving to the competition
