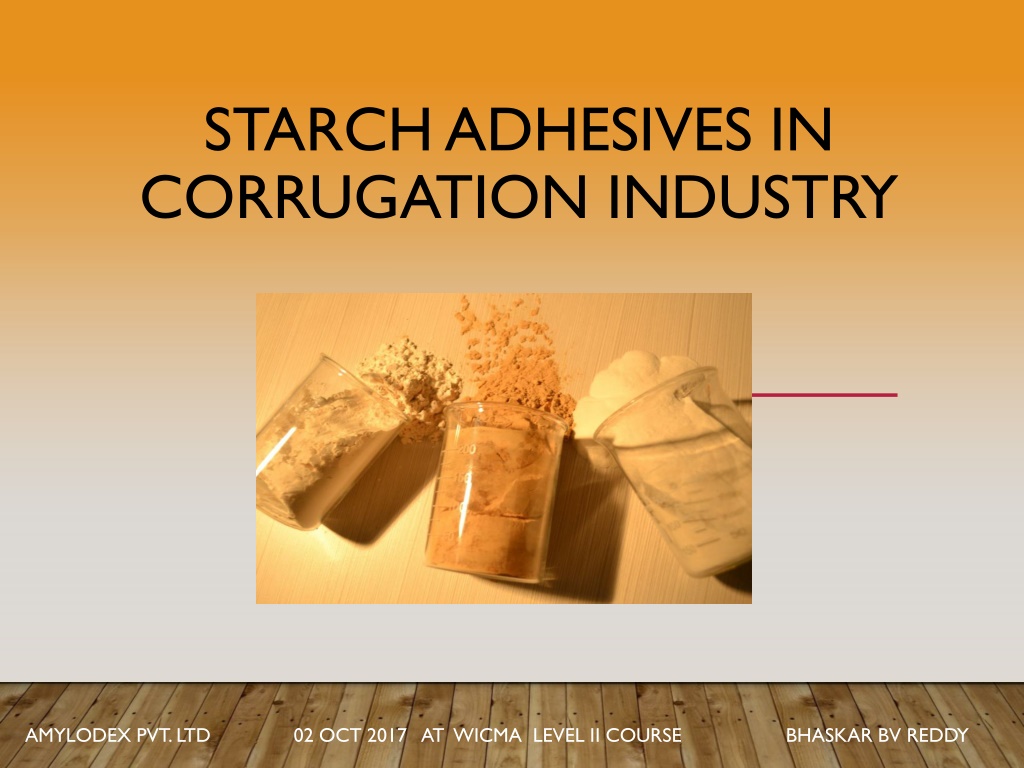

Starch Adhesives in the Corrugation Industry
STARCH ADHESIVES IN
CORRUGATION INDUSTRY
AMYLODEX PVT. LTD 02 OCT 2017 AT WICMA LEVEL II COURSE BHASKAR BV REDDY
To understand Starch Adhesives and evaluate
various options available with the help of few
testing parameters
OBJECTIVE
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
•
Introduction to Starch Adhesives.
•
Classification Of Starch Adhesives
•
Testing Parameters and Testing Instruments.
•
Special Additives
•
New developments
TOPICS
Amylodex Pvt.Ltd
02 Oct 2017 at WICMA level II course
Bhaskar BV Reddy
●
Why we need Adhesive
○
To stick various plies of Kraft Paper
○
To get good strength to Board
●
What is starch adhesive
○
When starch is heated in water , it will transform
into a paste like structure.
○
For stronger bonding chemicals are added.
●
Other adhesives other than starch
○
Yes. Like Sodium Silicate. Very few use
INTRODUCTION
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
●
Application
○
Corrugation Adhesives
○
Pasting Adhesives
●
Starch Base
○
Tapioca Starch
○
Maize Starch
●
Physical form
○
Liquid Starch Adhesives
○
Powder Starch adhesives
●
Preparation Method
○
Hot Process Starch Adhesives
○
Cold Process Starch Adhesives
CLASSIFICATION OF STARCH ADHESIVES
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
●
pH
○
pH>7 is alkaline
○
pH=7 is Neutral
○
pH<7 is acidic
●
Type of manufacturing
○
Manual / Semi Auto Plant
○
Auto Plant
○
Hybrid Plant
CLASSIFICATION OF STARCH
ADHESIVES
…….
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
●
Solids
○
Expressed in % and shows how
much starch/Modified Starch/chemicals are
present in Adhesives.
○
Refractometer is used if adhesive is solution.
○
Owen method- If adhesive is suspension
○
This parameter signifies how much of water
needs to be dried in the Board making process.
TESTING PARAMETERS
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
●
Viscosity
○
Resistance to Flow
○
Measured in Sec. Time taken to drain out
○
Many cups are used. Fords Cup,Love Cup,
Brookefield , RVA
○
Very important for stable operations and needs to
be consistent.
○
Normally Manual plants operate at 25-35 sec for
Pasting and Corrugation adhesives ( B4 cup)
○
Auto Plants operate at 40 to 120 sec (B4 )
TESTING PARAMETERS
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
●
Other testing Parameter
○
Gel temperature.
○
Tack measurement
○
Glue setting time / Green bond
formation
○
Thixotropic behaviour.
○
Gel clarity in case of Pasting
Adhesives
.
TESTING PARAMETERS
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
•
Drying agents
•
Green Bond enhancers
•
Resins for Water Proof / Water Resistance
•
Penetration aids
•
Mechanical property enhancers.
•
Liquid Borax
•
Biocides
•
Anti-foam agents
•
Viscosity Stabilizers
SPECIAL ADDITIVES FOR ADHESIVES
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
•
Very high solids (33% to 50% ) adhesives for Flute
laminators for instant drying
•
Powder Resins for higher compression in Manual
operation
•
Borax substitutes
•
Energy saving adhesives ( to the extent of 25% )
•
Green Adhesives / Environmental friendly Adhesives.
•
Adhesives without Borax and Caustic.
NEW DEVELOPMENTS IN ADHESIVES
Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
THANK YOU
Bhaskar BV Reddy
Amylodex Pvt.Ltd. (Formerly Stardex)
bhaskar@amylodex.com
Tele: 040 – 23060334 Fax: 040 - 23061638
Mob: 9866114029
www.amylodex.com
This material discusses the importance of starch adhesives in the corrugation industry, covering topics such as classifications, testing parameters, and manufacturing methods. It also delves into the necessity of adhesives, different types of starch adhesives available, and the application of various additives. The content provides valuable insights shared during a training course conducted by Amylodex Pvt. Ltd. in October 2017.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
STARCH ADHESIVES IN CORRUGATION INDUSTRY AMYLODEX PVT. LTD 02 OCT 2017 AT WICMA LEVEL II COURSE BHASKAR BV REDDY
OBJECTIVE To understand Starch Adhesives and evaluate various options available with the help of few testing parameters Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
TOPICS Introduction to Starch Adhesives. Classification Of Starch Adhesives Testing Parameters and Testing Instruments. Special Additives New developments Amylodex Pvt.Ltd Bhaskar BV Reddy 02 Oct 2017 at WICMA level II course
INTRODUCTION Why we need Adhesive To stick various plies of Kraft Paper To get good strength to Board What is starch adhesive When starch is heated in water , it will transform into a paste like structure. For stronger bonding chemicals are added. Other adhesives other than starch Yes. Like Sodium Silicate. Very few use Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
CLASSIFICATION OF STARCH ADHESIVES Application Corrugation Adhesives Pasting Adhesives Starch Base Tapioca Starch Maize Starch Physical form Liquid Starch Adhesives Powder Starch adhesives Preparation Method Hot Process Starch Adhesives Cold Process Starch Adhesives Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
CLASSIFICATION OF STARCH ADHESIVES . pH pH>7 is alkaline pH=7 is Neutral pH<7 is acidic Type of manufacturing Manual / Semi Auto Plant Auto Plant Hybrid Plant Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
TESTING PARAMETERS Solids Expressed in % and shows how much starch/Modified Starch/chemicals are present in Adhesives. Refractometer is used if adhesive is solution. Owen method- If adhesive is suspension This parameter signifies how much of water needs to be dried in the Board making process. Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
TESTING PARAMETERS Viscosity Resistance to Flow Measured in Sec. Time taken to drain out Many cups are used. Fords Cup,Love Cup, Brookefield , RVA Very important for stable operations and needs to be consistent. Normally Manual plants operate at 25-35 sec for Pasting and Corrugation adhesives ( B4 cup) Auto Plants operate at 40 to 120 sec (B4 ) Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
TESTING PARAMETERS Other testing Parameter Gel temperature. Tack measurement Glue setting time / Green bond formation Thixotropic behaviour. Gel clarity in case of Pasting Adhesives. Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
SPECIAL ADDITIVES FOR ADHESIVES Drying agents Green Bond enhancers Resins for Water Proof / Water Resistance Penetration aids Mechanical property enhancers. Liquid Borax Biocides Anti-foam agents Viscosity Stabilizers Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
NEW DEVELOPMENTS IN ADHESIVES Very high solids (33% to 50% ) adhesives for Flute laminators for instant drying Powder Resins for higher compression in Manual operation Borax substitutes Energy saving adhesives ( to the extent of 25% ) Green Adhesives / Environmental friendly Adhesives. Adhesives without Borax and Caustic. Amylodex Pvt. Ltd 02 Oct 2017 at WICMA level II course Bhaskar BV Reddy
THANK YOU Bhaskar BV Reddy Amylodex Pvt.Ltd. (Formerly Stardex) bhaskar@amylodex.com Tele: 040 23060334 Fax: 040 - 23061638 Mob: 9866114029 www.amylodex.com
