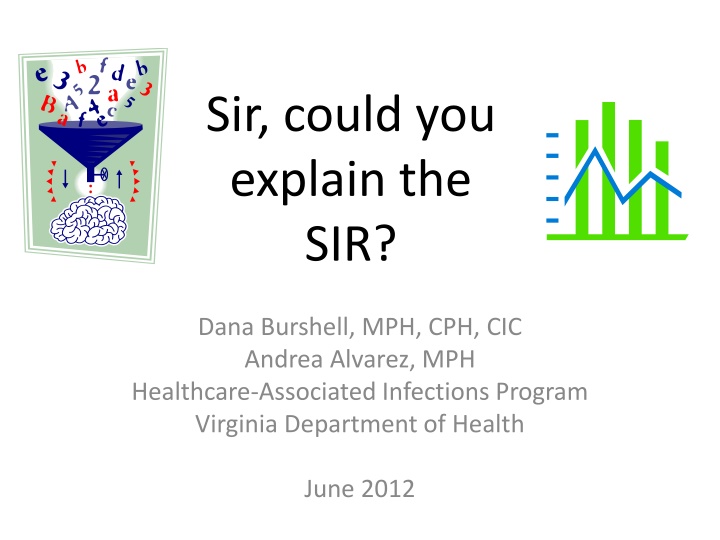

Standardized Infection Ratio (SIR) in Healthcare-Associated Infections
Sir, could you
explain the
SIR?
Dana Burshell, MPH, CPH, CIC
Andrea Alvarez, MPH
Healthcare-Associated Infections Program
Virginia Department of Health
June 2012
What is a standardized infection ratio?
The standardized infection ratio (SIR) is a summary
measure used to track healthcare-associated
infections (HAIs) at a national, state, or local level
over time. The SIR adjusts for patients of varying
risk within each facility.
- The National Healthcare Safety Network (NHSN)
The SIR calculation
•
In HAI data analysis, the SIR compares the actual
number of HAIs reported (observed) with the
baseline U.S. experience (predicted) adjusting for
several risk factors that have been found to be
significantly associated with differences in
infection incidence.
•
SIR is a ratio that is a comparison of two values
SIR =
number of
observed
HAIs
number of
predicted
HAIs
What is the “baseline U.S. experience”?
•
2006-2008 NHSN aggregate data are used as
the standard population and considered to be
the baseline U.S. experience for the SIR
calculations.
•
NHSN baseline data used in an SIR are used to
calculate the
predicted
number of HAIs
adjusting for the identified risk factors.
What does the SIR number mean?
•
An SIR
greater than 1.0
indicates that
more
HAIs
were observed than predicted.
•
An SIR of
1.0
indicates that the number of HAIs
observed was
equal
to the number predicted.
•
An SIR
less than 1.0
indicates that
fewer
HAIs were
observed than predicted.
•
However, the SIR alone does not imply statistical
significance.
–
The SIR is only a point estimate and needs additional
information to indicate if the finding is
significant
and not
likely due to chance (that is, statistically significantly
different from 1).
Statistical significance
•
A
p-value
and
95% confidence interval (CI)
are
calculated by NHSN for each SIR.
•
The p-value identifies if the information is
statistically significant. The 95% CI can sometimes
be used to approximate statistical significance.
–
If the p-value is < 0.05, the SIR is “statistically
significant".
–
If the SIR 95% CI does
not
contain the value 1, the SIR is
considered "statistically significant".
How do I interpret the SIR?
•
During 2011, there were
8
CLABSIs identified
and
1,976
central line days
observed in Hospital X’s intensive care units.
•
Based on the NHSN 2006-2008 baseline data and the composition of ICU
locations in Hospital X,
4.15
CLABSIs were
predicted
.
•
This results in an
SIR
of
1.93
(O/P=
8/4.15
), signifying that during this time
period, Hospital X identified
93% more
CLABSIs
than predicted
.
•
The
p-value
(0.06)
and
95% confidence interval (CI)
(
0.83, 3.80
) indicate
that the number of observed CLABSIs is
not statistically significantly higher
than the number of predicted CLABSIs. (Reminder: If the p-value is not less
than 0.05 and the 95% CI does crosses 1, the SIR is not statistically
significantly different than 1.)
How is the SIR being used currently?
•
NHSN SIR reports
–
CLABSI, SSI, CAUTI
•
CMS Hospital Compare website
–
CLABSI
•
Updated VDH HAI report
–
CLABSI
•
Other states
•
Within hospitals
Benefits of using the SIR
•
Single metric
–
One number that can be used to make comparisons
•
Scalable
–
National, regional, facility-wide, location-specific, by surgeon for
SSIs, etc.
–
Can combine the SIR values at any level of aggregation
–
Can perform more detailed comparisons within any individual
risk group
•
Risk-adjusted
–
Adjusts for factors known to be associated with differences in
HAI rates
–
Risk-adjustment differs between types of HAIs and types of
surgical procedures
- HHS HAI Action Plan - http://www.hhs.gov/ash/initiatives/hai/appendices.html#appendix_g_comparison
Intra-facility data sharing benefits:
•
Top benefits identified by SSI pilot study IPs
(2011)
–
Increased awareness of HAIs within the facility
–
Presented data to those who can make a difference
–
Provided benchmark data to support improvement
initiatives
–
Kept HAIs in the spotlight
Sharing the SIR with hospital leadership:
One IP’s experience
•
Reasons IP decided to educate hospital staff:
–
Hospital Compare website was using the SIR
–
VDH had started using the SIR
–
Corporate 2011 report used SIR
•
Important leadership staff members to educate:
–
Leadership in IP (Chairman, Chief Nursing personnel, Quality Director)
•
Presentation included:
–
Explanation of SIR and example calculation
–
Hospital Compare screenshot
–
Examples of CLABSI corporate SIRs compared with CLABSI rates
–
Tables from VDH newsletter comparing CLABSI rates from 2009-11
next to SIRs.
–
NHSN data summary reports to show where comparative data comes
from
SIR data presentation: Components to consider
Always customize for your audience whenever possible.
Customizing the data: What numbers?
•
Number of infections
•
Number of central line days
•
SIR
–
Number of infections predicted
–
p-value
–
95% confidence interval
–
Comparison data
•
National
•
State
•
Other hospitals in same bedsize category
•
Hospital
•
Historical data
Customizing the data: What format?
•
Table
•
Graph
•
Order
–
Alphabetical by unit
–
Highest to lowest SIR
•
How will you account for the situation where:
–
There are no infections?
–
<1 infection is predicted?
Customizing the data: What setting
and time period?
•
Setting
–
Hospital
–
Adult/pediatric ICU and neonatal ICU
–
Unit
•
Time period
–
Annual
–
Semi-annual
–
Quarterly
–
Monthly
Customizing the data: How will you
help your audience interpret?
•
Cues
–
Color
•
Red/yellow/green (“stoplight”)
•
Red/blue/green
–
Symbols
•
Circles, triangles, squares
•
Arrows to show up or down trend
–
Words
•
SIR language
–
Expected/predicted
–
Fewer/less/better
–
Greater/more/worse
–
Similar/same
Questions?
Dana.Burshell@
vdh.virginia.gov
Andrea.Alvarez@
vdh.virginia.gov
To speak to any member of the
VDH HAI Team:
804-864-8141
SIR 101 and 201 available online
•
SIR 101: Interpretation and public reporting
–
Reviewed basic SIR calculation and interpretation
–
Introduced publicly available SIR reports
•
NHSN, Hospital Compare, Virginia Department of Health
•
SIR 201: Calculating the measure, generating
reports, and presenting the data
–
Nuts and bolts, step-by-step presentation for IPs
•
Archived and available at:
http://www.vdh.virginia.gov/epidemiology/
surveillance/hai/communication.htm
SIR and surveillance resources
•
NHSN e-News: SIRs Special Edition
–
http://www.cdc.gov/nhsn/PDFs/Newsletters/
NHSN_NL_OCT_2010SE_final.pdf
•
VDH HAI website – Surveillance
–
http://www.vdh.virginia.gov/Epidemiology/
Surveillance/HAI/SurveillanceReporting.htm
