Software-Defined Networking (SDN) and OpenFlow
undefined
Friday, 27 September 2024
Presented by Chris Welsh
@rednectarchris
http://www.rednectar.net

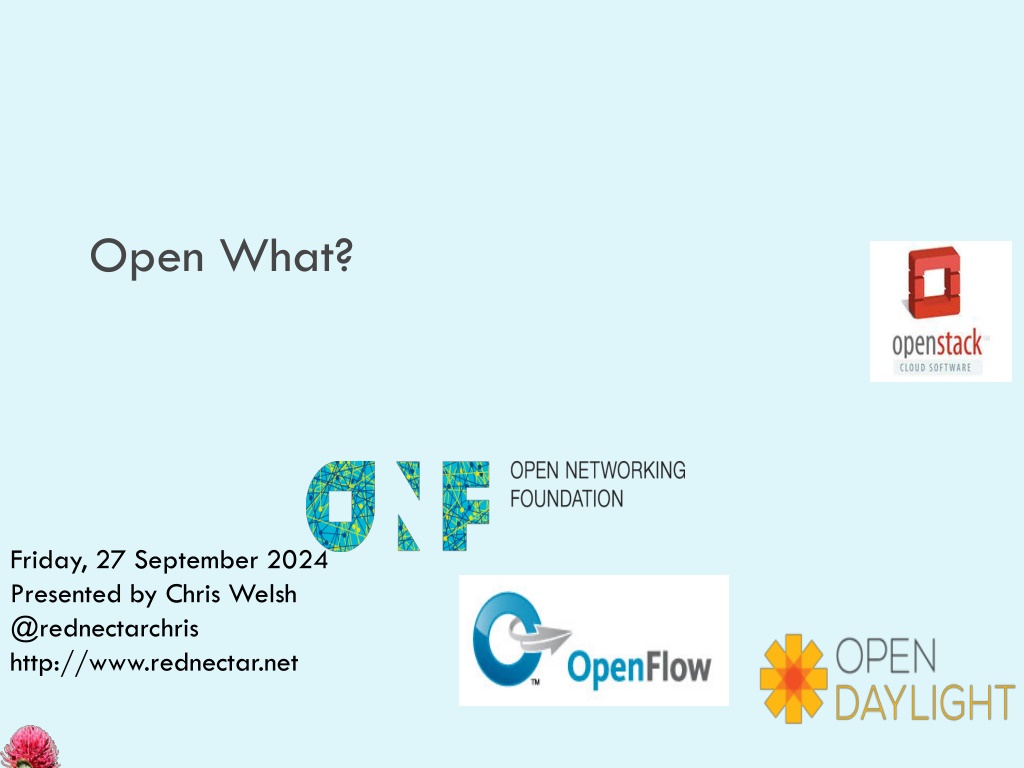

Open What?
Let’s start with SDN
an approach to computer networking that allows network
administrators to manage network services through
abstraction of lower-level functionality.
This is done by decoupling the system that makes decisions
about where traffic is sent
(the control plane
) from the
underlying systems that forward traffic to the selected
destination
(the data plane
)
Some work done in 1990 and early 2000s
http://en.wikipedia.org/wiki/Software-
defined_networking
SDM Momentum
2007 - Stanford University
Martìn Casado
PHD Thesis “ARCHITECTURAL SUPPORT FOR SECURITY MANAGEMENT IN
ENTERPRISE NETWORKS
Supervisor was
Nick McKeown
Martìn Casado, Nick McKeown and Scott Schenker co founded
Nicera
Networks
in 2007
2009-12-31
OpenFlow v1.0.0 Specification
Martìn Casado, Nick McKeown contributers
2011
McKeown and Shenker co-founded the Open Networking Foundation (ONF)
to transfer control of OpenFlow to a newly created not-for-profit
organization
OpenFlow and the ONF
OpenFlow
A TCP protocol used between a
centalised controller and an
OpenFlow enabled switch
On TCP port 6653
The switch may be hardware or a
virtual switch
Open Network Foundation (ONF)
An organisation that mantains the
OpenFlow
specification
Note: it is NOT a standards body
like the IEEE
Flow-Table Entries That Can Be
Manipulated in an OpenFlow Switch
https://www.sdxcentral.com/resources/sdn/what-is-openflow/
What is an OpenFlow Controller?
Many vendors have their own variations of an
OpenFlow controller
Some are based on OpenDaylight, including
Cisco XNC
Brocade’s Vyatta Controller
So what is OpenDaylight?
OpenDaylight will deliver a common open source framework and
platform for SDN across the industry for customers, partners and
developers.
The first code from the OpenDaylight Project, named
Hydrogen
,
was released in February 2014
(The next release will be called
Helium
)
Founded in 2013 by the
Linux Foundation
to
foster new innovation and create a more open and transparent
approach to Software-Defined Networking (SDN) and Network
Functions Virtualization (NFV)
Founding members—Arista Networks, Big Switch Networks, Brocade,
Cisco
, Citrix, Ericsson, HP, IBM, Juniper Networks, Microsoft, NEC,
Nuage Networks, PLUMgrid, Red Hat and
VMware
http://en.wikipedia.org/wiki/OpenDaylight_Project
Summary so far:
OpenFlow is a protocol designed for SDN
controllers to communicate with OpenFlow
enabled switches.
It is managed by the ONF
The Linux Foundation formed OpenDaylight to
foster open-source development of such SDN
controllers (not using a variety of protocols,
including OpenFlow)
Want more?
OpenStack is an open source cloud operating system that is designed to enable
organizations to create cloud computing services running on standard hardware.
Openstack takes large pools of compute, storage, and networking resources in the
datacenter which then can be managed and consumed from a single dashboard.
It was originally started by Rackspace and NASA is 2010, the project was turned
over to the Open Source Foundation in 2012.
What is openstack?
Supported by the
largest cloud providers
and open source
companies including
Rackspace, Red Hat,
Ubuntu, SUSE, AT&T,
IBM, HP, Cisco, Intel,
Dell, NetApp, Juniper
and many more.
Support for openstack?
Horizon
UI
Neutro
n
Networ
k
Nova
Comput
e
Glance
Cinder
Block
Storage
Swift
Object
Storage
Keystone
Identity
Provides UI for
Provides Authentication for
Provides Volumes for
Provides Images for
Stores Files in
Openstack Conceptual Core Architecture
