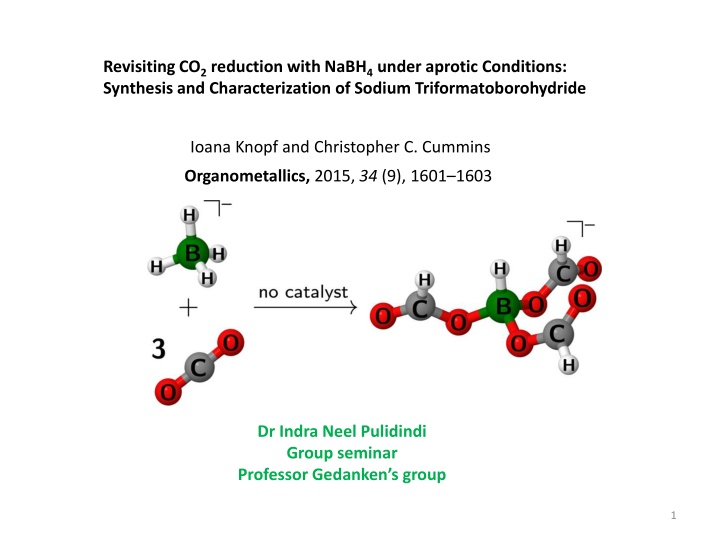

Sodium Triformatoborohydride Formation via NaBH4-CO2 Reaction
Revisiting CO
2
reduction with NaBH
4
under aprotic Conditions:
Synthesis and Characterization of Sodium Triformatoborohydride
Ioana Knopf and Christopher C. Cummins
Organometallics,
2015,
34
(9), 1601–1603
1
Dr Indra Neel Pulidindi
Group seminar
Professor Gedanken’s group
Choice of reductant, not the catalyst, is key to CO
2
reduction
CO
2
hydroboration methods for formate production are becoming popular
Eventhough hydroboration processes are catalytic they require stoichiometric
reductants like pinacolborane or catecholborane
Boranes are more expensive and less reactive
NaBH
4
is a famous reducing agent with large annual production and rich reductive
Carbonyl chemistry
The paucity of chemical literature on the reactivity of NaBH
4
with CO
2
is surprising
NaBH
4
reacts with 3 equivalents of CO
2
in the absence of a catalyst
2
Reaction of NaBH
4
with CO
2
under aprotic conditions
Sparging a solution of NaBH
4
is acetonitrile (Schlenk flask) with a stream of CO
2
at room temp. for 10 min. turned the solution cloudy and resulted in the formation of
a white precipitation
The precipitate was found to be a mixture of Na[HB(OCHO)
3
] and Na[H
2
B(OCHO)
2
]
3
no change
in ratio between
Na[H
2
B(OCHO)
2
] and
Na[HB(OCHO)
3
]
was observed after keeping
the solid mixture under
vacuum for
prolonged periods of time
Synthesis of pure Na[HB(OCHO)
3
]
Solution of NaBH
4
in acetonitrile in a Parr vessel was pressurized with CO
2
(20 atm).
The reaction was carried out under stirring for 1.5 h.
The precipitate obtained was dried under vacuum.
4
1
H NMR spectrum of Na[
H
B(OC
H
O)
3
] in CD
3
CN at 25 °C
a signal at δ = 8.28 ppm is
characteristic of formyl
protons
13
C satellites corresponding to
1
J
CH
= 210 Hz
A signal at δ = 3.79 ppm is
characteristic of borohydride proton with
four-line splitting pattern with
1
J
BH
= 131 Hz
5
Exclusive formation of triformatoborohydride, Na[HB(OCHO)
3
]
13
C NMR spectrum of Na[HB(O
C
HO)
3
] in CD
3
CN at 25
°
C
11
B NMR spectrum of Na[H
B
(OCHO)
3
] in CD
3
CN at 25 °C
11
B NMR spectrum is diagnostic
A clear doublet with a B−H coupling
constant of 130 Hz is observed
a single at 165.5 ppm is typical of
formate carbon resonance
6
ATR-IR spectrum of Na[HB(OCHO)
3
]
2916 (C–H), 2502 (B–H), 1685 (C=O) cm
-1
7
Structure of triformatoborohydride the first of its kind
Solid-state structure of
[Na(DME)][HB(OCHO)
3
]
Single crystals of [Na(DME)][HB(OCHO)
3
] were obtained
by cooling a saturated DME solution of Na[HB(OCHO)
3
] to
−40 °C
The compound crystallized in the
monoclinic
space
group P21/c
The boron center is pseudotetrahedral, with an average B−O
interatomic distance of 1.48 Å
Each sodium ion resides in a pseudo-octahedral
environment with one DME molecule occupying two adjacent
coordination sites, while the other four are filled by carbonyl
oxygens from proximate formate groups
Within each formate unit, the C−O interatomic distances are
inequivalent; for example, C1−O1 is 1.3060(14) Å and C1−O4
is 1.2073(14) Å, with an O4−C1−O1 angle of 126.50(10)°
No structurally characterized tricarboxylate borohydride
Salts is found in the CSD making, thus making this structure
of triformatoborohydride the first of its kind
8
Does Na
+
played any role in CO
2
reduction?
The reaction does not require the presence of a strongly coordinating alkali metal cation (Na
+
)
Instead of NaBH
4
, [NEt
4
][BH
4
] is used as borohydride source
Identical reaction conditions: 20 atm. of CO
2
and dry acetonitrile as the solvent, stirring, 1 h
Corresponding, [NEt
4
][HB(OCHO)
3
] , was produced in good purity
Thus the CO
2
reactivity is inherent of the borohydride anion
9
Formation of [NEt
4
][HB(OCHO)
3
]
1
H NMR spectrum of [NEt
4
][
H
B(OC
H
O)
3
] in CD
3
CN at 25 °C
δ:
8.29 (1 H, s),
3.79 (1 H, m,
1
J
BH
= 130 Hz)
ppm
13
C NMR spectrum of [NEt
4
][HB(O
C
HO)
3
] in CD
3
CN at 25 C
δ: 165.2 (s) ppm, resonance signal
due to formate carbon
10
11
B NMR spectrum of [NEt
4
][H
B
(OCHO)
3
] in CD
3
CN at 25 °C
δ: 3.70 (d,
1
J
BH
= 130 Hz) ppm
ESI-MS spectrum (negative mode) of
[NEt
4
][HB(OCHO)
3
]
Major signal with m/z value of
147
,
confirm the presense of
[HB(OCHO)
3
]
-
anion
in the compound
11
Reaction of NaBH
4
with CO
2
in wet aerobic conditions
Solutions of NaBH
4
in wet acetonitrile were prepared in air with no special precautions
CO
2
was bubbled through the solution which resulted in immediate formation of
white precipitate
After 10 min. the reaction was quenched with 1 M aqueous HCl
Formic acid (1.5 equiv) was produced, as quantified by
1
H NMR spectroscopy
In the absence of strictly anaerobic and anhydrous conditions, the full potential of NaBH
4
to reduce 3 equivalents of CO
2
could not be exploited owing to the completing NaBH
4
hydrolysis reactions
Typical
1
H NMR spectrum of the reaction mixture with an
internal standard in D
2
O at 25 °C
The average of 4 experiments was 1.51
equivalents of formic acid produced per
equivalent of NaBH
4
12
Summary:
Reduction of CO
2
to formate is achieved easily using sodium borohydride without
employing expensive boranes or intricate catalysts.
This finding complements the recent report from Mizuta and co-workers
describing the reduction of CO
2
to methoxide with commercial BH3·THF.
The reactivity of CO
2
with borohydride is unperturbed by the use of a non-coordinating
cation in lieu of sodium.
Consequently, the intrinsic reactivity of the borohydride anion should always be taken into
account and rigorously controlled for when studying borohydride-containing systems for
substrate reduction
