Smart Photovoltaics: Enhancing Fault Detection and Positioning
Smart photovoltaics (PV) technology aims to improve fault detection and positioning in large-scale PV systems. By equipping PV modules with AMP devices, real-time monitoring of environmental conditions and system status is enabled. The proposed automated troubleshooting method enhances efficiency in identifying and locating faulty modules, decreasing risks of accidents and system downtime in industrial and commercial scenarios.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

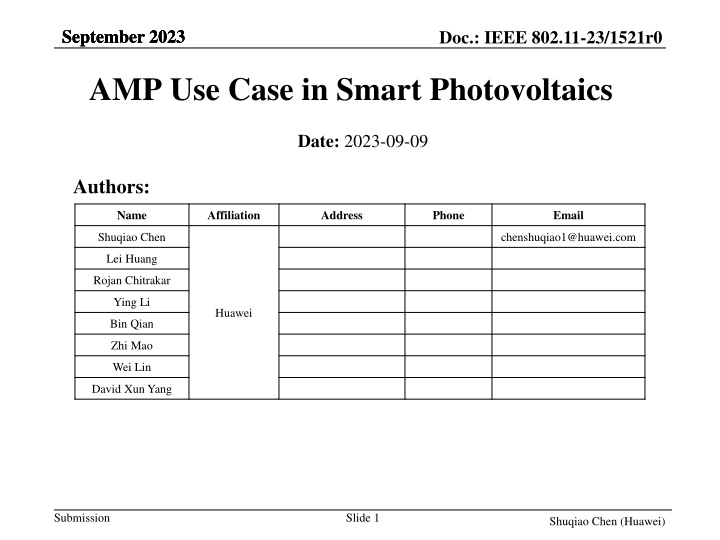

September 2023 September 2023 September 2023 Doc.: IEEE 802.11-23/1521r0 AMP Use Case in Smart Photovoltaics Date: 2023-09-09 Authors: Name Affiliation Address Phone Email Shuqiao Chen chenshuqiao1@huawei.com Lei Huang Rojan Chitrakar Ying Li Huawei Bin Qian Zhi Mao Wei Lin David Xun Yang Submission Slide 1 Shuqiao Chen (Huawei)
September 2023 September 2023 September 2023 Doc.: IEEE 802.11-23/1521r0 Background Following use cases have been previously discussed and captured in AMP draft technical report [1][2]: Smart manufacturing Data centre Smart home Logistics and warehouse Smart agriculture Indoor positioning Smart Grid Fresh Food Supply Chain In this contribution, we propose a new AMP use case: Smart photovoltaics (PV) Submission Slide 2 Shuqiao Chen (Huawei)
September 2023 September 2023 PV Module Positioning in Industrial and Commercial Scenarios September 2023 Doc.: IEEE 802.11-23/1521r0 Challenges Faced by Large-Scale Smart PV Deployment Faults of PV modules affect the power generation efficiency and life cycle of the system, and may also cause serious accidents such as fire and electric shock. Therefore, troubleshooting and positioning are critical issues for operation and maintenance. There are a great number of PV modules in a power plant thus the deployment area is huge, which makes it difficult to accurately locate the faulty PV modules. PV Module PV Array Submission Slide 3 Shuqiao Chen (Huawei)
September 2023 September 2023 PV Module Positioning in Industrial and Commercial Scenarios September 2023 Doc.: IEEE 802.11-23/1521r0 Conventional scheme Invertor detection: can only achieve array-level fault detection and faulty modules cannot be accurately located. Manual module-to-module detection: time-consuming and labor-intensive Desired scheme: fully automated PV module-level troubleshooting and positioning Submission Slide 4 Shuqiao Chen (Huawei)
September 2023 September 2023 AMP Use Case: Smart Photovoltaics(1/2) September 2023 Doc.: IEEE 802.11-23/1521r0 Expected Service and Functionalities Each PV module can be equipped with an AMP device to monitor the operating environment and status. Fault pretreatment: AMP device periodically reports sensing data (e.g. temperature, current, voltage, etc.) to the data collector which is then forwarded to the server for fault pretreatment. Fault positioning: When the invertor detects an array-level fault, it informs the server/data collector, which will trigger all the AMP devices in the faulty PV array to transmit their sensing data, from which faulty PV module can be determined. After that, the server/data collector will perform a positioning procedure to position the faulty PV module. Data Collector Server AMP Device ...... Invertor SmartLogger PV Array Submission Slide 5 Shuqiao Chen (Huawei)
September 2023 September 2023 September 2023 Doc.: IEEE 802.11-23/1521r0 AMP Use Case: Smart Photovoltaics(2/2) Requirements Maintenance-free and battery-less for long service life Data rate: up to 20kbps Coverage: up to 100m Horizontal positioning accuracy: 1m Readout interval: 1 day Device density: 0.5/m2 Submission Slide 6 Shuqiao Chen (Huawei)
September 2023 September 2023 Doc.: IEEE 802.11-23/1521r0 Summary This submission presents New AMP use case: Smart Photovoltaics Challenges faced and future expectation Service and functionalities Typical requirements of the use case Submission Slide 7 (Huawei)
September 2023 September 2023 Doc.: IEEE 802.11-23/1521r0 References 1) IEEE 802.11-23/1005r0, Discussion on Requirements for AMP Use Cases 2) IEEE 802.11-23/1562r8, Draft Technical Report on support of AMP IoT devices in WLAN Submission Slide 8 Shuqiao Chen (Huawei)
