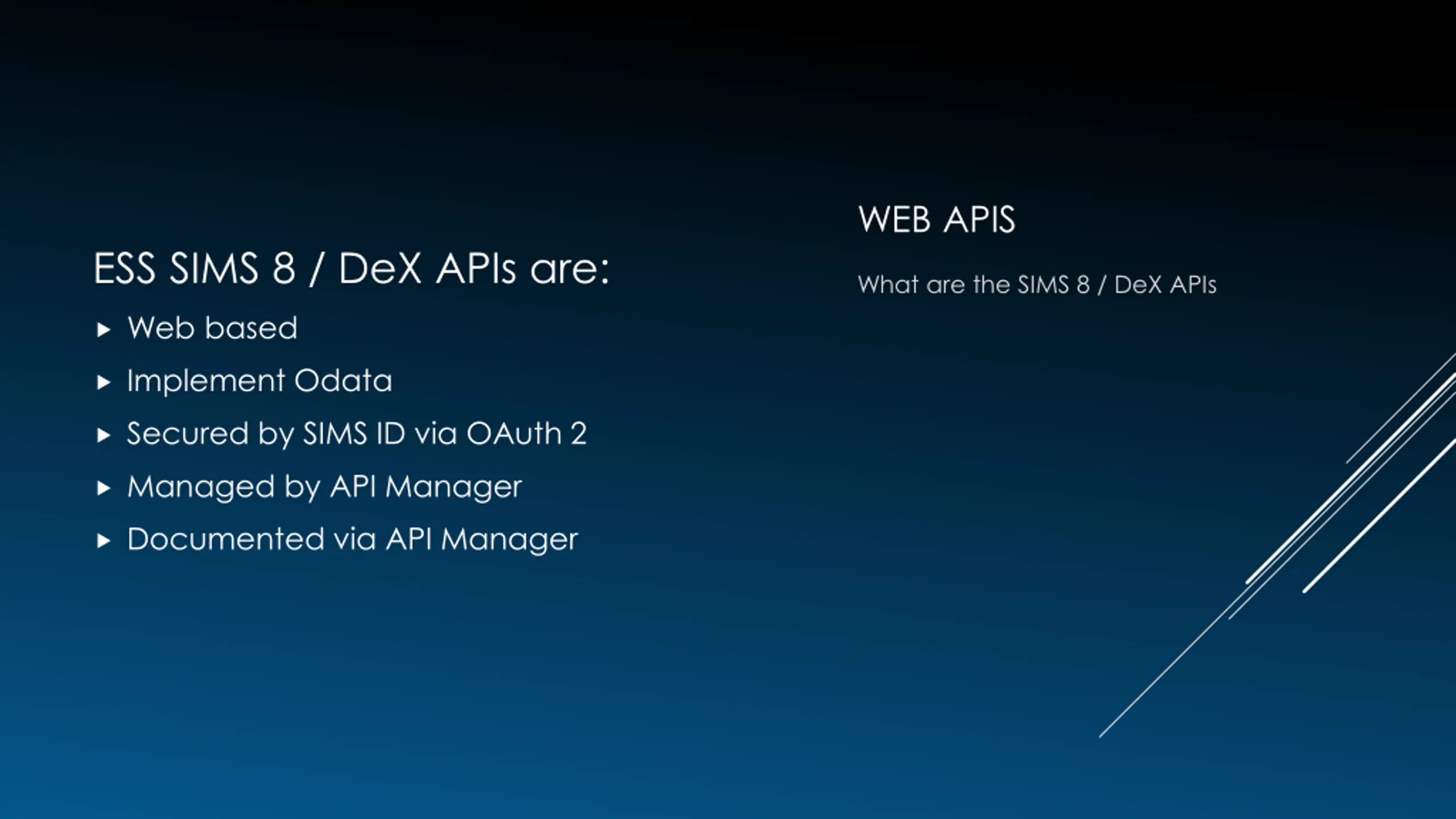

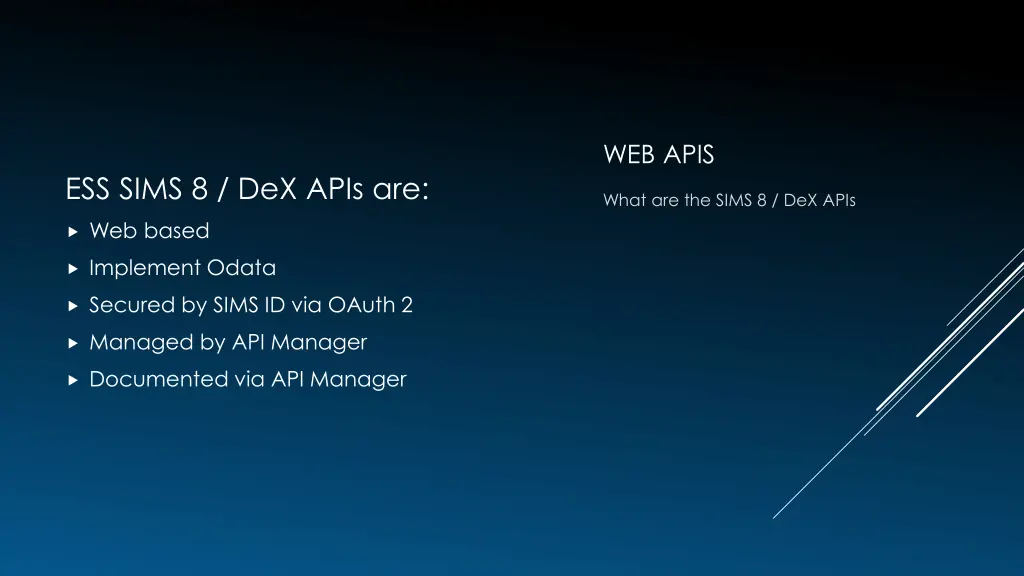

WEB APIS ESS SIMS 8 / DeX APIs are: What are the SIMS 8 / DeX APIs Web based Implement Odata Secured by SIMS ID via OAuth 2 Managed by API Manager Documented via API Manager

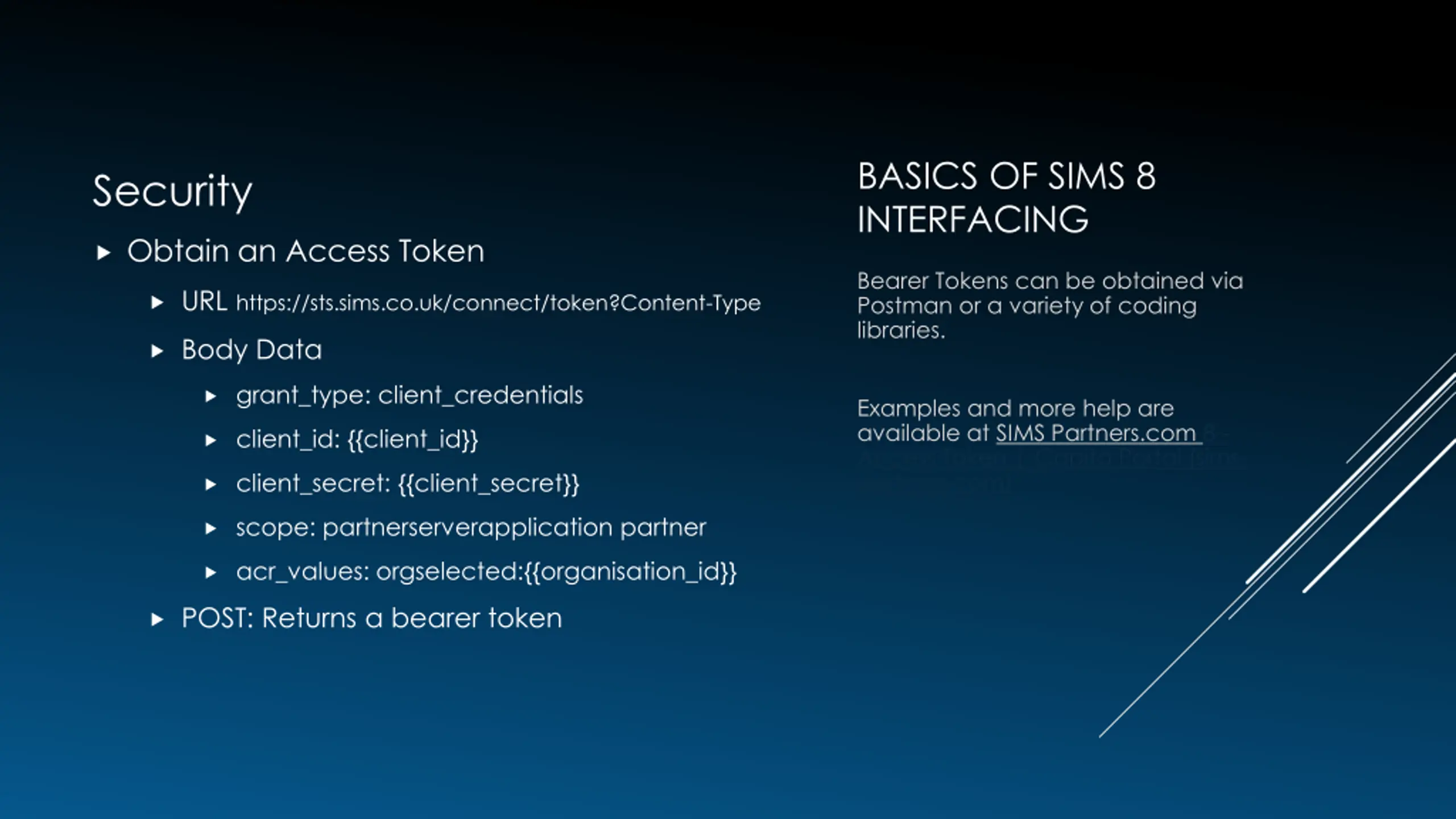

BASICS OF SIMS 8 INTERFACING Security Obtain an Access Token Bearer Tokens can be obtained via Postman or a variety of coding libraries. URL https://sts.sims.co.uk/connect/token?Content-Type Body Data grant_type: client_credentials Examples and more help are available at SIMS Partners.com 8 - Access Token | Capita Portal (sims- partners.com) client_id: {{client_id}} client_secret: {{client_secret}} scope: partnerserverapplication partner acr_values: orgselected:{{organisation_id}} POST: Returns a bearer token

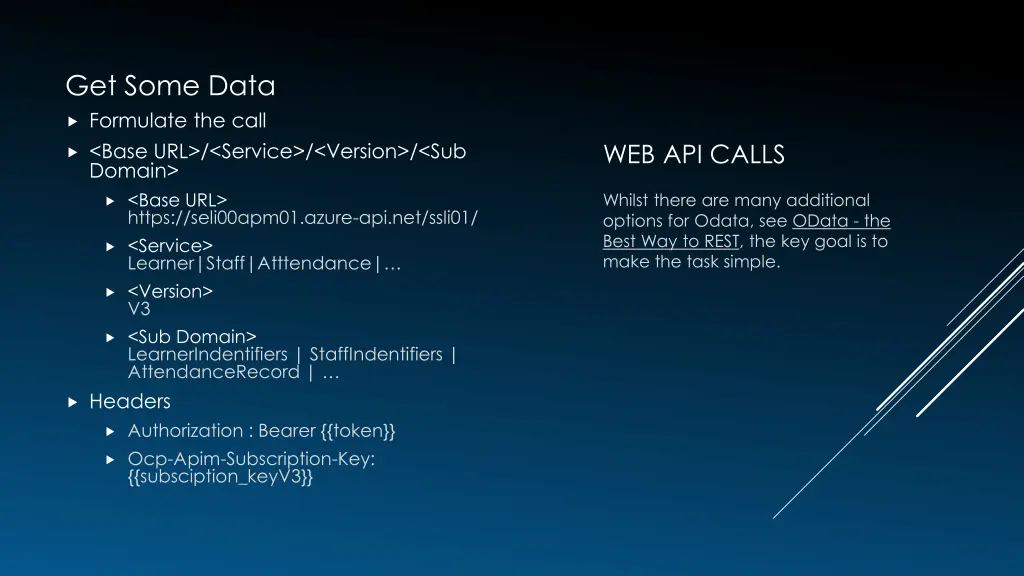

Get Some Data Formulate the call <Base URL>/<Service>/<Version>/<Sub Domain> <Base URL> https://seli00apm01.azure-api.net/ssli01/ <Service> Learner|Staff|Atttendance| <Version> V3 <Sub Domain> LearnerIndentifiers | StaffIndentifiers | AttendanceRecord | Headers Authorization : Bearer {{token}} Ocp-Apim-Subscription-Key: {{subsciption_keyV3}} WEB API CALLS Whilst there are many additional options for Odata, see OData - the Best Way to REST, the key goal is to make the task simple.

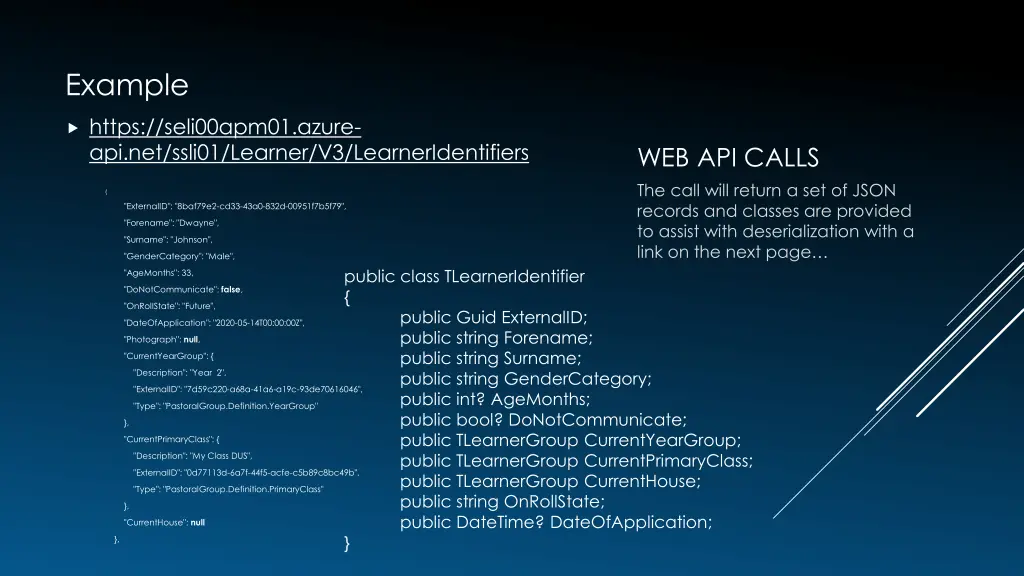

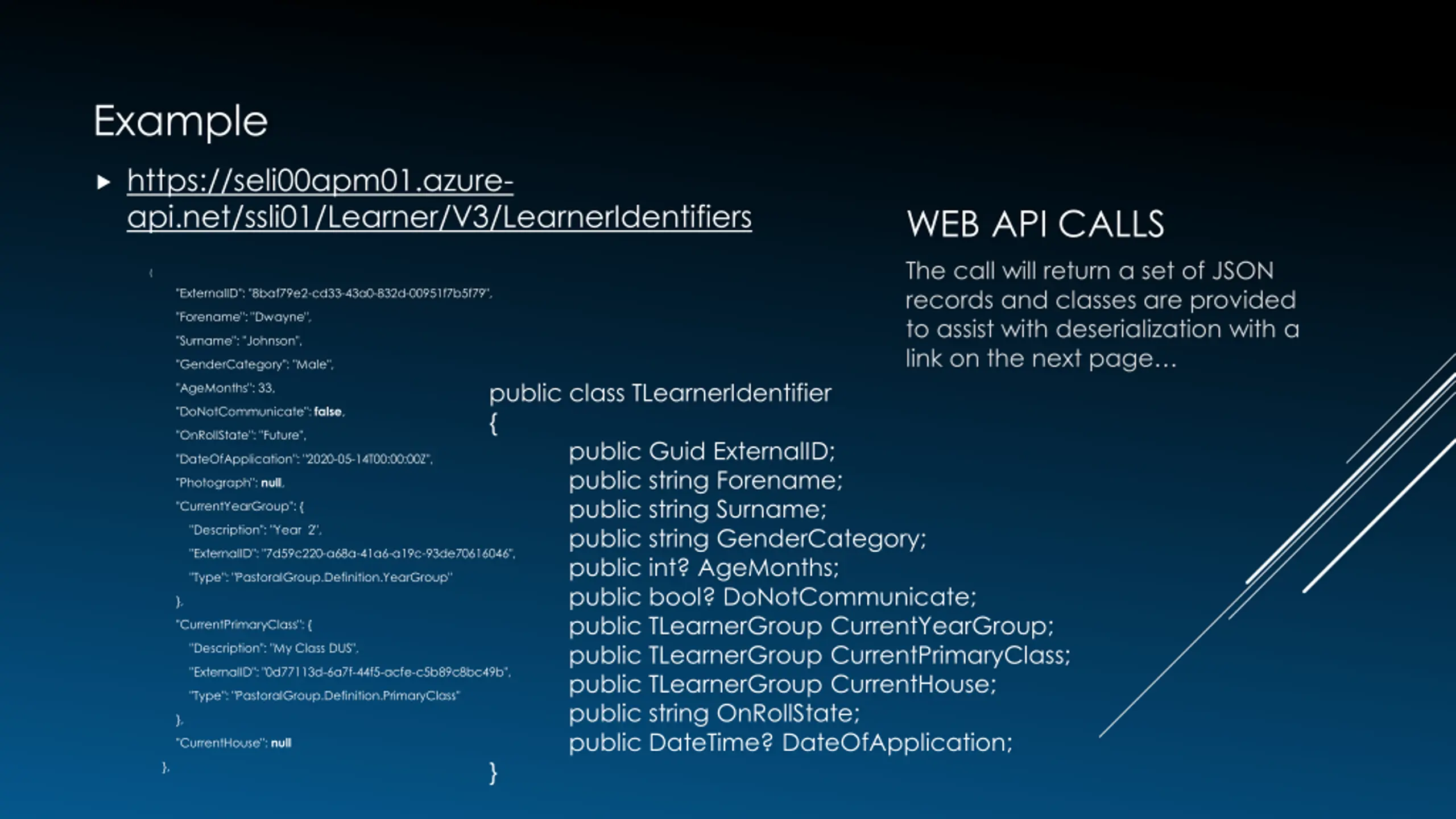

Example https://seli00apm01.azure- api.net/ssli01/Learner/V3/LearnerIdentifiers WEB API CALLS The call will return a set of JSON records and classes are provided to assist with deserialization with a link on the next page { "ExternalID": "8baf79e2-cd33-43a0-832d-00951f7b5f79", "Forename": "Dwayne", "Surname": "Johnson", "GenderCategory": "Male", public class TLearnerIdentifier { public Guid ExternalID; public string Forename; public string Surname; public string GenderCategory; public int? AgeMonths; public bool? DoNotCommunicate; public TLearnerGroup CurrentYearGroup; public TLearnerGroup CurrentPrimaryClass; public TLearnerGroup CurrentHouse; public string OnRollState; public DateTime? DateOfApplication; } "AgeMonths": 33, "DoNotCommunicate": false, "OnRollState": "Future", "DateOfApplication": "2020-05-14T00:00:00Z", "Photograph": null, "CurrentYearGroup": { "Description": "Year 2", "ExternalID": "7d59c220-a68a-41a6-a19c-93de70616046", "Type": "PastoralGroup.Definition.YearGroup" }, "CurrentPrimaryClass": { "Description": "My Class DUS", "ExternalID": "0d77113d-6a7f-44f5-acfe-c5b89c8bc49b", "Type": "PastoralGroup.Definition.PrimaryClass" }, "CurrentHouse": null },

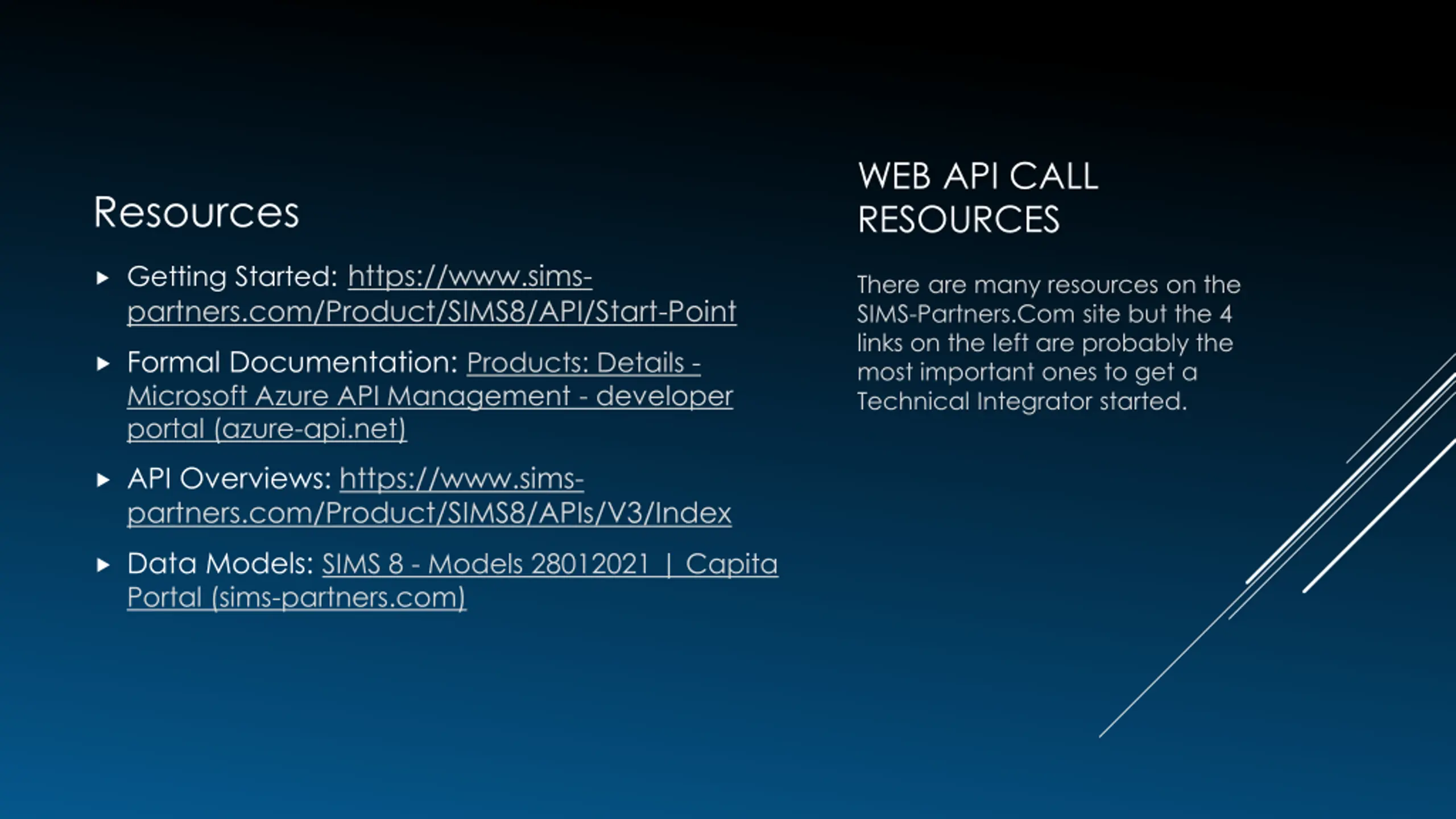

WEB API CALL RESOURCES Resources Getting Started: https://www.sims- partners.com/Product/SIMS8/API/Start-Point There are many resources on the SIMS-Partners.Com site but the 4 links on the left are probably the most important ones to get a Technical Integrator started. Formal Documentation: Products: Details - Microsoft Azure API Management - developer portal (azure-api.net) API Overviews: https://www.sims- partners.com/Product/SIMS8/APIs/V3/Index Data Models: SIMS 8 - Models 28012021 | Capita Portal (sims-partners.com)
