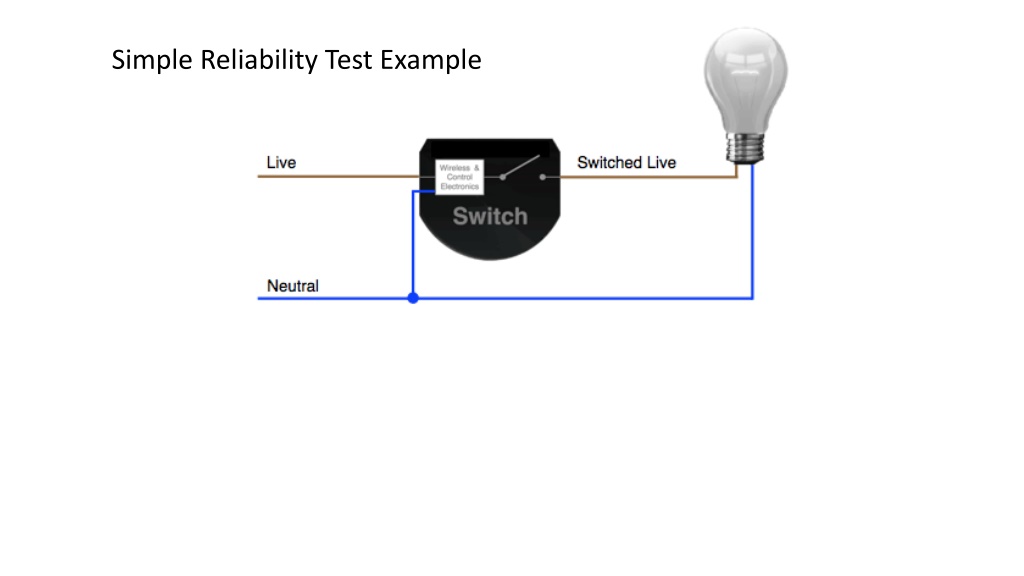

Simple Reliability Test Example for Bulbs
Simple Reliability Test Example
Simple Reliability Test Example
We want to know things like:
•
What percentage of bulbs will fail after 1100 on/off cycles?
•
How many on/off cycles will cause 50% of our bulbs to fail?
Simple Reliability Test Example
We need data to make the estimates. Test parameters might be:
•
We have 100 test fixtures, so we can test 100 bulbs.
•
We have a way to measure each bulb (perhaps a current sensor) to know
the exact on/off cycle when each bulb fails.
•
We can ONLY TEST for 800 hours! (We need the lab space.)
Simple Reliability Test Example
We collect data.
•
Some bulbs fail quickly (400 on/off cycles).
•
Some fail later (700 on/off cycles).
•
Many (37/100) are still running after 800 hours!
•
We plot the results:
Simple Reliability Test Example
•
Blue bars represent observed failures.
•
Red bar indicates “Censored” units (i.e. did not
fail)
Simple Reliability Test Example
What if we believe that the true distribution of failures
should be bell-shaped (normal)?
•
We could fit a Normal curve to only those bulbs
that failed.
•
We could fit a Normal curve to All bulbs,
assuming that the “censored” bulbs all failed at
900 cycles.
Simple Reliability Test Example
Broken line is Normal fit for failures only.
•
Underestimates the failure behavior (predicts
failures too soon.
Solid line includes censored units as failing at 900
cycles.
•
Still underestimates true failure pattern.
Use JMP’s Reliability platform: Life Distribution
Simple Reliability Test Example – Life Distribution Output
Profilers can answer the questions:
•
What percentage of bulbs will fail after 1100 on/off cycles?
•
How many on/off cycles will cause 50% of our bulbs to fail?
Understanding reliability testing for bulbs involves testing failure rates, predicting longevity based on on/off cycles, and analyzing data to determine failure patterns. This example demonstrates collecting data, plotting results, fitting Normal curves, and using life distribution output profilers to answer key questions on bulb reliability testing.
