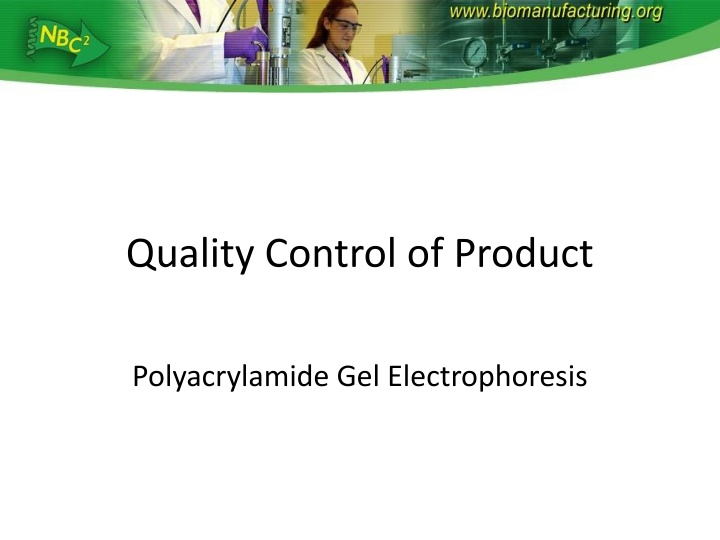

Quality Control and Electrophoresis Techniques
Quality Control of Product
Polyacrylamide Gel Electrophoresis
Analysis of Product
•
Quality Control involves the entire process of
obtaining a product that meets defined
specifications
expressing both its purity and
potency
•
Testing methods include cell biology, virology,
chemistry, analytical chemistry, molecular
biology & the potency of the product
•
Different methods have different levels of
detection ie, values can go from grams to
nanograms
Electrophoresis and
Movement of Molecules
•
Molecules can have distinct charges
–
Positive or Negative
–
Net charge will cause different movement through
gel
•
Molecules can have different shapes
–
Linear
–
globular
–
Alpha helix
+
Macromolecular charge
•
Macromolecules have a
variable net charge that
depends on pH
•
pH at which net charge is
zero = pI
•
Electrical shielding of charge
occurs when counterions
are solvated
V=
V =
Electrophoresis
•
Horizontal Agarose Gels
•
Agarose forms a gel or molecular sieve
that supports the movement of small
materials in solution used for DNA
•
Vertical Polyacrylamide Gels
•
Made of Polyacrylamide
•
Used for Protein molecular size, shape, charge
•
IEF electrophoresis
•
Western Blot technique
Horizontal Gels
•
Gel Box set up frequently used in DNA analysis
Agarose gels
•
Usually used in DNA analysis
•
Made up of linear polysaccharide mol wt of
12,000
•
Basic repeating unit is agarobiose
•
Gels are prepared at 1% to 3% providing
tunnels for molecules to move through
•
DNA can be much larger then most proteins
Agarose Gel with DNA Bands
•
DNA is negatively
charged
•
Smaller sized DNA
moves faster than
Larger DNA
•
Markers are used to
determine relative
sizes of DNA pieces
markers
PAGE
•
Native : Protein is prepared with little
disturbance to the cellular material
–
Proteins are associated
–
Movement of samples through the gel can be
inconsistent
•
SDS : Sodium Dodecyl Sulfate Is a detergent
–
Protein coated with a negative charge in
proportion to its molecular weight
–
Denatures and unfolds protein
–
Reducing agents (DTT)break amino acid cross-links
P
Polyacrylamide Gel
Creates tunnels in gel for molecules to move through
Uses for PAGE
•
Separates proteins from each other
–
Proteins separated by size
–
Isoelectric point
•
Determines
–
Molecular size of protein
–
Quantifies the amount present
–
Displays Impurities
–
Used in western blot assays by antigen interactions
Determine Molecular Weight
1. Run standard molecular weight markers
on gel
2. Run unknown protein on the same gel
3. Create a graph of the mol wt versus
distance molecule has moved
4. Using the distance the unknown has moved
determine the molecular weight from graph
Molecular Weight Markers
Migration of molecular
weight
of standards are compared to
unknown sample
wt std vs
unknown
Molecular Weight vs Distance
Western Blot Analysis
•
Identifies protein through antibody interaction
•
Run proteins on denatured gel (SDS-PAGE)
•
Transfer (blot) proteins onto membrane
•
Probe the membrane with primary antibody
•
Add secondary antibody (this antibody is linked
to an enzyme)
•
Substrate is added and color appears
SDS Polyacrylamide Electrophoresis
SDS Effect on Protein Movement
•
Sodium Dodecyl Sulfate denatures protein and
covers it with negative charges : moves to + end
•
Vertical gels are designed so the top of the gel
box is attached to the negative power outlet
•
The bottom of the gel box is attached to the
positive power outlet
•
Movement through the PAGE gel is
proportional to mass not to charge
Movement of Proteins on an SDS
Gel
Stacking of
proteins at top of
gel at start
Low weight
molecular dye
-
+
Distribution of
proteins in a
charged field
Protein Migration
Highest
Molecular
Wt. protein
% Polyacrylamide in Gel
•
Gels can be made at different concentrations of
polyacrylamide
•
Example: gels made at 3%,6%,9% and 12% will
produce different openings through which the
molecule will migrate
•
The larger the opening allows large molecules
to move through the gel
Vertical Polyacrylamide Gel
Electrophoresis
Equipment for Electrophoresis
Gel Electrophoresis Equipment
Mini-PROTEAN Tetra Cell
Closed Mini Gel holder
Open Gel Holder:
Allows New Gel to be Inserted
Gel Holders
Placed in Mini-Protean Tetra Cell
Procedure in Short
LoadGe Place Buffer
Equip
Electrophoresis of Samples
Setting Up and Running
Mini-PROTEAN TGX Precast
Gels –
Youhttp://www.youtube.co
m/watch?v=XnEdmk1SqvgT
ube
Samples: boiled 3’ with
loading dye (2x Laemmli
buffer + running dye)
Mini-PROTEAN tetra cell:
Set up according to SOP
given in workbook
Power settings: 75 volts for
45 – 60 minutes
Running dye should not
run off the bottom of gel
Exploring the process of analyzing product quality through techniques like polyacrylamide gel electrophoresis, evaluating purity and potency using various testing methods such as cell biology and chemistry. Understanding macromolecular charges, movement of molecules, and the use of agarose and polyacrylamide gels in DNA and protein analysis.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

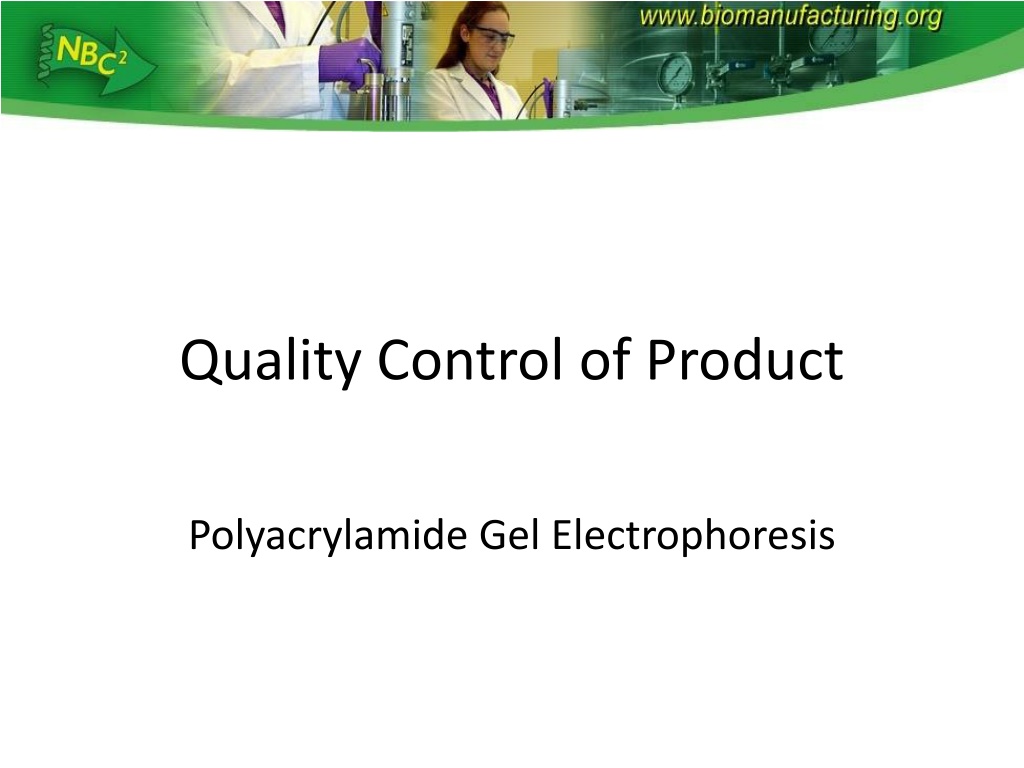

Quality Control of Product Polyacrylamide Gel Electrophoresis
