PROMETEO Concept - Professional Electrical Overstress Measurement Tester

PROMETEO Concept by Igor Farn BL Car IDA is a portable curve tracer designed to test ICs for electrical overstress. It features a product-specific library to classify products, a user-friendly interface for easy operation, and compatibility with various package types. The tool works with a laptop via USB connection and can be used with an adapter for different packages. Detailed testing information and results are displayed visually on the laptop screen for quick analysis and decision-making.

• Electrical Overstress
• Measurement Tester
• IC Testing
• User Interface
• Portable

aniyag Follow

Uploaded on Sep 10, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

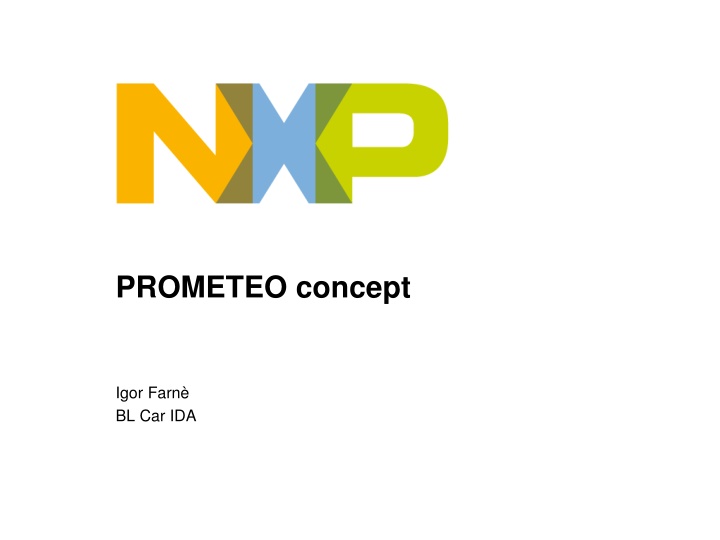

1. PROMETEO concept Igor Farn BL Car IDA

2. PROMETEO - concept The PROfessional MEasurement Tester for Electrical Overstress is a portable curve tracer for ICs. Each pin is measured separately independent of design/application Product specific library is used to classify known products pass or fail with regard to electrical overstress DUT It works with a laptop with USB connection uC A graphic user interface is used for high level and easy use It is suitable for different packages , with the use of adapter containing the package socket USB 2 September 10, 2024

3. PROMETEO how it looks PROMETEO box (close) Adapter PROMETEO box (open) 3 September 10, 2024

4. Graphic User Interface (GUI) as shown on laptop - library Test in progress Test finished good fail I/V curve on failing pin With the use of command buttons the test can be started, paused and stopped. Classification of fails according to the product library reference curve is facilitated with color coding on each pin. I/V Curve of each pin can be shown in the chart tab 4 September 10, 2024
