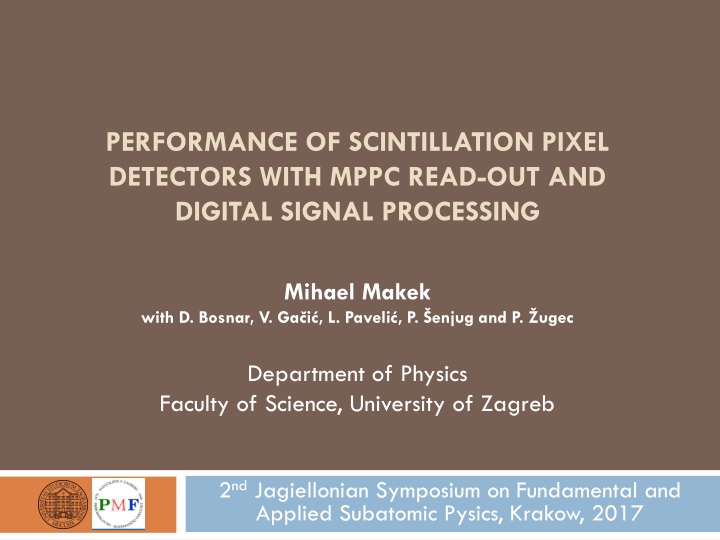

PERFORMANCE OF SCINTILLATION PIXEL DETECTORS WITH MPPC READ-OUT AND DIGITAL SIGNAL PROCESSING Mihael Makek with D. Bosnar, V. Ga i , L. Paveli , P. enjug and P. ugec Department of Physics Faculty of Science, University of Zagreb 2ndJagiellonian Symposium on Fundamental and Applied Subatomic Pysics, Krakow, 2017
Motivation and outline Construct and test segmented detector arrays using state-of- the art SiPMs, scintillation materials and digital signal processing electronics; applications: PET, PALS, fundamental measurements Outline Simulation of detector efficiencies Experimental setup Performance results of LFS scintillator pixels and MPPC array Krakow, 2017 Mihael Makek 2
Simulation of ideal detection efficiency takes into account: density, Zeff, resolution Geant4, geometry: 8x8 pixels, impinging on either of 4 central pixels Showing fraction of detected/incoming 511 keV gammas Detector LFS 20mm Edep.>50 keV Edep.~511keV Single 0.59 0.46 Coincidence 0.35 0.21 Detector LYSO 20mm Edep.>50 keV Edep.~511keV Single 0.57 0.43 Coincidence 0.32 0.18 Krakow, 2017 Mihael Makek 3
LFS scintillator Lutetium Fine Silicate (Zecotec patent) Crystal/Property Density [gcm-3] Zeff Atten. Length [cm] Decay constant [ns] Max. emission [nm] Light yield [% NaI] Refractive index Hygroscopic Active LFS 7.35 64 1.15 <33 425 80-85 1.81 No Yes LYSO 7.1 66 1.12 41 420 70-80 1.81 No Yes 4x4 array 3.14 x 3.14 x 20 mm3 1 layer~0.06 mm Krakow, 2017 Mihael Makek 4
MPPC arrays 4x4 MPPC array (S13361 3050AE Hamamatsu) Main features: Number of micro-cells 3584/pixel Micro-cell pitch = 50 m Fill factor 74% Epoxy window, n=1.55 Vbr ~ 53 V PDE (typical) ~ 40% 1 p.e. 2 p.e. Spectral range 320-900 nm (max at 450 nm) 3 p.e. Krakow, 2017 Mihael Makek 5
Amplifiers 16-channel Passive base: selectable cable length Matching base depending on the SiPM model and manufacturer Sum output with selectable gain and offset Output signals: 50 Ohm maximum -2 V Rise-time ~ 10-15 ns (depending on cable length) Krakow, 2017 Mihael Makek 6
Digitizers CAEN model V1743 16 channel, switched capacitor (based on SAMLONG chip) 1024 samples/channel 7 events/channel buffer Up to 3.2 GHz sampling rate Selectable trigger logic (after bugfixes on our request) Multi-board synchronization still in experimental phase Individual readout for all crystal channles Krakow, 2017 Mihael Makek 7
Setup and trigger 16 ch. Amp. 16 ch. Amp. 22Na 16 ch. digitizer 16 ch. digitizer OR OR AND TRG IN TRG IN Krakow, 2017 Mihael Makek 8
Digitized signals Recorded at 1.6 GHz 625 ps samples Vop = Vbr+1.5 V Rise-time ~ 15 ns Energy reconstruction: Amplitude Integral a) b) Krakow, 2017 Mihael Makek 9
Reconstructed energy of 511 keV gammas E/E=15% E/E=13% Integral linear with amplitude Integral provides superior energy resolution Krakow, 2017 Mihael Makek 10
Non-linearity correction Limited number of micro-cells causes saturation of large signals The relation between incident photons (Nph)and fired cells (Nfired): ( T , , ) M is the total number of micro-cells, PDE is photon detection efficiency calculated as product of QE( ),Pav(V,T) and fill factor PDE V N ph = 1 N M e M fired Apply correction: Original Corrected N PDE N M ph fired = = ln 1 E E E int int N N M fired fired where Nfired is obtained empirically: A T V N p 201 keV from 176Lu 511 keV from 22Na 306 keV from 176Lu ( , ) V T = ( , ) tot fired ( , ) a V T 1 . . e Krakow, 2017 Mihael Makek 11
Light sharing Calibration: sum of all fired channels = 511 keV Light sharing significant bewteen adjacent pixels. 0,06 mm reflector too thin! Single pixel energy resolution degradation @511 keV: 11% 13% Energy deposition: Leading/total ~ 80% 1st neighbors/total ~ 20% 2nd neighors/total ~ negligible Krakow, 2017 Mihael Makek 12
One photo-electon amplitude Measured on oscilloscope Map temperature and voltage dependence for both detectors Vbr(1) = 52.1 V Vbr(2) = 52.2 V Krakow, 2017 Mihael Makek 13
Number of fired micro-cells @511 keV Mean number of fired cells at 511 keV vs: Voltage Temperature Reflects how PDE changes with temperature and voltage Impact on energy resolution Krakow, 2017 Mihael Makek 14
511 keV photo-peak amplitude Mean amplitude of the 511 keV photo-peak vs V and t (Range limited by amplifier gain) Change of amplitude with V is ~equally governed by number of fired cells and 1p.e. amplitude Change of amplitude with temp. is dominantly governed by 1p.e. amplitude Krakow, 2017 Mihael Makek 15
Energy resolution @ 511 keV Energy resolution improves with U in the measured range Negligible dependence on temperature in the measured range Krakow, 2017 Mihael Makek 16
Time resolution Pixel-to-pixel timing Determined by fitting a straight line to the signal rising edge t ~1.6 ns (FWHM) Limited by amplifier rise-time of ~15 ns Krakow, 2017 Mihael Makek 17
Summary Simulation shows LFS has potential to improve sensitivity of PET compared to LYSO LFS performace tests: energy resolution satisfactory, but can improve by reducing the light sharing between the pixels and running at higher overvoltage Time resolution must be checked with fast preamplifier MPPC arrays show stable performance Saturation correction done on event-by-event basis Signal amplitudes scale linearly with voltage and temperature Temperature variations under control without direct compensation Krakow, 2017 Mihael Makek 18
