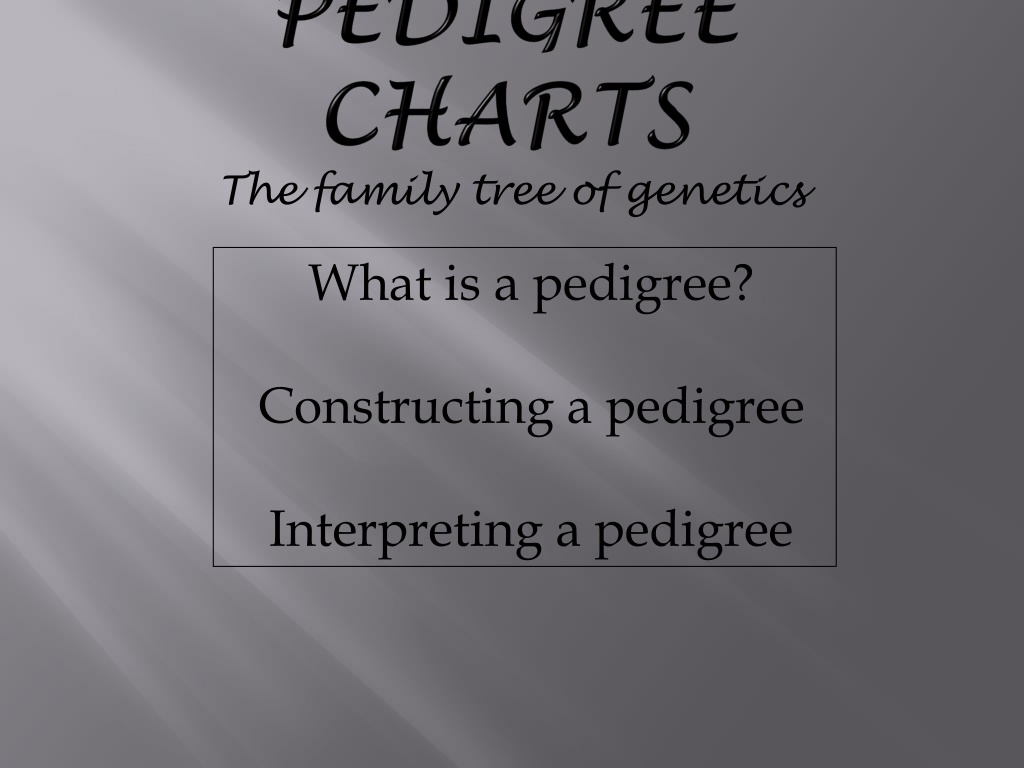

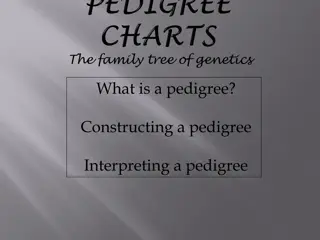

Pedigree Charts in Genetics
The family tree of genetics
What is a pedigree?
Constructing a pedigree
Interpreting a pedigree
1. A
Pedigree chart
traces the inheritance of a
particular trait through several generations.
2. One
GOAL
of using a pedigree chart is to figure
out who are
carriers
of the trait, because this
information is typically unknown.
a.
Carrier
: someone who is
heterozygous
for a trait.
Slide # 2
Male
Female
Slide # 3
1. Married Couple:
Horizontal Line
2. Children:
- Vertical line
3.
More than one child:
a horizontal line is drawn with
a vertical line coming down for
each sibling.
Slide # 4
1. Fraternal twins- can be the same or
different gender
a. Two line branching from the
same point
b. two
different eggs
and two
different
sperm
cells.
2. Identical twins-almost always same
gender
a. Also called
m
aternal twins
b. Same as fraternal twins but a
horizontal line is added.
c.
One egg
and
one sperm
unite and
later splits to create
two
babies
Constructing a Pedigree
Slide # 5
1
.
R
o
m
a
n
n
u
m
e
r
a
l
s
t
o
t
h
e
l
e
f
t
o
f
t
h
e
p
e
d
i
g
r
e
e
s
h
o
w
t
h
e
g
e
n
e
r
a
t
i
o
n
s
.
2
.
B
i
r
t
h
O
r
d
e
r
:
c
h
i
l
d
r
e
n
a
r
e
l
i
s
t
e
d
i
n
b
i
r
t
h
o
r
d
e
r
w
i
t
h
o
l
d
e
s
t
o
n
l
e
f
t
a
n
d
y
o
u
n
g
e
s
t
o
n
t
h
e
r
i
g
h
t
.
Slide # 6
1.
Full Shaded:
a.
Affected
person who shows a
disorder
2.
Half shaded:
Autosomal
carrier
3.
Circle with dot
:
X-linked carrier –always
female
4.
Deceased
Slide # 7
1. Pedigrees are used to find out:
a. who are
carriers
of the disorder
b. the
probability
of having a future child with the
disorder.
2.
To begin to interpret a pedigree, first
determine
if the disorder is:
a. Autosomal dominant
b. Autosomal recessive
c. Sex-linked (carried on the
X
chromosome)
Slide # 8
First ask:
Is it a Sex-linked or Autosomal Disorder?
1. If there is a much
larger
number of
males
than females who are affected
then the disorder is
Sex-linked
.
2. If there is a
50/50
ratio between males
and females who are affected then the
disorder is
autosomal
.
Slide # 9
1. If it is
autosomal
disorder then ask:
Is it dominant or recessive?
2. If two parents
do not
show the trait and their
children do show it, then it is an autosomal
recessive
disorder
- (parents are
carriers
or heterozygous)
3. If the disorder is autosomal
dominant
, then at
least
one
of the parents must show the
disorder.
Slide # 10
1. The following pedigree charts show
affected individuals only.
2. Carriers are unknown at this point.
Slide # 11
Does this pedigree show a
Sex-linked or Autosomal disorder?
Slide # 12
A
n
s
w
e
r
:
S
e
x
-
L
i
n
k
e
d
d
i
s
o
r
d
e
r
much larger number of
males
are affected
Answer:
Autosomal
disorder
50/50
ratio between
males
and
females
Does this pedigree show a
Sex-linked or Autosomal disorder?
Slide # 13
Does this pedigree show a Autosomal
Dominant or Recessive disorder?
Slide # 14
Answer:
Autosomal
dominant
disorder
At least one
parent
of
the affected children
show the disorder
Does this pedigree show a
Sex-linked or Autosomal disorder?
Slide # 15
Answer:
Autosomal
disorder
50/50
ratio between
males and
females
Does this pedigree show a Autosomal
Dominant or Recessive disorder?
Slide # 16
A
n
s
w
e
r
:
Autosomal
recessive
disorder
Two parents
do not
show the trait but their
children
do
show it
(
heterozygous
parents)
Autosomal Recessive
Genotypes and Carrier determination
D = Normal hearing
d = deafness
D
d
D
d
D
?
Slide # 17
A quick refresher for the teacher on important terms:
Autosomal gene- a gene found on any chromosome except for the sex chromosome. These are chromosomes numbered 1-22.
X-linked gene- a gene found on a chromosome designated as a sex chromosome (X or Y).
Dominant- Refers to an allele that is expressed phenotypically and masks any recessive counterpart.
Recessive- An allele that is not phenotypically expressed when its counterpart is dominant.
A pedigree chart is a visual representation of how a particular trait is inherited over several generations within a family. By examining these charts, one can identify carriers of specific traits and determine the likelihood of passing on genetic disorders to future generations. The construction and interpretation of pedigrees involve various symbols and patterns that help geneticists investigate the inheritance of traits. Understanding the nuances of pedigree charts is crucial for unraveling genetic mysteries and predicting potential outcomes in genetic inheritance.
