Overview of .NG Registry Operations by NIRA

Nigerian Internet Registration Association (NIRA) manages Nigeria's country code top-level domain (.ng). NIRA was established in 2005 after the delegation of .ng to Nigeria. The .ng Registry design includes a 3R model, public WHOIS server, EPP interface, and security measures like redundant site networking and multiple firewalls. The registry network architecture is robust with CentOS Linux and Cocca registry software.

• Internet
• Domain Name System
• Nigerian Internet
• ccTLD
• Registry Operations

kyro Follow

Uploaded on Aug 04, 2024 | 5 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

Presentation Transcript

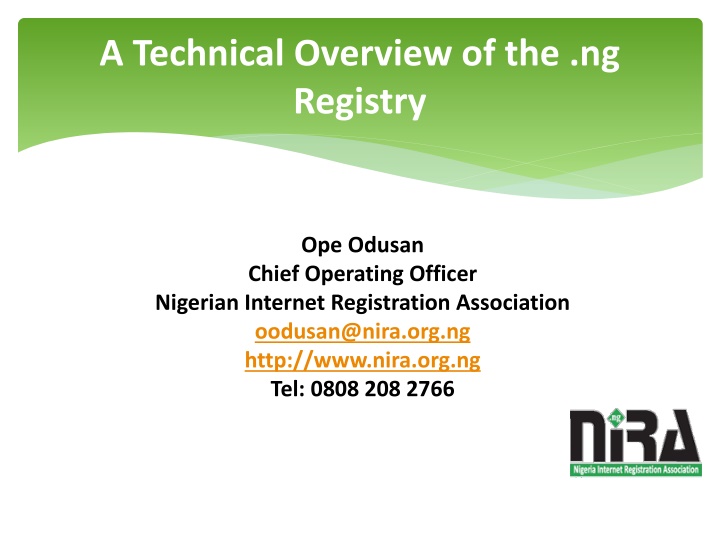

1. A Technical Overview of the .ng Registry Ope Odusan Chief Operating Officer Nigerian Internet Registration Association oodusan@nira.org.ng http://www.nira.org.ng Tel: 0808 208 2766 You Are Nigerian! Are You Dot .NG ?

2. What is a Domain Name ? In the Beginning US Defence Dept. DARPA Project started the Internet. Computers use Transmission Control Protocol (TCP)- Internet Protocol (IP) Addresses to Communicate. Humans Prefer letters. IP 108.163.163.202 is much more difficult than domain name : odusan.name.ng, hence the birth of Domain Name System (DNS). Domain Name is an identification string that defines a realm of administrative autonomy, authority or control on the internet. A Domain Name represent an Internet Protocol resource. Domain Name are organized in subordinate levels (subdomains) of the DNS Root domain. Top Level Domain (TLDs) represent the first level, this include generic top-level domains (gTLD) i.e. .com, .net, etc and the You Are Nigerian! Are You Dot .NG ? country code top-level domains ccTLD like .ng

3. NiRA-Background .ng is Nigeria s country code, the Nigerian identification string on the internet. This important national resource is managed by Nigeria Internet Registration Association (NIRA) NiRA's was established after the Delegation of .ng to Nigeria by USA based ICANN (Internet Corporation for Assigned Name and Numbers) by the National Information Technology Development Agency (NITDA). The Nigeria Internet Registration Association (NiRA) was founded on March 23, 2005 as a stakeholder-led organisation, registered Trustee charged with the management of the nation's Country Code Top Level Domain Name (ccTLD), .ng.. NiRA is headed by an Executive President, Mrs Mary Uduma who heads the 8 members executive board and Dr. Adeola Odeyemi, Chairman, 9 Member Board of Trustee. You Are Nigerian! Are You Dot .NG ?

4. The .ng Registry Design 3R Registry Model Public WHOIS server on port 43 Public WHOIS web interface EPP interface for the registrars Escrow backup with Cocca Stealth Primary Server SSH with user & IP restrictions

5. Registry Network Design Redundant Site Fiber and Radio linking the two sites using VPN channel Multiple ISPs with diversity in uplink transit provider Multiple replication of registry Database with all nodes available Onsite and offsite backup system Multiple firewalls-stateful & stateless with Intrusion Detection System Dual authentication to all registrars into the registry: login details with IP restrictions.

6. The .ng ccTLD network Architecture The Registry CentOS Linux Cocca registry software (web & EPP) PostgreSQL Data Base software Bind DNS software Primary Stealth DNS Nsa.nic.net.ng Open BSD Bind DNS Software NMS Tembria Server Monitor Paessler PRTG Kayako Helpdesk Standby Router & Switch

7. Secondary Name Servers ns1.nic.net.ng 194.0.1.29 I Internet Computer Bureau ns2.nic.net.ng 204.61.216.40 (PCH) ns3.nic.net.ng 208.78.70.93 Dynamic Network Services (USA) ns4.nic.net.ng 204.13.250.93 Dynamic Network Services (USA) nsa.nic.net.ng 41.222.79.3 Nigeria

8. Network Monitoring NIRA

9. Registry Power Design Motorized Automatic Voltage Regulators (AVR) for each power source Double Power source Dual Automatic Transfer Switch (ATS) Multiple Power packs in each equipment Remote monitoring of power, with ability shutdown devices remotely

10. Summary Domain Name makes it easier for Humans to locate Internet Protocol Resource, i.e. website, email address, blogs etc. .ng is the unique string for Nigeria just like our official currency is ( ) Naira .gov.ng is the approved official domain name for Nigerian Government. All MDAs need to use a .gov.ng domain name string for websites and email addresses. All Civil servants should have email address with domain name that ends with .gov.ng NIRA has implemented a robust, distributed, secure and stable Registry Infrastructure. You Are Nigerian! Are You Dot .NG ?
