Labrotory 2018
Lazeektory 2018

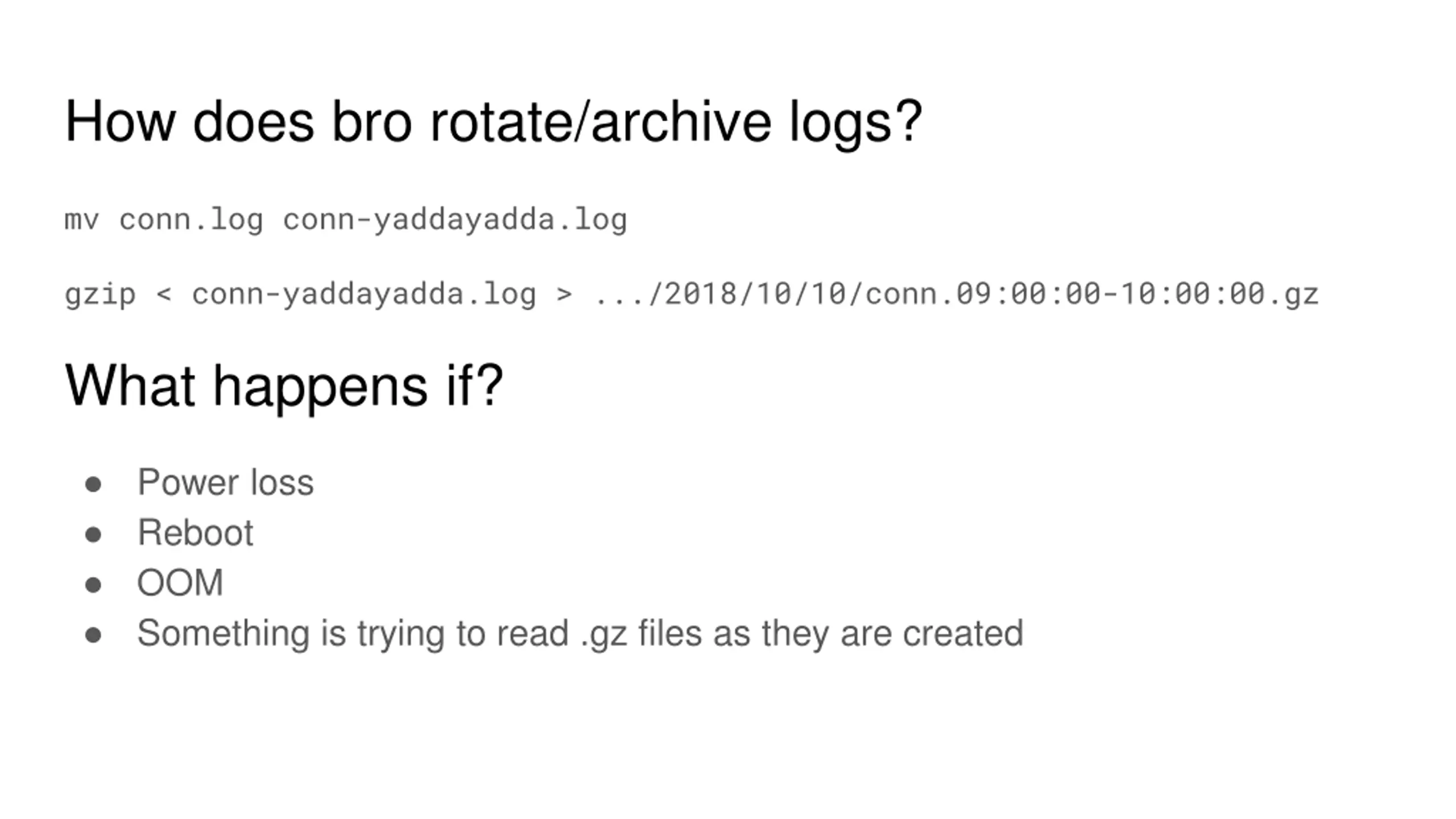

How does bro rotate/archive logs? mv conn.log conn-yaddayadda.log gzip < conn-yaddayadda.log > .../2018/10/10/conn.09:00:00-10:00:00.gz What happens if? Power loss Reboot OOM Something is trying to read .gz files as they are created

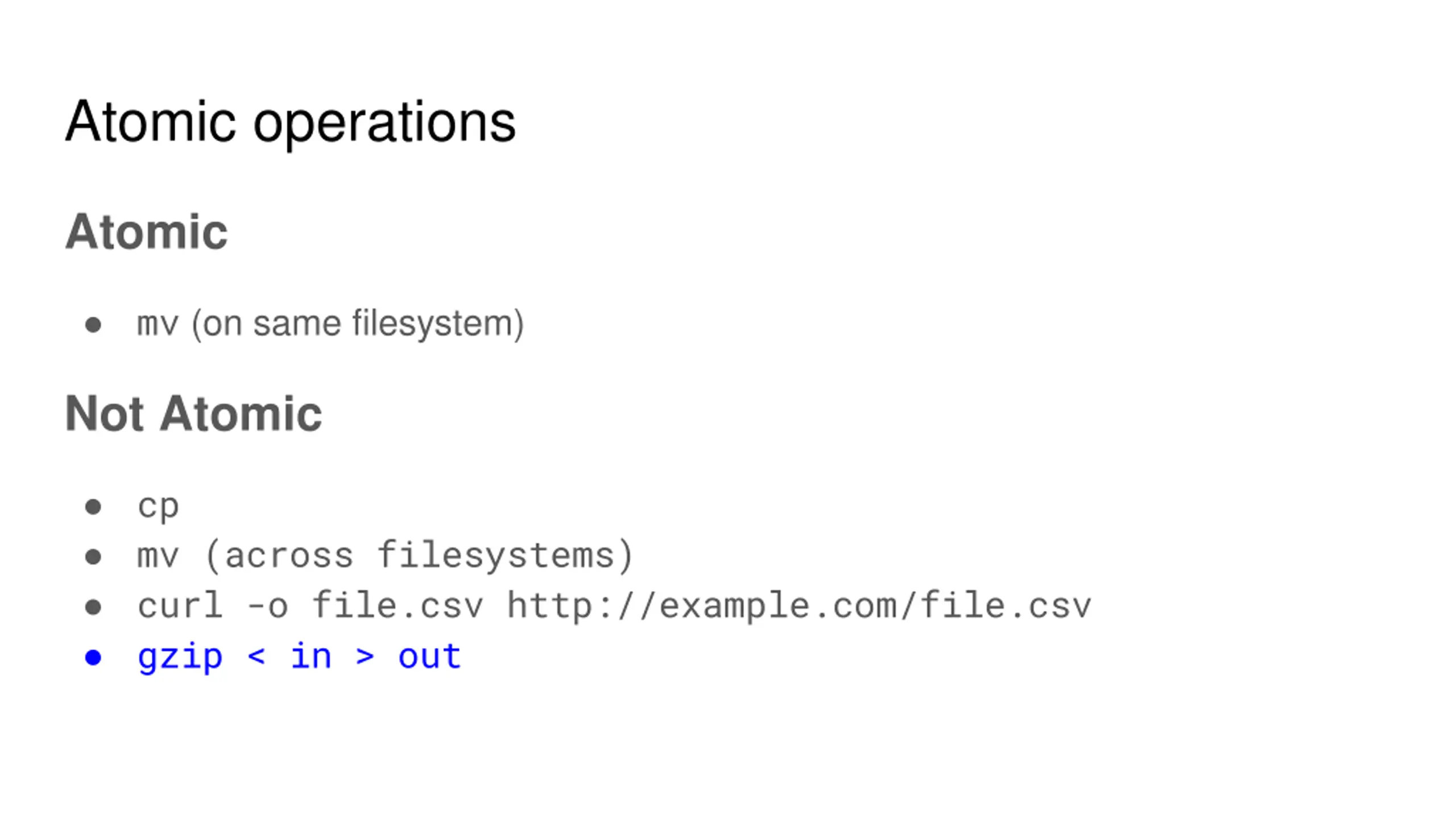

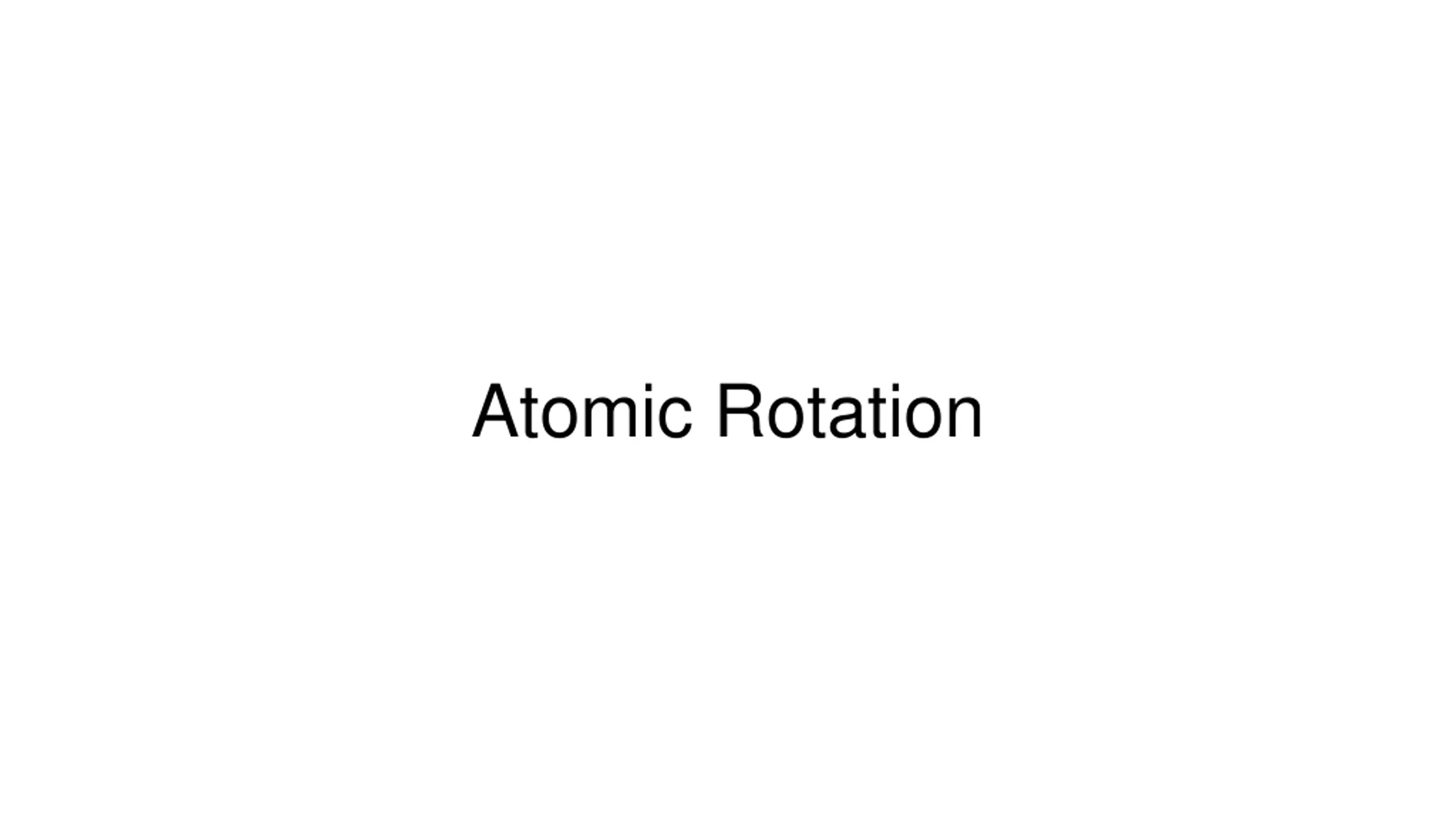

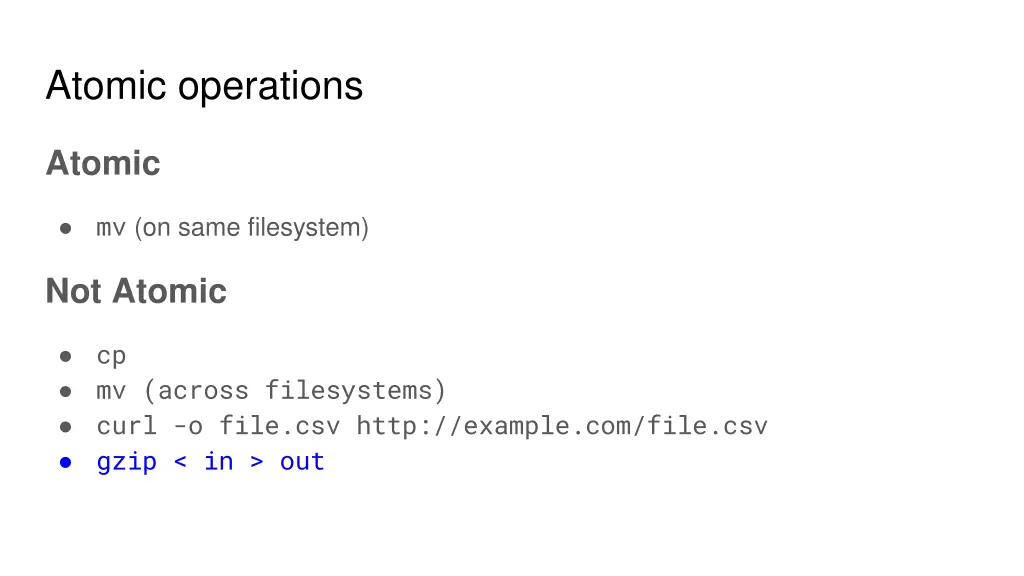

Atomic operations Atomic mv (on same filesystem) Not Atomic cp mv (across filesystems) curl -o file.csv http://example.com/file.csv gzip < in > out

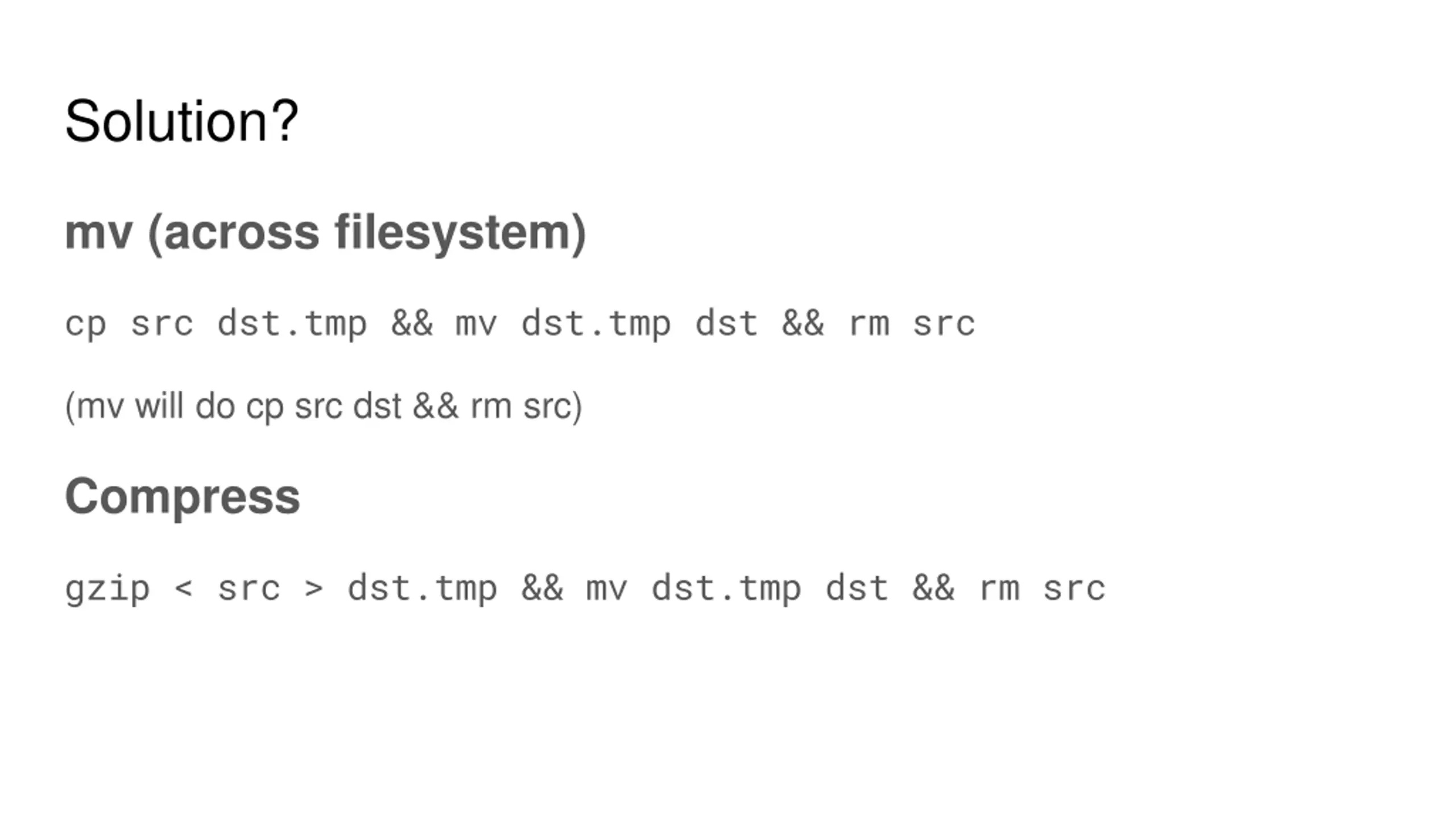

Solution? mv (across filesystem) cp src dst.tmp && mv dst.tmp dst && rm src (mv will do cp src dst && rm src) Compress gzip < src > dst.tmp && mv dst.tmp dst && rm src

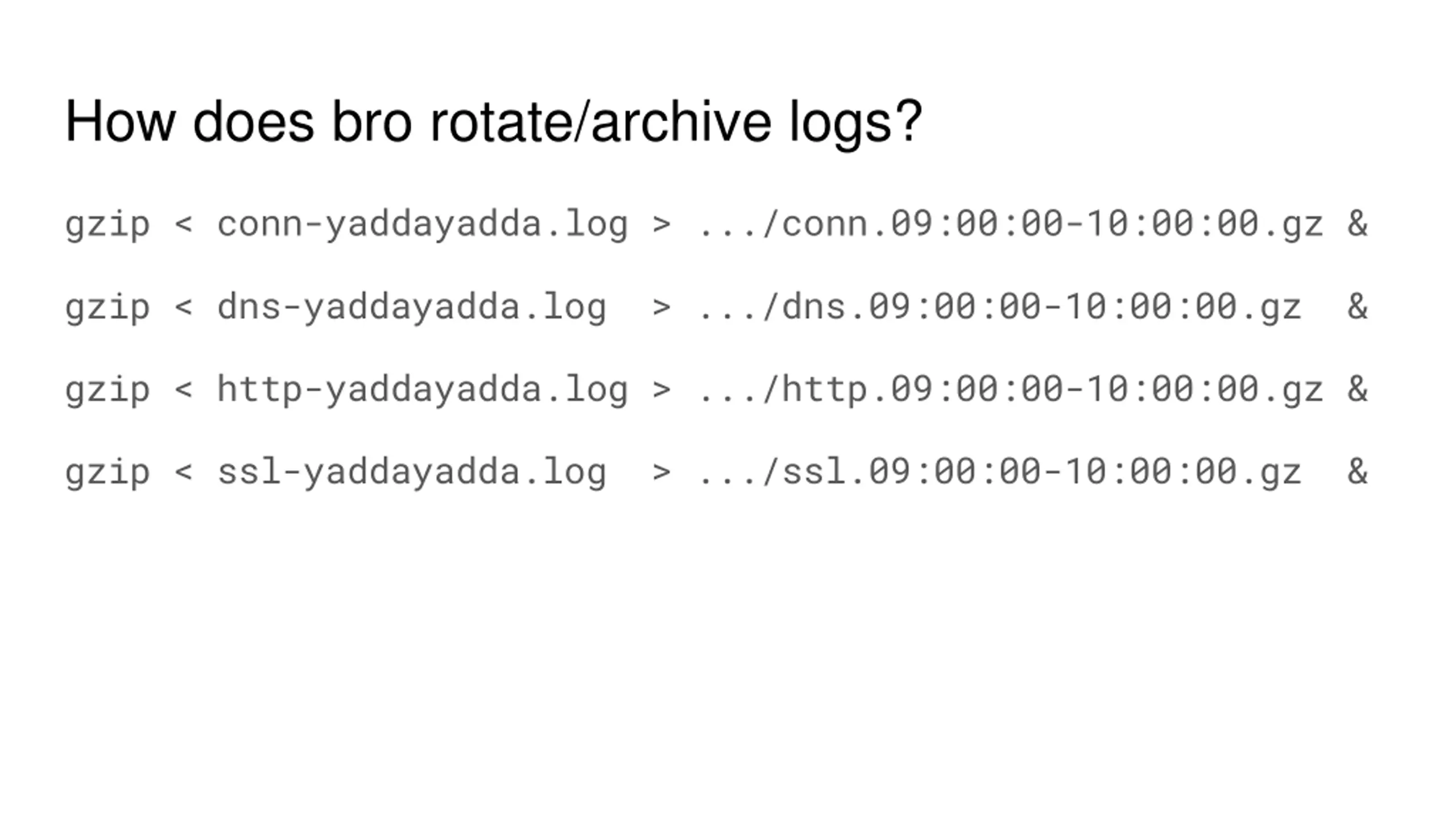

How does bro rotate/archive logs? gzip < conn-yaddayadda.log > .../conn.09:00:00-10:00:00.gz & gzip < dns-yaddayadda.log > .../dns.09:00:00-10:00:00.gz & gzip < http-yaddayadda.log > .../http.09:00:00-10:00:00.gz & gzip < ssl-yaddayadda.log > .../ssl.09:00:00-10:00:00.gz &

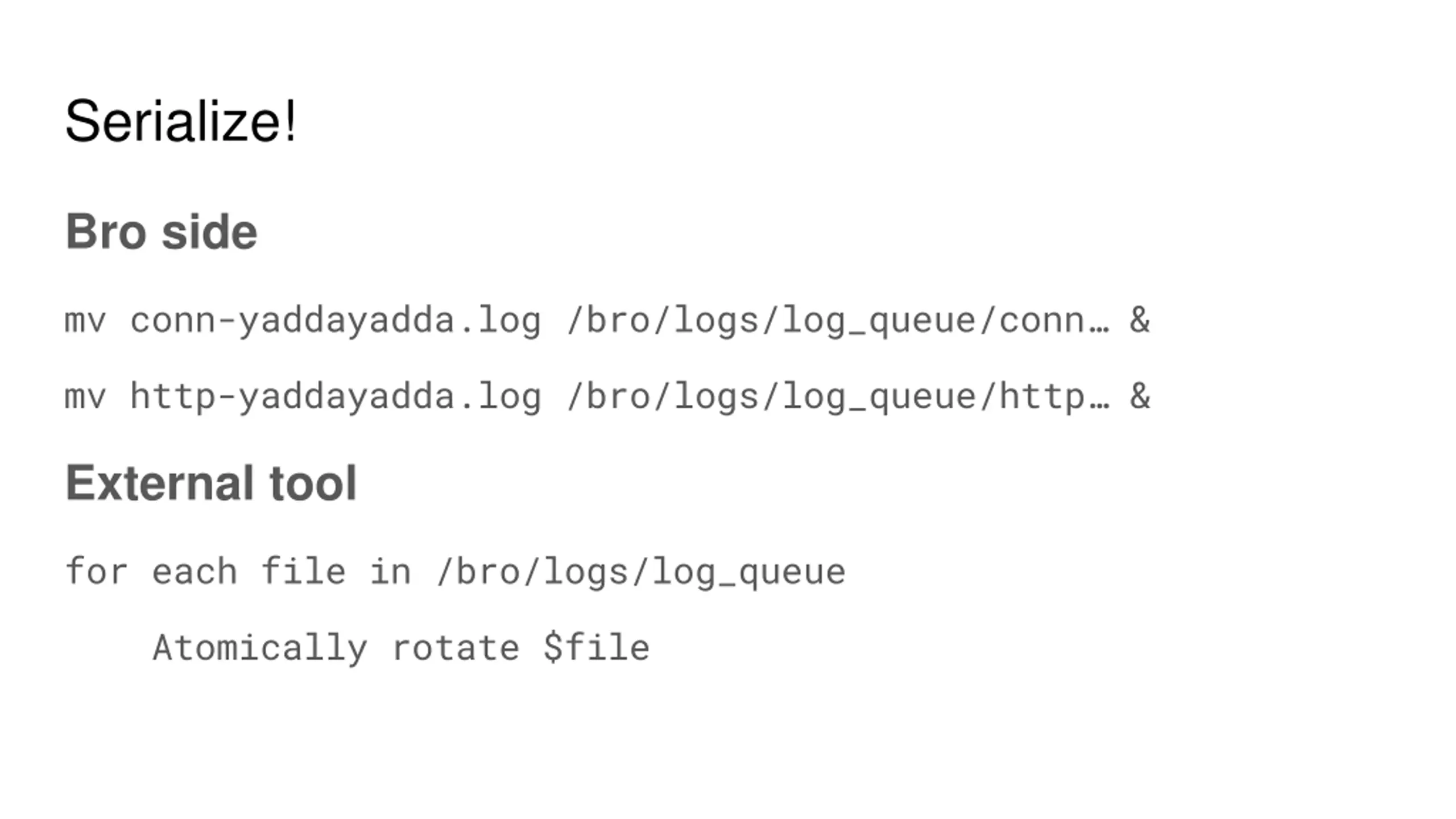

Serialize! Bro side mv conn-yaddayadda.log /bro/logs/log_queue/conn & mv http-yaddayadda.log /bro/logs/log_queue/http & External tool for each file in /bro/logs/log_queue Atomically rotate $file

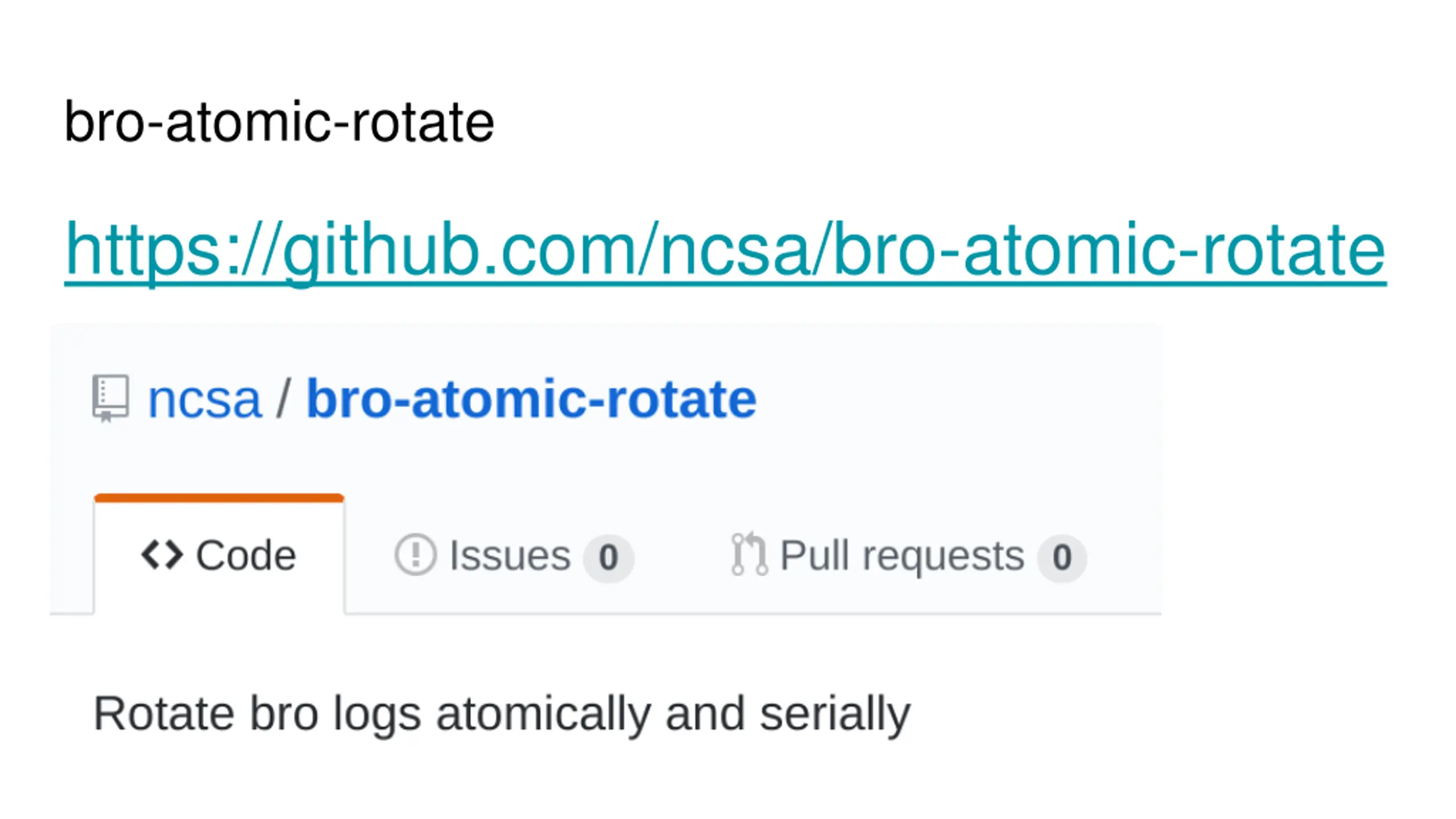

bro-atomic-rotate https://github.com/ncsa/bro-atomic-rotate

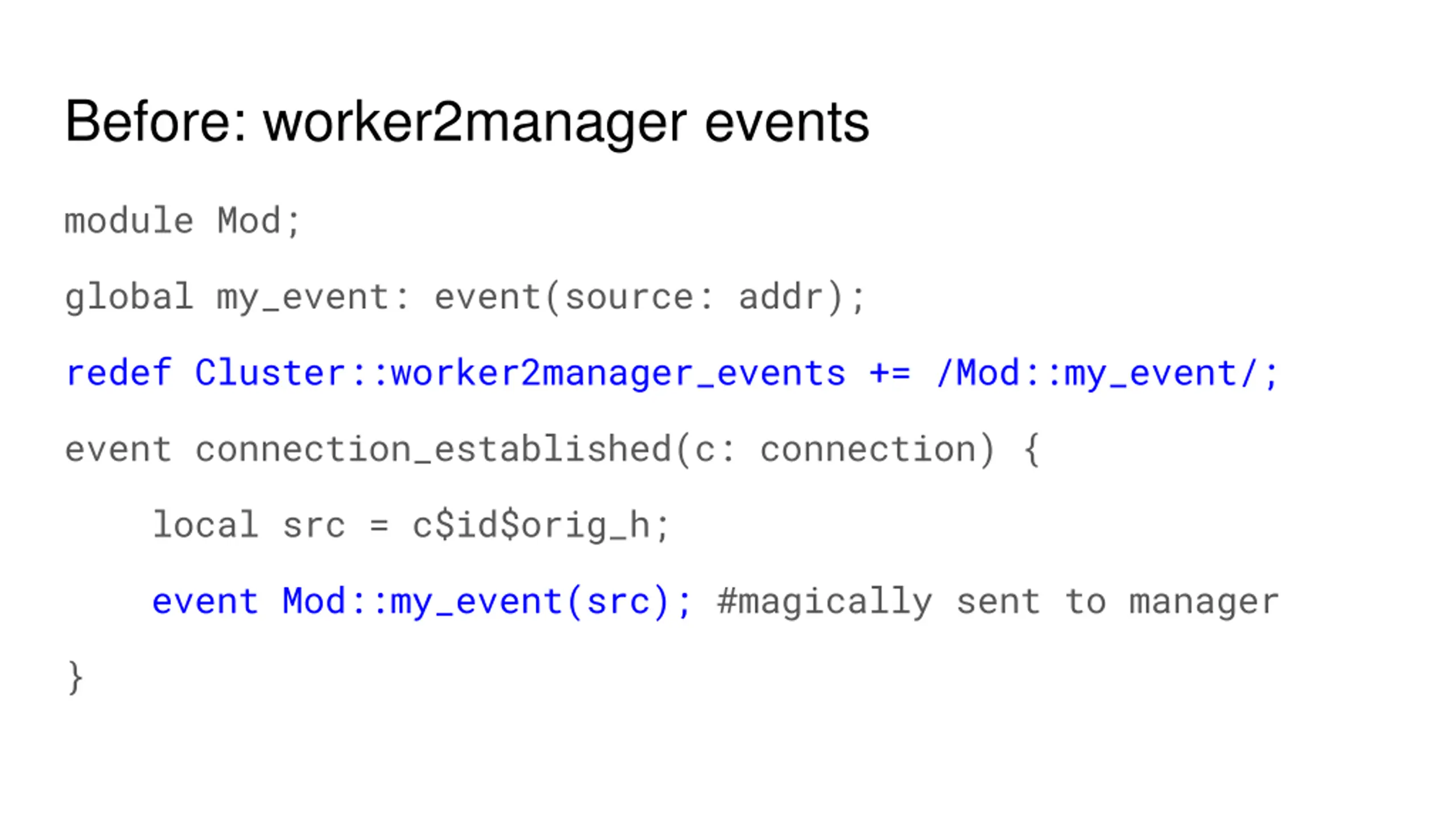

Before: worker2manager events module Mod; global my_event: event(source: addr); redef Cluster::worker2manager_events += /Mod::my_event/; event connection_established(c: connection) { local src = c$id$orig_h; event Mod::my_event(src); #magically sent to manager }

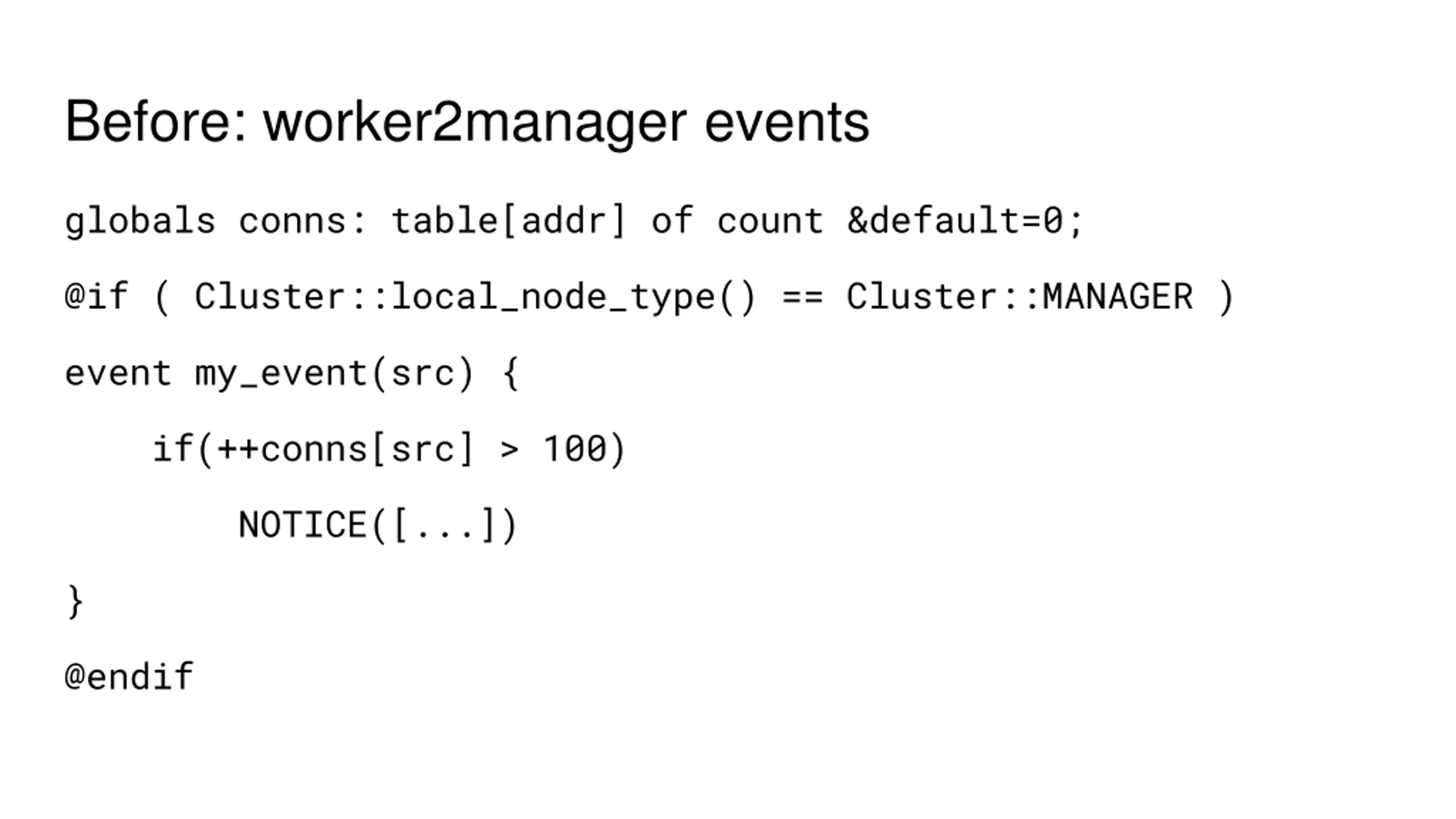

Before: worker2manager events globals conns: table[addr] of count &default=0; @if ( Cluster::local_node_type() == Cluster::MANAGER ) event my_event(src) { if(++conns[src] > 100) NOTICE([...]) } @endif

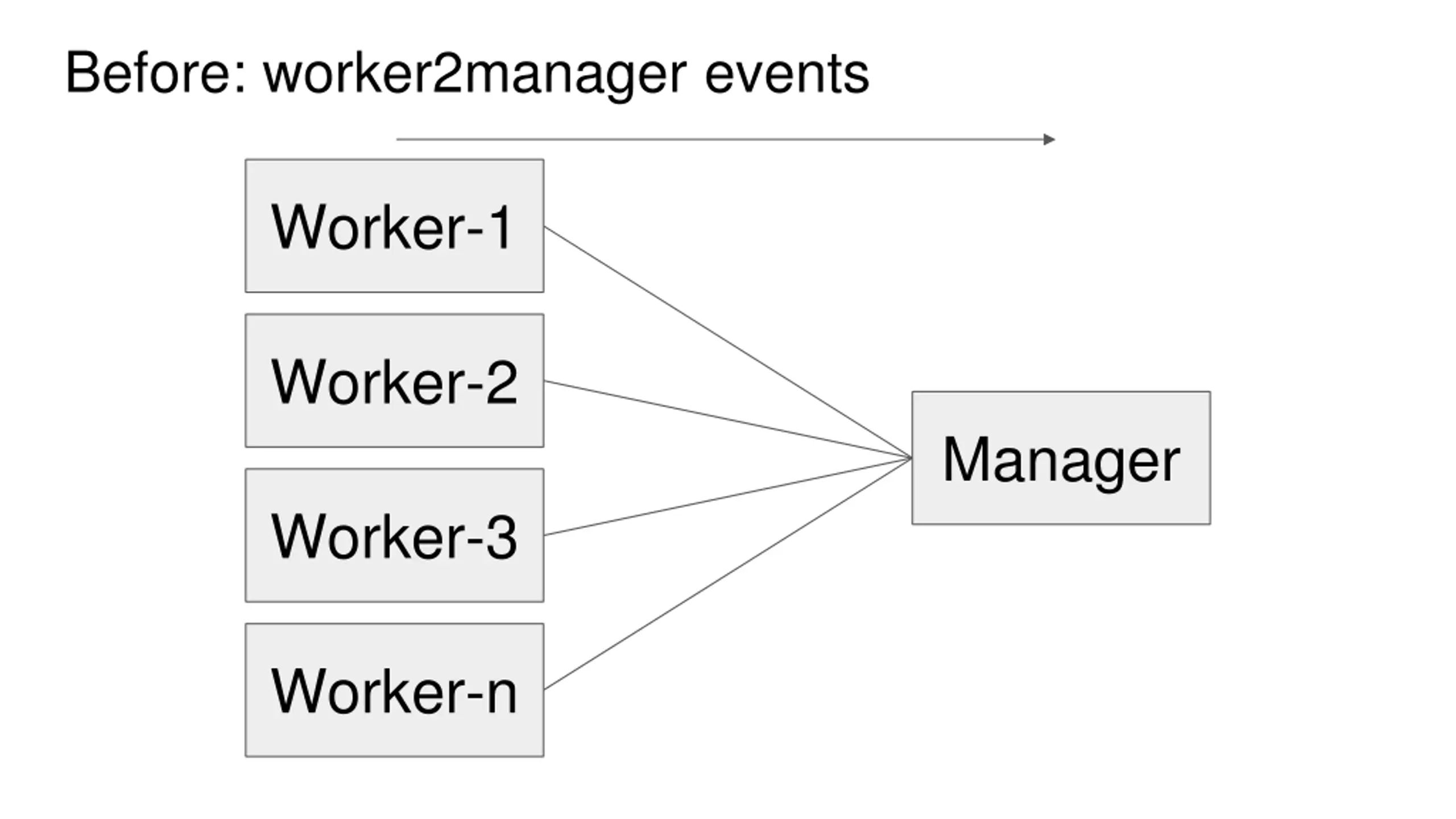

Before: worker2manager events Worker-1 Worker-2 Manager Worker-3 Worker-n

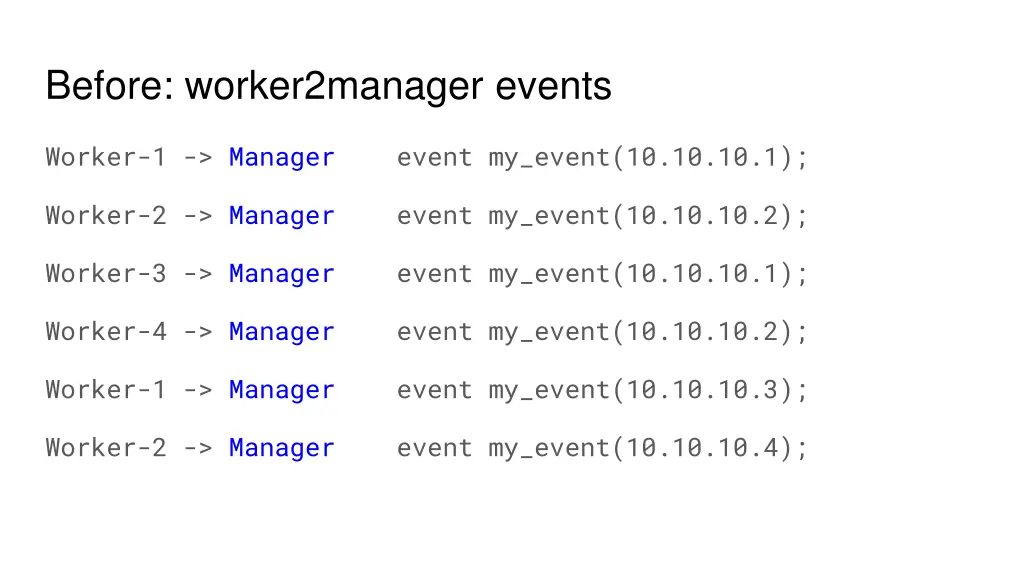

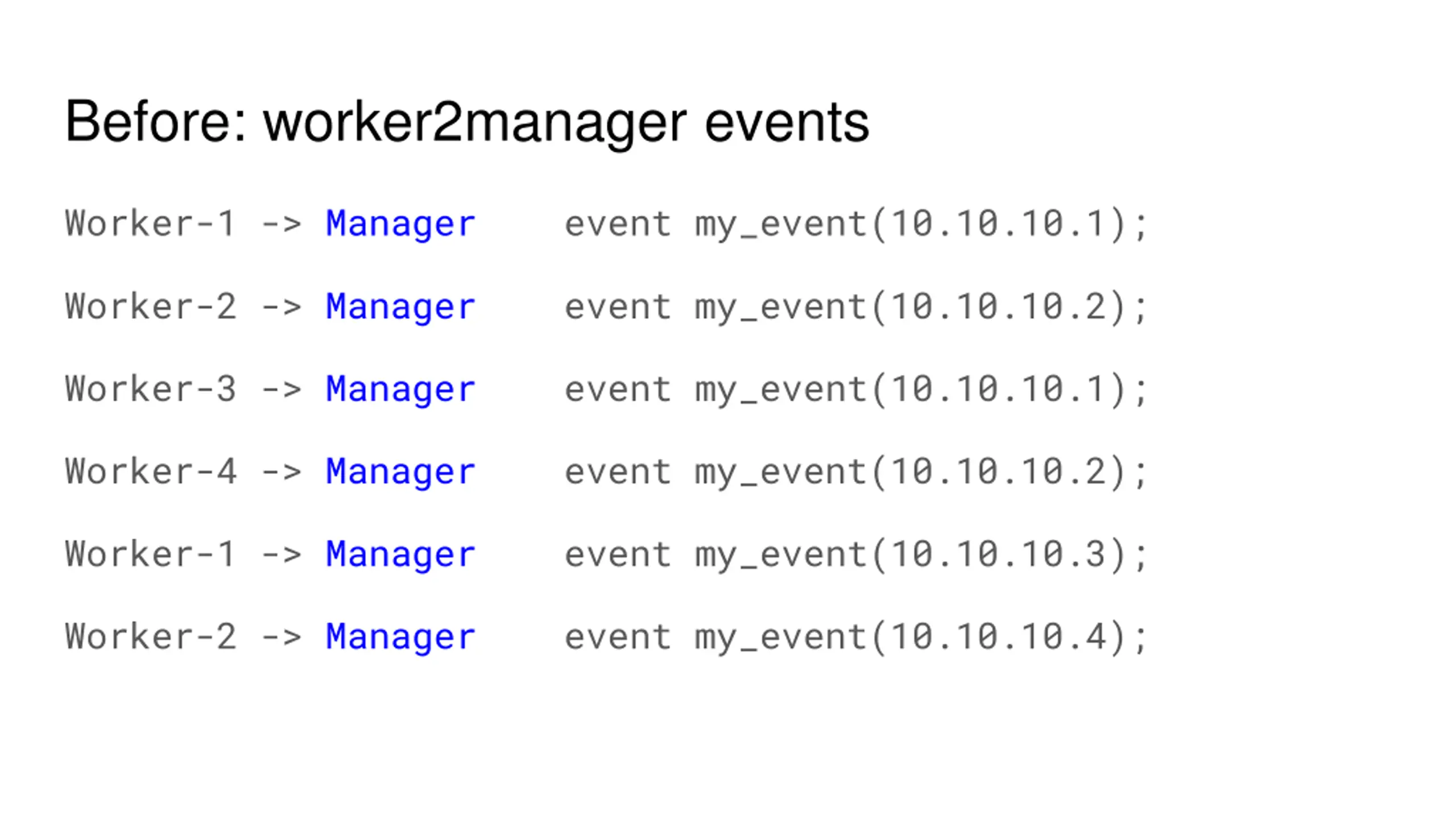

Before: worker2manager events Worker-1 -> Manager event my_event(10.10.10.1); Worker-2 -> Manager event my_event(10.10.10.2); Worker-3 -> Manager event my_event(10.10.10.1); Worker-4 -> Manager event my_event(10.10.10.2); Worker-1 -> Manager event my_event(10.10.10.3); Worker-2 -> Manager event my_event(10.10.10.4);

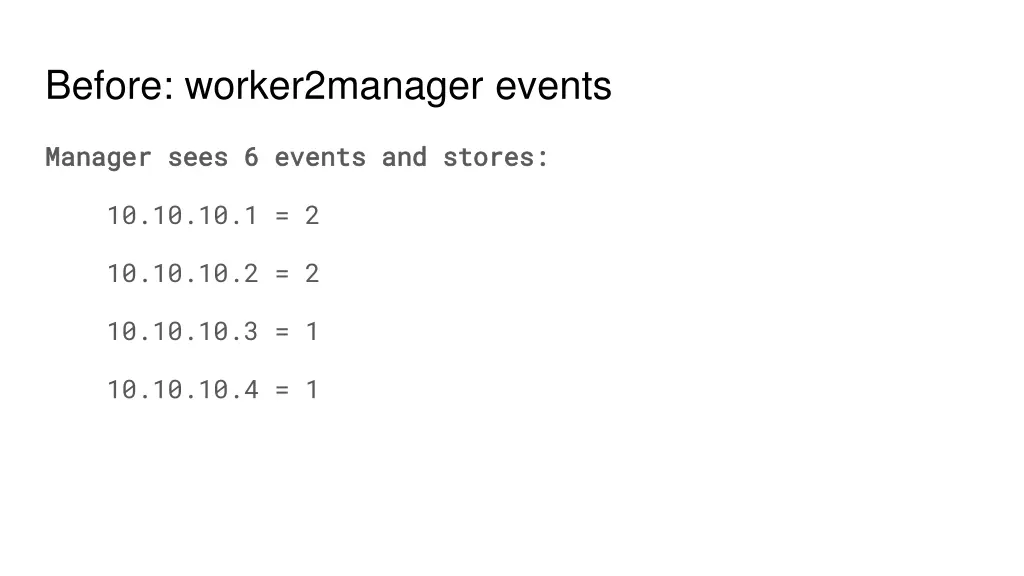

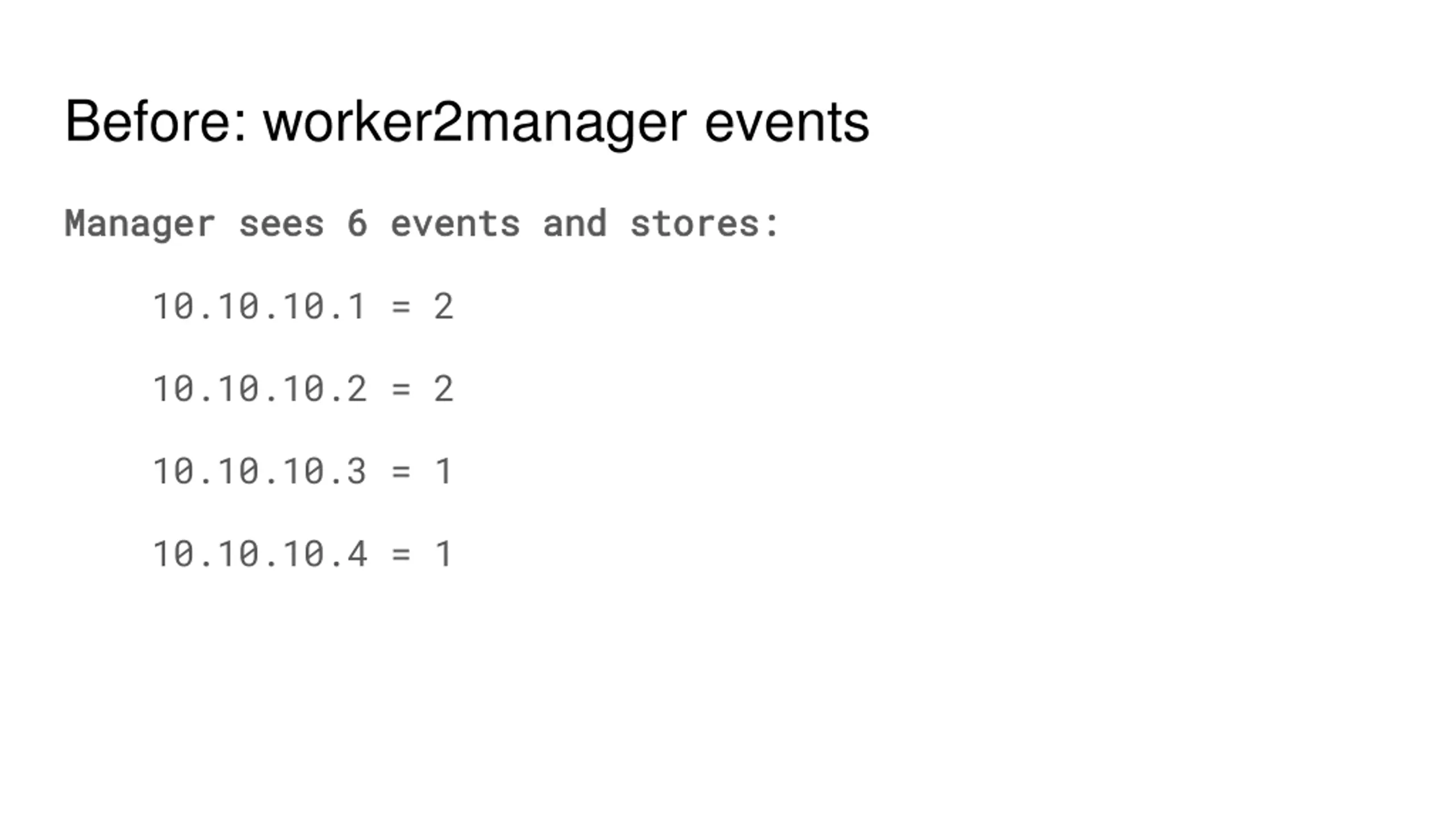

Before: worker2manager events Manager sees 6 events and stores: Manager sees 6 events and stores: 10.10.10.1 = 2 10.10.10.2 = 2 10.10.10.3 = 1 10.10.10.4 = 1

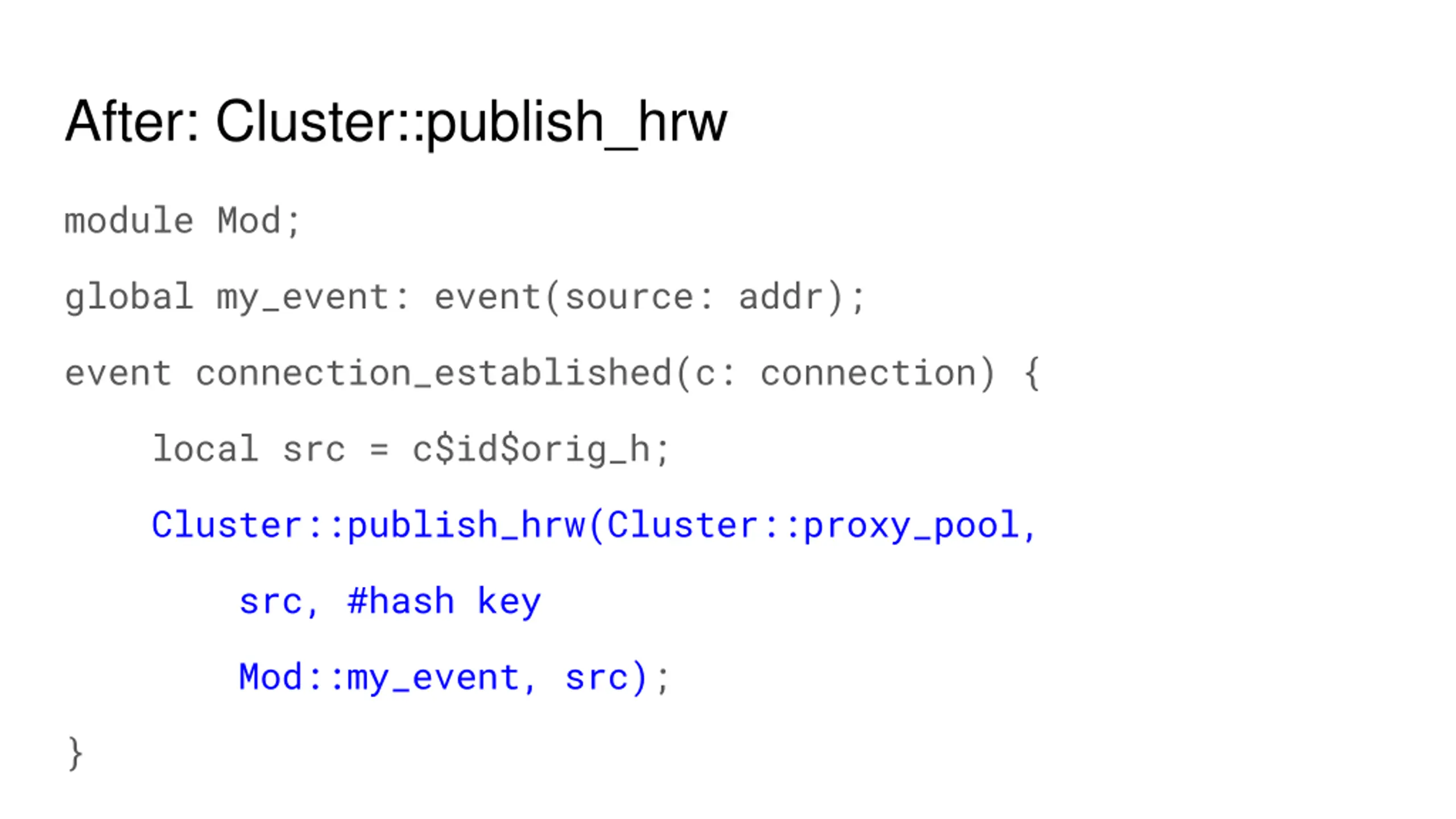

After: Cluster::publish_hrw module Mod; global my_event: event(source: addr); event connection_established(c: connection) { local src = c$id$orig_h; Cluster::publish_hrw(Cluster::proxy_pool, src, #hash key Mod::my_event, src); }

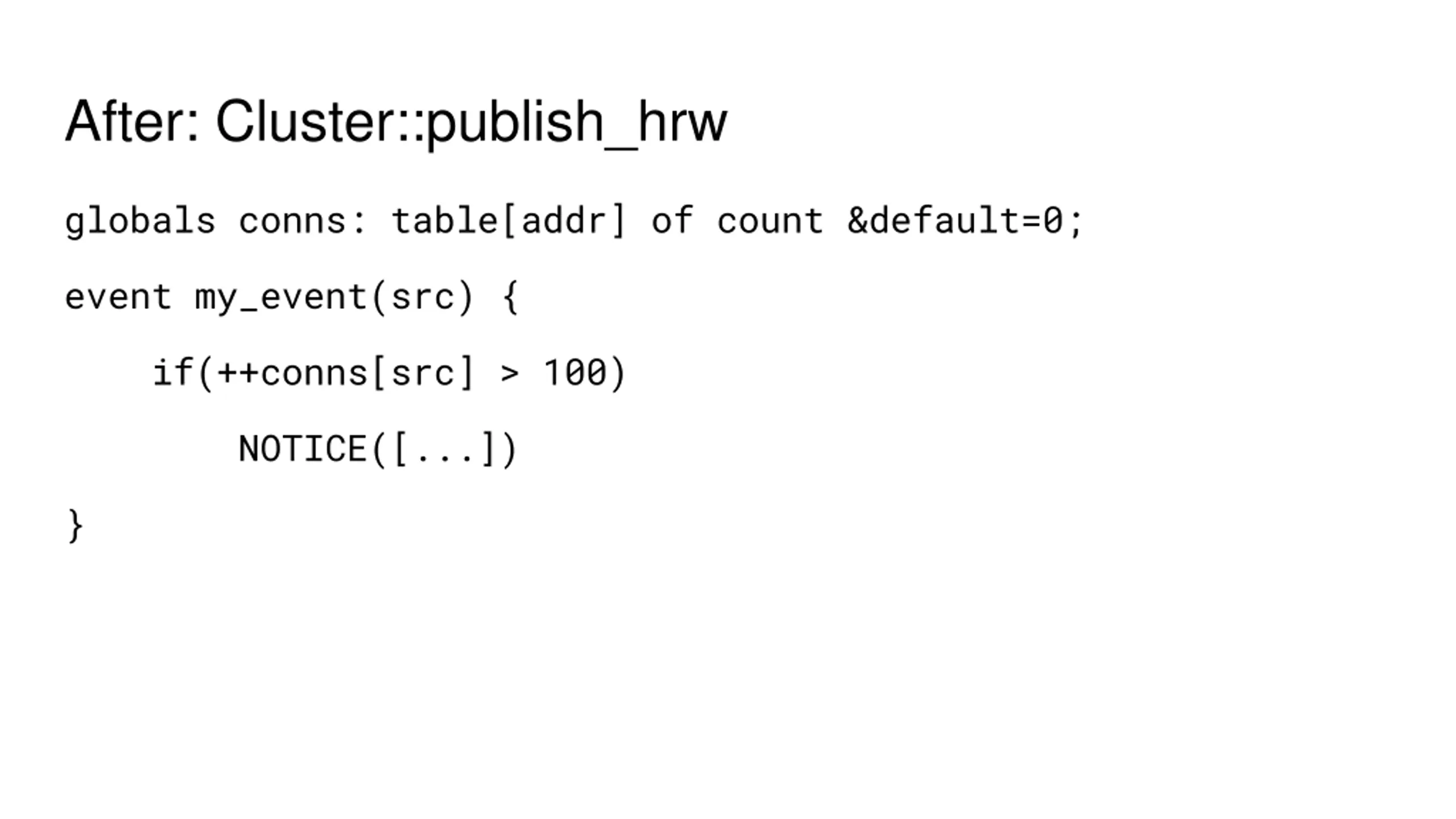

After: Cluster::publish_hrw globals conns: table[addr] of count &default=0; event my_event(src) { if(++conns[src] > 100) NOTICE([...]) }

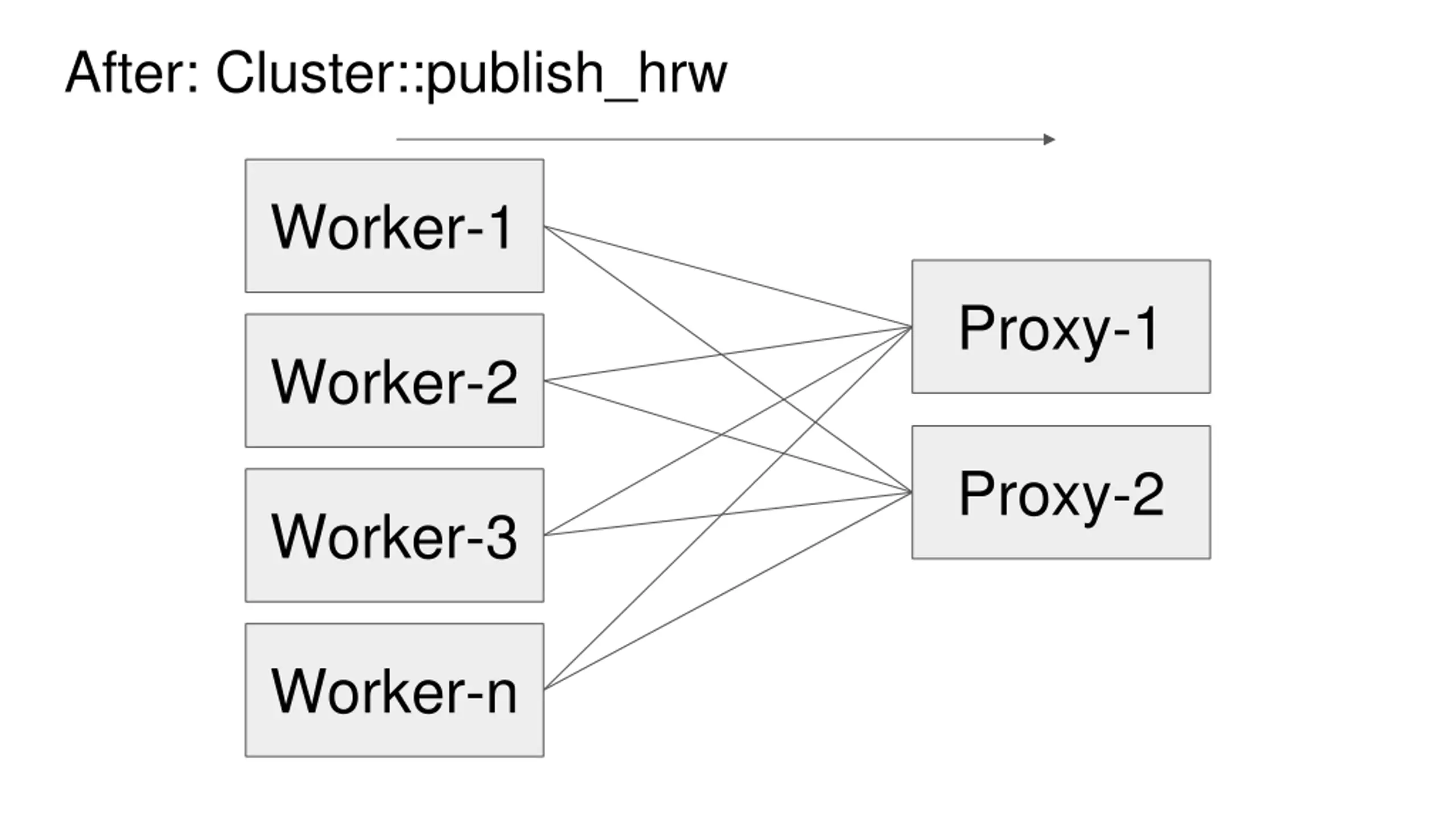

After: Cluster::publish_hrw Worker-1 Proxy-1 Worker-2 Proxy-2 Worker-3 Worker-n

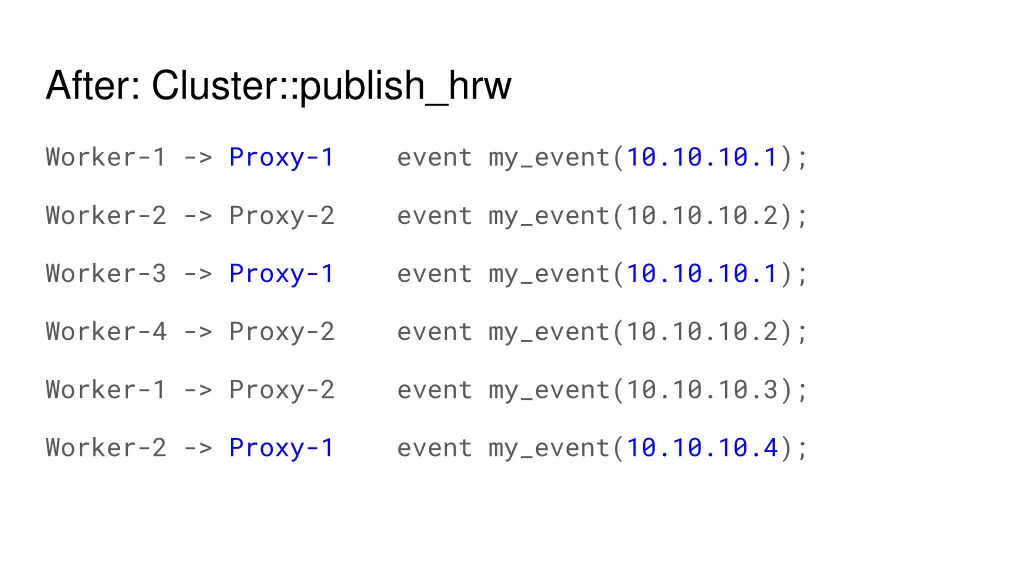

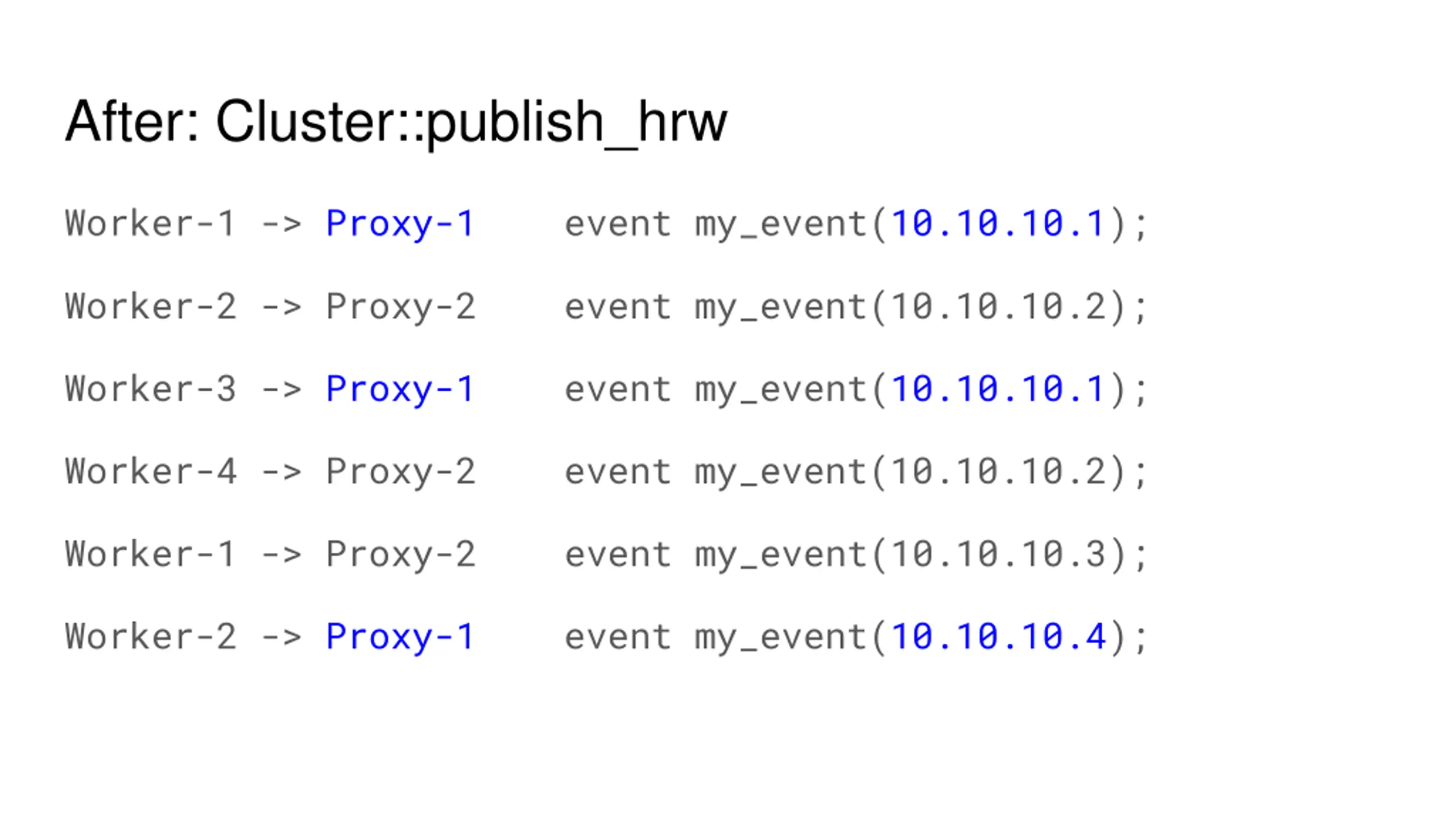

After: Cluster::publish_hrw Worker-1 -> Proxy-1 event my_event(10.10.10.1); Worker-2 -> Proxy-2 event my_event(10.10.10.2); Worker-3 -> Proxy-1 event my_event(10.10.10.1); Worker-4 -> Proxy-2 event my_event(10.10.10.2); Worker-1 -> Proxy-2 event my_event(10.10.10.3); Worker-2 -> Proxy-1 event my_event(10.10.10.4);

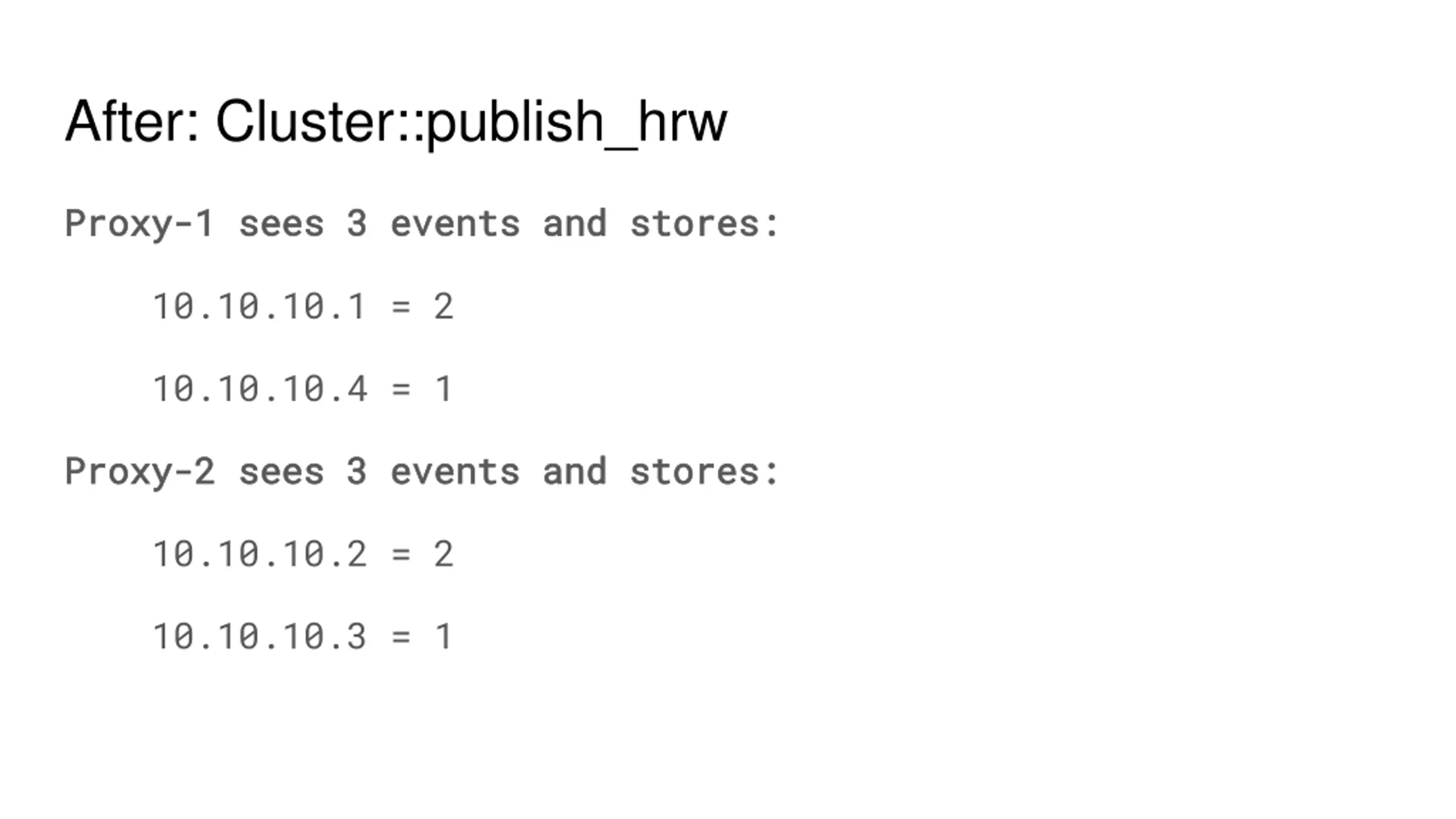

After: Cluster::publish_hrw Proxy Proxy- -1 sees 3 events and stores: 1 sees 3 events and stores: 10.10.10.1 = 2 10.10.10.4 = 1 Proxy Proxy- -2 sees 3 events and stores: 2 sees 3 events and stores: 10.10.10.2 = 2 10.10.10.3 = 1

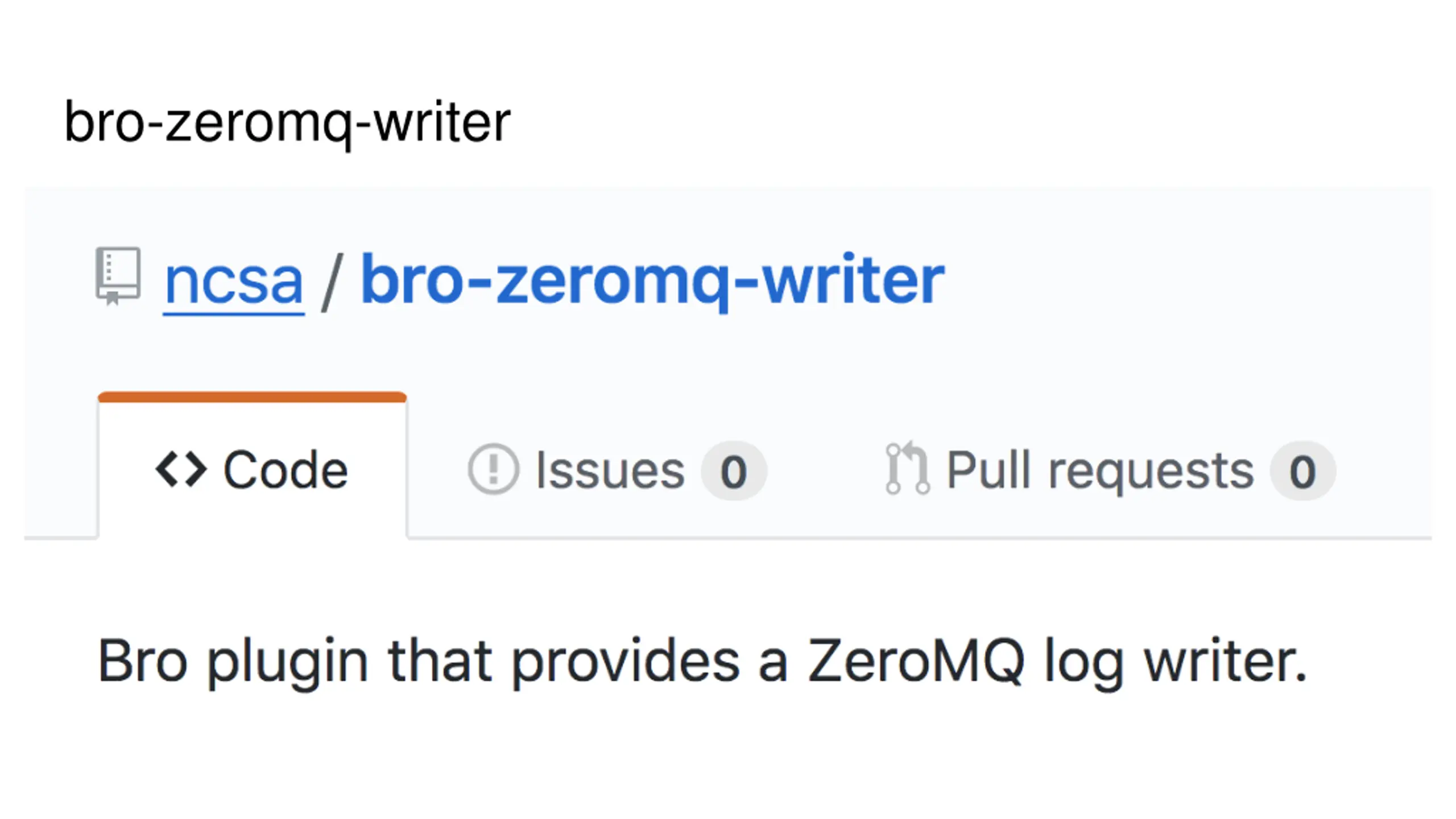

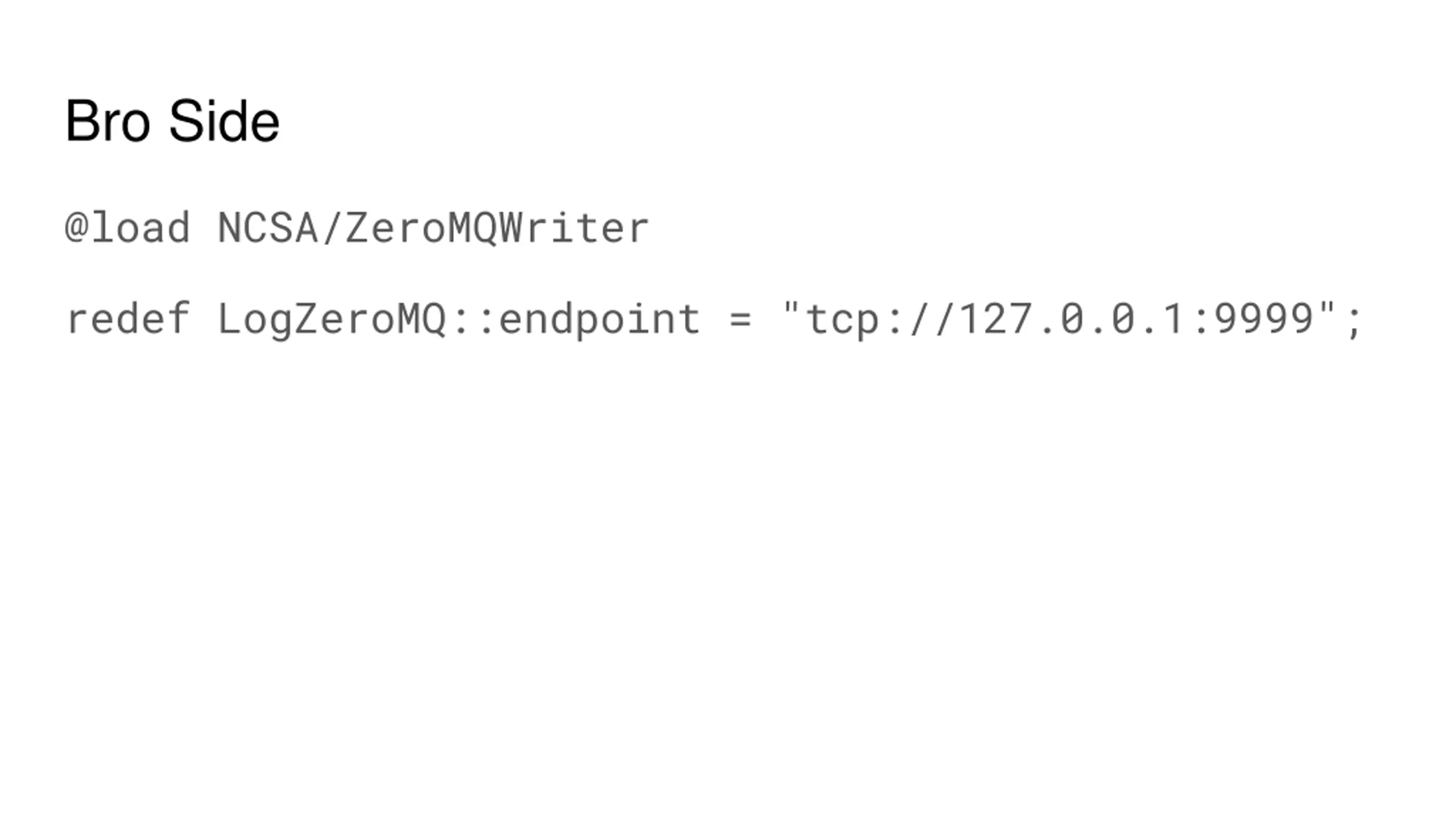

Bro Side @load NCSA/ZeroMQWriter redef LogZeroMQ::endpoint = "tcp://127.0.0.1:9999";

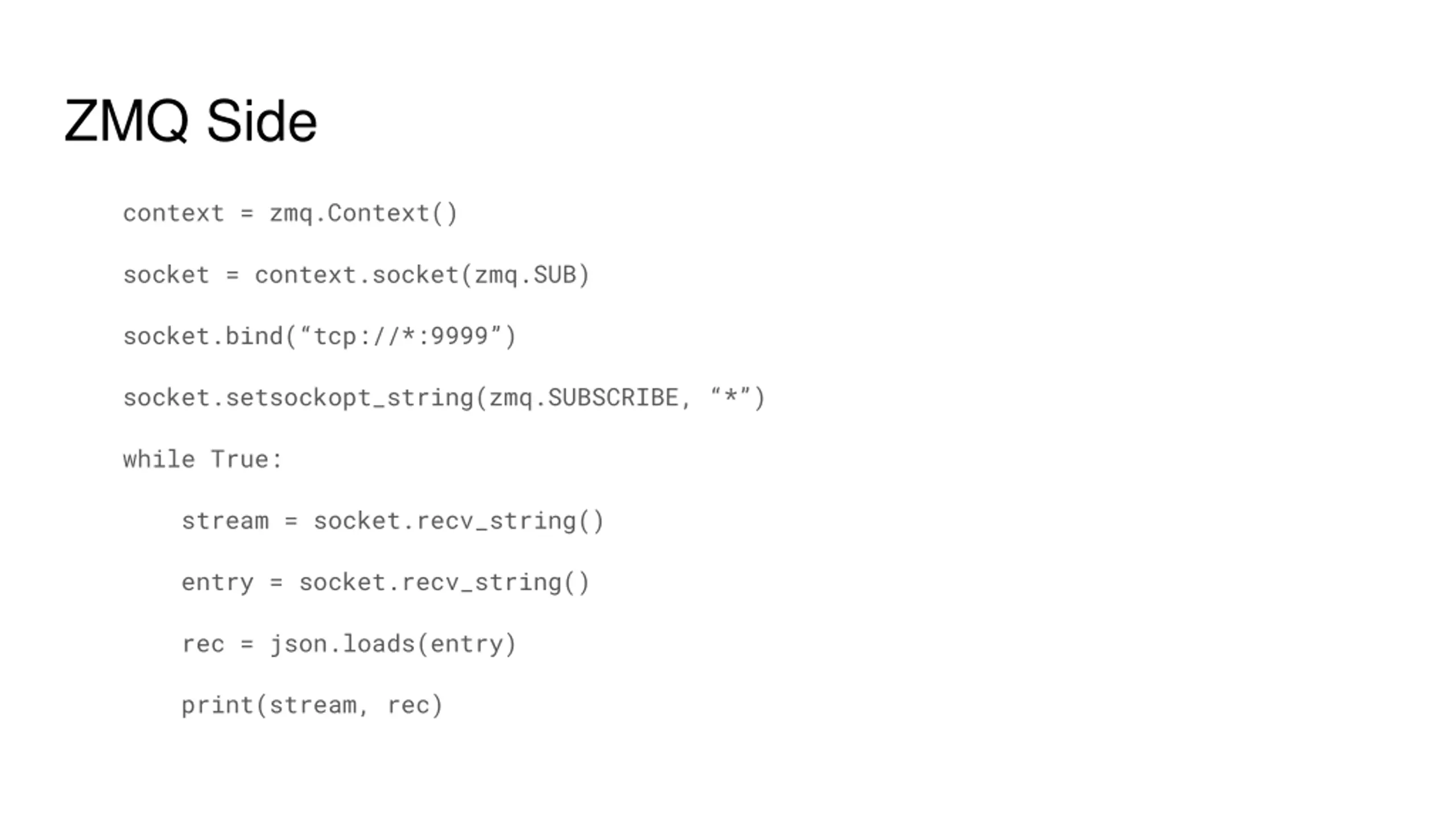

ZMQ Side context = zmq.Context() socket = context.socket(zmq.SUB) socket.bind( tcp://*:9999 ) socket.setsockopt_string(zmq.SUBSCRIBE, * ) while True: stream = socket.recv_string() entry = socket.recv_string() rec = json.loads(entry) print(stream, rec)
