Innovative Robotics Project at Belfry High School
Austin Varney, Cody West, Justin Ball and Brooke Fields
Belfry High School, Belfry, KY 41514

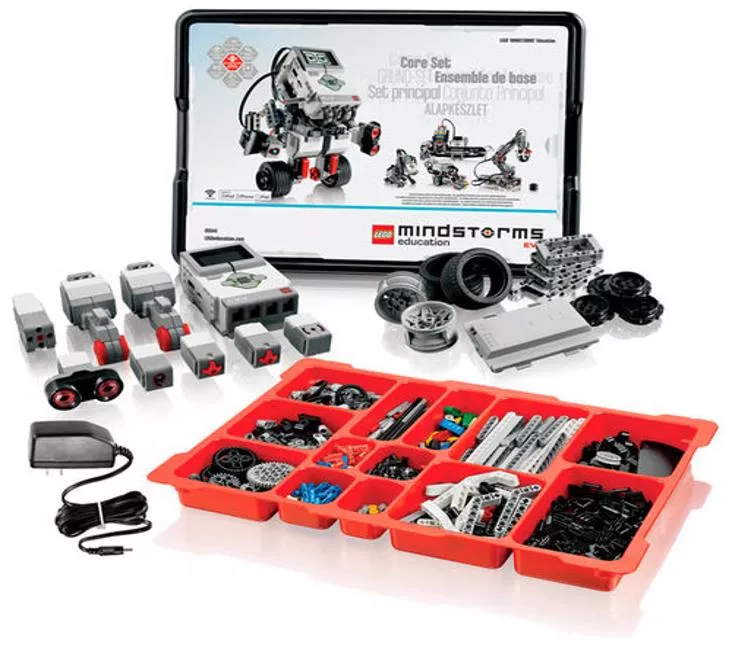

- The robot consists of
- 1 EV3 Programmable
Brick
- 2 Large Motors
- 1 Medium Motor
- 1 Touch Sensor
- 1 Color Sensor
- 1 Ultrasonic Sensor
- 1 Remote Control
The purpose of the robot is to trace
the line. Then pick up the block, Turn
around and trace the line going
back, then it’ll hit the wall with it’s
touch sensor and stop.
Color Sensors
-
picks up the
intensity of the light that is
being traced.
Ultrasonic Sensors
-
it picks up
anything that is in front of the
robot by so many centimeters.
Touch Sensors -
When it touches
an object, it’ll stop.

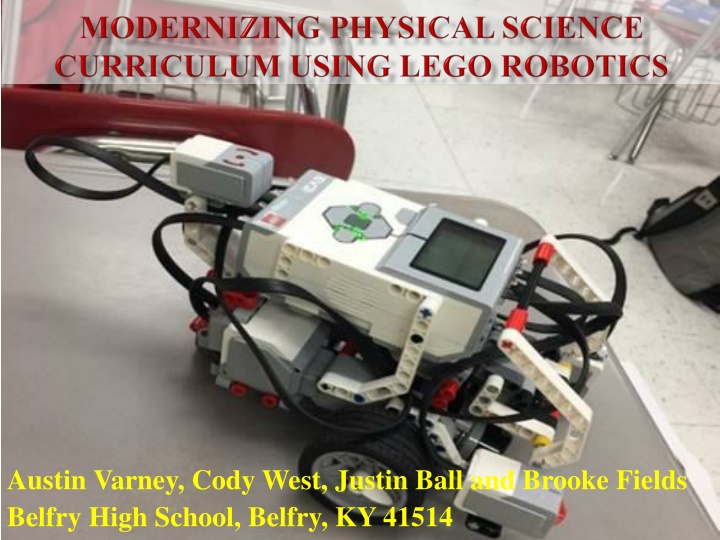

Final robot built using all the
components mentioned
Task for the Robot
To make the robot to work
Data Logging
Using the EV3 robot one learns through building
blocks, writing codes, perseverance and repetition.
In regular classroom one learns the basic concepts from
notes, lectures and direct hands on activities.
This is more enterprising and very interesting to achieve
a task. Once a result is achieved it is very satisfying.
In a regular classroom one does work through research
to find the answers and do logical math sometimes to do
a scientific equations
All the members in the KVEC for
providing funding through ARI
grant
Our Administration for constant
encouragement to do these type of
projects to enhance our knowledge
.
Belfry High School students Austin Varney, Cody West, Justin Ball, and Brooke Fields created a robotic system equipped with sensors and motors to trace lines, pick up objects, and navigate obstacles. The project involves building, coding, and problem-solving, providing an engaging hands-on learning experience. Funding from KVEC and support from the school administration have encouraged such innovative projects to enhance students' knowledge and skills.
