Opioids and the Brain's Receptors

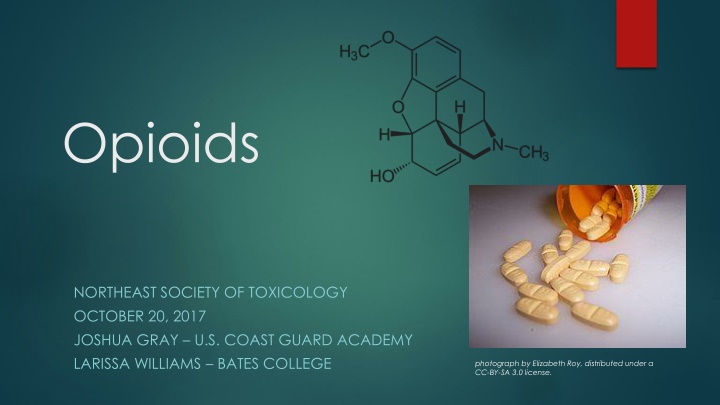

Opioids
NORTHEAST SOCIETY OF TOXICOLOGY
OCTOBER 20, 2017
JOSHUA GRAY – U.S. COAST GUARD ACADEMY
LARISSA WILLIAMS – BATES COLLEGE
photograph by Elizabeth Roy, distributed under a
CC-BY-SA 3.0 license.
History of Opium
Opium is an extract of poppy seeds which reduces pain and also
produces euphoria.
Morphine, named after the god Morpheus, is the most active
ingredient of opium.
Heroin was synthesized chemically by morphine diacetylation in the
late 1800s and was marketed as a non-addictive opiate to treat
cough and asthma. Later, it was recognized that heroin was in fact
addictive, and heroin and opium were both prohibited in 1910.
In the 1970s, it was discovered that there are particular receptors in
the brain to which morphine and heroin bind
Public domain photograph by
KGM007
photograph by Sumita Roy
Dutta, distributed under a CC-
BY-SA 4.0 license.
Vicodin and other oral opioid
medicines
Hydrocodone – semisynthetic opioid
Vicodin – combination hydrocodone and acetaminophen
Oxycodone – semisynthetic opioid
oxycodone
hydrocodone
codeine
Opioid Epidemic slide
Deaths due to all types of opioids
are rising
Fentanyl and other synthetic
opioids are rapidly becoming a
major cause of opioid deaths
Source: Centers for Disease Control
https://www.cdc.gov/mmwr/preview/
mmwrhtml/mm6450a3.htm
Why does the brain have opioid
receptors?
INSTRUCTIONS: DISCUSS WITH OTHERS WHY YOU THINK THE BRAIN HAS
RECEPTORS FOR OPIOIDS.
What kinds of behaviors do humans
do that are associated with
pleasure?
Emotions have evolved that encourage animals to engage in
behaviors with a beneficial outcome and avoid behaviors that
could reduce their chance of survival.
Positive emotions like pleasure, hedonism, or reward, when
associated with the ability to learn from experience, increase the
probability of the occurrence of a particular behavior, called
positive reinforcement.
Heroin causes a sense of pleasure,
or euphoria. What kinds of
behaviors are positively reinforced
by taking heroin?
photograph by Steve pb, distributed
under a CC0-1.0 Universal Public Domain
license.
Why do opioid users need to
escalate their dose? What
biochemical mechanism might be
playing a part?
Typically with opioid addiction, the patient escalates their dose over
time, such that a higher dose is required to achieve the same
degree of euphoria.
In order for opioids to
function, they must get to
the brain where they bind
to a receptor on the target
of the cell.
Hypothesize some ways in
which the cell might
become less sensitive to
opioids over time
When the receptor is bound
to an opioid, it activates a
signaling pathway inside
the cell, represented by a
star.
The number of receptors
bound to an opioid
molecule depends on the
amount of opioids present.
At the K
M
value, half of all of
the receptors will be bound.
Some cells require a certain
number of bound receptors
to initiate a response. This is
called a threshold
The threshold in this
example is 5.
If 5 or more receptors have
opioid bound, a positive
signal occurs
If less than 5 receptors have
opioid bound, no signal
occurs.
What happens to the
number of bound
receptors if the
concentration of opioids
changes?
The number of receptors
bound to an opioid
molecule depends on the
amount of opioids present.
At the K
M
value, half of all of
the receptors will be bound.
Some cells require a certain
number of bound receptors
to initiate a response. This is
called a threshold
The threshold in this
example is 5.
If 5 or more receptors have
opioid bound, a positive
signal occurs
If less than 5 receptors have
opioid bound, no signal
occurs.
What happens if the
number of receptors
expressed on the cell
surface drops?
To achieve the same level
of activation, what has to
happen in this case?
The magnitude of the
response is shown by the
size of the yellow star.
What happens if the cell
adapts to higher
receptor activation by
have a lower response?
Normal response
Weakened response
How would you, as a scientist,
design a drug that would help with
opioid addiction and withdrawal?
Nalaxone is a drug that
binds to the receptor but
does not activate it.
Nalaxone is indicated by a
purple circle.
What happens when
naloxone is added by
itself?
Nalaxone is a drug that
binds to the receptor but
does not activate it.
Nalaxone is indicated by a
purple circle.
Nalaxone is commonly
given to people who have
overdosed and are
comatose.
What happens when
heroin and naloxone
are administered at
the same time?
Buprenorphene is a drug
that binds to the receptor
with higher affinity but only
partially activates the
receptor . It is indicated by
a green circle.
What happens when
buprenorphine is
added?
The magnitude of the
response is shown by the
size of the yellow star.
Normal response
Weakened response
Buprenorphine is used as
an anti-opioid drug.
What happens when
heroin and
buprenorphine are
taken at the same time?
The magnitude of the
response is shown by the
size of the yellow star.
Normal response
Weakened response
References and resources for more
information
http://www.pbs.org/newshour/updates/brain-gets-hooked-opioids/
https://www.ncbi.nlm.nih.gov/pmc/articles/PMC2711509/
Acknowledgements
All images used in this powerpoint are licensed under a Creative
Commons license or are in the Public Domain unless otherwise
noted.
Images were found on the Wikimedia Commons
This PowerPoint was created by Joshua Gray of the U.S. Coast
Guard Academy and Larissa Williams of Bates College.
Additional Reference Slides
Chemical structures of synthetic
opioids
photograph by V. Höllt and C. Allgaier, distributed under a CC BY-SA 3.0 license.
