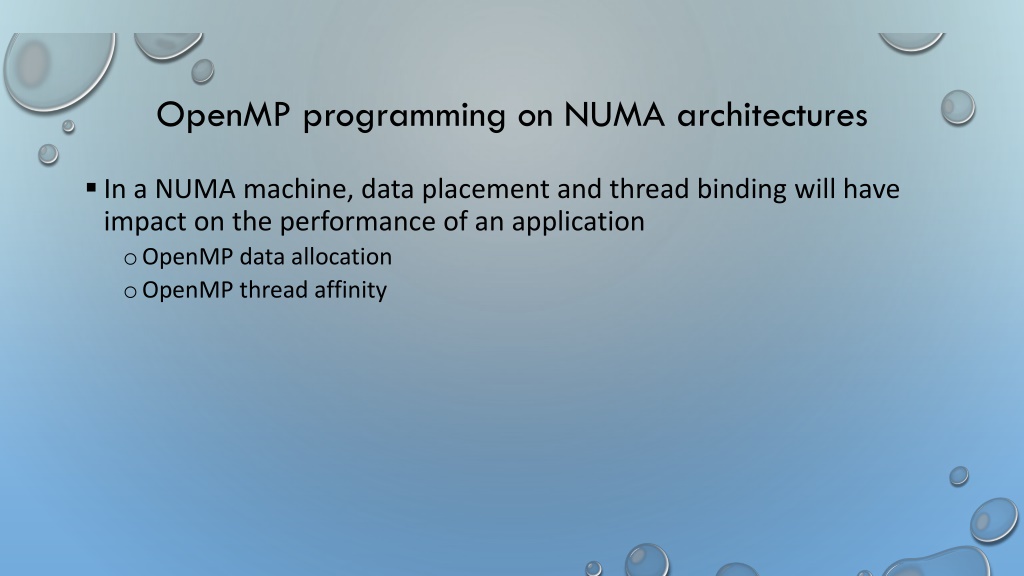

OpenMP programming on NUMA architectures
In a NUMA machine, data placement and thread binding will have
impact on the performance of an application
o
OpenMP data allocation
o
OpenMP thread affinity
NUMA Shared memory architecture
Current SMP systems adopt mostly NUMA
shared memory architecture.
Memory resides in “NUMA domains.”
o
Although memory are addressed with a global
address space, accessing different parts of
memory can result in different latency and
bandwidth.
o
Look at AMD’s EPYC architecture to see why.
o
“Local memory” offers higher bandwidth and
lower latency than “remote memory”.
NUMA Shared memory architecture
With OpenMP taking care of thread
creation/termination, the programmer
specifies the following
o
The parallel region
o
whether each variable is shared or private.
Programmer must also make sure that the
program does not have race condition!
Does a programmer need to worry about the
NUMA architecture?
Before we develop a strategy for exploiting
NUMA, let us first look at how to get NUMA
information of your computer.
Getting CPU and NUMA information in Linux
<linprog1:38> lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Byte Order: Little Endian
CPU(s): 56
On-line CPU(s) list: 0-55
Thread(s) per core: 2
Core(s) per socket: 14
Socket(s): 2
NUMA node(s): 2
Vendor ID: GenuineIntel
CPU family: 6
Model: 63
Model name: Intel(R) Xeon(R) CPU E5-2683 v3 @ 2.00GHz
2 processors
14 physical cores per processor
Hyperthreading on, 2 threads per core, 2*14*2=56
threads per node
Getting CPU and NUMA information in Linux
<linprog1:39> numactl --hardware
available: 2 nodes (0-1)
node 0 cpus: 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34
36 38 40 42 44 46 48 50 52 54
node 0 size: 128669 MB
node 0 free: 106564 MB
node 1 cpus: 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35
37 39 41 43 45 47 49 51 53 55
node 1 size: 129019 MB
node 1 free: 113990 MB
node distances:
node 0 1
0: 10 21
1: 21 10
Relative latency for memory references
Available memory on NUMA node
Logical cores enabled by hyperthreading
Getting CPU and NUMA information in Linux
Another useful tool: hwloc-ls
o
Gives more detailed NUMA information.
Impact of NUMA on performance of shared memory
programming
Where (which part of the memory) variables reside will have an
impact on performance.
o
May need to know and control which part of the memory a variable
resides?
Where (which core) does a thread run on will have an impact on
performance.
o
May need to know and control which core a thread runs on?
To achieve high performance on a NUMA architecture, the
programmer may need to take these into consideration.
Where (which NUMA domain) arrays are allocated?
This is determined by the OS.
Most OS has a default “first touch” policy: the first core that touches the
memory will get the memory in its NUMA domain.
For (i=0; i<100000; i++)
A[i] = 0.0;
A[0..99999]
#pragma omp parallel num_threads(2)
For (i=0; i<100000; i++)
A[i] = 0.0;
A[0..49999]
A[50000..99999]
Where (which NUMA domain) arrays are allocated?
“First touch” policy: the first core that touches the memory will get
the memory in its NUMA domain.
o
Parallel initialization or sequence initialization can make a big difference.
o
It is unclear which one is better. This depends on many factors -- reasoning
about memory performance is complicated.
o
See lect12/vector_omp.c for example (OMP_NUM_THREADS=2).
Binding threads to cores
Controlling where each thread runs is also important in a NUMA machine.
Different strategies can be used to bind a thread to a core
The most efficient binding depends on many factors, the NUMA topology,
how the data is placed, and the application characteristics (data access
patterns).
In general, threads may be put close to one another or apart from one
another (on different sockets).
Binding strategy
Putting threads far apart, i.e. on different sockets
o
May improve aggregated memory bandwidth to the application
o
May improve the combined cache size available to the application
o
May decrease performance of synchronization operations
Putting threads close together, i.e. on adjacent cores that potentially
share caches
o
May improve the performance of synchronization operations
o
May decrease the aggregated memory bandwidth to the application.
No clean-cut winner.
OpenMP’s control over binding
OMP_PLACES and OMP_PROC_BIND
o
Supported in OpenMP 4.0 and above.
o
On linprog /usr/bin/gcc has OpenMP 3.0. You can use
/usr/local/gcc/6.3.0/bin/gcc to get OpenMP 4.5.
A list of places can be specified in OMP_PLACES. The
place-partition-
var ICV ,
obtains its initial value from the OMP_PLACES value, and
makes the list available to the execution environment.
o
threads: each place corresponds to a hardware thread
o
cores: each place corresponds to a hardware core
o
sockets: each place corresponds to a single socket
o
the OMP_PLACES value can also explicitly enumerate comma separated
lists.
OMP_PLACES examples
setenv OMP_PLACES threads
setenv OMP_PLACES
cores
s
etenv
OMP_PLACES sockets
setenv OMP_PLACES "{0,1,2,3},{4,5,6,7},{8,9,10,11},{12,13,14,15}"setenv OMP_PLACES "{0:4},{4:4},{8:4},{12:4}"setenv OMP_PLACES "{0:4}:4:4"OMP_PROC_BIND
The value of OMP_PROC_BIND is either
true
,
false
, or a comma separated
list of
master
,
close,
or
spread
.
o
If the value is false, then thread binding is disable. Threads may be moved to any
places
o
Otherwise, thread binding is enabled. Threads are not moved from one place to
another.
o
master: assign every thread in the team to the same place as the master thread.
o
close : assign the threads in the team to places close to the place of the parent
thread.
o
spread: spread threads among places.
OpenMP thread affinity examples
From
https://pages.tacc.utexas.edu/~eijkhout/pcse/html/omp-
affinity.html
Example 1: The machine has two sockets and OMP_PLACES=sockets
o
thread 0 goes to socket 0
o
thread 1 goes to socket 1
o
thread 2 goes to socket 0
o
and so on.
OpenMP thread affinity examples
Example 2: The machine has two sockets and 16 cores.
OMP_PLACES=cores and OMP_PROC_BIND=close
o
thread 0 goes to core 0 in socket 0
o
thread 1 goes to core 1 in socket 0
o
thread 2 goes to core 2 in socket 0
o
……
o
thread 7 goes to core 7 in socket 0
o
thread 8 goes to core 8 in socket 1
o
and so on
OpenMP thread affinity examples
Example 3: The machine has two sockets and 16 cores.
OMP_PLACES=cores and OMP_PROC_BIND=spread
o
thread 0 goes to core 0 in socket 0
o
thread 1 goes to core 8 in socket 1
o
thread 2 goes to core 1 in socket 0
o
thread 3 goes to cores 9 in socket 1
o
and so on
Similar to OMP_PLACES=sockets, but bind threads to specific cores.
Summary
“First touch” memory placement.
OpenMP supports thread affinity control with places and binding.
Reasoning about performance at this level is hard.
o
You should try multiple thread affinity schemes to decide a good strategy.
