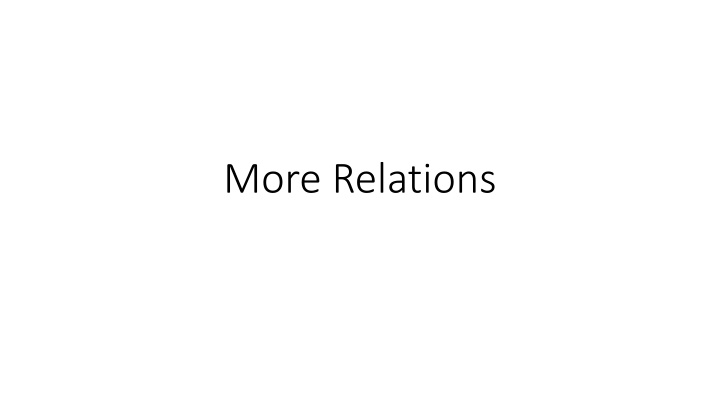

More Relations
More Relations

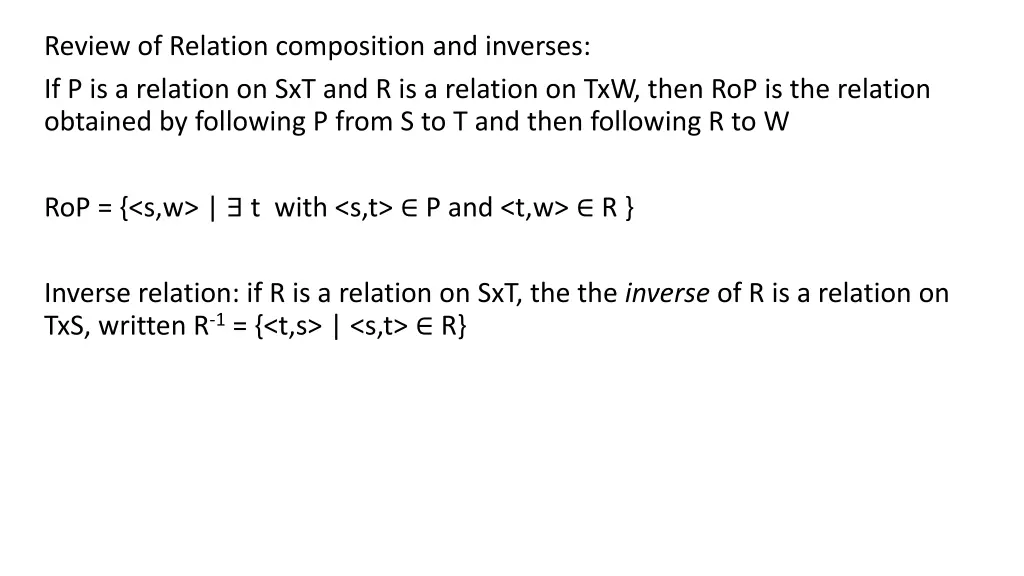

Review of Relation composition and inverses:
If P is a relation on SxT and R is a relation on TxW, then RoP is the relation
obtained by following P from S to T and then following R to W
RoP = {<s,w> | ∃
t with <s,t>
∈
P and <t,w>
∈
R }
Inverse relation: if R is a relation on SxT, the the
inverse
of R is a relation on
TxS, written R
-1
= {<t,s> | <s,t> ∈
R}
IP = IsParentOf = {<p,c> | p is the (biological) parent of c}(from exercises 8.26-8.31)
What is IP
-1
?
What is IP o IP = IP
2
?
What is IP
-1
o IP?
What is IP o IP
-1
?
What is IP o IP o IP
-1
o IP
-1
?
What is IP o IP
-1
o IP o IP
-1
?
Properties of Relations
•
Reflexive
•
A relation R on a set S is reflexive if
∀
s
∈
S, <s,s>
∈
R.
•
That is, every element of S is related to itself
•
Example: Relation |, divides, on Z: every integer evenly divides itself
•
Example: <= on Z:
∀
n
∈
Z, n <= n
•
Example: For any relation R on S, when is R
-1
o R is reflexive?
•
Example: < on Z is not reflexive:
∀
n
∈
Z, not true that n < n
•
If R on a finite set is reflexive, then in the graphical representation every node
has a loop – an arrow to itself.
•

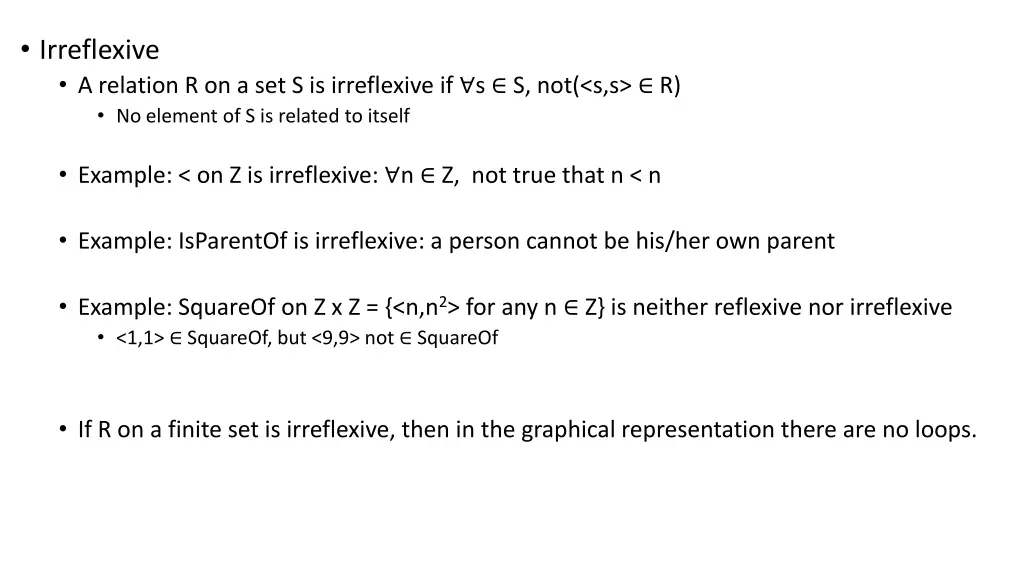

Irreflexive
•
A relation R on a set S is irreflexive if
∀
s
∈
S, not(<s,s>
∈
R)
•
No element of S is related to itself
•
Example: < on Z is irreflexive:
∀
n
∈
Z, not true that n < n
•
Example: IsParentOf is irreflexive: a person cannot be his/her own parent
•
Example: SquareOf on Z x Z = {<n,n2
> for any n
∈
Z} is neither reflexive nor irreflexive
•
<1,1>
∈
SquareOf, but <9,9> not
∈
SquareOf
•
If R on a finite set is irreflexive, then in the graphical representation there are no loops.
•
Symmetric
•
A relation R on S is symmetric if for any s, t
∈
S: <s,t>
∈
R
<t,s>
∈
R.
•
Example: IsSiblingOf on People is symmetric: If p is a sibling of q, then q is a sibling of p.
•
Example: The relation x = y mod 7 on Z
>=0
is symmetric. If x = y mod 7 , then y = x mod 7
•
This holds on any set of integers
•
Antisymmetric
•
A relation R on S is antisymmetric if for any s, t
∈
S: <s,t>,
<t,s>
∈
R
s = t
•
Example: I (divides) on Z
+
: if n|m and m|n, then n = m.
•
Example: <= on Z: if n <= m and m <= n, then n = m
•

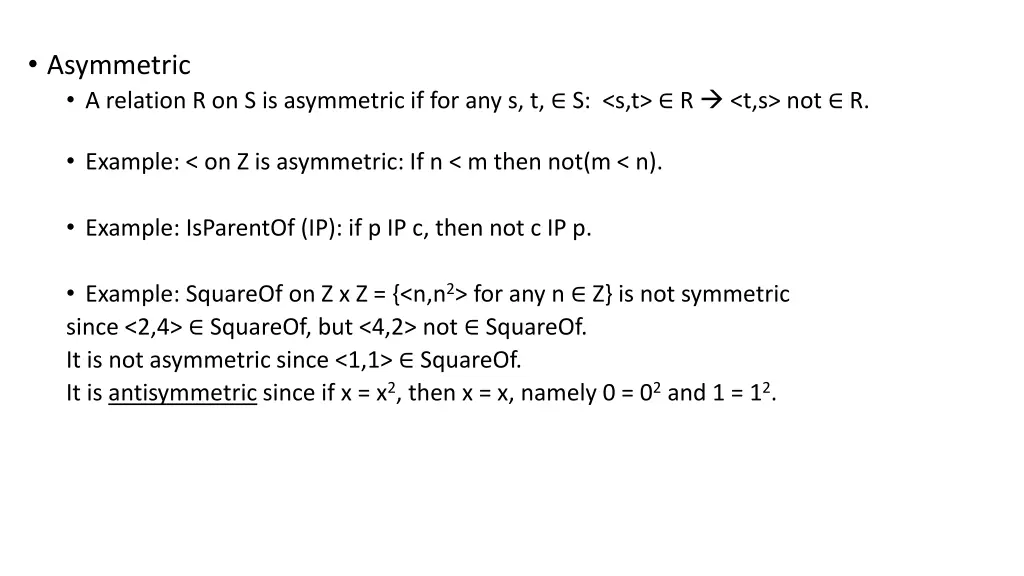

Asymmetric
•
A relation R on S is asymmetric if for any s, t,
∈
S: <s,t>
∈
R
<t,s> not
∈
R.
•
Example: < on Z is asymmetric: If n < m then not(m < n).
•
Example: IsParentOf (IP): if p IP c, then not c IP p.
•
Example: SquareOf on Z x Z = {<n,n2
> for any n
∈
Z} is not symmetric
since <2,4>
∈
SquareOf, but <4,2> not
∈
SquareOf.
It is not asymmetric since <1,1>
∈
SquareOf.
It is
antisymmetric
since if x = x
2
, then x = x, namely 0 = 0
2
and 1 = 1
2
.
Graphic representations
1
2
3
Which of these are symmetric, asymmetric, antisymmetric?
•
A relation can be none of the three: not symmetric, not antisymmetric,
not asymmetric.
•
Consider {<a,a>, <a,b>, <b,a>, <b,c>}•
Not symmetric: <b,c> but no <c,b>
•
Not asymmetric: <a,b> and <b,a>
•
Not antisymmetric: <a,b> and <b,a>, but a != b
Theorem 8.1 (Symmetry in terms of inverses)
Let
R
⊆
A × A
be a relation and let R
−1
be its inverse. Then
:
R is symmetric if and only if
R ∩ R
−1
= R = R
−1
.
R is antisymmetric if and only if
R ∩ R
−1
⊆ {〈a, a
〉
: a
∈
A
}.
R is asymmetric if and only if
R ∩ R
−1
=
Ø.
•
Transitivity
•
A relation R on S is transitive if for any s, t, w
∈
S: <s,t> and <t,w>
∈
R
<s,w>
∈
R
•
Example: R = IsAncestorOf on S = people. If p1 R p2 and p2 R p3, then p1 R p3.
•
Example: >= on Z or > on Z
•
Example: | (divides) on Z
+
: if a|b and b|c, then a|c
•
Example: SquareOf on Z
+
x Z
+
= {<n,n2
> for any n
∈
Z} is not transitive
•
<2,4> and <4,16>
∈
SquareOf, but <2,16> not
∈
SquareOf.
Closures
•
A closure of a relation, R on a set A, for a property is the
smallest
relation, C, such that
R
⊆
C
and
the property holds for C
.
•
Reflexive closure of R, Ref(R), is the smallest relation such that
R
⊆
Ref(R) and Ref(R) is reflexive.
•
Symmetric closure of R, Sym(R), is the smallest relation such that
R
⊆
Sym(R) and Sym(R) is symmetric.
•
Transitive closure of R, T(R), is the smallest relation such that
R
⊆
T(R) and T(R) is transitive.
Graphic representation of closures
Example 8.27 (Closures of divides)
Recall the “divides” relation | = {〈n
,
m
〉 :
m
divides
n evenly
}.
Because
R
is both reflexive and transitive, the reflexive closure and transitive closure
of
R
are both just
R
itself.
The symmetric closure of
R
is the set of pairs 〈
n
,
m
〉 where one of
n
and
m
is a
divisor of the other (in either order): {〈n
,
m
〉 :
n
|
m
or
m
|
n
}.
Example 8.28 (Closures of >)
Recall the “greater than” relation {〈n
,
m
〉 :
n
>
m
}.
The reflexive closure of > is ≥ —that is, the set {〈n
,
m
〉 :
n
≥
m
}.
The symmetric closure of > is the relation ≠ —that is,
the set {〈n
,
m
〉 :
n
>
m
or
m
>
n
} = {〈n
,
m
〉 :
n
≠
m
}.
The relation > is already transitive, so the transitive closure of > is > itself.
Computing Closures
•
Reflexive closure of R on A
•
R
∪
{<s,s> for all s ∈
S}
•
Symmetric Closure
•
R
∪ R
-1
•
Transitive Closure
•
R
∪ R
2
∪ R
-3
∪ R
4
∪… ∪ R
n
, where n = |A|
•
Warshall’s algorithm
What are the closures of the successor relation on R = {<n,n+1> | n ∈
Z }
Reflexive closure?
Symmetric closure?
Transitive closure?
Reflexive-transitive closure?
Reflexive-symmetric-transitive closure>
