Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
T
r
a
n
s
p
o
r
t
L
a
y
e
r
E.g. HTTP (used by web services) typically uses TCP
-
Reliable transport between client and server required
TCP
-
Steam oriented, not transaction oriented
-
Network friendly: time-out
congestion
slow down transmission
Well known – TCP guesses quite often wrong in wireless and
mobile networks
-
Packet loss due to transmission errors
-
Packet loss due to change of network
Result
-
Severe performance degradation
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Client
Server
Connection
setup
Data
transmission
Connection
release
TCP SYN
TCP SYN/ACK
TCP ACK
HTTP request
HTTP response
GPRS: 500ms!
>15 s
no data
M
o
t
i
v
a
t
i
o
n
I
Transport protocols typically designed for
-
Fixed end-systems
-
Fixed, wired networks
Research activities
-
Performance
-
Congestion control
-
Efficient retransmissions
TCP congestion control
-
packet loss in fixed networks typically due to (temporary) overload situations
-
router have to discard packets as soon as the buffers are full
-
TCP recognizes congestion only indirect via missing acknowledgements, retransmissions unwise, they would
only contribute to the congestion and make it even worse
-
slow-start algorithm as reaction
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
M
o
t
i
v
a
t
i
o
n
I
I
TCP slow-start algorithm
-
sender calculates a congestion window for a receiver
-
start with a congestion window size equal to one segment
-
exponential increase of the congestion window up to the congestion threshold, then linear increase
-
missing acknowledgement causes the reduction of the congestion threshold to one half of the current
congestion window
-
congestion window starts again with one segment
TCP fast retransmit/fast recovery
-
TCP sends an acknowledgement only after receiving a packet
-
if a sender receives several acknowledgements for the same packet, this is due to a gap in received packets at
the receiver
-
however, the receiver got all packets up to the gap and is actually receiving packets
-
therefore, packet loss is not due to congestion, continue with current congestion window (do not use slow-start)
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
I
n
f
l
u
e
n
c
e
s
o
f
m
o
b
i
l
i
t
y
o
n
T
C
P
-
m
e
c
h
a
n
i
s
m
s
TCP assumes congestion if packets are dropped
-
typically wrong in wireless networks, here we often have packet loss due to
transmission errors
-
furthermore,
mobility
itself can cause packet loss, if e.g. a mobile node roams from one access point (e.g.
foreign agent in Mobile IP) to another while there are still packets in transit to the wrong access point and
forwarding is not possible
The performance of an unchanged TCP can degrade severely
-
however, TCP cannot be changed fundamentally due to the large base of installation in the fixed network, TCP
for mobility has to remain compatible
-
the basic TCP mechanisms keep the whole Internet together
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
E
a
r
l
y
a
p
p
r
o
a
c
h
:
I
n
d
i
r
e
c
t
T
C
P
I
Indirect TCP or I-TCP segments the connection
-
no changes to the TCP protocol for hosts connected to the wired Internet, millions of computers use (variants
of) this protocol
-
optimized TCP protocol for mobile hosts
-
splitting of the TCP connection at, e.g., the foreign agent into 2 TCP connections, no real end-to-end connection
any longer
-
hosts in the fixed part of the net do not notice the characteristics of the wireless part
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
mobile host
access point
(foreign agent)
„wired“ Internet
„
w
i
r
e
l
e
s
s
“
T
C
P
s
t
a
n
d
a
r
d
T
C
P
I
-
T
C
P
s
o
c
k
e
t
a
n
d
s
t
a
t
e
m
i
g
r
a
t
i
o
n
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
mobile host
access point
2
Internet
access point
1
socket migration
and state transfer
I
n
d
i
r
e
c
t
T
C
P
I
I
Advantages
-
no changes in the fixed network necessary, no changes for the hosts (TCP protocol) necessary, all current
optimizations to TCP still work
-
transmission errors on the wireless link do not propagate into the fixed network
-
simple to control, mobile TCP is used only for one hop between, e.g., a foreign agent and mobile host
-
therefore, a very fast retransmission of packets is possible, the short delay on the mobile hop is known
Disadvantages
-
loss of end-to-end semantics, an acknowledgement to a sender does now not any longer mean that a receiver
really got a packet, foreign agents might crash
-
higher latency possible due to buffering of data within the foreign agent and forwarding to a new foreign agent
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
E
a
r
l
y
a
p
p
r
o
a
c
h
:
S
n
o
o
p
i
n
g
T
C
P
I
“Transparent” extension of TCP within the foreign agent
-
buffering of packets sent to the mobile host
-
lost packets on the wireless link (both directions!) will be retransmitted immediately by the mobile host or foreign
agent, respectively (so called “local” retransmission)
-
the foreign agent therefore “snoops” the packet flow and recognizes acknowledgements in both directions, it
also filters ACKs
-
changes of TCP only within the foreign agent
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
„wired“ Internet
buffering of data
end-to-end TCP connection
local retransmission
correspondent
host
foreign
agent
mobile
host
snooping of ACKs
S
n
o
o
p
i
n
g
T
C
P
I
I
Data transfer to the mobile host
-
FA buffers data until it receives ACK of the MH, FA detects packet loss via duplicated ACKs or time-out
-
fast retransmission possible, transparent for the fixed network
Data transfer from the mobile host
-
FA detects packet loss on the wireless link via sequence numbers, FA answers directly with a NACK to the MH
-
MH can now retransmit data with only a very short delay
Integration of the MAC layer
-
MAC layer often has similar mechanisms to those of TCP
-
thus, the MAC layer can already detect duplicated packets due to retransmissions and discard them
Problems
-
snooping TCP does not isolate the wireless link as good as I-TCP
-
snooping might be useless depending on encryption schemes
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
E
a
r
l
y
a
p
p
r
o
a
c
h
:
M
o
b
i
l
e
T
C
P
Special handling of lengthy and/or frequent disconnections
M-TCP splits as I-TCP does
-
unmodified TCP fixed network to supervisory host (SH)
-
optimized TCP SH to MH
Supervisory host
-
no caching, no retransmission
-
monitors all packets, if disconnection detected
-
set sender window size to 0
-
sender automatically goes into persistent mode
-
old or new SH reopen the window
Advantages
-
maintains semantics, supports disconnection, no buffer forwarding
Disadvantages
-
loss on wireless link propagated into fixed network
-
adapted TCP on wireless link
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
F
a
s
t
r
e
t
r
a
n
s
m
i
t
/
f
a
s
t
r
e
c
o
v
e
r
y
Change of foreign agent often results in packet loss
-
TCP reacts with slow-start although there is no congestion
Forced fast retransmit
-
as soon as the mobile host has registered with a new foreign agent, the MH sends duplicated
acknowledgements on purpose
-
this forces the fast retransmit mode at the communication partners
-
additionally, the TCP on the MH is forced to continue sending with the actual window size and not to go into
slow-start after registration
Advantage
-
simple changes result in significant higher performance
Disadvantage
-
further mix of IP and TCP, no transparent approach
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
T
r
a
n
s
m
i
s
s
i
o
n
/
t
i
m
e
-
o
u
t
f
r
e
e
z
i
n
g
Mobile hosts can be disconnected for a longer time
-
no packet exchange possible, e.g., in a tunnel, disconnection due to overloaded cells or multiplexing with higher
priority traffic
-
TCP disconnects after time-out completely
TCP freezing
-
MAC layer is often able to detect interruption in advance
-
MAC can inform TCP layer of upcoming loss of connection
-
TCP stops sending, but does now not assume a congested link
-
MAC layer signals again if reconnected
Advantage
-
scheme is independent of data
Disadvantage
-
TCP on mobile host has to be changed, mechanism depends on MAC layer
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
S
e
l
e
c
t
i
v
e
r
e
t
r
a
n
s
m
i
s
s
i
o
n
TCP acknowledgements are often cumulative
-
ACK n acknowledges correct and in-sequence receipt of packets up to n
-
if single packets are missing quite often a whole packet sequence beginning at the gap has to be retransmitted
(go-back-n), thus wasting bandwidth
Selective retransmission as one solution
-
RFC2018 allows for acknowledgements of single packets, not only acknowledgements of in-sequence packet
streams without gaps
-
sender can now retransmit only the missing packets
Advantage
-
much higher efficiency
“Disadvantage”
-
more complex software in a receiver, more buffer needed at the receiver
-
Might be a problem in really tiny devices…
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
H
i
s
t
o
r
i
c
a
l
:
T
r
a
n
s
a
c
t
i
o
n
o
r
i
e
n
t
e
d
T
C
P
TCP phases
-
connection setup, data transmission, connection release
-
using 3-way-handshake needs 3 packets for setup and release, respectively
-
thus, even short messages need a minimum of 7 packets!
Transaction oriented TCP
-
RFC1644, T-TCP, describes a TCP version to avoid this overhead
-
connection setup, data transfer and connection release can be combined
-
thus, only 2 or 3 packets are needed
Advantage
-
efficiency
Disadvantage
-
requires changed TCP
-
mobility not longer transparent
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
C
o
m
p
a
r
i
s
o
n
o
f
d
i
f
f
e
r
e
n
t
a
p
p
r
o
a
c
h
e
s
f
o
r
a
“
m
o
b
i
l
e
”
T
C
P
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
T
C
P
I
m
p
r
o
v
e
m
e
n
t
s
I
Initial research work
-
Indirect TCP, Snoop TCP, M-TCP, T/TCP,
SACK, Transmission/time-out freezing, …
TCP over 2.5/3G wireless networks
-
Fine tuning of TCP, RFC3481 – best current practice (BCP 71, 2003)
-
Learn to live with
sometimes
-
Data rates: 64 kbit/s up, 115-384 kbit/s down; asymmetry: 3-6, but also up to 1000 (broadcast systems),
periodic allocation/release of channels
-
High latency, high jitter, packet loss
-
Suggestions
-
Large (initial) sending windows, large maximum transfer unit, selective acknowledgement, explicit congestion
notification, time stamp, no header compression
-
Widespread use in adapted protocol stacks
-
“Historical”: i-mode running over FOMA, WAP 2.0 (“TCP with wireless profile”)
Alternative congestion control algorithms
-
TCP Vegas (cong. control with focus on packet delay, rather than packet loss)
-
TCP Westwood plus (use ACK stream for better setting cong. control), (New) Veno, Santa Cruz, …
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
•
m
a
x
.
T
C
P
B
a
n
d
W
i
d
t
h
•
M
a
x
.
S
e
g
m
e
n
t
S
i
z
e
•
R
o
u
n
d
T
r
i
p
T
i
m
e
•
l
o
s
s
p
r
o
b
a
b
i
l
i
t
y
T
C
P
I
m
p
r
o
v
e
m
e
n
t
s
I
I
Performance enhancing proxies (PEP, RFC 3135)
-
Transport layer
-
Local retransmissions and acknowledgements
-
Additionally on the application layer
-
Content filtering, compression, picture downscaling
-
E.g., Internet/WAP gateways
-
Web service gateways?
-
Big problem: breaks end-to-end semantics
-
Disables use of IP security
-
Choose between PEP and security!
More open issues
-
RFC 3150 / BCP 48 (slow links)
-
Recommends header compression, no timestamp
-
RFC 3155 / BCP 50 (links with errors)
-
States that explicit congestion notification cannot be used
-
In contrast to 2.5G/3G recommendations!
Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Mobile system
Comm. partner
wireless
Internet
Mobile communications require efficient transport protocols like TCP for reliable data transmission in wireless and mobile networks. This involves addressing challenges such as packet loss, network congestion, and performance degradation. Key topics include TCP mechanisms, congestion control, and optimizations for 2.5G/3G wireless networks.
Uploaded on Oct 04, 2024 | 2 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

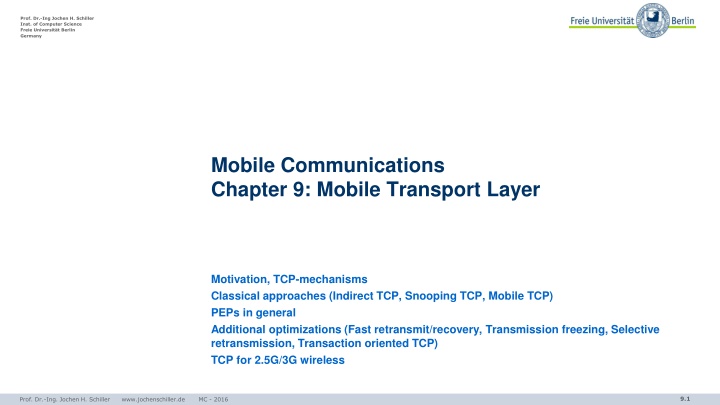

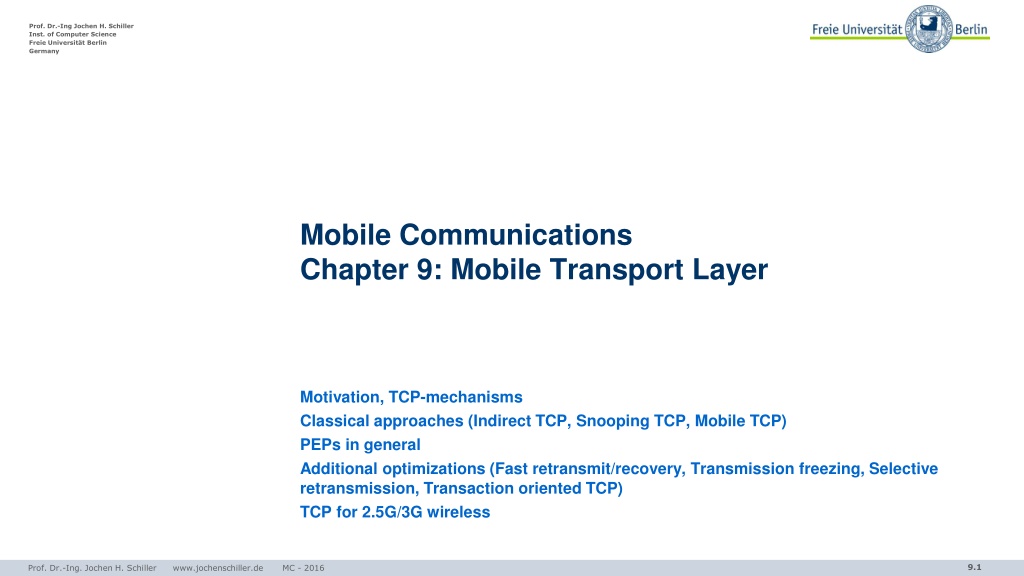

Prof. Dr.-Ing Jochen H. Schiller Inst. of Computer Science Freie Universit t Berlin Germany Mobile Communications Chapter 9: Mobile Transport Layer Motivation, TCP-mechanisms Classical approaches (Indirect TCP, Snooping TCP, Mobile TCP) PEPs in general Additional optimizations (Fast retransmit/recovery, Transmission freezing, Selective retransmission, Transaction oriented TCP) TCP for 2.5G/3G wireless 9.1 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Transport Layer E.g. HTTP (used by web services) typically uses TCP - Reliable transport between client and server required Client Server TCP SYN TCP SYN/ACK Connection setup TCP - Steam oriented, not transaction oriented - Network friendly: time-out congestion slow down transmission TCP ACK HTTP request Data transmission HTTP response Well known TCP guesses quite often wrong in wireless and mobile networks - Packet loss due to transmission errors - Packet loss due to change of network >15 s no data Connection release GPRS: 500ms! Result - Severe performance degradation 9.2 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Motivation I Transport protocols typically designed for -Fixed end-systems -Fixed, wired networks Research activities -Performance -Congestion control -Efficient retransmissions TCP congestion control -packet loss in fixed networks typically due to (temporary) overload situations -router have to discard packets as soon as the buffers are full -TCP recognizes congestion only indirect via missing acknowledgements, retransmissions unwise, they would only contribute to the congestion and make it even worse -slow-start algorithm as reaction 9.3 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Motivation II TCP slow-start algorithm -sender calculates a congestion window for a receiver -start with a congestion window size equal to one segment -exponential increase of the congestion window up to the congestion threshold, then linear increase -missing acknowledgement causes the reduction of the congestion threshold to one half of the current congestion window -congestion window starts again with one segment TCP fast retransmit/fast recovery -TCP sends an acknowledgement only after receiving a packet -if a sender receives several acknowledgements for the same packet, this is due to a gap in received packets at the receiver -however, the receiver got all packets up to the gap and is actually receiving packets -therefore, packet loss is not due to congestion, continue with current congestion window (do not use slow-start) 9.4 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Influences of mobility on TCP-mechanisms TCP assumes congestion if packets are dropped -typically wrong in wireless networks, here we often have packet loss due to transmission errors -furthermore, mobility itself can cause packet loss, if e.g. a mobile node roams from one access point (e.g. foreign agent in Mobile IP) to another while there are still packets in transit to the wrong access point and forwarding is not possible The performance of an unchanged TCP can degrade severely -however, TCP cannot be changed fundamentally due to the large base of installation in the fixed network, TCP for mobility has to remain compatible -the basic TCP mechanisms keep the whole Internet together 9.5 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Early approach: Indirect TCP I Indirect TCP or I-TCP segments the connection -no changes to the TCP protocol for hosts connected to the wired Internet, millions of computers use (variants of) this protocol -optimized TCP protocol for mobile hosts -splitting of the TCP connection at, e.g., the foreign agent into 2 TCP connections, no real end-to-end connection any longer -hosts in the fixed part of the net do not notice the characteristics of the wireless part mobile host access point (foreign agent) wired Internet standard TCP wireless TCP 9.6 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
I-TCP socket and state migration access point1 socket migration and state transfer Internet access point2 mobile host 9.7 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Indirect TCP II Advantages -no changes in the fixed network necessary, no changes for the hosts (TCP protocol) necessary, all current optimizations to TCP still work -transmission errors on the wireless link do not propagate into the fixed network -simple to control, mobile TCP is used only for one hop between, e.g., a foreign agent and mobile host -therefore, a very fast retransmission of packets is possible, the short delay on the mobile hop is known Disadvantages -loss of end-to-end semantics, an acknowledgement to a sender does now not any longer mean that a receiver really got a packet, foreign agents might crash -higher latency possible due to buffering of data within the foreign agent and forwarding to a new foreign agent 9.8 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Fast retransmit/fast recovery Change of foreign agent often results in packet loss -TCP reacts with slow-start although there is no congestion Forced fast retransmit -as soon as the mobile host has registered with a new foreign agent, the MH sends duplicated acknowledgements on purpose -this forces the fast retransmit mode at the communication partners -additionally, the TCP on the MH is forced to continue sending with the actual window size and not to go into slow-start after registration Advantage -simple changes result in significant higher performance Disadvantage -further mix of IP and TCP, no transparent approach 9.12 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Transmission/time-out freezing Mobile hosts can be disconnected for a longer time -no packet exchange possible, e.g., in a tunnel, disconnection due to overloaded cells or multiplexing with higher priority traffic -TCP disconnects after time-out completely TCP freezing -MAC layer is often able to detect interruption in advance -MAC can inform TCP layer of upcoming loss of connection -TCP stops sending, but does now not assume a congested link -MAC layer signals again if reconnected Advantage -scheme is independent of data Disadvantage -TCP on mobile host has to be changed, mechanism depends on MAC layer 9.13 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Selective retransmission TCP acknowledgements are often cumulative -ACK n acknowledges correct and in-sequence receipt of packets up to n -if single packets are missing quite often a whole packet sequence beginning at the gap has to be retransmitted (go-back-n), thus wasting bandwidth Selective retransmission as one solution -RFC2018 allows for acknowledgements of single packets, not only acknowledgements of in-sequence packet streams without gaps -sender can now retransmit only the missing packets Advantage -much higher efficiency Disadvantage -more complex software in a receiver, more buffer needed at the receiver -Might be a problem in really tiny devices 9.14 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Historical: Transaction oriented TCP TCP phases -connection setup, data transmission, connection release -using 3-way-handshake needs 3 packets for setup and release, respectively -thus, even short messages need a minimum of 7 packets! Transaction oriented TCP -RFC1644, T-TCP, describes a TCP version to avoid this overhead -connection setup, data transfer and connection release can be combined -thus, only 2 or 3 packets are needed Advantage -efficiency Disadvantage -requires changed TCP -mobility not longer transparent 9.15 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
Comparison of different approaches for a mobile TCP Approach Indirect TCP Mechanism splits TCP connection into two connections Advantages isolation of wireless link, simple Disadvantages loss of TCP semantics, higher latency at handover problematic with encryption, bad isolation of wireless link Bad isolation of wireless link, processing overhead due to bandwidth management mixed layers, not transparent changes in TCP required, MAC dependant slightly more complex receiver software, more buffer needed changes in TCP required, not transparent Snooping TCP transparent for end-to- end connection, MAC integration possible Maintains end-to-end semantics, handles long term and frequent disconnections simple and efficient snoops data and acknowledgements, local retransmission splits TCP connection, chokes sender via window size M-TCP Fast retransmit/ fast recovery Transmission/ time-out freezing avoids slow-start after roaming freezes TCP state at disconnect, resumes after reconnection retransmit only lost data independent of content or encryption, works for longer interrupts very efficient Selective retransmission Transaction oriented TCP combine connection setup/release and data transmission Efficient for certain applications 9.16 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
TCP Improvements I . 0 93 * MSS * BW Initial research work -Indirect TCP, Snoop TCP, M-TCP, T/TCP, SACK, Transmission/time-out freezing, RTT p max. TCP BandWidth Max. Segment Size Round Trip Time loss probability TCP over 2.5/3G wireless networks -Fine tuning of TCP, RFC3481 best current practice (BCP 71, 2003) -Learn to live with sometimes -Data rates: 64 kbit/s up, 115-384 kbit/s down; asymmetry: 3-6, but also up to 1000 (broadcast systems), periodic allocation/release of channels -High latency, high jitter, packet loss -Suggestions -Large (initial) sending windows, large maximum transfer unit, selective acknowledgement, explicit congestion notification, time stamp, no header compression -Widespread use in adapted protocol stacks - Historical : i-mode running over FOMA, WAP 2.0 ( TCP with wireless profile ) Alternative congestion control algorithms - TCP Vegas (cong. control with focus on packet delay, rather than packet loss) - TCP Westwood plus (use ACK stream for better setting cong. control), (New) Veno, Santa Cruz, 9.17 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
TCP Improvements II Performance enhancing proxies (PEP, RFC 3135) -Transport layer -Local retransmissions and acknowledgements -Additionally on the application layer -Content filtering, compression, picture downscaling -E.g., Internet/WAP gateways -Web service gateways? -Big problem: breaks end-to-end semantics -Disables use of IP security -Choose between PEP and security! Mobile system wireless PEP Internet More open issues -RFC 3150 / BCP 48 (slow links) -Recommends header compression, no timestamp -RFC 3155 / BCP 50 (links with errors) -States that explicit congestion notification cannot be used -In contrast to 2.5G/3G recommendations! Comm. partner 9.18 Prof. Dr.-Ing. Jochen H. Schiller www.jochenschiller.de MC - 2016
