Methods for Evaluating Matrix Exponential
Several Ways of
Evaluating the
Matrix Exponential
In partial fulfillment of the Senior Comps requirement
By: Hector Lopez
Advisor: Prof. Ron Buckmire
1
Outline:
1.
Introducing the Matrix Exponential
2.
Method 1: Cauchy’s Integral Formula
3.
Method 2: Putzer’s equation via Laplace Transforms
4. Conclusion
2
Motivation
3
4
The Cauchy Integral
Formula
5
6
7
Process
Contour
8
9
Method 2: Putzer’s equation
10
11
Putzer’s Equation Defined
Laplace Transformations
•
Useful technique for solving linear ODE equations
•
Laplace Transformation is denoted as
•
Inverse Laplace Transformation:
•
Since we are dealing with a system of ordinary differential equations, we
are using the Laplace Transformation of a derivative.
•
Apply this to the recursive system:
.
12
13
•
Now, let’s evaluate the matrix exponential using the matrix
that was previously introduced.
•
Eigenvalues of our matrix
:
14
Example
Finally,
This solution is identical to the solution that we obtained from
using Cauchy’s Integral Formula
.
15
Cayley-Hamilton Theorem
16
17
18
Proof
19
Recall:
Recall:
20
Conclusion
21
22
Lagrange Interpolation
23
This study delves into various techniques for evaluating the matrix exponential, including the Cauchy Integral Formula and Putzer's equation via Laplace Transforms. Motivated by linear ordinary differential equations, the matrix exponential is explored in depth, showcasing its applications and significance in mathematical analysis.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

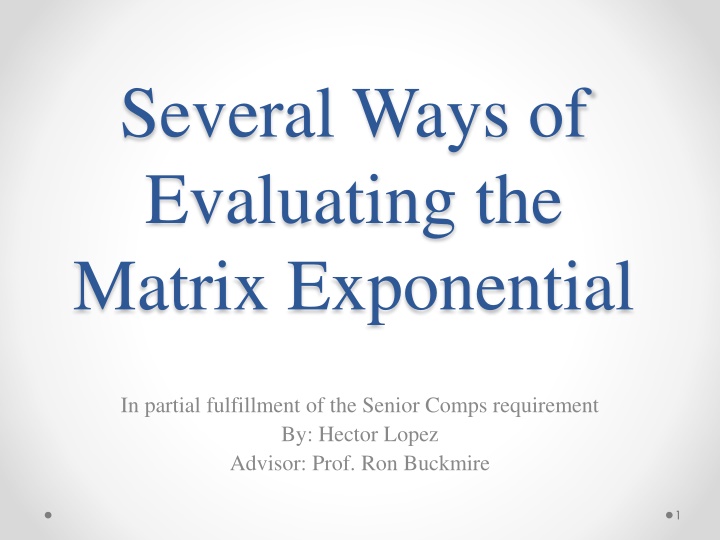

Several Ways of Evaluating the Matrix Exponential In partial fulfillment of the Senior Comps requirement By: Hector Lopez Advisor: Prof. Ron Buckmire 1
