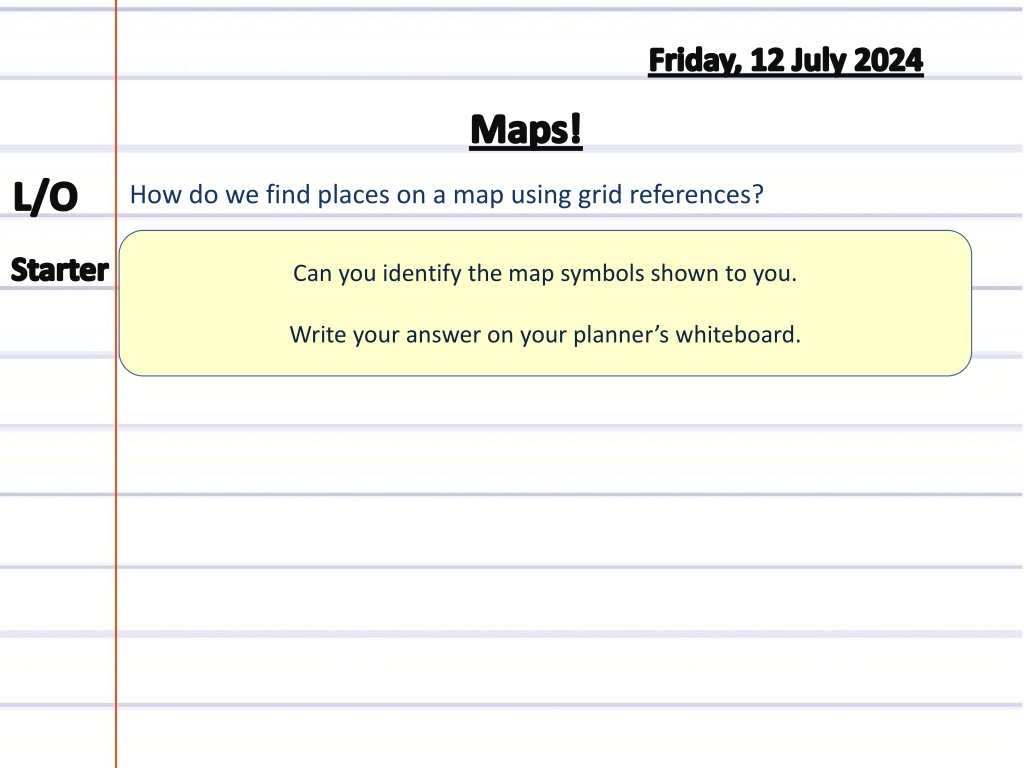

Friday, 12 July 2024 Maps! L/O How do we find places on a map using grid references? Starter Can you identify the map symbols shown to you. Write your answer on your planner s whiteboard.
L/O - How do we find places on a map using grid references? Identify 6 figure grid references with help (level 4) Identify 6 figure grid references with some accuracy (level 5) Identify 6 figure grid references independently with accuracy (level 6) Six-figure grid references In your head, you should be able to divide all sides of the square into ten equal sections. By doing this, you can pinpoint locations within each grid square. X axis, y axis, coordinate, grid reference, along the corridor and up the stairs
L/O - How do we find places on a map using grid references? Identify 6 figure grid references with help (level 4) Identify 6 figure grid references with some accuracy (level 5) Identify 6 figure grid references independently with accuracy (level 6) The following slides will guide you through how to find a 6 figure grid reference. X axis, y axis, coordinate, grid reference, along the corridor and up the stairs
Here is one square from a map. What do these OS symbols stand for? 26 25 77 78
The four-figure grid reference for this square is 7725. Why? 26 Lines meet at bottom left. 25 77 78
In order to give something a six-figure grid reference, imagine the larger square split into one hundred smaller squares. 26 25 77 78
Then add numbers 1 to 10 between the main lines. 26 9 8 7 6 5 4 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78
To work out the six-figure grid reference, first go along the bottom line and calculate the first three figures. 26 9 8 7 6 5 4 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78
The churchs first three figures are ...... 773 26 9 8 7 6 5 4 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78 773
Next, work out the last three figures by going up the side of the square. 26 9 8 7 6 5 4 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78 773
The last three figures are ...... 253 26 9 8 7 6 5 4 253 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78 773
So, the six-figure grid reference for the church is ..... 773253 26 9 8 7 6 5 4 253 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78 773
What is the six-figure grid reference for the bus station? 26 9 258 8 7 6 777258 5 4 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78 777
What is the six-figure grid reference for the picnic area? 26 9 8 7 6 5 4 3 2 1 25 1 2 3 4 5 6 7 8 9 77 78
There are no lines in the squares on a real OS map! You have to estimate. What is the grid reference for parking? 26 I think it s 774257. P Do you agree with me? Why? 25 77 78
L/O - How do we find places on a map using grid references? Identify 6 figure grid references with help (level 4) Identify 6 figure grid references with some accuracy (level 5) Identify 6 figure grid references independently with accuracy (level 6) Confident in what you are doing? Choose a worksheet to try and complete. Spice indicates the difficulty of the task. Easiest I m still developing this skill Medium I feel I m secure and I know what I m doing Most challenging I am confident I have mastered this skill X axis, y axis, coordinate, grid reference, along the corridor and up the stairs
L/O - How do we find places on a map using grid references? Identify 6 figure grid references with help (level 4) Identify 6 figure grid references with some accuracy (level 5) Identify 6 figure grid references independently with accuracy (level 6) Plenary Board 10 mins or more choose and extend or assess task 8 mins or more assess or reflect task 5 mins or less roll a plenary X axis, y axis, coordinate, grid reference, along the corridor and up the stairs
Answer these questions in your books 14 Is in square _____ Is in square _____ Is in square _____ 13 Is in square _____ Is in square _____ 12 Is in square _____ Extension: Now create your own grid with questions. 11 03 04 01 02 Stretch and Challenge Can you work out how to use 6- figure grid references? Learning objectives All: Identify 4-figure grid references (level 3) Most: Explain how to find 4-figure grid references (level 4) Some: To try to use 6 figure grid references (level 5)
