MARIE: Introduction to Simple Computer System
MARIE:
An Introduction to a Simple Computer
Lecture Overview
A simple program
A discussion on assemblers
Extending our ISA
A simple program
A Simple program
The figure below shows a program written in
assembly language for MARIE
What does this program do?
A simple program
A Simple program
This program simply adds to numbers and stores the
result in the main memory.
•
It loads the value stored at the location address 104
16
into
AC (the value is 0023
16
= 35
10
), ),
(2*16
1
+3*16
0
) or 0000 0000 00
10 0011
=35)
•
It adds this value to the value stored at the location
address 105
16
(the value is FFE9
16
= (-23)
10
),
(1111 1111 1110
1001)=0000 0000 0001 0110+1 =-23)
•
Stores the sum into the location address 106
16
.
-
So what will be stored in the location address 106
16
?
Now let us discover what happens during each “Fetch,
decode, execute” cycle.
Lecture Overview
A simple program
A discussion on assemblers
Extending our ISA
What do Assemblers do
A discussion on Assemblers
Assembly language
can be understood by the programmer
but not the computer!
Assembly language must be converted into
Machine Codes
(binary codes) before being executed or even stored in the
main memory.
An Assembler
is used to translate assembly language into
machine code
•
It reads a
source file
(assembly program) and convert it to an
object file
(Machine code)
Assembler VS Compiler
•
An assembler translates each mnemonic instruction (written in
assembly) to exactly one machine code.
•
With compilers, this is not usually the case
Remember -
Registers and Buses
MARIE
The Data path in MARIE
is shown in this figure
•
Note that a data word
(that is an instruction) in
the main memory travels
a relatively long path
before achieving the IR!
Remember -
The Fetch-Decode-Execute cycle
Instruction processing
MARIE, like any
other computer
architecture, follow
the basic machine
cycle:
•
the fetch, decode,
and execute cycle
Fetch
Decode
Execute
Remember -
The Von Neumann model
Chapter 1: Introduction
Instruction 1
Instruction 2
Instruction 3
Instruction 4
…
…
…
Instruction N
Instruction 3
1.
Fetch
•
PC indicates
the iteration
number
•
CU fill the
instruction
register
2. Decode
•
what ALU
should do
(add, multiply,
…)?
•
Fill registers
with needed
data
Data 1
Data 2
Remember -
The Von Neumann model
Instruction 1
Instruction 2
Instruction 3
Instruction 4
…
…
…
Instruction N
Instruction 3
3. Execute
•
Execute the
instruction
•
Place the
results in
registers or
memory
Data 1
Data 2
Result
The Instruction Set Architecture
MARIE
The fundamental MARIE instructions are:
What do Assemblers do
A discussion on Assemblers
Going back to our simple program, what
really happens inside the CPU during each
fetch, decode, execute cycle?
•
Load 104:
What do Assemblers do
A discussion on Assemblers
•
Add 105:
•
Store 106:
What do Assemblers do
A discussion on Assemblers
An assembler directive
is an instruction that
is not supposed to be translated into machine
code
In assembly language we can also use
labels
in order to clarify the program
•
Example:
base 16 is the
default base when writing
assembly program for MARIE,
to specify the used base we
can use “constant directives”
such as DEC (decimal) or HEX
(Hexadecimal)
An introduction to MARIE, a simple computer system, explaining a program written in assembly language that adds two numbers and stores the result in memory. The process involves fetching, decoding, and executing instructions. The importance of assemblers in translating assembly language to machine code is also discussed, highlighting the role of registers and buses in instruction processing.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

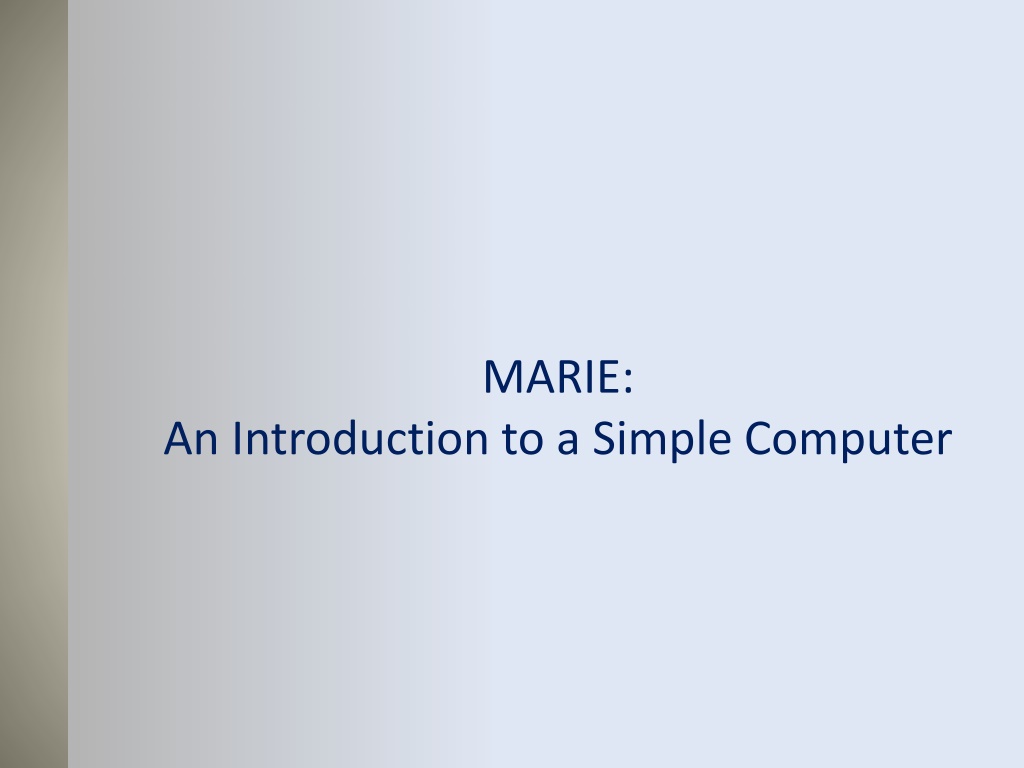

MARIE: An Introduction to a Simple Computer
Lecture Overview A simple program A discussion on assemblers Extending our ISA 2
A Simple program A simple program The figure below shows a program written in assembly language for MARIE What does this program do? 3
A Simple program A simple program This program simply adds to numbers and stores the result in the main memory. It loads the value stored at the location address 10416into AC (the value is 002316= 3510), ), (2*161+3*160) or 0000 0000 0010 0011 =35) It adds this value to the value stored at the location address 10516(the value is FFE916= (-23)10), (1111 1111 1110 1001)=0000 0000 0001 0110+1 =-23) Stores the sum into the location address 10616. - So what will be stored in the location address 10616? Now let us discover what happens during each Fetch, decode, execute cycle. 4
Lecture Overview A simple program A discussion on assemblers Extending our ISA 5
A discussion on Assemblers What do Assemblers do Assembly language can be understood by the programmer but not the computer! Assembly language must be converted into Machine Codes (binary codes) before being executed or even stored in the main memory. An Assembler is used to translate assembly language into machine code It reads a source file (assembly program) and convert it to an object file (Machine code) Assembler VS Compiler An assembler translates each mnemonic instruction (written in assembly) to exactly one machine code. With compilers, this is not usually the case 6
MARIE Remember - Registers and Buses The Data path in MARIE is shown in this figure Note that a data word (that is an instruction) in the main memory travels a relatively long path before achieving the IR! 7
Instruction processing Remember - The Fetch-Decode-Execute cycle MARIE, like any other computer architecture, follow the basic machine cycle: the fetch, decode, and execute cycle Fetch Decode Execute 8
Chapter 1: Introduction Remember - The Von Neumann model 1. Fetch Instruction 1 PC indicates the iteration number CU fill the instruction register Instruction 2 Instruction 3 Instruction 3 Data 1 Data 2 Instruction 4 2. Decode what ALU should do (add, multiply, )? Fill registers with needed data Instruction N 9
Remember - The Von Neumann model 3. Execute Execute the instruction Place the results in registers or memory Instruction 1 Instruction 2 Instruction 3 Instruction 3 Data 1 Data 2 Instruction 4 Result Instruction N 10
MARIE The Instruction Set Architecture The fundamental MARIE instructions are: 11
A discussion on Assemblers What do Assemblers do Going back to our simple program, what really happens inside the CPU during each fetch, decode, execute cycle? Load 104: 12
A discussion on Assemblers What do Assemblers do Add 105: Store 106: 13
A discussion on Assemblers What do Assemblers do An assembler directive is an instruction that is not supposed to be translated into machine code Example: base 16 is the default base when writing assembly program for MARIE, to specify the used base we can use constant directives such as DEC (decimal) or HEX (Hexadecimal) In assembly language we can also use labels in order to clarify the program 14
