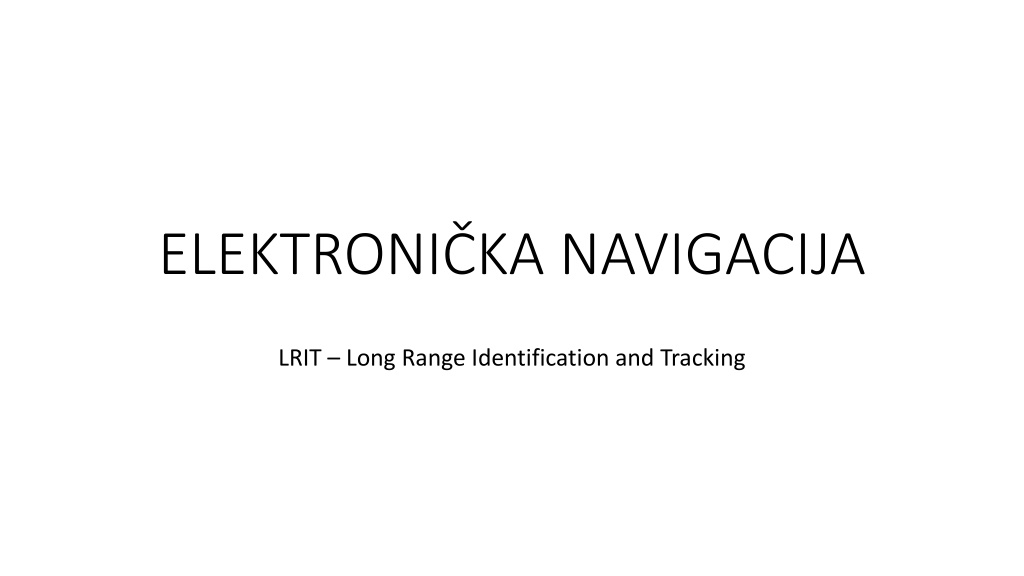

LRIT – Long Range Identification and Tracking
S
u
s
t
a
v
p
r
a
ć
e
n
j
a
i
i
d
e
n
t
i
f
i
k
a
c
i
j
e
b
r
o
d
o
v
a
v
e
l
i
k
o
g
d
o
m
e
t
a
–
L
R
I
T
•
LRIT (
Long Range Identification and Tracking of ships
– LRIT
)
sustavom omogućena je
identifikacija i praćenje brodova na globalnoj razini u sigurnosne svrhe.Sustav
uspostavljen 19.05.2006. Brodovi su dužni odašiljati podatke ovlaštenim tijelima –
državama zastava. Uz zahtjeve rezolucije A.694(17), brodski uređaj za odašiljanje LRIT
podataka mora ispunjavati i zahtjeve definirane u rezoluciji MSC.263(84):
•
automatski i samostalno odašiljati brodske podatke
Podatkovnim centrima u
vremenskim intervalima
od 6 sati ili na zahtjev
;
•
pružati mogućnost daljinskog odašiljanja podataka
, bez obzira gdje se brod nalazi, kako
bi se LRIT podaci mogli primati u promjenjivim intervalima, u rasponu od
15 minuta do 6
sati;
•
odašiljati podatke upravljanim
(unaprijed zakazanim), odnosno pozivanim (na zahtjev)
načinom rada;
•
mora biti izravno spojen sa brodskom GNSS opremom
, ili mora imati svoj izvor
određivanja pozicije.
L
R
I
T
•
Prema SOLAS konvenciji od 1.1.2009., svi putnički brodovi, HSC brodovi, mobilni
odobalni objekti i teretni brodovi veći od 300 GT trebaju biti opremljeni LRIT
sustavom koji je reguliran od strane IMO-a
•
Brodovi opremljeni LRIT sustavom imaju sposobnost odašiljanja identifikacijskih
podataka i podataka o lokaciji broda
•
LRIT sustav mora biti certificiran od strane ASP-a (Application Service Provider)
priznat od administrativne strane LRIT testing ASP
•
Vlade potpisnice LRIT projekta dužne su implementirati nacionalni LRIT
podatkovni centar ili se pridružiti regionalnom LRIT podatkovnom centru za
određeno područje s ciljem osiguranja razmjene podataka s brodova četiri puta
dnevno
•
LRIT sustav također omogućuje obalnim državama potpisnicama ovog projekta da
identificiraju svaki brod na 1000 M udaljenosti od obale, neovisno o državnoj
pripadnosti broda
S
u
s
t
a
v
p
r
a
ć
e
n
j
a
i
i
d
e
n
t
i
f
i
k
a
c
i
j
e
b
r
o
d
o
v
a
v
e
l
i
k
o
g
d
o
m
e
t
a
-
L
R
I
T
•
LRIT
sustav za jednosmjernu
komunikaciju koristi postojeće satelitske
sustave (
Inmarsat i Iridium
). U svakoj poruci, brodski LRIT uređaj
odašilje identifikacijske podatke:
(IMO broj i MMSI broj), geografsku
poziciju broda te datum i vrijeme određivanja pozicije.
Pozicija može
biti određena pomoću integriranog GNSS prijamnika.
Određena/odaslana pozicija temelji
se na geografskim koordinatama
u skladu sa WGS-84 geodetskim sustavom, a vremenska oznaka
odaslane pozicije odnosi se na koordinirano svjetsko vrijeme
(UTC).
Jednom godišnje mora se izvršiti potpuno testiranje sustava,
uključujući dostavu poruka administraciji, ovisno o državi zastave
broda.
V
r
e
m
e
n
s
k
i
o
k
v
i
r
i
m
p
l
e
m
e
n
t
a
c
i
j
e
L
R
I
T
s
u
s
t
a
v
a
I
M
O
r
e
z
o
l
u
c
i
j
e
v
e
z
a
n
e
u
z
L
R
I
T
s
u
s
t
a
v
MSC.1/Circ.1259/Rev.6
LRIT Technical documentation (part I)
MSC.1/Circ.1294/Rev.4
LRIT Technical documentation (part II)
MSC.1/Circ.1295
Guidance in relation to certain types of ships which are required to transmit LRIT
information, on exemptions and equivalents and on certain operation matters
MSC.1/Circ.1298
Guidance on the implementation of the LRIT system
MSC.1/Circ.1307
Guidance on the survey and certification of compliance of ships with the
requirement to transmit LRIT information
MSC.1/Circ.1338
Guidance to search and rescue services in relation to requesting and receiving LRIT
information
MSC.1/Circ.1376/Rev.2
Continuity of service plan for the LRIT system
MSC.1/Circ.1412/Rev.1
Principles and guidelines relating to the review and audit of the performance
of LRIT Data Centres and the International LRIT Data Exchange
MSC 86/INF.16
LRIT Data Distribution Plan - Accessing and entering information Guidance notes for
Contracting Governments Developmental and integration testing Guidance notes for LRIT Data Centres
MSC.1/Circ.1259/Rev.7 (draft version)
LRIT Technical documentation (part I)
MSC.1/Circ.1294/Rev.5 (draft version)
LRIT Technical documentation (part II)
I
M
O
r
e
z
o
l
u
c
i
j
e
v
e
z
a
n
e
u
z
L
R
I
T
s
u
s
t
a
v
Resolution MSC.202(81)
2006 SOLAS (chapter V) amendments
Resolution MSC.211(81)
Arrangements for the timely establishment of the Long range identification and tracking system
Resolution MSC.242(83)
Use of Long-range identification and tracking information for safety and marine environmental protection
purposes
Resolution MSC.263(84)
Revised performance standards and functional requirements for the long-range identification and tracking
of ships
Resolution MSC.264(84)
Establishment of the International LRIT Data Exchange on an interim basis
Resolution MSC.275(85)
Appointment of the LRIT Coordinator
Resolution MSC.276(85)
Operation of the International LRIT Data Exchange on an interim basis
Resolution MSC.297(87)
Establishment of the International LRIT Data Exchange
Resolution MSC.298(87)
Establishment of a distribution facility for the provision of LRIT information to security forces operating in
waters of the Gulf of Aden and the western Indian Ocean
Resolution MSC.322(89)
Operation of the International LRIT Data Exchange
Resolution MSC.330(90)
Adoption of amendments to the Revised performance standards and functional requirements for the long-
range identification and tracking of ships (Resolution MSC.263(84))
Resolution MSC.331(90)
Adoption of amendments to Resolution MSC.298(87) on Establishment of a distribution facility
Resolution MSC.361(92)
Operation of the International LRIT Data Exchange after 2013
Resolution MSC.400(95)
Amendments to the Revised performance standards and functional requirements for the long-range
identification and tracking of ships (Resolution MSC.263(84))
Authorized testing ASPs
List of application service providers authorized to conduct conformance tests and issue LRIT Conformance
test reports on behalf of the Administrations (extracted from GISIS).
L
R
I
T
•
Svaka država potpisnica dužna je osnovati
nacionalni LRIT podatkovni centar ili
se pridružiti regionalnom LRIT centru, isto tako država je dužna odrediti ASP
(Application Service Provider) koji će upravljati komunikacijama između
brodova
•
Podatkovni centar (Data Centre)
prikuplja podatke brodova svih zastava i unosi ih
u međunarodni LRIT sustav putem baze podataka za međunarodnu razmjenu
(International Data Exchange) koristeći određene LRIT protokole
•
Nacionalni centri imaju mogućnost komunikacije sa ostalim centrima i razmjene
potrebnih podataka, te imaju mogućnost identifikacije svih brodova do 1000 M
udaljenosti od obale neovisno o zastavi broda
•
CLS – Collect Localisation Satellites – ASP
C
L
S
–
L
R
I
T
p
a
r
t
n
e
r
•
CLS
-
Collecte Localisation Satellites)
proposes a
complete range of LRIT
products and services
, from implementing LRIT data centers to providing
satellite data (Application Service Provider) and may also furnish LRIT
compliant terminals. CLS has operated satellite systems for vessel tracking
and location services for over 20 years, thus offering you the best possible
accompaniment in LRIT implementation. CLS provides the following LRIT
services:
•
Application Service Provider (ASP)
to provide satellite communications
from ships to LRIT Data Centres, via Inmarsat and Iridium
•
Testing ASP
: initial testing of ship terminals to verify their compliance with
LRIT specifications
•
LRIT Data Centre (DC)
: CLS can design, deliver and operate data centres for
maritime administrations. The DCs are hosted either by the administrations
or by CLS
•
LRIT compliant ship terminals
, based on the Iridium satellite system.
C
L
S
•
M
ain references are:
•
the
European Union LRIT DC,
operated by EMSA on behalf of
27(
2
8)
EU member states (plus
Iceland and Norway)
•
Vanuatu DC
•
Chile DC
•
A
uthorized Testing ASP for all EU member states and several other Flag states,
including
Vanuatu
,
Kiribati
and
Tuvalu
.
•
The
European LRIT Data Centre
is
one of the largest LRIT DC
with around
10,000
ships
and is a major contribution to the EMSA mission to ensure the highest level of
maritime safety, security and environmental protection around the European coasts. The
EU LRIT DC is managed by EMSA on behalf of all the EU Member States, plus Iceland and
Norway. All 2
8
European member states (plus Iceland and Norway) have customized
data access.
C
L
S
–
a
u
t
h
o
r
i
s
e
d
t
e
s
t
i
n
g
A
S
P
•
A
uthorized Testing ASP
, CLS issues
LRIT Conformance Test Reports
on behalf of
most Flag authorities. CLS will forward all successful test results directly to your
Flag administration. Our testing ASP procedures follow
the
MSC.1/Circ.1307
dated 9 June 2009.
•
CLS has operated satellite systems for over 20 years, specializing in vessel tracking
and location services. CLS operates 40 instruments on board 30 satellites. Its
Processing Centre is operational 24h a day, 365 days a year and has also a crash
recovery centre which ensures an extremely reliable service.
L
R
I
T
–
c
o
n
f
o
r
m
a
n
c
e
t
e
s
t
i
n
g
•
In order to comply with the LRIT regulation, the LRIT communication capabilities of the
onboard equipment will have to be certified by an
ASP (Application Service
Provider)
recognized by the Administration, or an authorized LRIT Testing ASP. These
Testing ASPs can issue Conformance Test Reports (CTR) for the terminals that pass the
test.
•
E
ach terminal must be tested by an authorized Testing ASP to attest its LRIT
conformance.
LRIT (Long Range Identification and Tracking) system enables global identification and tracking of ships for security purposes. Ships equipped with LRIT system can autonomously transmit ship data to authorized authorities. LRIT system is mandatory for certain types of vessels as per SOLAS convention, regulated by IMO. It utilizes satellite communication for one-way messaging, transmitting ship identification data, geographic position, and time stamp. Regular testing and message delivery to flag state administration are required.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
ELEKTRONIKA NAVIGACIJA LRIT Long Range Identification and Tracking
Sustav praenja i identifikacije brodova velikog Sustav pra enja i identifikacije brodova velikog dometa dometa LRIT LRIT LRIT (Long Range Identification and Tracking of ships LRIT) sustavom omogu ena je identifikacija i pra enje brodova na globalnoj razini u sigurnosne svrhe.Sustav uspostavljen 19.05.2006. Brodovi su du ni oda iljati podatke ovla tenim tijelima dr avama zastava. Uz zahtjeve rezolucije A.694(17), brodski ure aj za oda iljanje LRIT podataka mora ispunjavati i zahtjeve definirane u rezoluciji MSC.263(84): automatski i samostalno oda iljati brodske podatke Podatkovnim centrima u vremenskim intervalima od 6 sati ili na zahtjev; pru ati mogu nost daljinskog oda iljanja podataka, bez obzira gdje se brod nalazi, kako bi se LRIT podaci mogli primati u promjenjivim intervalima, u rasponu od 15 minuta do 6 sati; oda iljati podatke upravljanim (unaprijed zakazanim), odnosno pozivanim (na zahtjev) na inom rada; mora biti izravno spojen sa brodskom GNSS opremom, ili mora imati svoj izvor odre ivanja pozicije.
