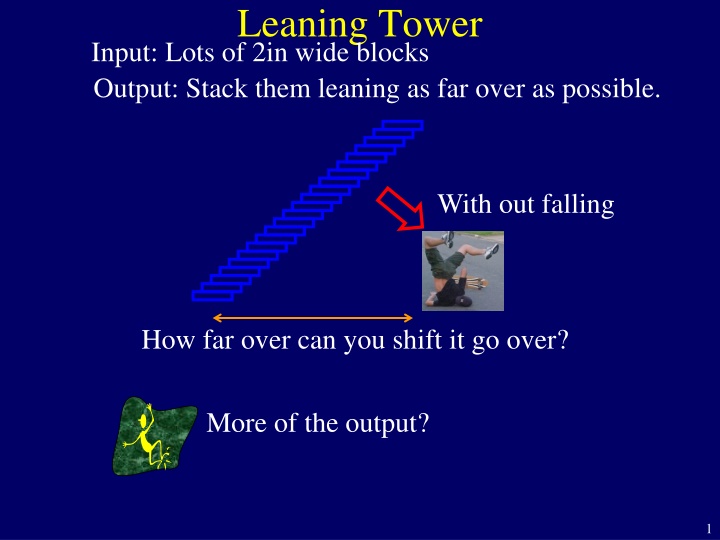

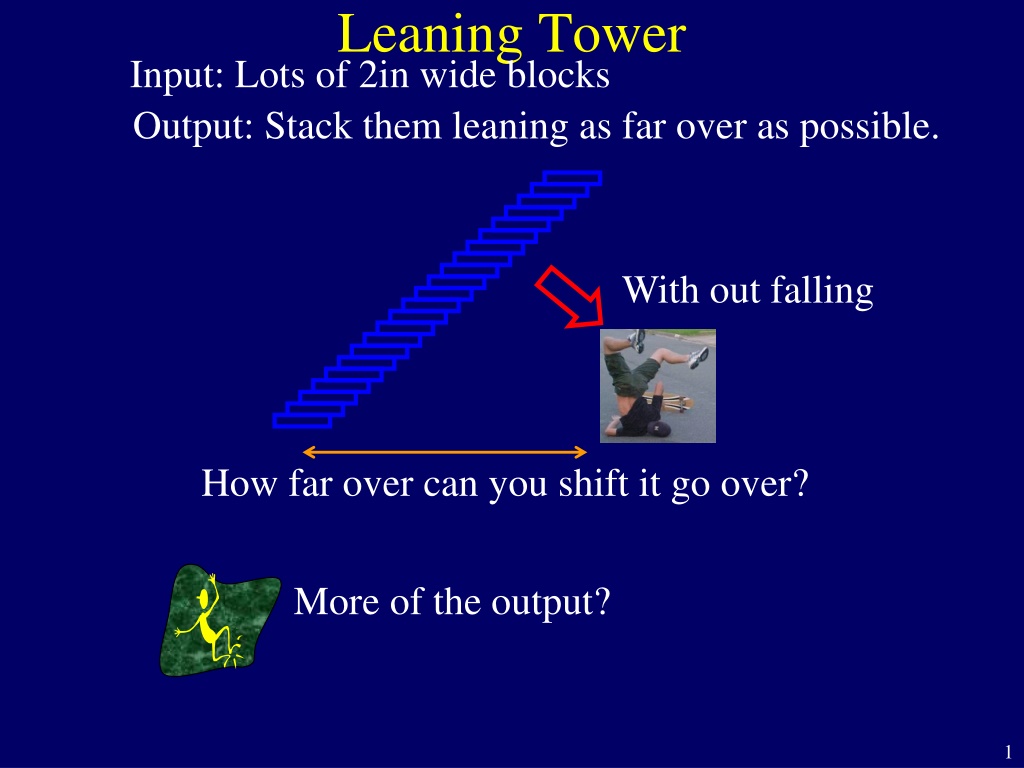

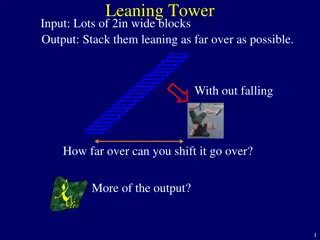

1. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. With out falling How far over can you shift it go over? More of the output? 1

2. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. But if I keep adding blocks it will falling Is this a proof that it is not possible? Try again More of the output: I have produced the first i-1 objects. 2

3. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. it will falling Where should we put the next block? More of the output: I have produced the last i-1 objects. Extra info: Center of mass is within bottom block Leaning distance so far 3

4. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. it will falling Where should we put the next block? More of the output: I have produced the last i-1 objects. Extra info: Center of mass is within bottom block Leaning distance so far 4

5. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. No progress Where should we put the next block? More of the output: I have produced the last i-1 objects. Extra info: Center of mass is within bottom block Leaning distance so far 5

6. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. With the center of mass of the above blocks teetering on the edge of supporting block. Where should we put the next block? More of the output: I have produced the last i-1 objects. Extra info: Center of mass is within bottom block Leaning distance so far 6

7. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. Where is the new center of mass? More of the output: I have produced the last i-1 objects. Extra info: Center of mass is within bottom block Leaning distance so far 7

8. Leaning Tower Mass = m1 Mass = m2 Where is the new center of mass? Center of mass = r1 Center of mass = r2 Center of mass m = + r m r R 1 m 1 2 2 + m (Ignoring veridical) 1 2 8

9. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. mass2 mass1 To make the math easier, lets call this zero. Where is the new center of mass? Mass = m1= 1 Center of mass = r1 = 1 Mass = m2= i-1 Center of mass = r2 = 0 Center of mass m = Center of mass is 1/i from right edge of ith block. + r m r R 1 m 1 1 2 2 + ( m i ( 1 + 2 ) 1 1 0 1 = = + 1 ) 1 i i 9

10. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. 1 1/i Add the next block. = 1 = = ln( ) d n i 1 .. i n n= de More of the output: I have produced the last i-1 objects. Extra info: Center of mass is 1/i from right edge of ith block. Leaning distance so far? 10

11. Leaning Tower Input: Lots of 2in wide blocks Output: Stack them leaning as far over as possible. 1 1/i = 1 = = ln( ) d n i 1 .. i n = d 2 n 11
