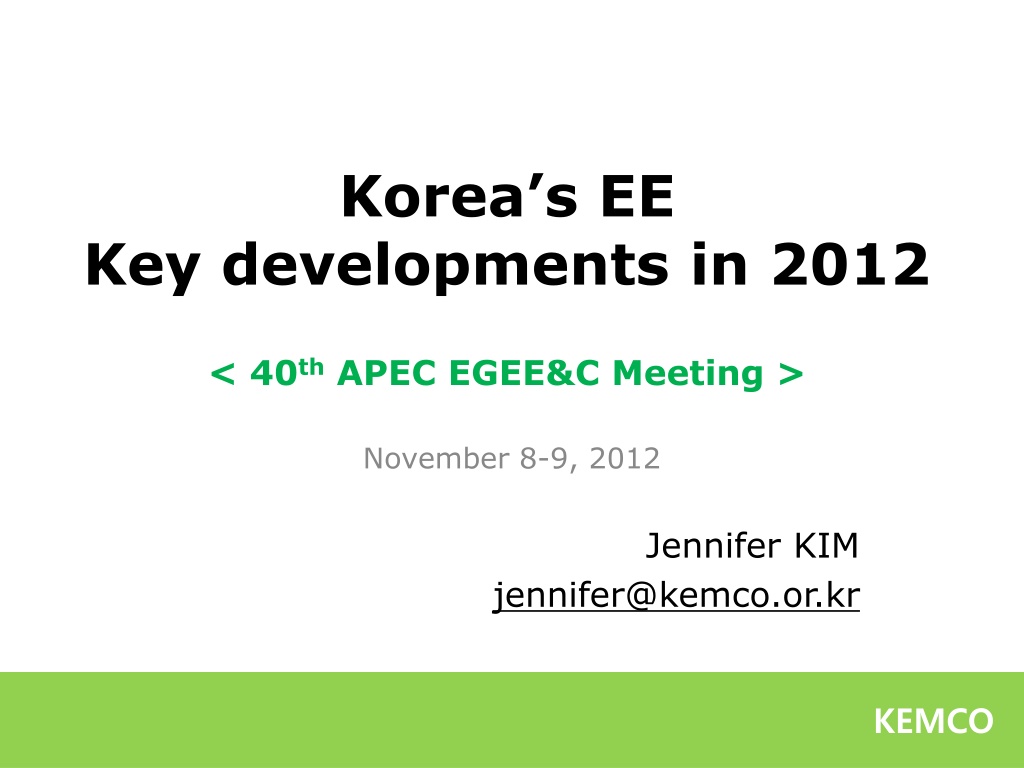

1. Koreas EE Key developments in 2012 < 40thAPEC EGEE&C Meeting > November 8-9, 2012 Jennifer KIM jennifer@kemco.or.kr KEMCO

2. Contents Overview of Korea s Energy Efficiency programs EE Management of Electric Heating Equipment Designation of Energy Intensive Equipment as EE Management target products Establishing Plans for Standby Korea 2015 KEMCO

3. Overview of Koreas EE Program 3 programs in Energy Labels & Standards Energy Efficiency Label and Standard Program (including MEPS) Mandatory 5-grade labeling & MEPS 37 items : Refrigerators, Air-conditioners, TVs, Window sets, etc High-efficiency Equipment Certification Program e-Standby Program Mandatory & Voluntary Standby Korea 2015 22 items : Computers, etc Voluntary 39 items : LED Lighting equipment, etc KEMCO

4. EE Mgmt of Electric Heating Equipment KEMCO

5. EE Mgmt of Electric Heating Equipment Implementing electric rates displaying scheme Electric fan heaters Electric stoves KEMCO

6. EE Mgmt of Electric Heating Equipment Label for electric fan heaters Please aware that you will have big energy charges if you use this product for a long time Power consumption (W) CO2 emission per hour (g/h) Name of model Monthly energy cost (applied big progressive rate, 384 KWR/kWh) KEMCO

7. EE Mgmt of Electric Heating Equipment Switching to EE L&S Program for VRF multi-split heat pumps Test Condition - Model scope : Unit model of outdoor - Pipeline length : 50m - Heating temperature : 7 , -15 MEPS & Energy Efficiency Level Unit Model R Grade 1 2 3 4 5 3.5 R (unit : W/W) 3.25 R < 3.50 3.00 R < 3.25 2.75 R < 3.00 2.40 R < 2.75 IEER COP2 (-15 ) EERa COP (100%, 75%, 50%, 25%) 2.80 KEMCO 2.40 2.00 1.50 EERa = (IEER+COP)/2 R = EERa = (IEER+COP)/2

8. Designation of Energy Intensive Equipment as EE Mgmt Target Products New Target Products in Energy Efficiency Label & Standards Program Electric fan heaters, Electric stoves (Dec. 15th. 2011) VRF multi-split heat pumps (April. 1st. 2012) TVs, Window sets, Transformers, Dehumidifiers (July. 1st. 2012) Tyres (Dec. 1st. 2012) KEMCO

9. Designation of Energy Intensive Equipment as EE Mgmt Target Products Adopting MEPS & E E grade(1 to 5) for TVs KS C IEC 62087 R(Energy Efficiency Level Index) Power consumption at operational mode (W) The square root of display area (sqrt(m2)) = Standby power (passive standby mode) 1.0W R Level R 130 1 R 165 - 2 165 < R 205 - 3 205 < R 260 - 4 KEMCO 260 < R 440 - 5

10. Establishing Plans for Standby Korea 2015 Networked standby : Mandatory of Set-top boxes Passive standby power mode Standby Power 0.5W by 2015 Standby Korea 2015 Adopting TEC (Typical Energy Consumption) : Computers, etc Adopting On-mode : Monitors KEMCO

11. Establishing Plans for Standby Korea 2015 Adopting TEC standard for Computers Energy Star Program Ver. 5.0 ECMA-383 Categories and Allowances for Desktop and Notebook Discrete Graphics Platform Requirements Capability Adjustments Memory: 0.4 kWh (per GB over 4 GB) TEC (kWh) Discrete GPU (FB Width): ECMA-383 Categories Cat A: 40.0 Cat B: 53.0 Cat C: 88.5 Notebooks Additional storage: 3 kWh Discrete TV tuner : 2.1kWh Memory: 1 kWh (per GB over base) TEC (kWh) Base Memory: CAT A, B, and C 2GB; CAT D 4GB Cat A: 148 Cat B: 175 Cat C: 209 Cat D: 234 Discrete GPU (FB Width): ECMA-383 Categories Desktop, Integrated DT Additional storage: 25 kWh Discrete TV tuner : 14kWh Discrete Audio card : 14kWh KEMCO

12. Establishing Plans for Standby Korea 2015 TEC power consumption (kWh) = (8760/1000) x (Poff x Toff + Psleep x Tsleep + Pidle x Tidle) TEC Weighting Desktop, Integrated DT 55% 5% 40% Notebook Toff Tsleep Tidle 60% 10% 30% KEMCO

13. Establishing Plans for Standby Korea 2015 Adopting On-mode standard for Monitors Energy Star Program Ver. 5.0 Requirements Sleep mode Off mode Category On-mode Power Consumption Screen size < 76cm Megapixels 1.1MP 6 x megapixels+ 0.00775 x viewable area + 3 Screen size < 76cm Megapixels > 1.1MP 9 x megapixels+ 0.00775 x viewable area + 3 2.0W 0.5W Screen size 76-153cm 0.04185 x viewable area + 8 KEMCO

14. Thank you!! . For more information, E- mail : jennifer@kemco.or.kr KEMCO homepage : http://www.kemco.or.kr/eng KEMCO
